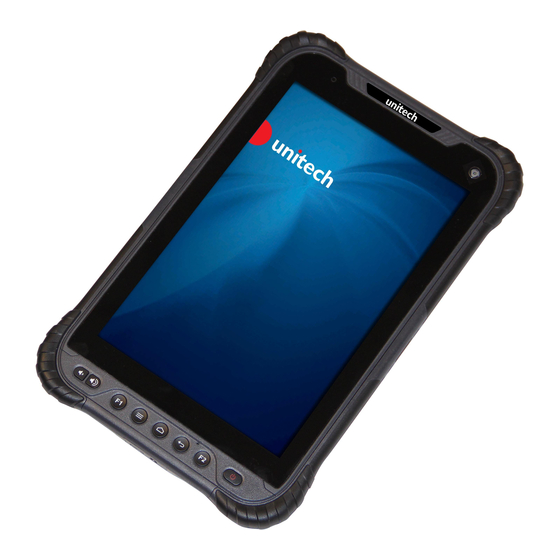

Unitech TB85 Quick Start Manual

Hide thumbs Also See for TB85:

Advertisement

Quick Links

Download this manual
TB85
Quick Start Guide

Advertisement

loading

Related Manuals for Unitech TB85

Summary of Contents for Unitech TB85

  • Page 1 TB85 Quick Start Guide...
  • Page 2 Ambient light sensor Front camera Menu button Home screen button Back button Increase volume Microphone Decrease volume Power button Extended Extended function button 1 function button 2...
  • Page 3 External device docking station Rear camera External antenna port Battery cover lock B Battery cover lock B Battery cover lock A 3.5mm Headset TYPE-C interface...

  • Page 4: Battery Charging

    1. Battery Charging • Charge with travel charger Insert the small plug end of the USB data cable into the TYPE-C port of the device, insert the large plug end of the USB data cable into the travel charger plug, and then insert the travel charger plug into a power outlet to charge.
  • Page 5 Figure 2 • Face the SIM card metal contacts downwards and push into the slot. Take note on the direc- tion of the notched corner. • Face the MicroSD card metal contacts downwards and push into the slot. Take note on the direction of the notched corner.
  • Page 6 3. Turning the device on and off To turn on the device, firmly press and hold the bottom right【Power Button】until the boot screen appears. To turn off the device, firmly press and hold the 【Power Button】 to display the options menu.
  • Page 7 • Expanding the home screen Swipe your finger horizontally on the home screen to expand to the left or right of the home screen. - Adding an icon on the home screen Press and hold any application or widget icon and drag it to an empty area on the home screen.
  • Page 8 6. Installation and management of applications Users can enter the applications store to download and install related application programs. Slide the screen left or right → "Settings", select "Apps", or touch the [Menu button] → "Manage apps" to view and manage application programs on your device. 7.
  • Page 9 9. Mobile network connection (WLAN/Bluetooth) • WLAN connection Slide the screen left or right → "Settings" to go into the settings panel, go to the WLAN options and turn the "On" switch to activate WLAN. After WLAN is turned on, the WLAN icon will be displayed in the status bar.

  • Page 10: Product Safety Warnings

    PRODUCT SAFETY WARNINGS Use responsibly. Read all instructions and safety information before use to avoid injury. The maximum operating ambient temperature of the equipment is 55°C. ① Battery safety Battery works at ambient temperatures ranging from-20°C to 55°C. (1)CAUTION: Risk of explosion if battery is replaced incorrectly. Replace with the same or equivalent type of battery as recommended by the manufacturer.
  • Page 11 Notice 1. Some special places, such as airports, hospitals, gas stations and other places, do not allow the use of electronic equipment. Please comply with the rules and do not use this product in these places. 2. The driver should pay attention to the road condition and traffics when the vehicle is ----moving.

  • Page 12: Battery Instructions

    Google,Google Play, the Google Play logo and other marks are trademarks of Google LLC. Importer : Unique Technology Europe BV Kapt. Hatterasstraat 19 5015 BB Tilburg Tel: +31 (0)13-4609292 Fax: +31 (0)13-4609293 info@eu.ute.com Manufacturer : Unitech Electronics Co., LTD. 5F, No. 136, Lane 235, Baoqiao Road, Xindian District, New Taipei City 231, Taiwan...

  • Page 13: Regulatory Compliance Statements

    NOTICE: The SAR limit of Europe is 2.0 W/kg. Device types TB85 has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use on the body is 0.977W/kg This device was tested for typical body - worn operations with the back of the handset kept 0 cm from the body.
  • Page 14 Antenna Type FPCAntenna Power: GSM/GPRS/EGPRS900:33dBm GSM/GPRS/EGPRS1800:30dBm WCDMA/HSDPA/HSUPA Band 1:23dBm WCDMA/HSDPA/HSUPA Band 8:23dBm LTE FDD Band 1:24dBm , LTE FDD Band 3:24dBm , LTE FDD Band 7:23dBm , LTE FDD Band 8:24dBm,LTE FDD Band 20:24dBm , LTE FDD Band 28:24dBm , LTE TDD Band38: 23dBm , LTE TDD Band 40: 23dBm GSM Release 99 ;WCDMA Release 6 ;LTE Release 8 WIFI and BT 2400-2483.5MHz : 14 dBm...
  • Page 15 Appendix A Normal Mode RF Power Range (GSM, WCDMA) Mode Range(dBm) GSM 900 32.00-33.00 GPRS 900 (1 Slot) 32.00-33.00 GPRS 900 (2 Slots) 31.00-32.00 GPRS 900 (3 Slots) 29.00-30.10 GPRS 900 (4 Slots) 28.00-29.00 EGPRS (8PSK, 1-Slot) 25.00-26.00 EGPRS (8PSK, 2 -Slots) 24.00-25.00 EGPRS (8PSK, 3 -Slots) 22.00-23.00...
  • Page 16 Normal Mode RF Power Range (LTE) Bandwidth Mode Modulation Range(dBm) 22.50-23.50 QPSK 21.50-22.50 21.50-22.50 20 MHz 21.50-22.50 16QAM 20.50-21.50 20.50-21.50 22.50-23.50 QPSK 21.50-22.50 21.50-22.50 15 MHz 21.00-23.00 16QAM 20.50-21.50 20.50-21.50 LTE Band 1 22.50-23.50 QPSK 21.50-22.50 21.50-22.50 10 MHz 21.00-22.50 16QAM 20.50-21.50 20.50-21.00...
  • Page 17 Bandwidth Mode Modulation Range(dBm) 22.00-23.40 QPSK 21.00-22.00 LTE Band 3 20 MHz 21.00-22.00 16QAM 21.00-22.50 20.00-21.10 20.00-21.00 22.00-23.00 QPSK 21.00-22.00 21.00-22.00 15 MHz 21.00-22.60 16QAM 20.00-21.00 20.00-21.00 22.50-23.50 QPSK 21.00-22.00 21.00-22.00 10 MHz 21.50-22.50 16QAM 20.50-21.50 20.00-21.00 22.50-23.00 QPSK 21.50-22.00 21.50-22.00 5 MHz 21.00-22.00...
  • Page 18 22.00-23.00 QPSK 21.00-22.00 21.00-22.00 3 MHz 21.00-22.00 16QAM 20.00-21.10 20.00-21.00 22.50-23.20 QPSK 22.00-23.00 21.50-22.10 1.4 MHz 21.50-22.60 16QAM 21.50-22.10 20.00-21.00...
  • Page 19 Bandwidth Mode Modulation Range(dBm) 22.00-23.00 QPSK 21.00-22.00 21.00-22.00 20 MHz 20.50-22.00 16QAM 20.00-21.00 20.00-21.00 22.00-23.00 QPSK 21.00-22.00 21.00-22.00 15 MHz 20.50-22.50 16QAM 20.00-21.00 20.00-21.00 LTE Band 7 22.00-23.00 QPSK 21.00-22.00 21.00-22.00 10 MHz 20.50-22.00 16QAM 20.00-21.00 20.00-21.00 22.00-23.00 QPSK 21.00-22.00 21.00-22.00 5 MHz 20.50-21.50...
  • Page 20 Bandwidth Mode Modulation Range(dBm) 22.00-23.50 QPSK 22.00-22.50 LTE Band 8 10 MHz 22.00-22.50 21.50-22.50 16QAM 20.50-21.50 20.00-21.00 22.00-23.20 QPSK 21.50-22.50 21.50-22.50 5 MHz 21.00-22.50 16QAM 20.50-21.50 20.50-21.50 22.50-23.50 QPSK 21.50-22.50 21.50-22.50 3 MHz 21.50-22.50 16QAM 20.50-21.50 20.50-21.50 22.50-23.10 QPSK 22.50-23.10 21.50-22.10 1.4 MHz 21.50-22.50...
  • Page 21 Bandwidth Mode Modulation Range(dBm) 22.50-23.50 QPSK 21.50-22.50 21.50-22.50 20 MHz 21.50-22.50 16QAM 20.50-21.50 20.50-21.50 LTE Band 20 22.50-23.50 QPSK 21.50-22.50 21.50-22.50 15 MHz 21.00-23.00 16QAM 20.50-21.50 20.00-21.00 22.50-23.50 QPSK 21.50-22.50 21.50-22.50 10 MHz 21.50-23.00 16QAM 20.50-21.50 20.50-21.00 22.50-23.50 QPSK 21.50-22.50 21.50-22.50 5 MHz 21.00-22.50...
  • Page 22 Bandwidth Mode Modulation Range(dBm) 22.00-23.50 QPSK 22.00-22.50 22.00-22.50 20 MHz 21.50-22.50 16QAM 20.50-21.50 20.50-21.50 22.00-23.50 QPSK 21.50-22.50 22.00-22.50 15 MHz 21.00-23.00 LTE Band 28 16QAM 20.50-21.50 21.00-21.50 22.50-23.60 QPSK 22.00-23.00 22.00-23.00 10 MHz 21.50-23.00 16QAM 20.50-21.50 20.50-21.50 22.50-23.50 5 MHz QPSK 21.50-22.50...
  • Page 23 21.50-22.50 21.50-22.50 16QAM 20.50-21.50 20.50-21.50 22.50-23.50 QPSK 21.50-22.50 21.50-22.50 3 MHz 21.00-22.00 16QAM 20.50-21.50 20.50-21.50...
  • Page 24 Bandwidth Mode Modulation Range(dBm) 22.00-23.50 QPSK 21.00-22.00 21.00-22.00 20 MHz 20.50-22.50 16QAM 20.00-21.00 20.00-21.00 22.00-23.00 QPSK 21.00-22.00 21.00-22.00 15 MHz 20.50-22.00 LTE Band 38 16QAM 20.00-21.00 20.00-21.00 22.00-23.00 QPSK 21.00-22.00 21.00-22.00 10 MHz 20.50-23.00 16QAM 20.00-21.00 20.00-21.00 22.00-23.00 5 MHz QPSK 21.00-22.00 21.00-22.00...
  • Page 25 Bandwidth Mode Modulation Range(dBm) 21.50-23.00 QPSK 21.00-22.00 21.00-22.00 20 MHz 20.00-22.00 16QAM 20.00-21.00 20.00-21.00 22.00-23.00 QPSK 21.00-22.00 21.00-22.00 15 MHz 20.50-22.00 16QAM 20.00-21.00 20.00-21.00 LTE Band 40 22.00-23.00 QPSK 21.00-22.00 21.00-22.00 10 MHz 20.50-22.50 16QAM 20.00-21.00 20.00-21.00 22.00-23.00 QPSK 21.00-22.00 21.00-22.00 5 MHz 20.50-21.50...
  • Page 26 Normal Mode RF Power Range (WLAN/Bluetooth) Band (GHz ) Mode Range(dBm) 802.11b 11.00-12.00 WIFI 2.4G 802.11g 9.00-10.00 (2.4~2.4835) 802.11n(HT20) 9.00-10.00 Band (GHz ) Mode Range(dBm) 802.11a 10.50-12.00 802.11n(HT20) 11.00-12.00 WIFI 5.2 G 802.11ac(VHT20) 10.50-12.00 (5.15~5.25) 802.11ac(VHT4 0) 11.00-12.00 802.11ac(VHT8 0) 10.00-10.50 802.11a 11.50-13.00...
