Summary of Contents for VocoPro Silent PA

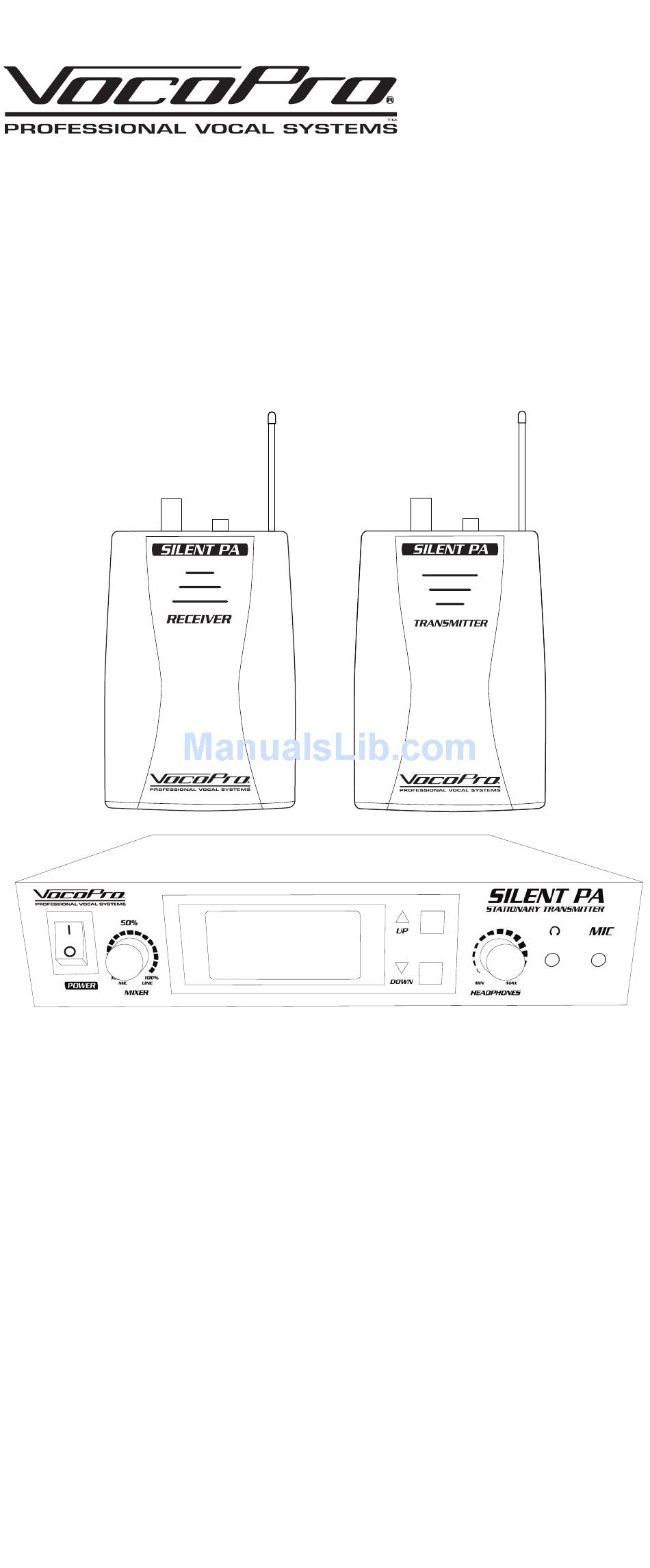

- Page 1 Silent PA Wireless Audio Broadcast System ’...
-
Page 2: Table Of Contents
Commonly Asked Questions . . . . . . . . . . . . . . . . . . 20 Silent PA Owner’s Manual ©... -
Page 3: Safety Instructions
8. V CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric 9. H shock, do not remove cover (or back). No user-serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger. - Page 4 8. Ventilation - The appliance should be situated so its location does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation slots. 9.
-
Page 5: Fcc Information
UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC 1. To requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. Ins 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. - Page 6 CAUTION: READ THIS BEFORE OPERATING YOUR UNIT 1. To ensure the finest performance, please read this manual carefully. Keep it in a safe place for future , to reference. 2. Install your unit in a cool, dry, clean place - away from windows, heat sources, and too much vibration, dust, moisture or cold.
-
Page 7: Welcome
Be sure to visit the VocoPro website www.vocopro.com for the latest information on new products, packages and promos. And while you’re there don’t forget to check out our Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ Service directory! We look forward to hearing you sound like a PRO, with VocoPro, the singer’s ultimate choice. -
Page 8: Listening For A Lifetime
Selecting fine audio equipment such as the unit you’ve just purchased is only the start of your musical enjoyment. Now it’s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. -
Page 9: Getting Started
GETTING STARTED WHAT’S IN THE BOX: STATIONARY TRANSMITTER • Stationary Transmitter (ST) • 1/4”-to-1/4” Stereo Cable • Antenna • Rack Mount Kit • Power Adapter WHAT’S IN THE BOX: BODYPACK TRANSMITTER • Bodypack Transmitter (BT) • 1/8”-to-1/8” Stereo Cable • 1/8”-to-1/4” Stereo Conversion Cable •... -
Page 10: Getting Connected
Combo Jacks will be considered LINE inputs on the front MIC/LINE Mixer knob. See Descriptions & Details for more information. Note: The 1/8” LINE IN jack enables the Silent PA to accommodate up to three (3) microphones, plus music. MIC/LINE Mixer knob must be in middle position to hear all three mic signals simultaneously. - Page 11 PUSH PUSH PUSH SILENT PA MIC IN LINE IN LINE MIC IN PHANTOM DC 12-15V IN Illustration shown using XLR cables. Connection can also be made using 1/4” Stereo Cables PUSH PUSH LINE IN MIC IN DC 12-15V IN PUSH...
-
Page 12: Connecting Bodypack Transmitter
CONNECTING THE BODYPACK TRANSMITTER (BT) Insert (2) AA batteries into the Bodypack Transmitter. Insert the music signal: • Plug in an 1/8” stereo cable from the music source output (i.e. laptop, smartphone, MP3 player, etc.) into the AUX input available on the side of the BT. Insert the microphone signal: •... -
Page 13: Connecting Bodypack Receiver
CONNECTING THE BODYPACK RECEIVER (BR) Insert (2) AA batteries into the Bodypack Receiver. Output the audio signal to sound systems: • To Powered Speakers– Plug in an 1/8” stereo cable from the headphone output on the BR to an available input on the powered speakers. •... -
Page 14: Setting The Wireless Channel
SETTING THE WIRELESS CHANNEL Once the physical connections to the transmitters and receiver are made, the next step is establishing a wireless connection . SELECTING A CLEAR CHANNEL ON THE BODYPACK RECEIVER (BR) Power ONLY the BR on; leave the Stationary and Bodypack Transmitters powered off. -
Page 15: Descriptions & Details
Note: Audio will still be transmitted if headphones are inserted in the headphone jack. Mic In - This jack is available for a microphone with an 1/8” connection . PUSH PUSH PUSH SILENT PA MIC IN LINE IN LINE MIC IN PHANTOM DC 12-15V IN... -
Page 16: Bodypack Transmitter
Note: If using a music source, the volume must be controlled from the source to strike a balance between the music and microphone volume in order to hear the microphones clearly. • MIC IN - When set to this position, the L/R XLR-1/4” Combo Jacks are Microphone Inputs, able to accept signal from microphones via XLR or 1/4”... -
Page 17: Bodypack Receiver
Note: DO NOT ATTEMPT TO RECHARGE ALKALINE BATTERIES; BATTERIES MAY EXPLODE. Note: This input will NOT interface with a computer or any other device; it will only charge the batteries if plugged into a computer. Charge Indicator - This LED indicates the charge level when recharging the batteries •... -
Page 18: Brackets And Mounting
+5V USB IN - This mini-USB connection is used to recharge the batteries, if rechargeable batteries are installed . Note: DO NOT ATTEMPT TO RECHARGE ALKALINE BATTERIES;BATTERIES MAY EXPLODE. Note: This input will NOT interface with a computer or any other device;... - Page 19 Mounting with 2 Stationary Transmitters (ST): 1 . Remove the 4 phillips head screws; 2 on either side of the STs. 2 . Remove 1 screw from the bottom of each ST. 3 . Attach the included small square bracket to bottom plate of both STs;...
-
Page 20: Troubleshooting
More than likely, there will be some channels that cannot be used due to local interference. How many microphones can I plug into the Silent PA Stationary Transmitter? The Stationary Transmitter has jacks for up to 4 microphones; three (3) XLR-1/4”...
