Summary of Contents for Ayra Ita04 MKII

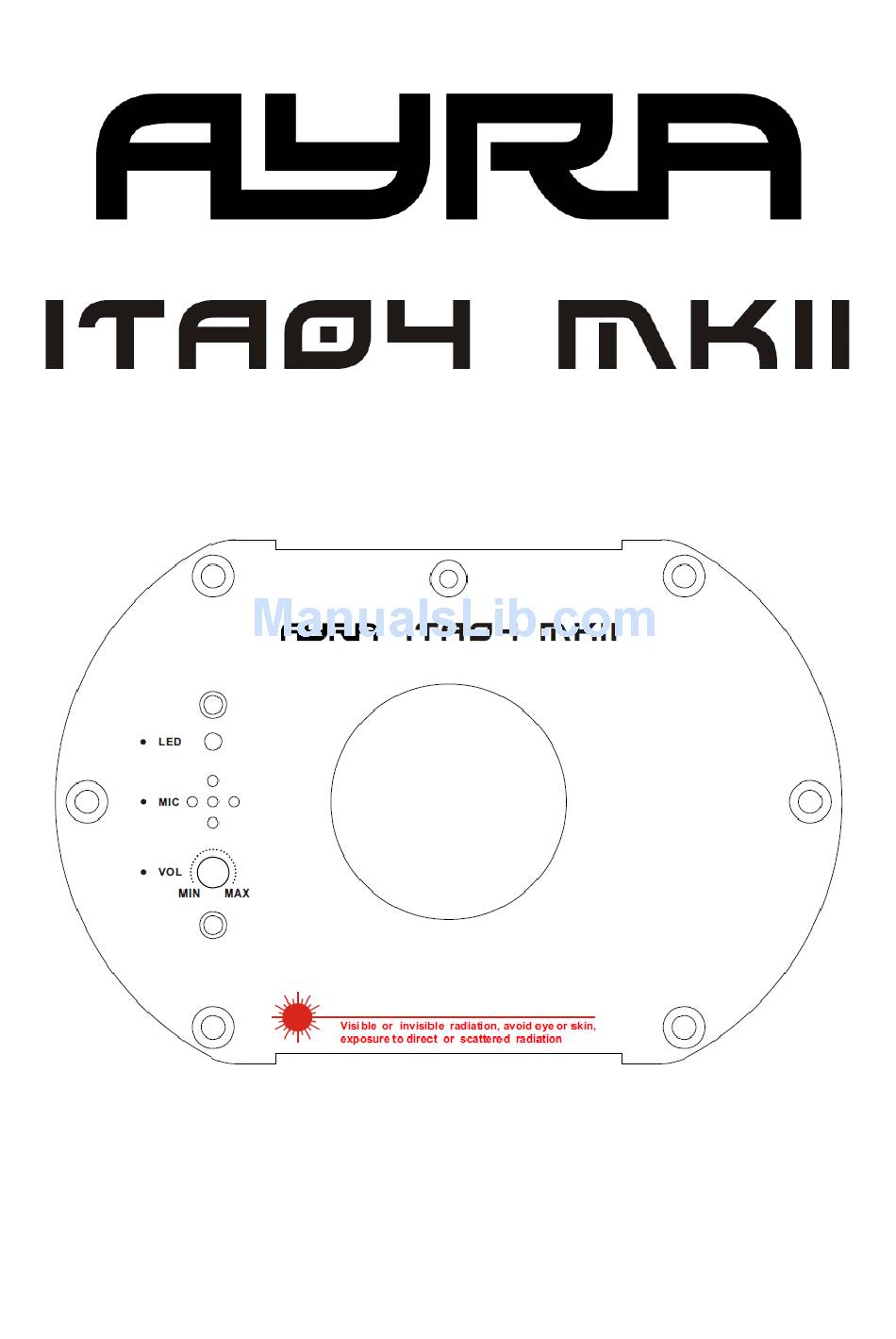

- Page 1 50 mW green DMX laser User manual...
-
Page 2: Safety Precautions
WARNING: Do not look directly into the beam coming out of the lens, from short distance or when a solid beam is projected. This may cause serious injury to eyesight. Ayra is not responsible for any injuries caused by incorrect use of this device. - Page 3 minutes before re-activating the laser. - Do not switch the power on and off too often, as this may cause serious damage to the unit. - Avoid heavy shocks and collision during transport and use, as this might cause damage to the laser diodes, electronic circuit, optics and housing.
-
Page 4: Box Contents
Box contents Box contents 1x laser device 1x user manual 1x IEC to Schuko power cable Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it. The supplied cable can be replaced with a regular IEC to Schuko cable, with a minimum cable diameter of 0.75m². -
Page 5: Device Overview
Device overview 1. Power supply: Power IN and Power OUT. Connect the device to a power supply with the provided cable. 2. DMX in/output: When using a DMX-controller, connect the device with the supplied XLR- cable. The unit has a XLR in- and output for the distribution of DMX signals. 3. -
Page 6: Setting Up The Device
Setting up the device Setting up the device - When the power supply is connected, the unit will first calibrate the stepping motors of the unit. It is normal that this may cause any noise. When the calibration is done, the unit is ready to be used (in the selected DMX, automatic or music controlled mode) - It is possible that the unit may shut off the beam projection when no music or sound is detected. - Page 7 DMX operating mode While in the DMX mode, it is possible to select the working mode of the laser. That way, you can either choose to use your own programmed presets of your DMX controller, or to activate the music activated/automatic working mode of the laser to have a fully-automatic lasershow.
-
Page 8: Technical Specifications
Technical specifications TYPE: ITA 04 MKII Laser diode: - green: class 3B, 532 nm, >50 mW Scan type: - stepping motors Scan motor angle: - maximum angle: +/- 25 degrees Working modes: - automatic (full-automatic laser show with built-in program) - music activated (full-automatic laser show with built-in program, responding to the beat of music) - DMX (8 channels) - input signal bandwidth: 0~5000 Hz... -
Page 9: Electrical Diagram
Electrical diagram...
