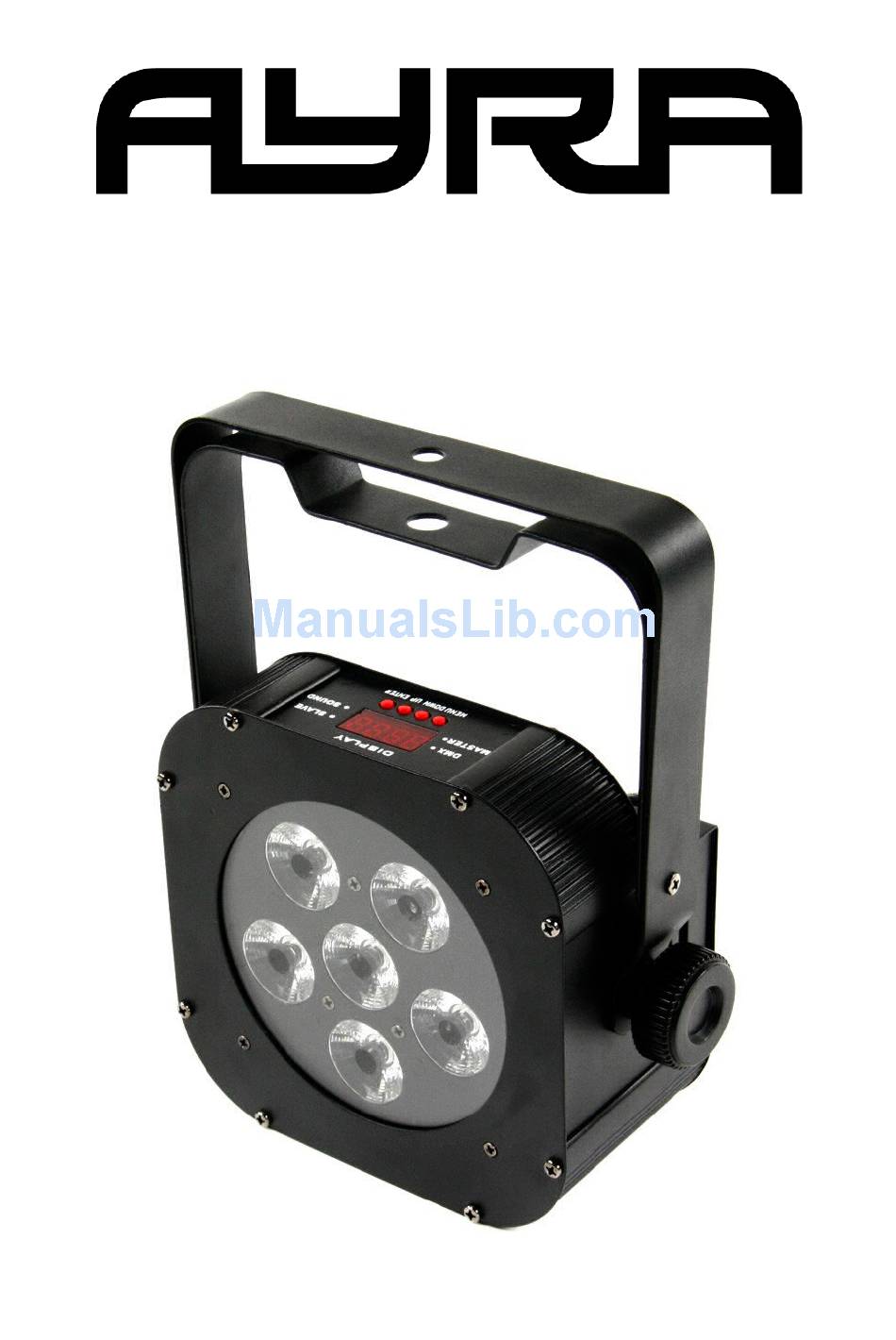

- Page 1 ComPar 10 5-in-1 RGBAW LED spot User manual...
-
Page 2: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electrical shocks may occur! WARNING! Only connect this device to a matching power outlet. This device is intended to work on a specified AC currency. Connecting this device to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electrical shocks! WARNING! Be careful with every operation of this device. - Page 3 - Familiarize yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in other ways than described in this user manual may cause damage and injury. Ayra does not take responsibility for any damage or injury caused by improper use.
-
Page 4: Box Contents
Box contents Box contents 1x ComPar 10 fixture 1x power cable Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it. - Page 5 Device overview 1. Beam output 2. Tightening knobs 3. Dual bracket 4. LED display with menu buttons 5. Safety eye 6. Built-in microphone 7. DMX output (3p XLR) 8. DMX input (3p XLR) 9. IEC power input with fuse 10. IEC power output (link)
-
Page 6: Setting Up The Unit
Setting up the unit To activate the unit, connect the included power supply to the unit and a suitable 230V, 50 Hz power outlet. The fixture will start up and show the last chosen setting on the display. Usually, with a new product, this is the DMX mode with the value set on 001. - Page 7 LED modules to stay intact and be reliable. Therefore, the ComPar 10 is equipped with a power drop protection, which decreases the LED output when the temperature of the fixture exceeds 60 degrees Celsius. For every degree above the 60 degrees limit, the output power will be decreased with 5%.
- Page 8 XLR – XLR cables (not included). DMX: The ComPar 10 can be connected to a DMX-controller with standard XLR – XLR cable. While doing so, a DMX-terminator must be connected to the last fixture, at the end of the DMX-chain. This prevents reflections in the DMX-signal, which could cause flickering and unwanted behavior from your intelligent fixtures.
- Page 9 185 - 192 G + W + A 193 - 200 B + W + A 201 - 208 R + G + B + W 209 - 216 R + G + W+ A 217 - 224 R + G + B +A 225 - 232 R + B + W + A 233 - 240...
-
Page 10: Technical Specifications
Technical specifications Powerful and compact LED fixture with unique LED colourmixing system Slimline design, easy transport and storage Light source: 6x 15W RGBWA 5-in-1 LED chip Full output = 12.000 lux @1m Perfect colour mixing thanks to close placement of LED diodes Extensive colour palette, RGB colour mixing + white (cool white) + amber (warm white) Create amazing colour combinations and true pastel/warm colours High power light source for bright and intense projection...
