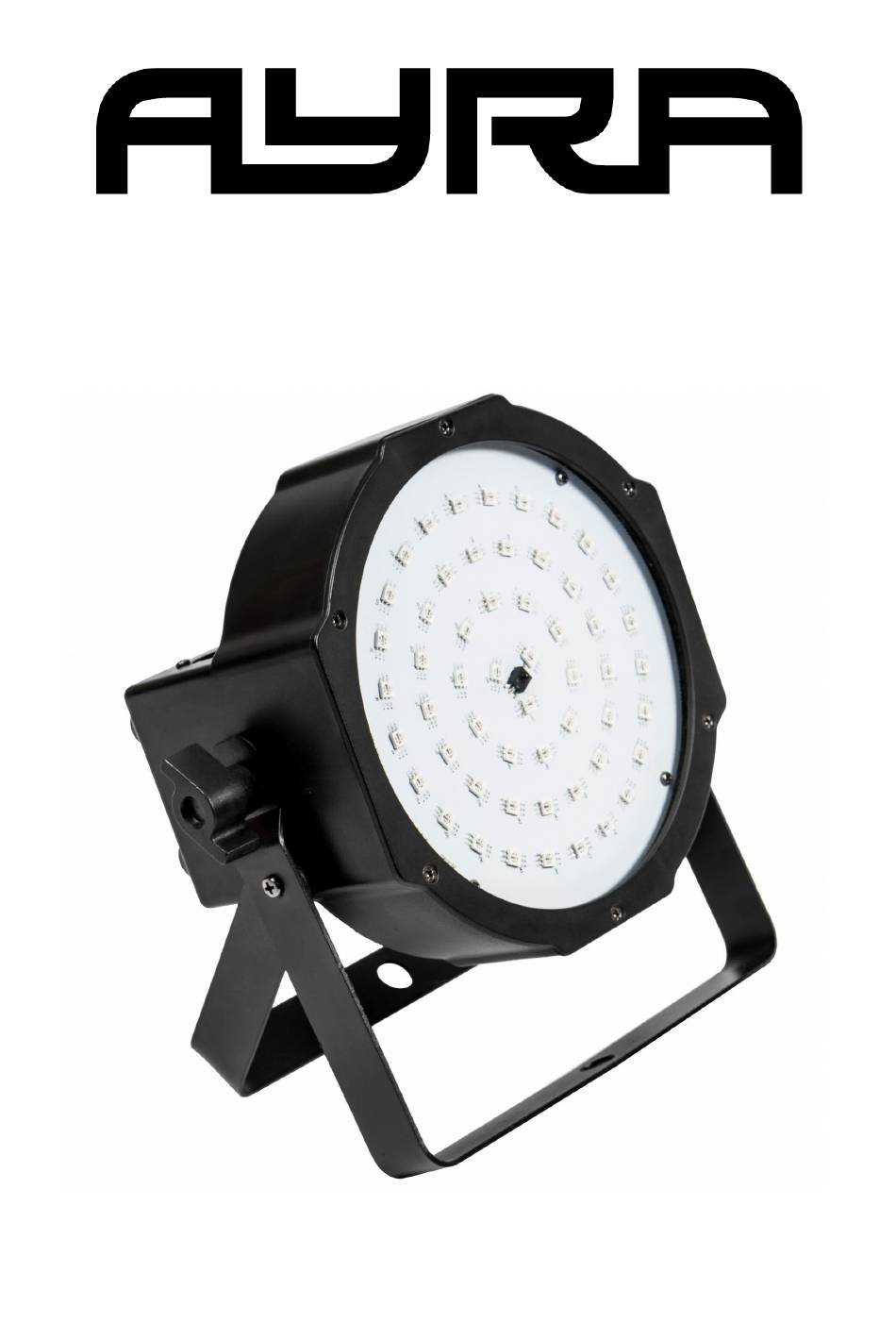

- Page 1 ComPar 2 RGB SMD wash light with remote control User manual All information and illustrations shown in this user manual are subject to change without further notice. User manual version: 1.0 Creation date + author initials: 04-11-2015 RV Revision date + author initials:...
- Page 2 DMX and master/slave options are also available. As the ComPar 2's SMD LEDs deliver a wide beam angle, they are ideal for smooth wash lighting, as well as short-distance illumination of objects. This makes the ComPar 2 a great tool for lighting a dark DJ booth, or for lighting up semi-transparent DJ booth panels.
-
Page 3: Safety Instructions
Safety instructions WARNING! Always keep this device away from moisture and rain! Hazardous electric shocks may occur! WARNING! Only connect this device to a suitable power outlet. This device is intended to work on a specific AC current. Connecting it to power outlets with other voltages may result in permanent damage and possible hazardous situations, such as fire or electric shocks! WARNING! Be careful when operating this device. - Page 4 - Familiarise yourself with the functions of the device before use. Do not allow operation of the device by unskilled or unqualified people. - Use of the device in ways other than described in this user manual may cause damage and injury. Ayra cannot be held responsible for any damage or injury caused by improper use.
- Page 5 - Prevent the build-up of dust and dirt. Clean the exterior of the fixture every month with a dry or damp cloth. If the device is used intensively, the cleaning frequency must be increased. Disconnect the fixture when it is going to be serviced.
- Page 6 Indoor use only: This device is designed to be used indoors only. The maximum ambient temperature should not exceed 40 degrees Celsius (104 degrees Fahrenheit). Contact: Ayra professional lighting products Verrijn Stuartweg 18 4462 GE Goes The Netherlands Please do not send any products directly to this address. If you wish to return a product for a refund or repair, please contact your local dealer for an RMA (Return Material Authorisation).
-
Page 7: Box Contents
Box contents Box contents 1x ComPar 2 fixture 1x Power cable IEC C13 to Schuko (3x 1mm²) 1x Power cable IEC C13 to UK (3x 1mm²) 1x IR remote control with CR2025 battery Unit and accessory inspection - Always use the supplied power cable to connect the unit to a power supply. If the cable appears broken or has visible damage, do not use it. -
Page 8: Device Overview
Device overview 1. Beam output 2. IR remote control receiver 3. dual bracket with tightening knobs 4. rubber feet 5. IEC C14 power input + fuse 6. IEC C14 power output 7. DMX input (3p XLR) 8. DMX output (3p XLR) 9. -
Page 9: Setting Up The Unit
The device can now be set as desired, using the menu display or the included remote control. The remote control allows you to control the ComPar 2 when it's set to stand-alone mode, or when it's connected in a master-slave setup. This way, standard colour presets, colour fades, sound-controlled modes, etc. can be selected. - Page 10 To use the master/slave mode, connect two ComPar 2 fixtures using a standard 3P XLR male - 3P XLR female cable (not included). Connect the DMX output of the master to the DMX input of the slave unit.
-
Page 11: Operating Modes
DMX: The ComPar 2 can be connected to a DMX controller with standard 3p XLR male - XLR female cable. In DMX mode, a DMX terminator must be connected to the last fixture at the end of the DMX chain to prevent reflections in the DMX signal, which could cause flickering and unwanted behaviour from your intelligent fixtures. - Page 12 Colour preset 000-036: Colour 1 037-073: Colour 2 074-110: Colour 3 111-147: Colour 4 148-184: Colour 5 185-222: Colour 6 223-255: Colour 7 3CH2 mode: Function Values Red 0-100% 000-255 Green 0-100% 000-255 Blue 0-100% 000-255 6CH mode: Function Values Dimmer 0-100% 000-255 Strobe slow-fast...
- Page 13 Installation and connection requirements The Ayra ComPar 2 is a versatile product that can be used in many ways. To use this device as intended and to be sure that it is used in a safe way, the following requirements must be met during the setup, installation and connection.
- Page 14 The output of the ComPar 2 can handle a maximum power of 2,000 W. This equals around 8.9 A based on a 230V AC, 50Hz connection. A maximum of 100 ComPar 2 fixtures can be daisy-chained from the main ComPar 2 device.
- Page 15 DMX lighting troubleshooting If you have any problems with DMX lighting, consult this troubleshooting section to solve the difficulties with your product. If this troubleshooting section does not solve your problem, contact your dealer for more information and help. This troubleshooting section lists the most frequent problems and is not a complete collection of possible faults, defects and solutions.
- Page 16 of your DMX chain. Signal loss or distortion in DMX Insert a DMX booster in your DMX values chain after 32 fixtures or fewer. After a maximum of 32 fixtures the DMX signal needs to be refreshed. The fixture does not respond to all Wrong DMX channel mode Check the DMX channel mode of DMX channels...
-
Page 17: Technical Specifications
Technical specifications compact RGB wash light 54x SMD 5050 RGB LEDs installed IR remote-controlled! DMX with several DMX channel modes several stand-alone programs, colour settings and shows dual mounting bracket for hanging and standing purposes rubber feet for uplighting purposes wide projection angle of 105 degrees! ideal for mood lighting or short-distance illumination of objects perfect colour mixing...
