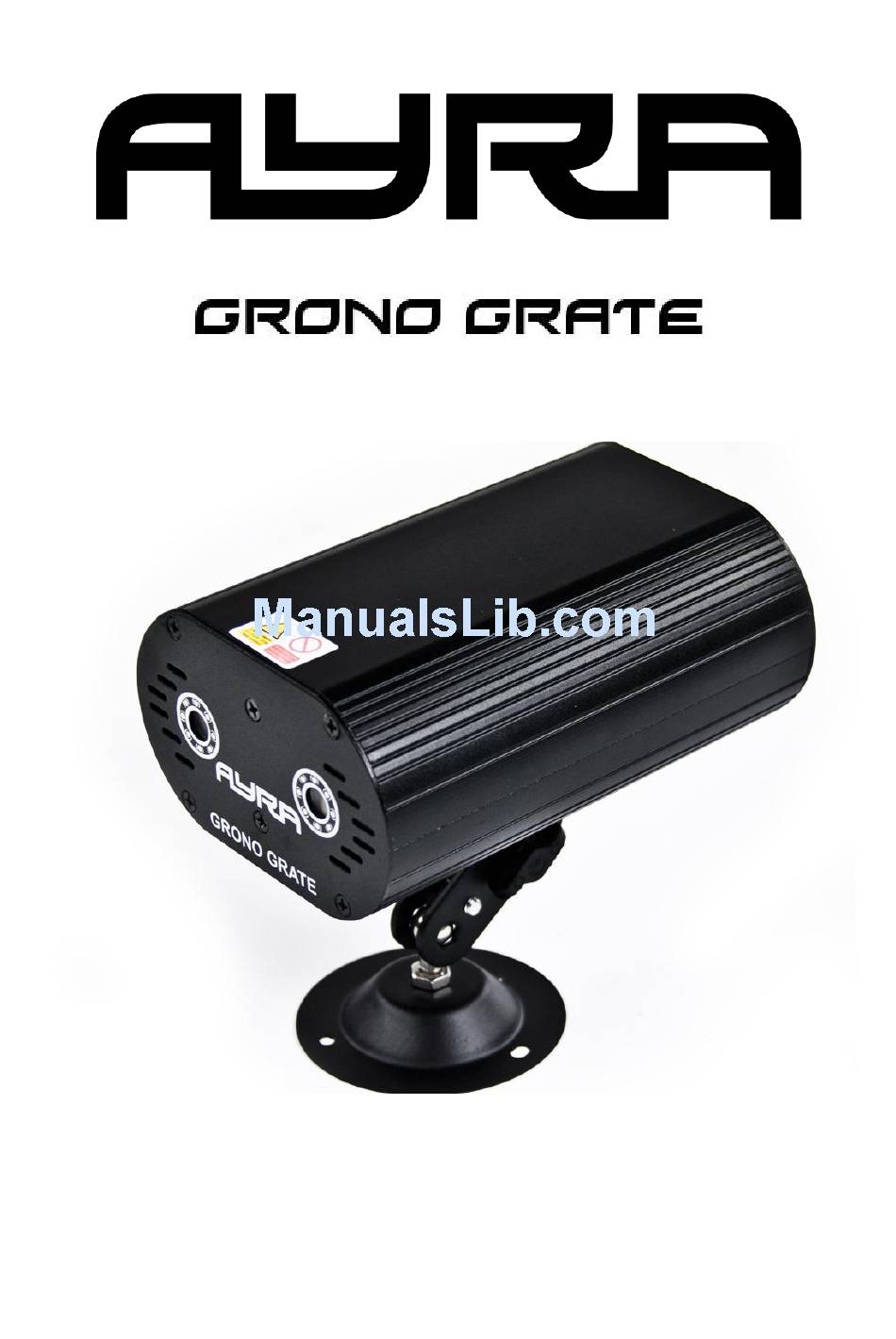

- Page 1 Stand-alone grating pattern laser User manual...
-
Page 2: Safety Precautions
- The unit is not designed to be installed with a halfcoupler or G-clamp. It is possible to modify the bracket and add metal rings for stability, but it is not recommended. Ayra is not responsible for any damage or injuries caused by these modifications. - Page 3 - Keep the device away from moisture, rain, water or any liquids as this may cause a short circuit and/or electric shocks. If any liquid enters the unit, power supply or housing of the unit, disconnect the unit immediately and do not reconnect the power supply. Contact your local dealer or technician to inspect the unit for any damage.
-
Page 4: Box Contents
Box contents Box contents 1x laser device 1x user manual 1x power supply 1x installing bracket 1x small bag with mounting hardware Unit and accessory inspection - Always use the supplied power adapter to connect the unit to a power supply. If the adapter appears broken or has visible damage, do not use it. - Page 5 Device overview 1. Laser output 2. Cooling fan 3. Mode selection (off, automatic, music controlled) 4. Power adapter connector (Only use included power supply) 5. Speed selection (for automatic mode; slow, medium or fast) 6. Status LEDs (Blue for sound-active, red for power indication) 7.
- Page 6 Automatic mode: Select one of the three built-in speed presets. These go from slow, to medium, to fast. The unit will not respond to the beat of music and will display a continuous loop of patterns on a fixed speed. The unit will also change colors frequently.
-
Page 7: Technical Specifications
Technical specifications - compact laser device with grating technology - two laser diodes, two outputs - green 30mW laserdiode - red 100mW laserdiode - diffraction (grating) lens, dividing the laser beams into hundreds of small individual beams - rotating lens and cross-star autorotation effects - music controlled and automatic working mode - music controlled mode with internal microphone - automatic working mode with continuous rotation and flashing diodes...
