Lynx LPZA Care & Use/Installation Manual

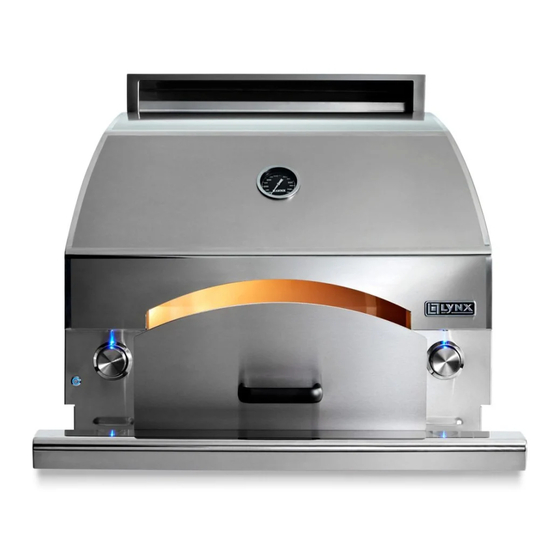

Napoli pizza ovens
Hide thumbs Also See for LPZA:
Table of Contents

Advertisement

Quick Links

MAKE THE MOST OF YOUR
CARE & USE/INSTALLATION
LPZA and LPZAF Napoli Pizza Ovens

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LPZA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lynx LPZA

Summary of Contents for Lynx LPZA

  • Page 1 MAKE THE MOST OF YOUR CARE & USE/INSTALLATION LPZA and LPZAF Napoli Pizza Ovens...
  • Page 2 WARNINGS WARNING READ THIS MANUAL CAREFULLY and completely before using your oven to reduce the risk of: 1. Fire 2. Burn hazard, personal injury or property damage 3. Ruined pizza or other unpleasant cooking experiences 4. Unapproved installation or servicing. THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY.

  • Page 3: How To Light Your Oven

    HOW TO LIGHT YOUR NAPOLI PIZZA OVEN Note: The main burners feature safety control valves with thermocouple sensors that automatically shut off the flow of gas if the burner goes out for any reason. 1. Before each use, complete the checklist below. 2.
  • Page 4 THIS MANUAL MUST REMAIN WITH THE PRODUCT OWNER FOR FUTURE REFERENCE. This product complies with ANSI standard Z21.58/CSA To obtain replacement parts or service contact: 1.6 latest edition and has been tested and approved by Lynx Grills, Inc. Intertek. 7300 Flores Street Downey, CA 90242 888-289-5969 NAPOLI PIZZA OVENS CARE &...

  • Page 5: A Message To Our Customers

    This manual includes important safety tips and great hints for better cooking. You’ll want to keep it handy for easy reference. Also, at Lynx, we enjoy hearing from our customers. We like to hear about your successes but also about any difficulties you are having.

  • Page 6: Table Of Contents

    IMPORTANT SAFETY PRECAUTIONS COOKING IN WINDY CONDITIONS USING YOUR LYNX OVEN Pre-Bake Checklist Cooking Suggestions Lighting your Oven CLEANING YOUR LYNX PIZZA OVEN TROUBLESHOOTING YOUR LYNX OVEN Potential Problems Contacting Lynx Customer Care The Lynx Story LYNX LIMITED WARRANTY LYNX COMMON AREA LIMITED WARRANTY...

  • Page 7: Use & Care Guidelines

    USE & CARE GUIDELINES This use & care manual covers the Lynx Napoli Pizza Oven models listed below. Some features and options will vary based upon the model that you purchased. LYNX OVEN MODELS BUILT-IN FREESTANDING LPZA LPZAF COUNTER TOP MODELS...

  • Page 8: Important Safety Precautions

    7. Inspect the LP hose before each use. If the hose shows excessive wear or abrasion, or the hose is cut it must sound, immediately turn the burner knobs OFF be replaced with a hose assembly available from Lynx to extinguish the flame. Wait 1 minute and then Grills.

  • Page 9: Cooking In Windy Conditions

    These high-performance burners require a constant, steady • If you suspect the oven is overheating, using an oven supply of fresh air to mix with the fuel. Your Lynx oven pulls mitt, open the front door. Then adjust the burner control air in through the front and vents hot gases out through the knob to a lower setting.

  • Page 10: Using Your Lynx Oven

    USING YOUR LYNX PIZZA OVEN Best results are achieved when the pizza oven is allowed Avoid baking greasy or fatty food directly on the oven deck. to preheat a minimum of 35 minutes with the door closed When preparing these types of meals cooking utensils, such for best performance.

  • Page 11: Cooking Suggestions

    COOKING SUGGESTIONS NO-COOK PIZZA SAUCE 1 28 oz. Can of San Marzano Tomatoes. Do not drain, use tomatoes and liquid. 1 Tsp Salt 1/2 Tsp Sugar 1 Tsp Minced Garlic 1 Tsp Oregano, dry 1 Tbsp Basil, fresh, finely chopped Directions for Pizza Sauce: 1.
  • Page 12 COOKING SUGGESTIONS ...continued Make sure the oven is properly preheated before cooking your pizza to prevent sticking to the pizza deck. Similarly, do not use frozen pizza in the oven to prevent sticking and overcooking. Pizzas should not be prepared until ready to go into the oven. Pizzas allowed to sit will tend to stick to the pizza peel or counter top.

  • Page 13: Lighting Your Oven

    LIGHTING YOUR OVEN WARNING 1. Never attempt to light a burner if you smell gas. 2. Remove the oven door, or pull out the baking tray when lighting your pizza oven. 3. Releasing fuel into a closed oven before lighting will increase the risk of explosion, property damage , personal injury or death.

  • Page 14: Cleaning Your Lynx Pizza Oven

    Products that provide a layer of vapor corrosion inhibitors Part of the appeal of your Lynx oven is the fine grain finish. (VpCI™) protect the surface very well. When removing stubborn stains: •...

  • Page 15: Troubleshooting Your Lynx Oven

    Check The Igniters not be functioning correctly. Call for service. Your Lynx oven uses an electric ignition system that does not spark. Instead, the igniters will glow constantly when a If the burner will not match light, and you know you are control knob is turned ON.
  • Page 16 Ensure that you are using a 4/11 appliance regulator • Check the gas supply line sizing requirements. supplied by Lynx and converted to LP gas. Also ensure that • Check the gas supply line for kinks or damage. you do not have more than one regulator in line.
  • Page 17 POTENTIAL PROBLEMS ...continued in place by two spring tension tabs. The bulbs are easily removable without the use of tools. Simply grasp the glass lens at the outer corners, near the front tension clips and push the lens back. Then, swing the lens down and pull it loose.

  • Page 18: Contacting Lynx Customer Care

    CONTACTING LYNX CUSTOMER CARE Before calling Lynx Customer Care, please make sure you Your satisfaction is of the utmost importance to us. If a have the following information: problem cannot be resolved to your satisfaction, please write, fax or email us: •...

  • Page 19: Lynx Limited Warranty

    II. Limited Five-Year Warranty 7) No one has the authority to add to or vary Lynx’s warranty, or to create for Lynx any other obligation or liability in The following oven parts are warranted to be free from connection with the sale or use of its products.

  • Page 20: Lynx Common Area Limited Warranty

    5 years from the 7) No one has the authority to add to or vary Lynx’s warranty, date of purchase of the original purchaser. This warranty...
  • Page 21 WARNINGS WARNING 1. Always maintain the required clearances from combustible construction as detailed. The oven is designed for outdoor use only. Never use in a garage, building, shed, breezeway or other enclosed area. This oven shall not be used under any unprotected overhead combustible construction. 2.

  • Page 22: Before You Start

    Be sure to hold on to the container for inspection. We extent of damage. cannot assume responsibility for damage or loss incurred in transit. (See INDEX: “Obtaining Service from Lynx” for further details.) Shipping receipts should be signed “not inspected for concealed damage.”...

  • Page 23: Unpacking & Assembly

    Removing these staples may cause the pallet to fall on the top of oven. The LPZA Pizza oven can be used as a freestanding model when used with the LPZAF cart assembly (available separately).
  • Page 24 BEFORE YOU START ...continued BUILT-IN INSTALLATIONS OVERHEAD PROTECTION AND EXHAUST REMOVAL The Lynx Built-In oven is designed for easy installation into Do not install this appliance under any unprotected masonry enclosures. overhead combustible construction. If installed under any combustible construction the cooking area over the oven NOTE: Lynx pizza ovens are intended for installation must be covered with an exhaust hood.

  • Page 25: Specifications & Installation

    SPECIFICATIONS & INSTALLATION NAPOLI PIZZA OVENS CARE & USE/INSTALLATION...

  • Page 26: Gas Connections

    NEVER CONNECT A GAS LINE DIRECTLY TO THE OVEN. A PRESSURE REGULATOR MUST BE INSTALLED ON ALL GAS EQUIPMENT. ALL LOCAL CODES REQUIRE IT AND LYNX SUPPLIES THE CORRECT REGULATOR WITH YOUR OVEN. REMOVING OR FAILING TO INSTALL THE PRESSURE REGULATOR CAN RESULT IN FIRE AND SERIOUS PERSONAL INJURY AND WILL VOID THE WARRANTY.

  • Page 27: Lp Gas

    Type 1 system only. Permanently plumbed LP connections, such as those in Cylinders of free standing ovens must be secured using line with a bulk cylinder, require a 4/11 regulator. (Lynx P/N the provided cylinder retention system to avoid accidental 30781) movement.
  • Page 28 • Wait at least 5 minutes after shutting off the control before attempting to light the burners. GAS CONVERSION KITS Gas conversion kits are available from Lynx Grills to allow the oven to operate on either Natural gas or LPG. These kits should be installed by a qualified technician.

  • Page 29: Electrical Connections

    If the electrical system fails to operate, a connection may The oven wiring harness is designed to facilitate have come loose in shipping or the GFI may have tripped, connections to other Lynx accessories such as the side requiring a reset. See the Troubleshooting section for more burners.

  • Page 30: Final Checks

    For technical assistance call: Leak Test Procedure: Lynx Customer Care • Create a soapy solution of 1 part soap and 3 parts water. 888-289-5969 • Confirm that all control knobs are in the off position.

  • Page 31: Wiring Schematics

    WIRING SCHEMATICS LPZA & LPZAF NAPOLI PIZZA OVENS CARE & USE/INSTALLATION...

  • Page 32: Lynx Professional Exploded Parts View

    LYNX PROFESSIONAL NAPOLI PIZZA OVEN EXPLODED PARTS VIEW 31 (1) 11 12 DETAIL A SCALE 1 : 5 DETAIL C SCALE 1 : 5 DETAIL B SCALE 1 : 5 NAPOLI PIZZA OVENS CARE & USE/INSTALLATION...

  • Page 33: Lynx Professional Parts List

    LYNX PROFESSIONAL NAPOLI PIZZA OVEN PARTS LIST ITEM PART No. DESCRIPTION QTY. 70323 COVER, HOOD WELDMENT 70319 HOOD WELDMENT 35117 DOME, LPZA 35316 GASKET, FIBERGLASS 80943 FLOOR SUPPORT ASSEMBLY 80938 PULLOUT TRAY ASSY. 80939 ACCESS DOOR ASSY. 35175 CONTROL PANEL, RH...

  • Page 34: Model-Specific Btu Outputs & Max. Runs For Appliances

    MODEL-SPECIFIC BTU OUTPUTS & MAX. RUNS FOR APPLIANCES MODEL-SPECIFIC BTU OUTPUTS MODEL INFRARED BURNER (Btu) TOTAL INPUT LPZA 2 @ 20,000 40,000 Btu/Hr MAXIMUM RUNS FOR ALL NOTE: IF A 1/2 INCH LINE IS USED APPLIANCES ON SUPPLY LINE WITH NATURAL GAS IT SHOULD BE NO LONGER THAN 12 FEET.

  • Page 35: Index

    Cleaning Your LYNX Oven ........... 14 Regulator Conversion ..........27 Clearance to Combustibles ......... 24 Contacting LYNX ............18 Schematic, LPZA & LPZAF ..........31 Conversion Kits............. 28 Service, contacting LYNX ..........18 Cut-out Dimensions, Built-in Pizza Oven...... 25 Technical Support ............
  • Page 36 Lynx Grills, Inc. 7300 Flores St. Downey, CA 90242 Service: (888) Buy-Lynx (888-289-5969) Fax: (562) 299-6978 www.lynxgrills.com PN #35315, 02/2015...
