  • Page 1 MAKE THE MOST OF YOUR CARE & USE/INSTALLATION LPZA AND LPZAF Napoli Outdoor Oven...
  • Page 2 THIS MANUAL MUST REMAIN WITH THE PRODUCT OWNER FOR FUTURE REFERENCE. This product complies with ANSI standard Z21.58/CSA 1.6 To obtain replacement parts or service contact: latest edition and has been tested and approved by Intertek. Lynx Outdoor ovens 62201 Hwy 82 West Greenwood, Mississippi 38930 Service: (888) 289-5969...
  • Page 3 WARNINGS WARNING READ THIS MANUAL CAREFULLY and completely before using your outdoor oven to reduce the risk of: Fire 2. Burn hazard, personal injury or property damage 3. Ruined steaks or other unpleasant cooking experiences 4. Unapproved installation or servicing. THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY.
  • Page 4 WARNINGS WARNING Always maintain the required clearances from combustible construction as detailed. The outdoor oven is designed for outdoor use only. Never use in a garage, building, shed, breezeway or other fully enclosed area. This outdoor oven shall not be used under any unprotected overhead combustible construction.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS BEFORE YOU START If Shipment Arrives Damaged Important Notes SPECIFICATIONS & INSTALLATION UNPACKING & ASSEMBLY GAS CONNECTIONS Natural Gas LP Gas Gas Conversion Kits ELECTRICAL CONNECTIONS FINAL CHECKS Leak Testing CHECKLIST BEFORE EACH USE A MESSAGE TO OUR CUSTOMERS IMPORTANT SAFETY PRECAUTIONS OUTDOOR OVENING IN WINDY CONDITIONS USING YOUR OUTDOOR OVEN...

  • Page 6: Before You Start

    BEFORE YOU START IF SHIPMENT ARRIVES DAMAGED VISIBLE LOSS OR DAMAGE CONCEALED LOSS OR DAMAGE Be certain any visible damage to the carton is noted on If damage is unnoticed until the outdoor oven is unpacked, freight bill or express receipt and signed by the person notify the transportation company or carrier immediately and making delivery.
  • Page 7 BEFORE YOU START ...continued BUILT-IN INSTALLATIONS OVERHEAD PROTECTION AND EXHAUST REMOVAL This built-in outdoor oven is designed for easy installation Do not install under any unprotected overhead combustible into masonry enclosures. construction. If installed under any combustible construction, NOTE: Built-in outdoor ovens are intended either for the cooking area over the oven must be covered with an installation in a built-in enclosure constructed of non- exhaust hood.

  • Page 8: Specifications & Installation

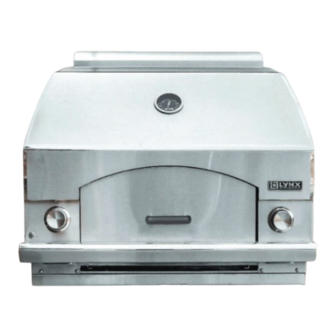

    IMPORTANT: Please reference the manual for details on gas plumbing requirements, electrical specifi cations and the proper installation of your outdoor kitchen equipment. Oven Models Built-In / CounterTop LPZA The Napoli Outdoor Oven comes equipped with legs ready for countertop installatio. For built-in applications, remove the legs and follow the cutout dimensions.
  • Page 9 SPECIFICATIONS & INSTALLATION LPZA Countertop LPZA Built-In INSTALLATION / USE & CARE...

  • Page 10: Unpacking & Assembly

    DOWNS BEFORE USING YOUR Outdoor oven. • With assistance, remove the outdoor oven from the pallet and place into desired location. The LPZA outdoor oven can be used as a freestanding model when used with the LPZAF cart assembly (purchased separately) The cart assembly comes fully asembled.

  • Page 11: Gas Connections

    NATURAL GAS natural gas (NAT). It is critical that the gas you use matches Lynx, LLC recommends that only qualifi ed professionals that which the outdoor oven was set up for. You can verify perform the required plumbing on this product.

  • Page 12: Lp Gas

    GAS CONNECTIONS ...continued WARNING LP GAS Outdoor ovens set up for LP gas come equipped with an LP Do not change the regulator/hose assembly or use hose/ regulator assembly for connection to a standard 20 any other assembly than the one supplied with lb.

  • Page 13: Gas Conversion Kits

    Insert the regulator inlet into the cylinder valve and turn the black coupler clockwise until the coupler is hand tight. Do Gas conversion kits are available from Lynx Outdoor ovens not over-tighten this connection. to allow the outdoor oven to operate on either Natural To disconnect the coupler, fi...

  • Page 14: Electrical Connections

    ELECTRICAL CONNECTIONS WARNING: ELECTRICAL GROUNDING • Product installation must meet local electric codes or, in the absence of local codes, the latest edition of the National Electrical Code ANSI/NFPA No. 70 or the Canadian Electrical Code CGA 1.6b2005. • Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appliance. •...

  • Page 15: Final Checks

    • The appearance of the burners should be visually checked. For technical assistance call: The ceramic tiles should be uniformly red to orange in ap- Lynx Customer Care pearance. Burner fl ames should be 4-5” tall and predomi- 888-289-5969 nately blue in color with some yellow tipping.

  • Page 16: A Message To Our Customers

    Lynx Grills. Once lit, if you hear a ‘whooshing’ sound, immediately turn the burner knobs off to extinguish the fl ame and 8.

  • Page 17: Using Your Outdoor Oven

    USING YOUR OUTDOOR OVEN Best results are achieved when the pizza oven is allowed to preheat 20—30 minutes for best performance. Allow a Avoid baking greasy or faty food directly on the oven little more time for colder ambient temperatures. deck.
  • Page 18 USING YOUR OUTDOOR OVEN WARNING Never attempt to light a burner if you smell gas. 2. Remove the oven door, or pull out te bakig tray when lighting your outdoor oven. 3. Releasing fuel into a closed outdoor oven before lighting will increase the risk of explosion, property damage, personal injury or death.

  • Page 19: Lighting Your Outdoor Oven

    USING YOUR OUTDOOR OVEN LIGHTING YOUR OUTDOOR OVEN Note: The main burners feature safety control valves with thermocouple sensors that automatically shut off the fl ow of gas if the burner goes out for any reason. 1. Before each use, complete the checklist below. 2.
  • Page 20 These high-performance burners require a constant, steady • If you suspect the oven is overheating, using an oven mitt, supply of fresh air to mix with the fuel. Your Lynx oven pulls open the front door. Then adjust the burner control knob air in through the front and vents hot gases out through the to a lower setting.
  • Page 21 USING YOUR OUTDOOR OVEN COOKING SUGGESTIONS • Make sure the oven is properly preheated before • During cooking rotate the pizzas often to achieve cooking your pizza to prevent sticking to the pizza uniform doneness. Use the pizza peel or long handled deck.

  • Page 22: Cleaning Your Outdoor Oven

    CLEANING YOUR OUTDOOR OVEN STAINLESS STEEL SPECIAL NOTE FOR LOCATIONS NEAR POOLS AND COASTAL AREAS: Our products are known for their attractive appearance. We The 304 stainless steel material used in the construction of achieve this by selecting only the fi nest grades of stainless the outdoor oven is highly rust resistant, however, chlorine steel and applying exacting workmanship.

  • Page 23: Troubleshooting Your Outdoor Oven

    TROUBLESHOOTING YOUR OUTDOOR OVEN BEFORE YOU CALL FOR SERVICE • Is your propane cylinder empty? Have you recently refi lled the propane cylinder? If so, is the connection tight? Please check a few things before calling for service: • Have you opened the valve on the propane cylinder? •...

  • Page 24: Potential Problems

    15 minutes. Ensure that you are using a 4/11 appliance regulator supplied by Lynx and converted to LP gas. Also ensure that you do not Proper leveling during installation is critical. A outdoor oven have more than one regulator in line.

  • Page 25: Contacting Customer Service

    Name of dealer from whom purchased Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Lynx at 1-888-289-5969, or write to: Lynx Outdoor ovens...
  • Page 26 This warranty is limited to the 7) No one has the authority to add to or vary Lynx’s warranty, replacement of the defective parts, with the owner paying a or to create for Lynx any other obligation or liability in processing fee and all other costs including labor.
  • Page 27 7) No one has the authority to add to or vary Lynx’s warranty, maintenance for a fi ve year period from the original or to create for Lynx any other obligation or liability in purchase date.

  • Page 28: Wiring Schematics

    WIRING SCHEMATICS The best outdoor kitchen products come from: Lynx Grills, Inc. 62201 Hwy 82 West Greenwood, MS 38930 Service: (888)-289-5969 www.lynxgrills.com 35315 REV B (051523)
