Summary of Contents for Saturn USCF-27

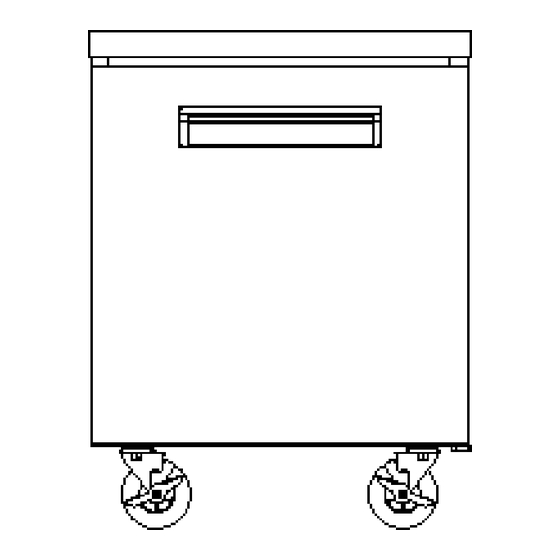

- Page 1 Undercounter Freezer Manual...
- Page 2 ▣ Model – USCF-27 1. Technical Specifications 115V 5.3A Connection 15 amp plug Name R134a Refrigerant Q'ty (oz) Q'ty (gram) 3/8 HP Compressor Samsung SK1A1C-L2W 2. Function Specifications Temp Range ℉ Below 0℉ Capacity Cubic Feet Climate Class Max Ambient Temp ℉...
- Page 3 ▣ Model – USCF-36 1. Technical Specifications 115V 7.5A Connection 15 amp plug Name R404a Refrigerant Q'ty (oz) Q'ty (gram) 1/2 HP Compressor Danfoss SC12CLX.2 2. Function Specifications Temp Range ℉ Below 0℉ Capacity Cubic Feet Climate Class Max Ambient Temp ℉...
- Page 4 ▣ Model – USCF-48 1. Technical Specifications 115V 7.5A Connection 15 amp plug Name R404a Refrigerant Q'ty (oz) 10.2 Q'ty (gram) 1/2 HP Compressor Danfoss SC12CLX.2 2. Function Specifications Temp Range ℉ Below 0℉ Capacity Cubic Feet Climate Class Max Ambient Temp ℉...
- Page 5 ▣ Model – USCF-60 1. Technical Specifications 115V 7.5A Connection 15 amp plug Name R404a Refrigerant Q'ty (oz) 10.9 Q'ty (gram) 1/2 HP Compressor Danfoss SC12CLX.2 2. Function Specifications Temp Range ℉ Below 0℉ Capacity Cubic Feet Climate Class Max Ambient Temp ℉...
- Page 6 ▣ Model – USCF-72 1. Technical Specifications 115V 7.8A Connection 15 amp plug Name R404a Refrigerant Q'ty (oz) Q'ty (gram) 1/2 HP Compressor Danfoss SC12CLX.2 2. Function Specifications Temp Range ℉ Below 0℉ Capacity Cubic Feet Climate Class Max Ambient Temp ℉...
- Page 7 ▣ Cabinet - 1 Stainless BOLT – M5 HINGE BOTTOM(LEFT) HINGE BOTTOM(RIGHT) HINGE TOP ASSEMBLY...
- Page 8 ▣ DOOR HINGE SHAFT DOOR GASKET SPRING LEFT SPRING RIGHT...
- Page 9 ▣ Cabinet - 2 Louver Duct Evaporator Fan Motor Kit REF-Thermostat Kit Shelf Pilaster Evaporator Shelf Clip Hinge Bottom Shelf...
- Page 10 ▣ Machine room (Freezer)-1 Back Panel...
- Page 11 ▣ Machine room (Freezer)-2 Condensing Unit Disassembly – USCF-27 / 36 CAPILLARY Dryer SUCTION PIPE Condenser Compressor Unit Base Hot Pipe Condenser fan motor - Assembly Evaporating pan (dish)
- Page 12 ▣ Machine room (Freezer)-3 Condensing Unit Disassembly – USCF-48 / 60 / 72 CAPILLARY Dryer Condenser fan motor - Assembly SUCTION PIPE Compressor Condenser Unit Base Hot Pipe Evaporating pan (dish)
- Page 13 ▣ Compressor Wiring – SK1A1C-L2W [USCF-27] Overload Protector 4TM795TFBZZ-53 PTC Relay - J531Q34E220M350-3 Running Capacitor 250VAC-12 ㎌ Starting Capacitor 125VAC-125 ㎌...
- Page 14 ▣Compressor Wiring – Sc12clx.2 [USCF-36, USCF-48, USCF-60, USCF-72 ]...
-
Page 15: Wiring Diagram
▣ Wiring Diagram [USCF-27] HARNESS COMP Compressor Type [SD162C-L1U] HARNESS MAIN POWER CORD... - Page 16 ▣ Wiring Diagram [USCF-36, USCF-48, USCF-60, USCF-72] HARNESS COMP Compressor Type [[SK1A1C-L1U2] HARNESS MAIN POWER CORD...
