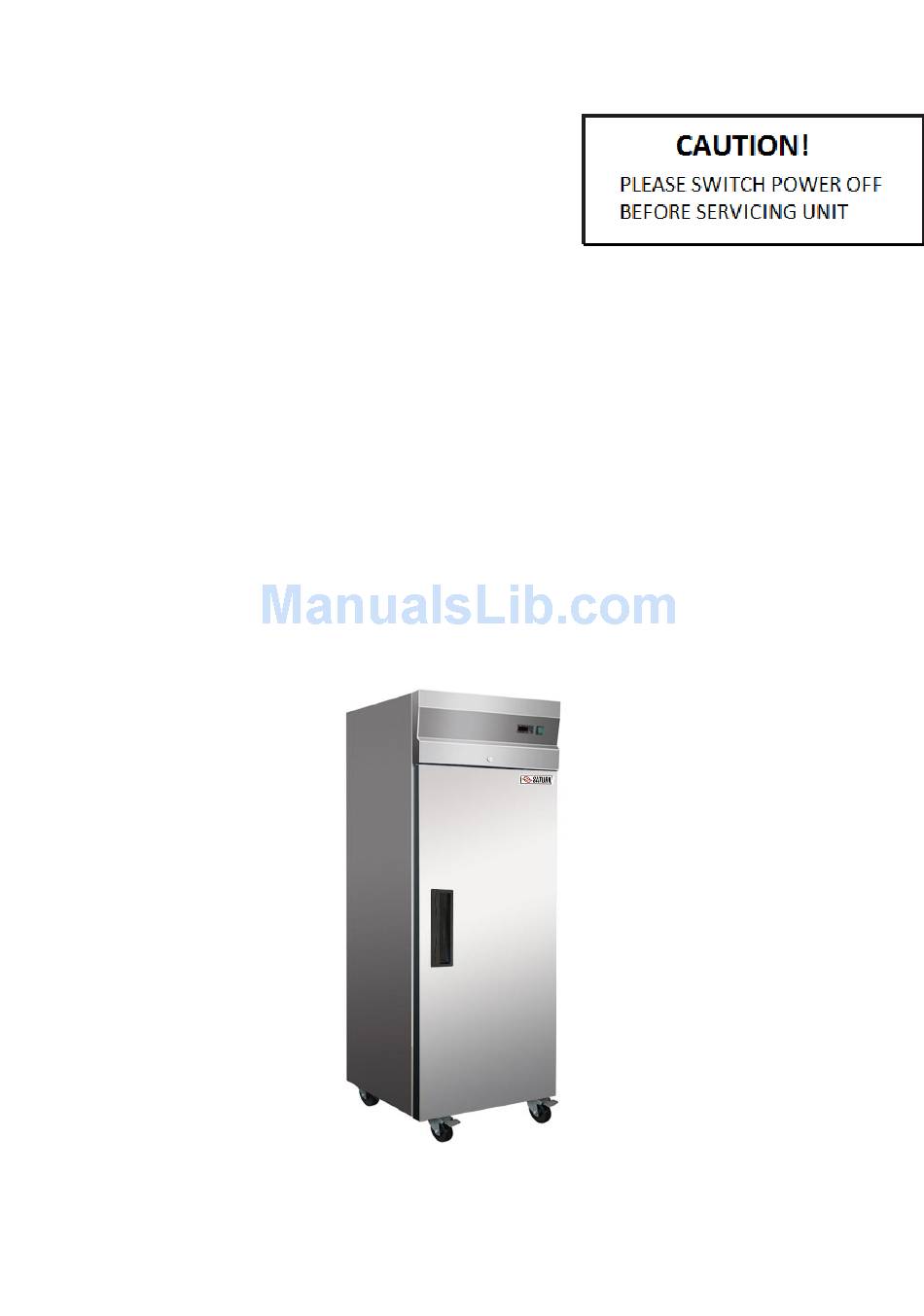

- Page 1 Commercial Freezer Service Manual SOLID DOOR TOP MOUNT REACH-IN PTM23F Please read this manual completely before attempting to install or operate this equipment.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. FEATURE CHART 1-1. OUTSIDE DRAWING AND MEASUREMENT FOR PTM23F 2. WIRING DIAGRAM 2-1. FREEZER (1 DOOR): PTM23F 3. PARTS DETAILS 3-1. TOP PANEL 3-2. REFRIGERATION COMPARTMENT 3-3. DOOR 3-4. COOLING COMPARTMENT 4. MAIN COMPONENTS 4-1. COMPRESSOR 4-2. -
Page 3: Feature Chart
1. FEATURE CHART 1-1. OUTSIDE DRAWING OF PTM23F... -
Page 4: Wiring Diagram
2. WIRING DIAGRAM 2-1. PTM23F... -
Page 5: Parts Details
3. PARTS DETAILS 3-1. TOP PANEL THERMOSTAT MAIN SWITCH... -
Page 6: Refrigeration Compartment
DOOR SWITCH LOCK 3-2. REFRIGERATION COMPARTMENT CYCLE ASSEMBLY CONDENSER FILTER DRIER CONDENSER FAN MOTOR WATER PAN COMPRESSOR... - Page 7 DRAIN PAN CONDENSER FAN MOTOR ASSEMBLY FAN COVER CONDENSER FAN MOTOR BLADE CONDENSER FAN MOTOR...
-
Page 8: Door
3-3. DOOR GASKET Magnetic gasket can be replaced without any tools. -
Page 9: Cooling Compartment
3-4. COOLING COMPARTMENT Circle Fan Cover Evaporator Fan Motor Blade Evaporator Fan Motor Fan Cover... - Page 10 Evaporator Defrost Heating Element Evaporator Fan Fan Support...
-
Page 11: Main Components
4. MAIN COMPONENTS 4-1. COMPRESSOR MODEL PTM23F Refrigerant R-404a Voltage 115V/60Hz Comp. T2168GK Model Part code 27F.12 4-2. COMPRESSOR RELAY PTM23F Voltage 115V / 60Hz Relay HLC-1XT04XA Model Part code 27F.03 4-3. CONDENSER DRYER MODEL PTM23F Refrigerant R-404a Spec. XH-9 25g Part code GN1410TN.14... -
Page 12: Condenser Fan Motor
4-6. CONDENSER FAN MOTOR MODEL PTM23F 115V / 60Hz Voltage Motor CA27-04/C19 Model Part code 27R.32 4-7. EVAPORATOR DEFROST HEATER MODEL PTM23F 115V / 60Hz Voltage Spec. Part code 27F.04 4-8. LAMP BULB MODEL PTM23F Voltage 115V/60Hz Spec. Part code 27R.29... -
Page 13: Electronic Controller Instruction
5. ELECTRONIC CONTROLLER INSTRUCTION 5-1-1 DIXELL XR60C PARAMETER FOR PTM23F CODE PARAMETER SET(℉) Main Set point Differential(hysteresis) Lower limit of main set point Upper limit of main set point Offset Evaporator probe presence Evaporator probe calibration Condenser probe presence Condenser probe function... - Page 14 Minimum or minimum temperature alarm delay Delay of temperature alarm at start up Condenser alarm temperature Condenser alarm differential Condenser alarm delay Delay of condenser temperature alarm at start up Compressor stop for condenser alarm Kind of probe 5-1-2. 1. FRONT PANEL COMMANDS To display target set point, select a parameter or confirm an operation in programming mode.
- Page 15 2. MAIN FUNCTIONS 2.1 HOW TO VIEW THE SET POINT 1. Push and immediately release the SET key: the display will show the set point value. 2. Push and immediately release the SET key or wait for 5 seconds to display the sensor value again.
-
Page 16: Replacement Of Main Components
6. REPLACEMENT OF MAIN COMPONENTS 6-1. FRONT PANEL PARTS UNSCREW THE FRONT PANEL A. LIFT THE PANEL... -
Page 17: Refrigeration Compartment Parts
You can change the door switch, lock main switch and the thermostat here 6-2. REFRIGERATION COMPARTMENT PARTS 6-2-1. UNSCREW THE SENSOR CLIP AND TAKE THE SENSOR OUT FROM THE CLIP... - Page 18 6-2-2. UNSCREW THE CIRCLE FAN COVER 6-2-3. PULL DOWN THE CIRCLE FAN COVER. 6-2-4. UNSCREW THE FAN SUPPORT...
- Page 19 6-2-5. CHANGE THE DEFROST HEATING ELEMENT a. UNHOOK THE EVAPORATOR FROM ITS CASING b. TAKE OFF THE ELEMENT AND REPLACE IT.
-
Page 20: Condensing Unit
6-3. CONDENSING UNIT 6-3-1. TAKE OFF THE BOTTOM PANEL OF THE UNIT. 6-3-2. UNSCREW THE UNIT BOARD. YOU CAN PULL THE UNIT BOARD OUT FOR ANY REPAIRS OR CLEANING. - Page 21 CAUTION: BE CAREFUL OF ELECTRIC SHOCK CAUTION: MAKE SURE THE POWER SUPPLY IS CUT OFF BEFORE ANY SERVICE IS PERFORMED CAUTION: CONDENSING UNIT MAY BE VERY HOT. BE SURE IT IS COOL BEFORE ANY SERVICE IS PERFORMED...
