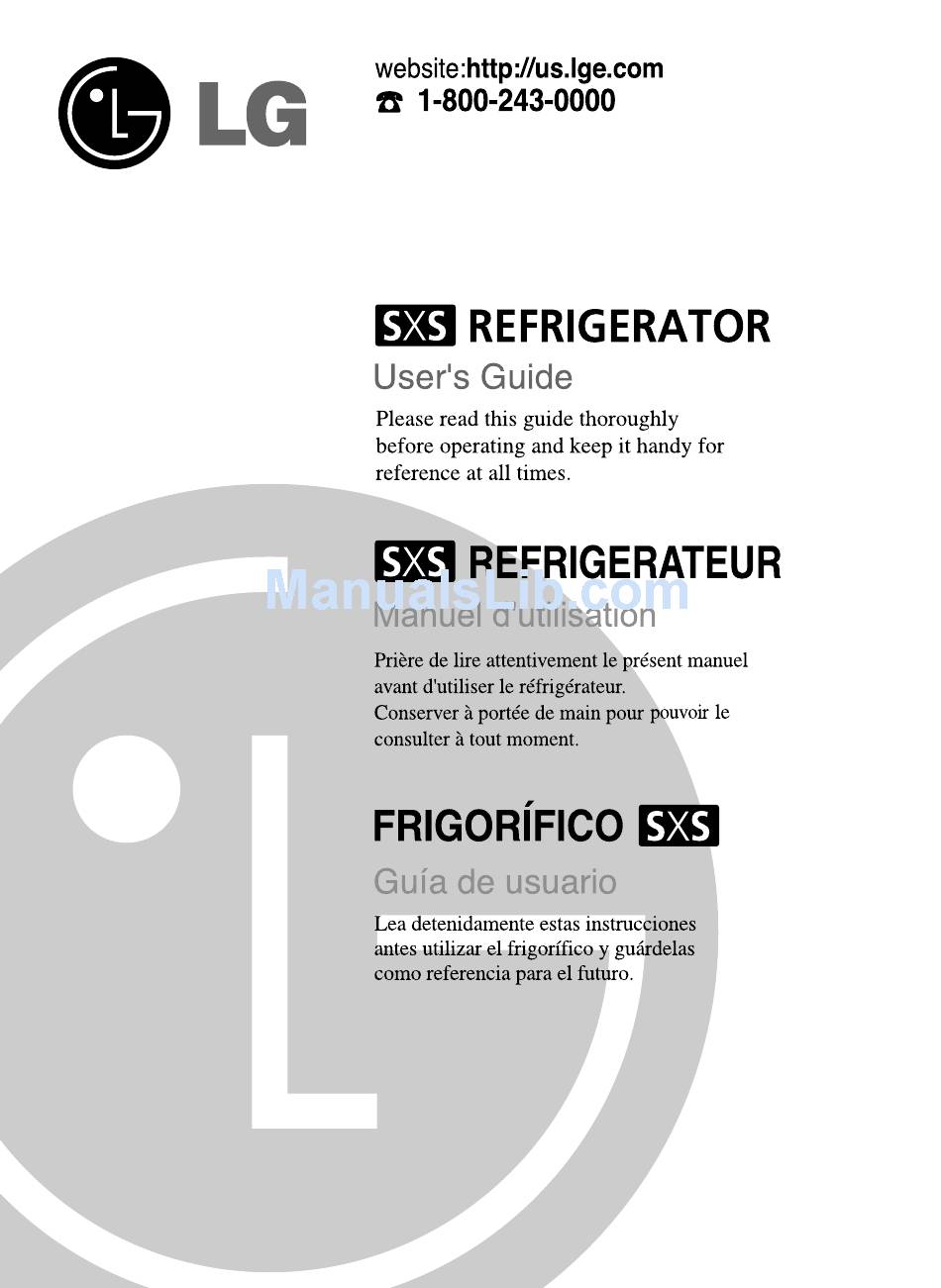

Page 1
24 HOURS A DAY, 7 DAYS A WEEK FOR LG CUSTOMER SERVICE para el Servicio LG(Atencin al Cliente) 24 horas al da, 7 das a la semana LSC 26905TT...
Table of Contents Introduction Entry Important Safety Instruction Identification of Parts Where to Locate Installation Door Removal Door Replacement Water Pipe Installation Water Connection Instruction Guide Operation Instruction Guide Height Adjustment Operation Starting Adjusting the Temperatures and functions (Dispenser/Automatic Icemaker) Shelf Suggestion on Location of Foods...
Introduction Entry The model and serial numbers are found on the inner case or back of refrigerator compartment of this unit. These numbers are unique to this unit and not available to others. You should record requested information here and retain this guide as a permanent record of your purchase.
Introduction Child Entrapment DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer: Warning Take off the doors but leave the shelves in place so that children may not easily climb inside. The appliance is not intended for use by young children without supervision. Young children should be supervised to ensure that they do not play with the appliance.
Introduction Where to Locate 1. Place your appliance where it is easy to use. Select a Good Location 2. Avoid placing the unit near heat sources, direct sunlight, or moisture. 3. To avoid vibrations, the appliance must be leveled. 4. Do not install this refrigerator in areas where the ambient temperature is below 41∞F.
Installation Door removal Warning Electric Shock Hazard Disconnect electrical supply to refrigerator before installing. Failure to do so could result in death or serious injury. If your entrance door is too narrow for the refrigerator to pass through, remove the Lower Cover refrigerator door and pass the refrigerator laterally.
Installation Push the refrigerator sideways through the Move the Refrigerator entrance door as shown in the right picture. TEMP TEMP Door replacement Mount the doors in the reverse order of removal after the refrigerator has been moved to the installation area. Feed water tube installation Before Automatic icemaker operation needs water pressure of 21.3~121psi(lb/inch...
Installation Water Connection Instruction Guide Connecting Read all directions carefully before you begin. the Refrigerator to a Water Source Warning Connect to potable water supply only. IMPORTANT • If operating the refrigerator before installing the water connection, turn icemaker to the OFF position to prevent operation without water. •...
Page 9
Installation Connect 1. Unplug refrigerator or disconnect power. the Tubing to 2. Turn OFF main water supply. Turn on the nearest faucet to relieve the pressure Water Line on the line. It may help to open an outside faucet to allow the water to drain from the line in the house.
Installation Operation Instruction Guide Connect the Tubing Before making the connection to the refrigerator, be sure the refrigerator to the Refrigerator power cord is not plugged into the wall outlet. If your refrigerator does not • Tubing Clamp have a water filter, we "...
Page 11
Installation When Icemaker Ice is clumped together Does Not Operate When ice is clumped together, take the ice clumps out of the ice storage bin, Smoothly break them into small pieces, and then place them into the ice storage bin again.
Installation Height Adjustment If the freezer When the tape is attached into the left leg, remove it(tape). Level the door by inserting flat ( - type) driver into the groove of the left height adjusting screw and rotating it clockwise . compartment door is lower than the refrigerator...
Operation Starting When your refrigerator is first installed, allow it to stabilize at normal operating temperatures for 2-3 hours prior to filling it with fresh or frozen foods. If operation is interrupted, wait 5 minutes before restarting. Adjusting The Temperatures and Functions EXPRESS FRZ DISPENSER FREEZER...
Page 14
Operation 1. Buzzer sound mute Mode The buzzer sound is set to OFF. It activates by sounding the recognition sound of “Ding~” after pressing and holding “Express FRZ” button more than 5 seconds. It inactivates when resetting the mode power. 2.
Page 15
Operation You can adjust temperature of freezer compartment and refrigerator Compartment. How to adjust the Freezer Compartment temperature adjustment temperature in the freezer FREEZER compartment Indication How to adjust the Refrigerator Compartment temperature adjustment temperature in the refrigerator REFRIGERATOR compartment Indication ❇...
Page 16
The automatic icemaker can automatically make 8 cubes at a time, Automatic Icemaker 120~150 pieces per day. This quantity may vary by circumstance, including ambient temperature, door opening, freezer load. etc. Icemaking stops when the ice storage bin is full. If you don't want to use automatic icemaker, turn the icemaker switch to OFF.
Page 17
Operation The Other Door open warning Functions A warning tone will sound 3 times at thirty-second intervals if the refrigerator or freezer door is left open for more than sixty seconds. Please contact the local service center if warning tone continues to sound even after closing the door.
Page 18
Operation 6 Filter Condition (filter replacement There is a replacement indicator light for the In initial Power On Replace indicator Classification / Filter RESET light on water filter cartridge on the dispenser. cycle) Display Water filter needs replacement once every six Function FILTER RESET FILTER RESET...
Operation Shelf The refrigerator compartment shelf is adjustable so that you can place it at a height Shelf Height according to space requirement of foods. Adjustment Slide Shelf Pull the shelf ahead and take it out while lifting both front and rear part. Fix Shelf Lightly lift up the front part of shelf to pull it ahead and then take it out while lifting the...
Suggestion on Food Storage Location of Foods (Refer to Identification of Parts) Snack Drawer Store small foods such as bread, snacks, etc. Freezer Store various frozen foods such as meat, fish, Compartment ice cream, frozen snacks, etc. Shelf Freezer Store small packed frozen food. Temperature is likely to increase as door Compartment opens.
Suggestion on Food Storage Storing Foods Store fresh food in the refrigerator compartment. How food is frozen and thawed is an important factor in maintaining its freshness and flavor. Do not store food, which spoils easily, at low temperatures, such as bananas and melons.
Care and Maintenance How to Dismantle Parts NOTE Dismantling is done in the reverse sequence of assembly. • Be sure to unplug the power plug before dismantling and assembly. Never apply severe force to dismantle parts. Parts may be damaged. Freezer Remone cover by pressing upward on bottom Compartment...
Page 23
Care and Maintenance To remove the lamp cover, press the protrusion under the lamp cover to the front and Lamp in then pull the lamp cover out. Refrigerator Turn the bulb counterclockwise. Max. 40 W bulb for refrigerator is used and can be Compartment purchased at a service center.
Care and Maintenance General Information During average length vacations, you will probably find it best to leave the refrigerator Vacation Time in operation. Place freezable items in freezer for longer life. When you plan to store the refrigerator, remove all food, disconnect the power cord, clean the interior thoroughly, and Block the doors open to prevent mold and mildew.
Care and Maintenance Troubleshooting Before calling for service, review this list. It may save you both time and expense. This list includes common occurrences that are not the result of defective workmanship or materials in this appliance. Occurrence Possible cause Solution Runing of refrigerator Refrigerator control is off.
Page 26
Care and Maintenance Possible cause Solution Occurrence Temperatures are too cold Temperature in the Set the freezer control to a warmer Freezer control is set too cold freezer is too cold setting until the freezer temperature is but the refrigerator satisfactory.
Page 27
Care and Maintenance Occurrence Possible cause Solution Sound and noise Louder sound Today’s refrigerators have increased It is normal for sound levels to be higher. levels when storage capacity and maintain more refrigerator is on. even temperatures. Louder sound Refrigerator operates at higher pressures This is normal.
Page 28
Care and Maintenance Occurrence Possible cause Solution Odors in refrigerator Clean interior with sponge,warm water Interior needs to be cleaned. and baking soda. Cover food completely. Food with strong odor is in the refrigerator. Some containers and wrapping materials Use a different container or brand of produce odors.
Page 29
Care and Maintenance Occurrence Possible cause Solution Ice has melted and frozen around auger Remove ice storage bin, and thaw and Dispenser will not dispense due to infrequent use, temperature the contents. Clean bin, wipe dry and ice. fluctuations and/or power outages. replace in proper position.
Page 31
LG Twin Tower, 20, Yoido-Dong, Youngdungpo-Gu, Seoul, 150-721, Korea. http://www.lge.com P/NO : 3828JD8918A Printed in Korea...
