INSTALLATION & USER INSTRUCTIONS
Focal Point Fires plc.
Christchurch, Dorset BH23 2BT
Tel: 01202 499330
Fax: 01202 499326
www.focalpointfires.co.uk
e : sales@focalpointfires.co.uk

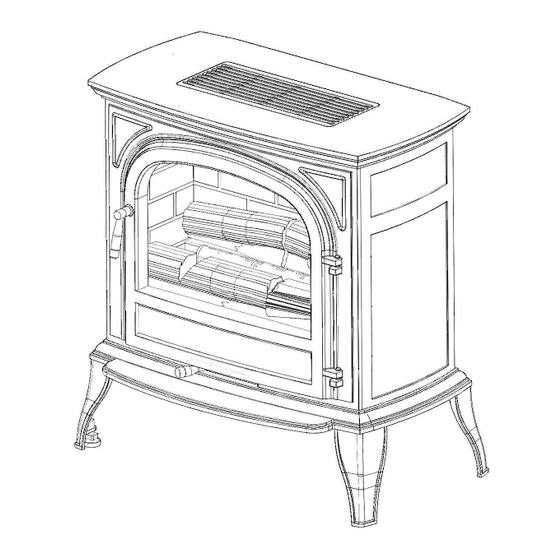

MODEL SHOWN : DALVIK FLUELESS STOVE
Questions or problems with your appliance?
Don't take it back to the store
just give us a call on
lines open between 9am and 5pm, Monday to Friday
IN THE UK ALWAYS USE A GAS SAFE REGISTERED ENGINEER TO INSTALL, REPAIR OR SERVICE THIS APPLIANCE
Please note : Except where otherwise stated, all rights, includ-
ing copyright in the text, images and layout of this booklet is
owned by Focal Point Fires plc. You are not permitted to copy
or adapt any of the content without the prior written per-
mission of Focal Point Fires plc.
HIGH EFFICIENCY GAS STOVE
MODELS COVERED BY THESE INSTRUCTIONS
LEIRVIK FLUELESS STOVE
DALVIK FLUELESS STOVE
01202 588601
we're here to help
All instructions must be handed to the user for safekeeping.
Revision B - 11/14
1
GB IE
© 2014 Focal Point Fires plc.
Advertisement
Chapters
Table of Contents
Related Manuals for Focal Point LEIRVIK
Summary of Contents for Focal Point LEIRVIK
- Page 1 Please note : Except where otherwise stated, all rights, includ- ing copyright in the text, images and layout of this booklet is owned by Focal Point Fires plc. You are not permitted to copy All instructions must be handed to the user for safekeeping.
-
Page 2: Table Of Contents
It Does Not Give Full Protection ForYoung Children Or The Infirm. Where young children, pets, the elderly or infirm are concerned, a suitable fireguard should be used. • Consult ALL instructions before installation and use of this appliance. This appliance is free from any asbestos material. © 2014 Focal Point Fires plc. -
Page 3: Appliance Data
The back of the appliance may be installed directly in front of a non-com- bustible wall, providing the area behind the appliance is flat and does not inter- fere with the various vent holes in the back panel of the appliance. © 2014 Focal Point Fires plc. - Page 4 32kgs and it is important that the floor can support this weight. Take care that loose rugs are kept clear of the appli- ance as these can move against the appliance and become damaged. © 2014 Focal Point Fires plc.
-
Page 5: Ventilation
The horizontal alignment of the stove may be checked with a spirit level. Ensure that the stove sits on the adjustment feet not the legs as they prevent the fire from sliding on smooth surfaces. © 2014 Focal Point Fires plc. -
Page 6: Installing The Ceramics
Install the right hand brick panel in the same manner (the brick effect panels are not labelled). Ensure the brick effect is in the correct orientation, with the lip on the top edge, so the brick effect is continuous around the firebox. © 2014 Focal Point Fires plc. -
Page 7: Testing And Commissioning
7.1. The gap between the spark electrode and the pilot should be 3.5 - 4.5mm to pro- duce a good spark (see figure 17). There should be no need to adjust this. If under any circum- stances the piezo electric spark fails, the pilot cannot be lit manually. © 2014 Focal Point Fires plc. -
Page 8: Operating The Appliance
13. Check the purpose provided ventilation is un-obstructed. 14. Light the fire and test the operating pressures. 15. Check safe operation of the appliance by performing a combustion test as detailed in section 10.3. For specific servicing instructions, see relevant sections. © 2014 Focal Point Fires plc. -
Page 9: Servicing The Burner Unit
It is important to note that the appliance can never be expect- ed to be 100% smoke tight and small quantities of smoke may be seen in corners of joints and gasket faces etc without affecting safety when the fire is in operation. © 2014 Focal Point Fires plc. -
Page 10: Troubleshooting Guide
Leakage occurring. Carry out leakage check and rectify any problems. Combustible materials used in incorrect positions. Airborne substances such as cleaning materials/air fresheners are being drawn through the fire. Other airborne contaminants such as dust, tobacco smoke, paint vapours. © 2014 Focal Point Fires plc. -
Page 11: Important Notes
(mains) powered and arranged in such a way that the gas supply to the appliance is isolated in the event of an alarm. The selection and installation of such device shall be in accordance with the current edition of BSEN 50292, and the user must be briefed regarding the use and maintenance of such device. © 2014 Focal Point Fires plc. -
Page 12: Siting & Clearances Around The Stove
If this the case then the stove must be installed so as to prevent movement back to the wall. The non-combustible shelf must not project further forward than the back edge of the outlet grille on the top of the stove. In all cases the shelf must extend at least 50mm forwards from the TV. © 2014 Focal Point Fires plc. -
Page 13: Fire Guards
If the appliance is used in a room as the sole source of heat, then condensation may occur on colder surfaces within the room. This appliance must not be used in bathrooms. Refer to section 4.0 of the installation instructions for guidance on installations in bedrooms. © 2014 Focal Point Fires plc. -
Page 14: Fuel Bed Layout
MUST be carried out at least once annually. Servicing must be carried out by a compe- tent person, such as a GAS SAFE registered installer . © 2014 Focal Point Fires plc. -
Page 15: Cleaning
Pilot assembly (Natural Gas) Pilot assembly (LPG - Propane) F730070 Injector - (Natural Gas 1.30) F730104 Injector - (LPG - Propane .83) F510127 Burner unit (Natural Gas) F510133 Burner unit (LPG - Propane) F780079 Catalyst F740004 Ignitor © 2014 Focal Point Fires plc. -
Page 16: Installation Details
Name & contact details of installer : Installer GAS SAFE registration No : Model : Fire serial No. : Date installed : 13.0 SERVICE HISTORY Date of service Serviced by (name): GAS SAFE No. : Contact details of Engineer © 2014 Focal Point Fires plc. -
Page 17: Appliance Dimensions
Making a claim is easy. If you wish to make a claim under our guarantee and all the terms and conditions for your product have been met then please submit the fol- lowing information for the attention of the 3G Service Department to the address below. Alternatively, you can email or fax. Focal Point Fires, 3G Service Department, Reid Street, Christchurch, Dorset, BH23 2BT. Email: 3g@focalpointfires.co.uk, Fax.
