Summary of Contents for Goodmans GCD808

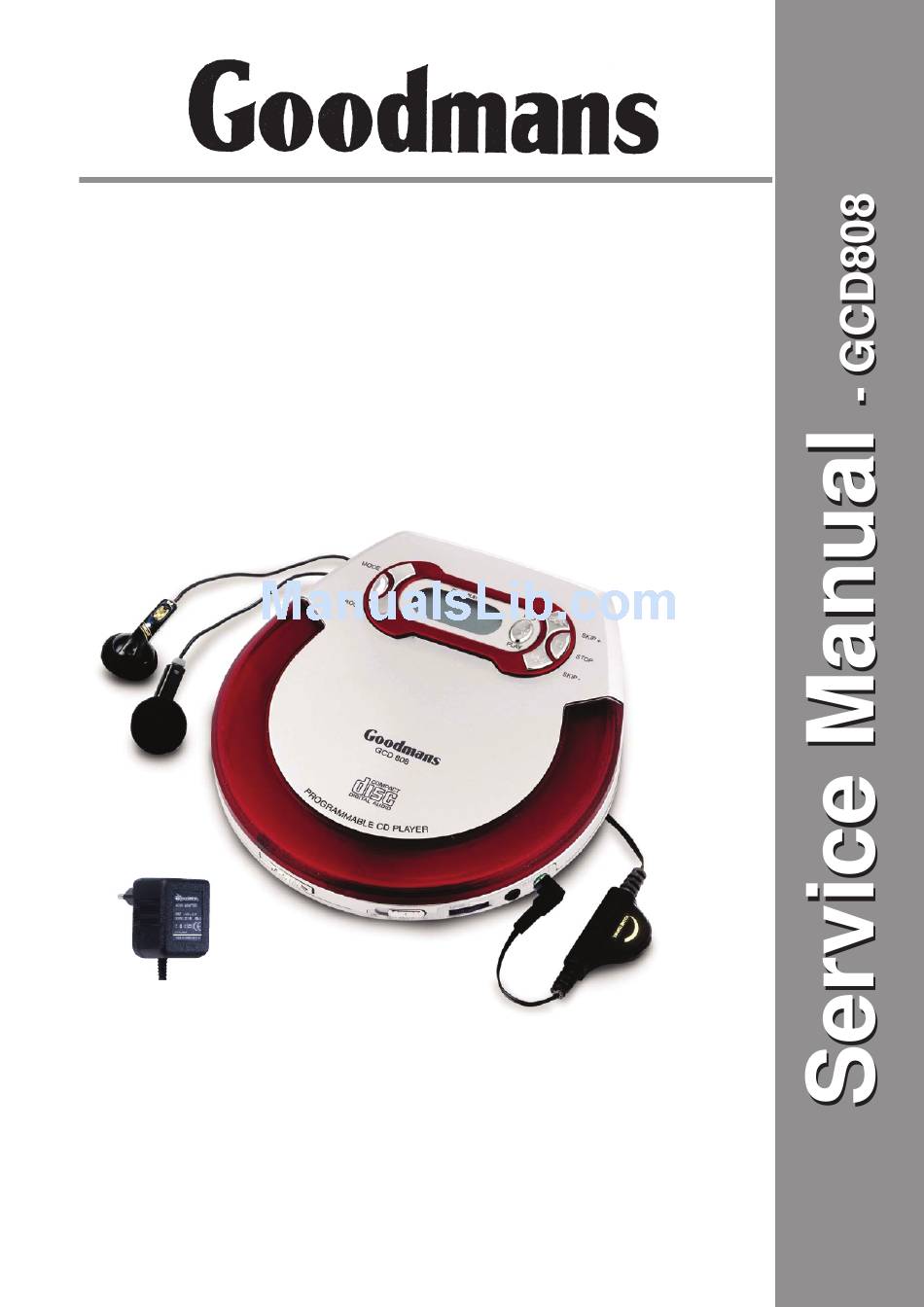

  • Page 1 GCD808...

  • Page 2: Bill Of Materials

    Bill Of Materials ITEM DESCRIPTION LOCATION 001-2009D-710 P.C.B Main Board 001-2049S-D70 P.C.B KEY BOARD 002-06575-D07 I.C BH6575FV 1 IC201 002-04453-D07 I.C BH4453F 1 IC301 002-24393-G00 I.C BU24393-8Z 1 IC401 002-09532-H00 I.C BU9532KS 1 IC101 003-3199Y-H03 TRANSISTOR KTC3199Y TO-92S 1 Q10 003-1266Y-000 TRANSISTOR KTA1266Y 1 Q7 003-3203Y-D00 TRANSISTOR STC3203Y...
  • Page 3 ITEM DESCRIPTION LOCATION 27 011-B101A-200 RES CHIP 100 OHM ±5% 0603 2 R52.6 R21.27.28.30.31.8. 28 011-B102A-200 RES CHIP 1K OHM ±5% 0603 18.53.54.68.39.40.71.45.59 29 011-B103A-200 RES CHIP 10K OHM ±5% 0603 3 R62.9.(KEY:1) 30 011-B104A-200 RES CHIP 100K OHM ±5% 0603 8 R63.20.1.66.60.61.32.33 31 011-B105A-200 RES CHIP 1M OHM ±5% 0603...
  • Page 4 ITEM DESCRIPTION LOCATION 012-6107C-300 ELECT CAP 100uF 16V ±20% 5x5mm 6 EC19.20.22.7.10.23 012-5227A-300 ELECT CAP 220uF 6.3V ±20% 6x5mm 5 EC17.18.2.5.4 012-8227B-300 ELECT CAP 220uF 10V ±20% 8x5mm 1 EC6 013-D107M-50B Tantal Chip CAP 100uF 4V +-20% "B-Size" 1 C? 61 014-B102C-500 CHIP CER CAP 0.001uF 50V ±10% 0603 5 C27.28.29.30.5 62 014-B103C-500 CHIP CER CAP 0.01uF 50V ±10% 0603...
  • Page 5 ITEM DESCRIPTION LOCATION 88 048-DC480-001 DC JACK DC-480 89 050-TA005-16P Tact Switch 6mm W/Pin 250g 90 052-0TW60-350 3.5mm Stereo Earphone TW-60 1 ACCORDING TO ORDER 201-EI350-062 AC Adaptor EI-35 230V 50Hz 4.5V DC 600mA "CE" 1 ACCORDING TO ORDER 201-2323A-080 CAR DC CHARGER-ADAP TOR 12-24V TO4.5V 1 ACCORDING TO ORDER 93 203-2009S-C90 CD DECK "SAMSUNG"...
  • Page 6 ITEM DESCRIPTION LOCATION 118 411-2049A-500 LCD-LENS PVC CLEAR 119 411-2009F-100 TACT-SWITCH-CAP ABS 120 458-2049C-100 KEY-KNOB ASS'Y ABS 121 458-2006B-1NL HOLD/BASS KNOB ABS Natural 122 459-2009A-1BK OPEN KNOB ABS 123 483-2049A-100 ORNAMENT...
  • Page 10 RF-SVCC SVCC L101 10uH TP110 RFRPRFM C123 150P(C) Q101 C121 2200P(C) 2SA1576AR TP104 CN101 C104 C136 CMSM95 100/10V R101 C105 0.1(C) SVCC TP101 C124 1/50V RF-VCC C106 OPEN R107 R125 A-VC R106 R109 C131 15P(A) C125 6800P(C) R108 TP102 X101 T(-) R130 100K...
