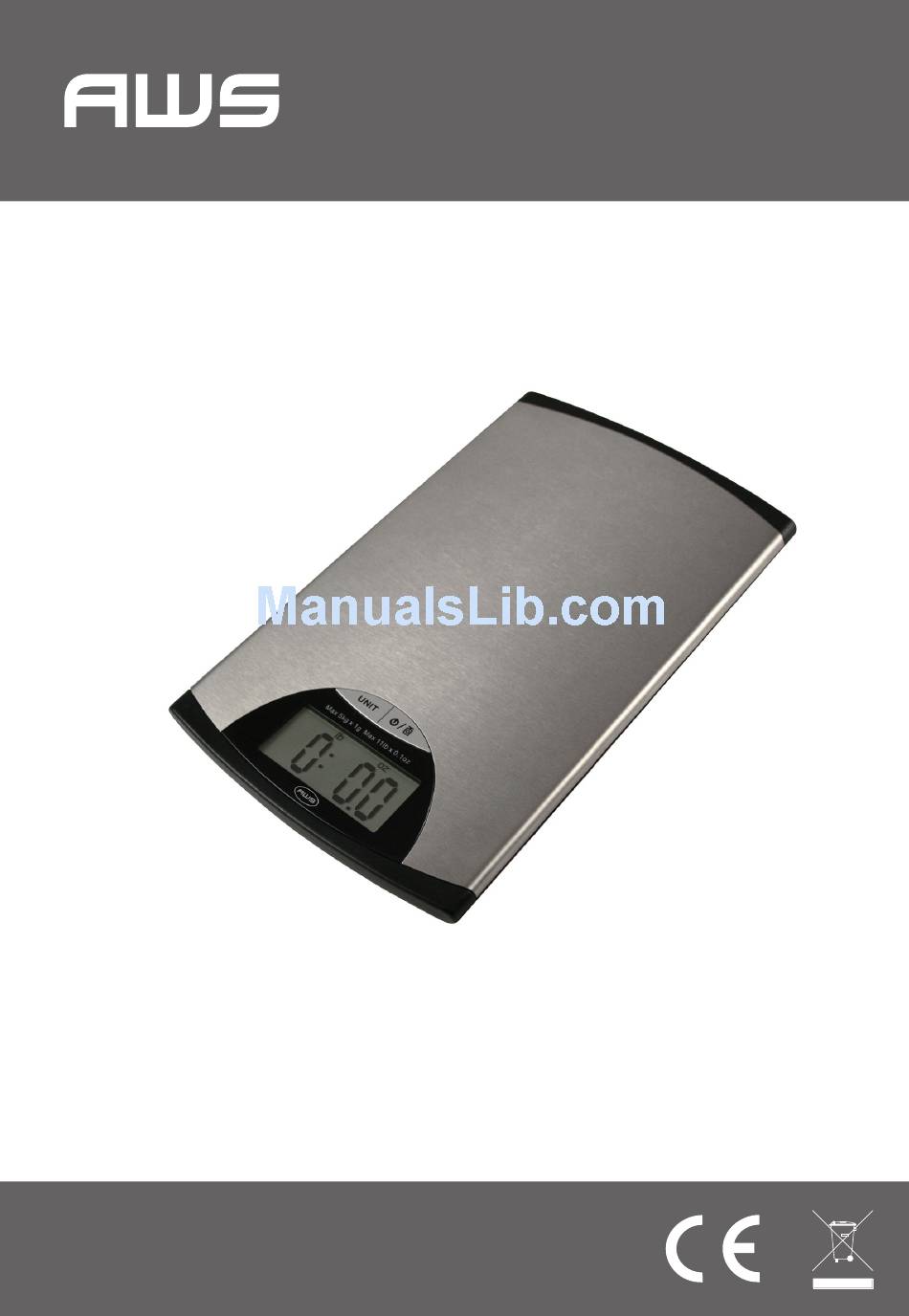

- Page 1 EDGE User Manual EDGE-5K (5000g x 1g) Copyright © 2012 American Weigh Scales, Inc. All rights reserved. Rev. 2.0...

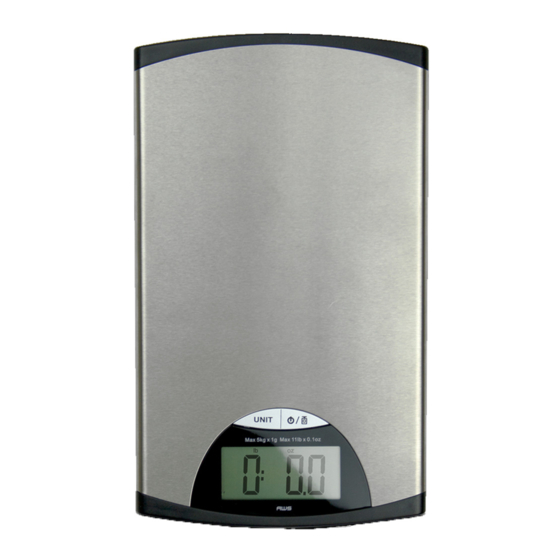

- Page 2 EDGE-5K Thank you for purchasing the American Weigh EDGE- 5K digital kitchen scale. Please read all operating instructions carefully before use. Scales are precision measuring devices and should always be handled with proper care. To ensure years of reliable service, keep these simple tips in mind: • Do not exceed the scale’s maximum capacity.
- Page 3 I. Part List 1. Scale 2. CR2032 Battery II. Display Overview Low Battery Weighing Unit Indicator Negative Weight Indicator Weight Value Tare Indicator III. Key Description UNIT Max 5kg x 1g Max 11lb x 0.1oz 1. Unit Key - Changes the displayed unit of measure 2.
- Page 4 EDGE-5K V. Scale Operation 1. Place the scale on a flat, level surface. 2. Tap the key to turn the scale on. 3. Once the scale displays zero, you are ready to weigh. 4. Place items to be weighed on the center of the scale platform. 5. When you are finished weighing, you can turn the scale off by holding the key for 2 seconds.
- Page 5 1. Press the UNIT key to change the scale’s displayed unit of measure. 2. If the scale is turned off then back on, it will default to the last unit used. • EDGE-5K Units: g (gram) lb:oz (pound:ounce) ml (milliliter) fl.oz. (fluid ounce - US) VIII. Calibration Adjustment (Advanced Users Only) Calibration is performed at the factory.
- Page 6 EDGE-5K IX. Error Codes Symbol - Batteries are low. Replace the batteries. 2. EEEE- Maximum capacity exceeded. This scale cannot be used to give measurements over 11lbs (5kg). X. Specifications EDGE-5K Max. Capacity 5000g / 5000ml / 169fl.oz / 11lb Readability 1g / 1ml / 0.1fl.oz / 0.1oz Calibration Weights 2000g, 5000g (not included)
