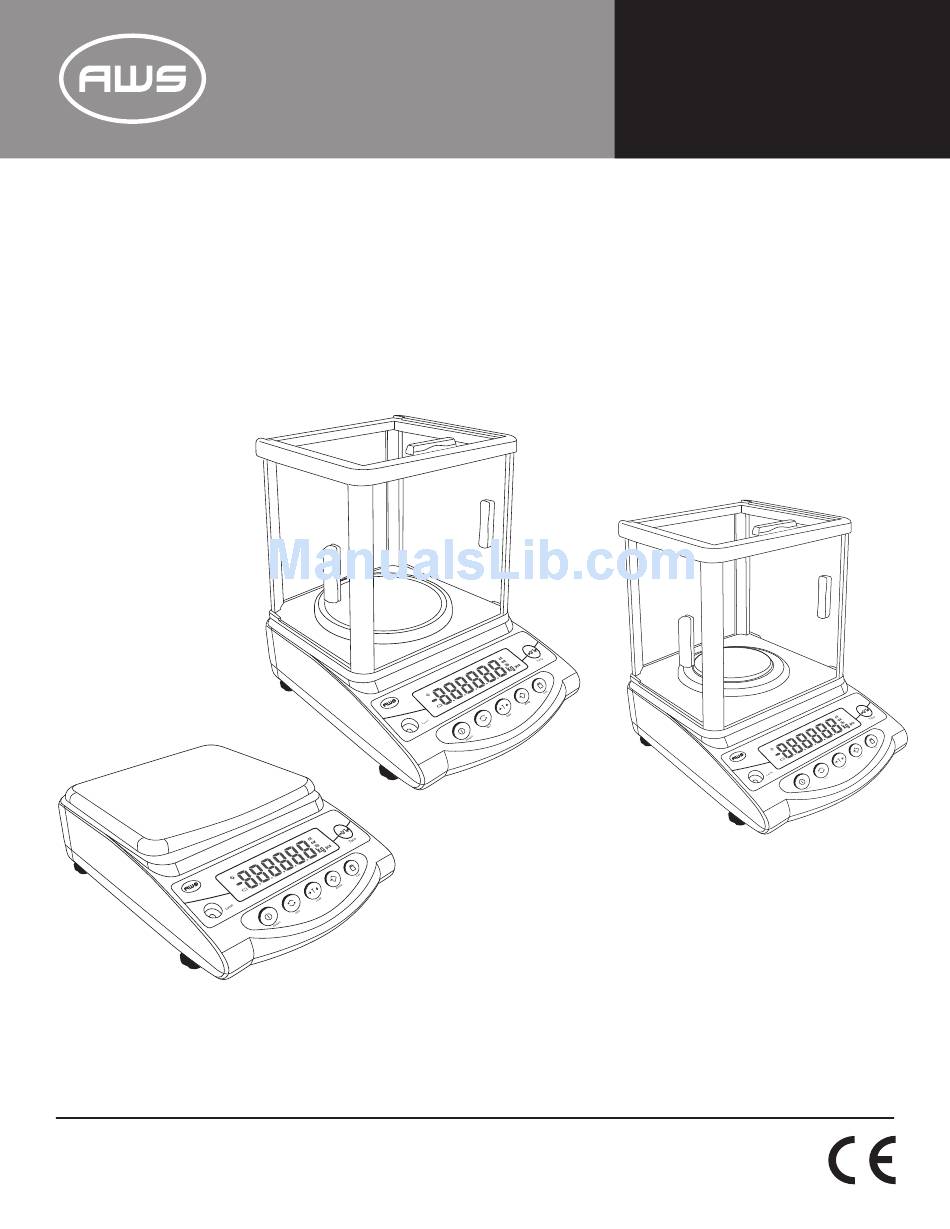

- Page 1 American PN-Series Weigh Precision Balance Scales, Inc. INSTRUCTION MANUAL ©2010 American Weigh Scales, Inc.
-
Page 2: Table Of Contents
PN-Series Manual TABLE OF CONTENTS INTRODUCTION PN-A Balance Stucture ............... . . P. 3 PN-B, PN-C Balance Stucture . -
Page 3: Pn-A Balance Stucture

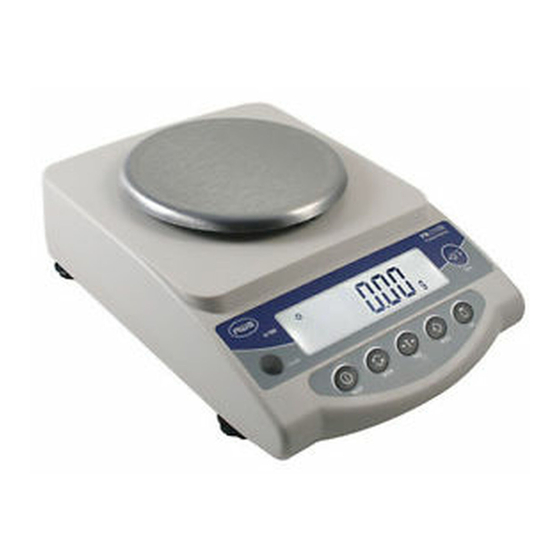

PN-Series Manual 1.1. PN-Series (non draft-shield models) PN-2100B, PN-510A Platform Figure 1.1 Weighing Pan UNIT Button TARE Button Leveling Foot TARE Button Weight Display Bubble Level MODE Button ON/OFF Button CAL Button... -
Page 4: Pn-B, Pn-C Balance Stucture
PN-Series Manual 1.2. PN-Series (draft-shield models) Figure 1.2 Draft Shield UNIT Button TARE Button Leveling Foot TARE Button Weight Display Bubble Level MODE Button Weighing Platform ON/OFF Button CAL Button Sliding Door Handle... -
Page 5: Technical Specifications
PN-Series Manual 1.3. Technical Specifications Model PN-510A PN-2100A PN-6100A PN-210B Max. Capacity 510g 2100g 6100g 210g Readability 0.1g 0.01g Repeatability ±1d Linearity ±2d Span Calibration Weight 250 g 1000 g 3000 g 100 g Linear Calibration Weights 500 g, 250 g... -
Page 6: Installation
PN-Series Manual 2. INSTALLATION 2.1. Part List Balance ............1 pc. -
Page 7: Turning On The Balance And Self-Testing
PN-Series Manual 2.4. Turning on the Balance and Self-testing 1. Connect the AC adapter to an available wall socket and plug the other end of the cable into the balance. 2. Press the ON / OFF key to turn the scale on. A display test will be performed (5 seconds). -
Page 8: Operation
PN-Series Manual 3. OPERATION 3.1. Sample Weighing 1. Press TARE / ZERO to make the balance return to zero. 2. Load the sample onto the scale pan. 3. The weight is stable when g (depending on which weighing unit is active) appears on the display. -
Page 9: Linear Calibration
PN-Series Manual 2. Clean the weighing pan and press TARE to re-zero the balance. 3. When the balance is stabilized press and hold the CAL button for 5 seconds. 4. The display will show “-CAL-” then the required weight will flash on the display. -
Page 10: Appendix
PN-Series Manual 4. APPENDIX 4.1. RS232 Serial Data Communication This balance has a Bi-Directional RS232 port for communication with a PC. When connected to a computer, the weight value can be sent to the computer and commands can be sent to the balance... -
Page 11: Troubleshooting
PN-Series Manual 4.4. Care & Maintenance Please read all operating instructions carefully before use. Scales are precision instruments and should always be handled with proper care. To ensure years of reliable service, keep these simple tips in mind: • Do not exceed the scales maximum capacity. Overloading your scale can permanently damage it! • Avoid exposure to extreme heat or cold. Scales perform best at normal room temperature. If temperatures have changed dramatically, recalibration may be necessary.
