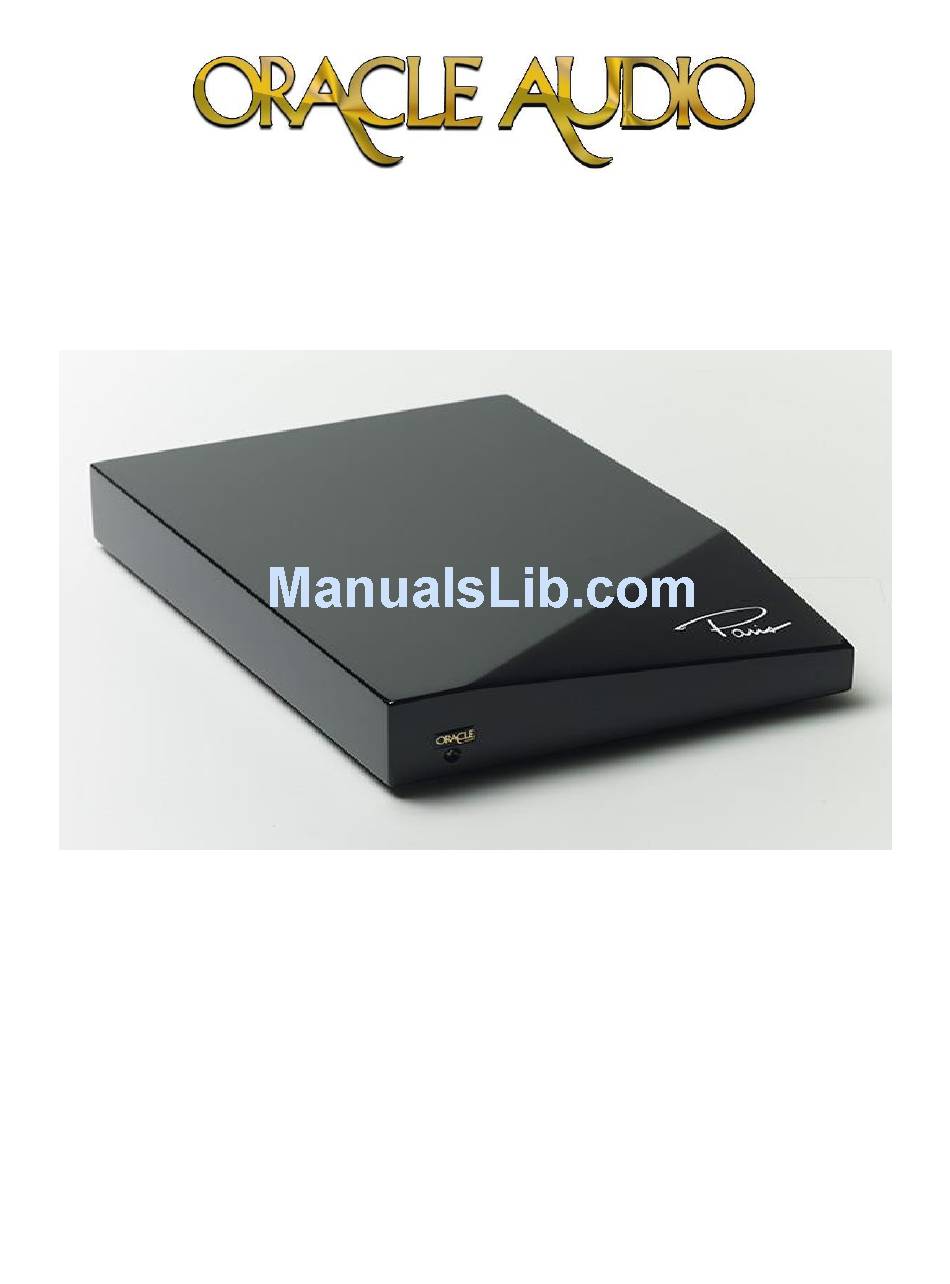

- Page 1 The Fine Art of Playing Music Oracle Audio Technologies Paris PH100 Phono Preamplifier Owner’s Manual...
-
Page 2: Foreword / For Your Records
FOREWORD We would first like to thank you, and this from the whole team at Oracle Audio, for purchasing our Paris PH100 phono preamplifier ! This is your Paris PH100 Owner’s Manual. The following pages will describe the key features, connectivity and safe operation of your new phono preamplifier. Although some operations are self explanatory, we strongly suggest you read this booklet to better understand the importance of the different key adjustments. -
Page 3: Table Of Contents
TABLE OF CONTENTS Foreword / For your Records ...................2 Table of contents ......................3 Features ………………………………................4 Gain and Impedance settings ..................5 Connection procedure .....................6 Operating instruction and specifications .................7 Waranty ...........................8 Waranty Registration Card....................9 Oracle Audio Technologies Paris PH100 phono preamplifier... -
Page 4: Features
The accuracy of RIAA standard curve is +/- 1dB. Jumper-selectable gain setting The Oracle Paris PH100 phono preamplifier has 3 gain settings. The gain must be adapted to match your cartridge’s output with the input of your PH100 to provide an optimal volume level and to prevent any overloading which would cause distortion. -
Page 5: Gain And Impedance Settings
USE THE 41,5 db GAIN SHORTING POSTS Gain 62 db Gain 52 db Gain 41.5 db No Connection M/M 47K ohms M/C 100 ohms M/C 200 ohms M/C 511 ohms M/C 1k ohms M/C 1,5k ohms Oracle Audio Technologies Paris PH100 phono preamplifier... -
Page 6: Connection Procedure
Important note : The PH100 always has to be connected to an auxiliary input. Never hook up the PH100 into a phono input on your amplifier or preamplifier. AC Power Connect of the supplied power cord to an AC wall outlet. Oracle Audio Technologies Paris PH100 phono preamplifier... -
Page 7: Operating Instruction And Specifications
Always operate your Oracle PH100 phono preamplifier in a well ventilated area to avoid overheating. Phono preamplifiers are very sensitive to their electromagnetic environment and it is recommended to position your Paris PH100 as far as possible from your preamplifier and other high voltage equipment or wires. Proximity to such devices can create “HUM”... -
Page 8: Waranty
WARRANTY Your new Oracle Paris PH100 carries a transferable, 2 year parts and labor limited warranty against operation defects under “normal use” or manufacturing defects. Oracle Audio Technologies will repair the defective item within this warranty period. The original bill of sale from an authorized dealer or distributor is required for any warranty repair. -
Page 9: Waranty Registration Card
We are confident your new Oracle Audio product will give you many years of enjoyment and satisfaction You are now ready for the real and only purpose of all this... to sit down, relax, and enjoy the Fine Art of Playing Music...
