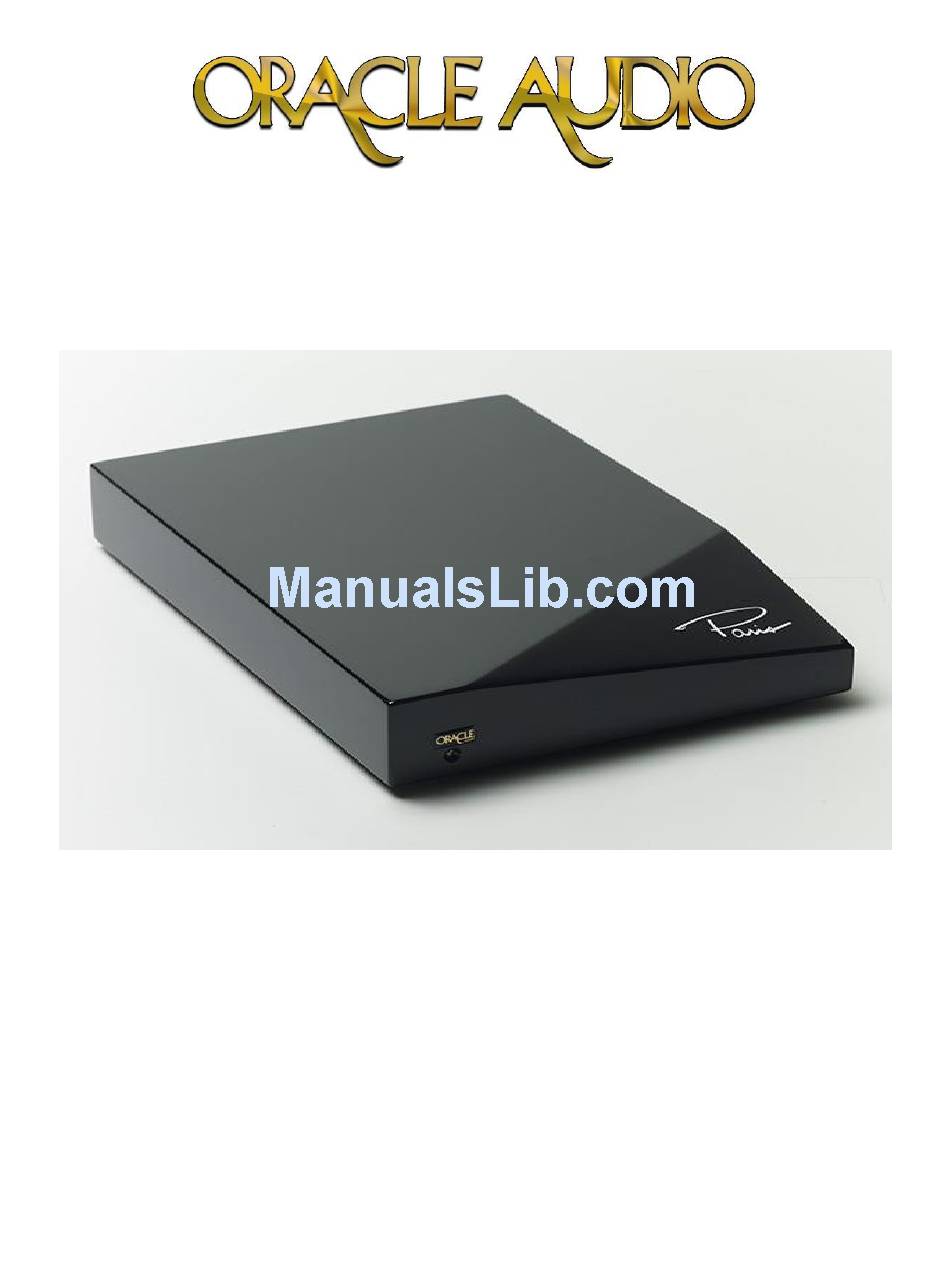

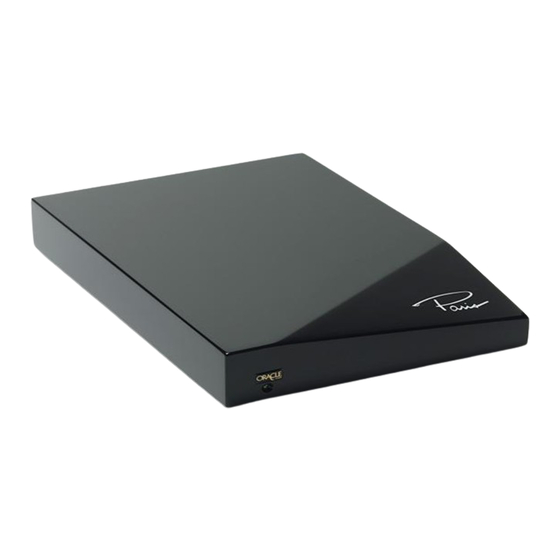

- Page 1 The Fine Art of Playing Music Oracle Audio Technologies Paris PH200 Phono Stage Owner’s Manual...
- Page 2 FOREWORD We would first like to thank you, and this from the whole team at Oracle Audio, for purchasing our Paris PH200 phono stage! This is your Paris PH200 Owner’s Manual. The following pages will describe the key features, connectivity and safe operation of your new phono stage. Although some operations are self explanatory, we strongly suggest you read this booklet to better understand the importance of the different key adjustments.
- Page 3 TABLE OF CONTENTS Foreword / For your Records....................2 Table of contents......................3 Features........................4 & 5 Connection procedure......................5 Operating Instruction......................6 Specifications........................7 Warranty description......................7 Warranty card........................8 Oracle Audio Technologies Paris PH200 phono stage...
- Page 4 The accuracy of RIAA standard curve is +/- 1dB. Jumper-selectable settings The Oracle Paris PH200 phono stage is equipped with 3 gain settings; 41.5dB; 52dB or 62dB. The gain can be modified to match your cartridge’s output and those settings are made by changing the position of a specific jumper.
- Page 5 USE THE 41,5 db GAIN SHORTING POSTS Gain 62 db Gain 52 db Gain 41.5 db No Connection M/M 47K ohms M/C 100 ohms M/C 200 ohms M/C 511 ohms M/C 1k ohms M/C 1,5k ohms Oracle Audio Technologies Paris PH200 phono stage...
-
Page 6: Connection Procedure
Connect to those RCA connectors the RIGHT / LEFT RCA cable to your preamplifier or integrated amplifier. Important note : The Paris PH200 must always be connected to an auxilliary input on your amplifier or pre-amplifier and never should it be connected into a phono input! AC Power input Connect the AC power cord from the power supply. -
Page 7: Specifications
> -80dB WARRANTY Your new Oracle Paris PH200 carries a transferable, 2 year parts and labor limited warranty against operation defects under “normal use” or manufacturing defects. Oracle Audio Technologies will repair the defective item within this warranty period. The original bill of sale from an authorized dealer or distributor is required for any warranty repair. -
Page 8: Warranty Registration Card
You are now ready for the real and only purpose of all this, to sit down, relax and enjoy the fine art of playing music! From all of us at Oracle Audio Technologies Inc, Thank you ! Oracle Audio Technologies...
