Summary of Contents for Oracle Audio PH 1000 Temple

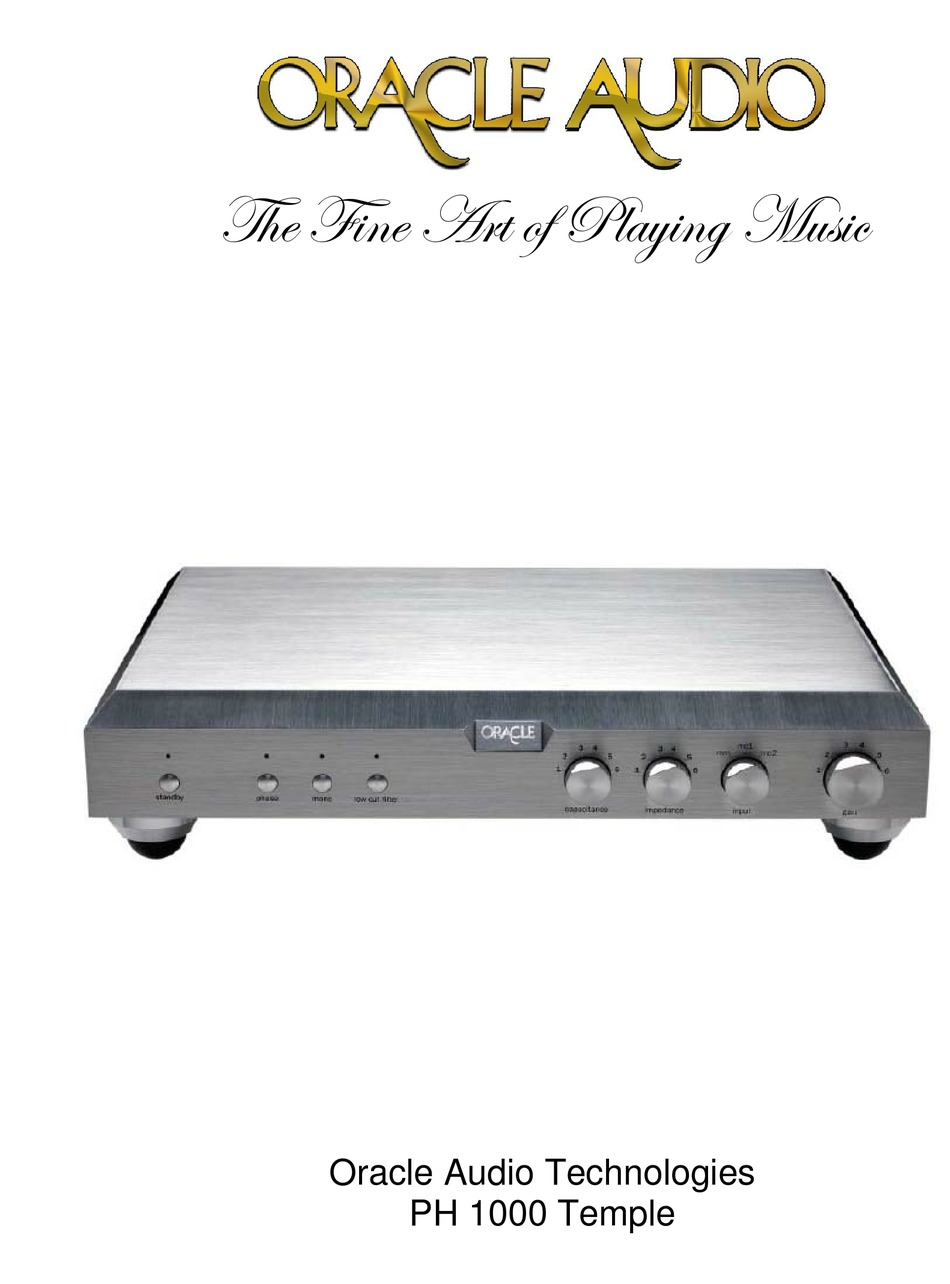

- Page 1 Y|Çx TÜà Éy cÄtç|Çz `âá|v Oracle Audio Technologies PH 1000 Temple...
- Page 2 It is important to set up your TEMPLE with the utmost care for an outstanding musical performance and enjoyment! FOR YOUR RECORDS Oracle TEMPLE Serial Number: Dealer’s Name: Dealer’s Address: Dealer’s Phone: Purchase Date: We suggest you keep your sales slip together with this owner’s guide. Oracle Audio Technologies PH 1000 Temple Phono stage...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction ......................4 Features........................ 5 Connection procedure................... 8 Operating Instruction..................... 9 Specifications...................... 11 Oracle Audio Technologies PH 1000 Temple Phono stage... -
Page 4: Introduction
Temple PH 1000 phono stage will change your perception of what quality electronics should be. Meticulous listening to a properly set-up turntable has wonderful characteristics and promises to give you extremely impressive results. Oracle Audio Technologies PH 1000 Temple Phono stage... -
Page 5: Features
You can select from 25 Ohms to 470 Ohms depending on the load impedance of the MC cartridge. Note: The load impedance selection rotary switch on the front panel doesn’t work when you select MM input. Oracle Audio Technologies PH 1000 Temple Phono stage... - Page 6 Ultra-high Grade components All the components used in the Oracle Temple PH 1000 phono stage are ultra-high grade. These components are used for higher Signal to Noise ratio and for a better musicality. Oracle Audio Technologies PH 1000 Temple Phono stage...
- Page 7 The capacitors are terminated through the capacitance selection rotary switch. Depending upon the capacitance termination, the capacitors are present at input of the line stage. Therefore, the capacitance affects both MM and MC inputs. Oracle Audio Technologies PH 1000 Temple Phono stage...
-
Page 8: Connection Procedure
These outputs are to be connected to your preamplifier or integrated amplifier. The Oracle Temple PH 1000 phono stage is working unbalanced and balanced at the same time. DC Power 9 DIN D-Sub connector is used in the power supply box Oracle Audio Technologies PH 1000 Temple Phono stage... -
Page 9: Operating Instruction
ON state is cut low frequency. Capacitance The 6 steps indicate terminating the cartridge with following capacitance. Each steps affect all MM, MC inputs: 1: 0 2: 33 3: 100 4: 220 5: 470 6: 1000 PF Oracle Audio Technologies PH 1000 Temple Phono stage... - Page 10 The Oracle Temple PH1000 has 3 inputs, MM / MC1 / MC2 Gain Use this rotary switch to match your cartridge. 1: 40 2: 44 3: 48 4: 52 5: 56 6: 60 dB Oracle Audio Technologies PH 1000 Temple Phono stage...
-
Page 11: Specifications
SPECIFICATIONS Oracle Audio Technologies PH 1000 Temple Phono stage... - Page 12 Fine Art of Playing Music Oracle Audio Technologies Inc 6136 Boulevard Bertrand Fabi, Suite 101 Sherbrooke, Quebec, Canada J1N 2P3 Phone: 1-819-864-0480 Fax: 1-819-864-9641 e-mail: info@oracle-audio.com www.oracle-audio.com Oracle Audio Technologies PH 1000 Temple Phono stage...
