Art MX624 User Manual

Six channel stereo mixer with two zone outputs

Advertisement

Quick Links

MX624
Six Channel Stereo Mixer with Two Zone Outputs
USER'S GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX624 and is the answer not in the manual?

Questions and answers

Summary of Contents for Art MX624

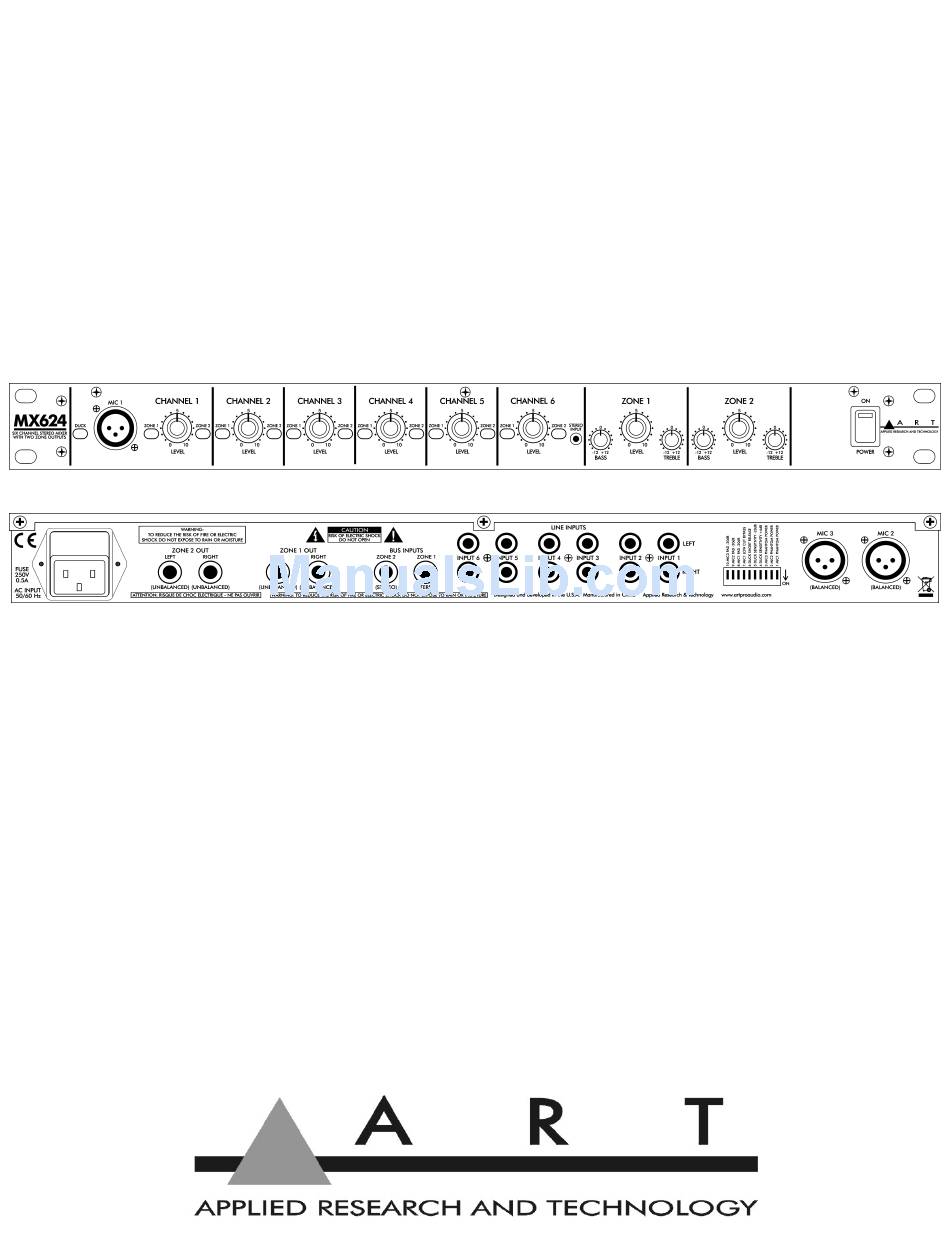

  • Page 1 MX624 Six Channel Stereo Mixer with Two Zone Outputs USER'S GUIDE...
  • Page 2: Important Safety Instructions - Read First

    IMPORTANT SAFETY INSTRUCTIONS - READ FIRST This symbol, wherever it appears, This symbol, wherever it appears, alerts alerts you to the presence of uninsulated you to important operating and dangerous voltages inside the enclosure maintenance instructions in the that may be sufficient to constitute a risk. accompanying literature.
  • Page 3 Two bus inputs allow patching of multiple units when more input channels are needed. The ART MX624 may be used on stage, in the studio, or for permanent install applications including conference rooms, corporate boardrooms, churches, restaurants, small clubs, health clubs and more. A built-in power supply and single high 19-inch rack mount format allows for easy installation and reliable long-term operation.
  • Page 4 1/4-inch stereo (TRS) phone plug (tip is left and ring is right). Be sure the connections use shielded cable. Then simply connect the ZONE 1 or 2 OUT (or both) jacks of one MX624 to the ZONE 1 or 2 BUS INPUT (or both) jacks of another MX624.
  • Page 5 These four 1/4-inch mono (TS) jacks provide a stereo signal from each of the two zones of your MX624 to destination devices, such as amplifiers, powered speakers, or main mixers. These outputs are directly affected by the ZONE 1 and 2 LEVEL controls, as well as the associated BASS and TREBLE controls.
  • Page 6: Operation

    OPERATION Front Panel Controls DUCK Switch Pushing this switch in enables ducking in response to the signal from the MIC 1 input. Pushing this switch again returns it to the out position and disables ducking. The switch is illuminated by a red LED that is part of the ducking circuit, so it provides useful feedback about the amount of ducking applied as well as indicating basic on/off status.
  • Page 7 POWER Switch This switch turns the MX624 on and off. When the switch is pushed in at the top (ON position), a red LED in the switch lights, indicating that power is applied. Pushing the...
  • Page 8 Rear Panel Controls There is a group of ten DIP switches located towards the right end of the back panel, when viewed from the rear. These switches are nominally all in the up or OFF position. Their function is described below. Rear Panel DIP Switches MIC PHANTOM POWER Switches (1-3) These numbered switches control the application of phantom power (+48V) to the...
  • Page 9 DUCK Control Switches (4-6) These switches allow you to alter the operation of the ducking action. The two sensitivity switches adjust the level which the signal from MIC 1 needs to exceed for ducking to occur. Moving just switch 4 (DUCK SENSITIVITY +6dB) down (ON position) makes the ducking detector 6dB more sensitive, so that ducking occurs with a lower mic level.
  • Page 10: Block Diagram

    BLOCK DIAGRAM...
  • Page 12: Warranty Information

    This warranty is void if the serial number is altered, defaced, or removed. ART reserves the right to make changes in design or make additions to or improvements upon this product without any obligation to install the same on products previously manufactured.
  • Page 13 You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration. 2. If you believe that the ART unit is at fault, go to www.artproaudio.com. Select "Support", then "Return Authorization Request" to request a return authorization number.
  • Page 14: Specifications

    Export units configured for country of destination Dimensions (HWD) 1.75" x 19" x 6" 44.5mm x 483mm x 152mm Weight 4.9 lbs. (2.2 kg) Note: 0 dBu = 0.775Vrms ART maintains a policy of constant product improvement. Therefore, specifications are subject to change without notice.
  • Page 15 NOTES...
  • Page 16 E-mail: support@artproaudio.com © 2015 Applied Research & Technology MX624 624-5004-101 V1.0...
