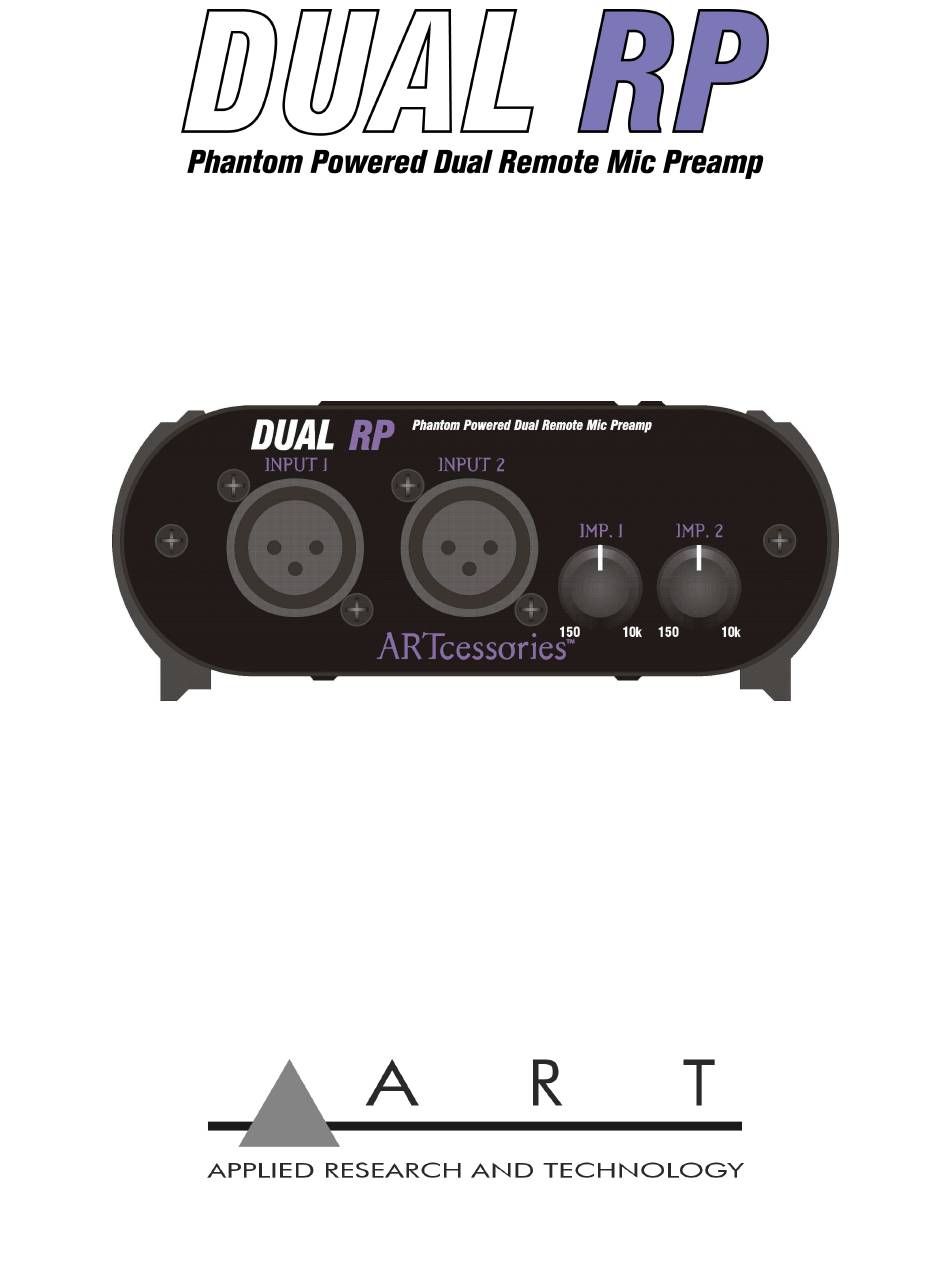

- Page 1 ARTcessories Service Manual...
- Page 2 IMPORTANT SAFETY INSTRUCTION – READ FIRST This symbol, whenever it appears alerts you to the presence of uninsulated dangerous voltage inside the enclosure-voltage that may be sufficient to constitute a risk of shock. This symbol, whenever it appears, alerts you to important operating and maintenance instructions in the accompanying literature.
- Page 3 INTRODUCTION Thank you for purchasing Applied Research and Technology’s DUAL RP. The Dual RP is the ideal solution to increasing the performance of your ribbon and Dynamic microphones. This remotely powered preamp brings out all of the nuances of your mic before running into your recording interface or Mixer through long cable runs. With the Dual RP you can tailor the loading on the mic through the variable impedance controls.
- Page 4 INSTALLATION and OPERATION Connect the outputs of the Dual RP to a Phantom powered source such as a mixer or preamplifier. Connect the Dual RP inputs to your Ribbon or dynamic mics. Make sure you start with the gain pots set to their minimum settings. Once connected engage the Phantom power and adjust the gain on the Dual RP for the desired level.
- Page 5 APPLICATIONS Perfect for: getting the most out of your ribbon and dynamic mic! The Dual RP may be used in a wide variety of applications and environments. Self-contained in an extruded enclosure, the remote mic Preamp is designed for continuous professional use. Because the unit is compact and lightweight, mounting location is not critical.
- Page 6 FULL BILL OF MATERIALS PART # VALUE DESCRIPTION PATTERN QTY LOCATION RESISTOR SECTION 1.00K Resistor, Metal Film, 0.1% AXIAL0.4 4 R100, R101, R200, R201 10.0K Resistor, Metal Film, 0.1% AXIAL0.4 4 R104, R107, R204, R207 3.01K Resistor, Metal Film, 0.1% AXIAL0.4 4 R113, R114, R213, R214 681 Ohms...
-
Page 7: Service Parts
HD ST BLK screws PH,RD screw self tap for Screws for XLR jacks and 1005032125 plastic tube bracket 8 JK1-JK4 SERVICE PARTS ART PART # VALUE DESCRIPTION PATTERN LOCATION 1001025104 10k "A" taper POT - Single Control / Trimmer VR-16 VR100, VR200... - Page 8 C110 470uF/10V...
-
Page 10: Warranty Information
WARRANTY INFORMATION Limited Warranty Applied Research and Technology will provide warranty and service for this unit in accordance with the following warrants: Applied Research and Technology, (A R T) warrants to the original purchaser that this product and the components thereof will be free from defects in workmanship and materials for a period of three years from the date of purchase. -
Page 11: Specifications
If you believe that the ART unit is at fault, go to www.artproaudio.com. Select “Support”, then “Return Authorization Request” to request a return authorization number. If you are returning the unit for service, pack the unit in its original carton or a reasonable substitute. The original packaging may not be suitable as a shipping carton, so consider putting the packaged unit in another box for shipping. - Page 12 www.artproaudio.com E-mail: support@artproaudio.com © 2020 Applied Research & Technology / Yorkville Sound DUAL RP DRP-5004-101...
