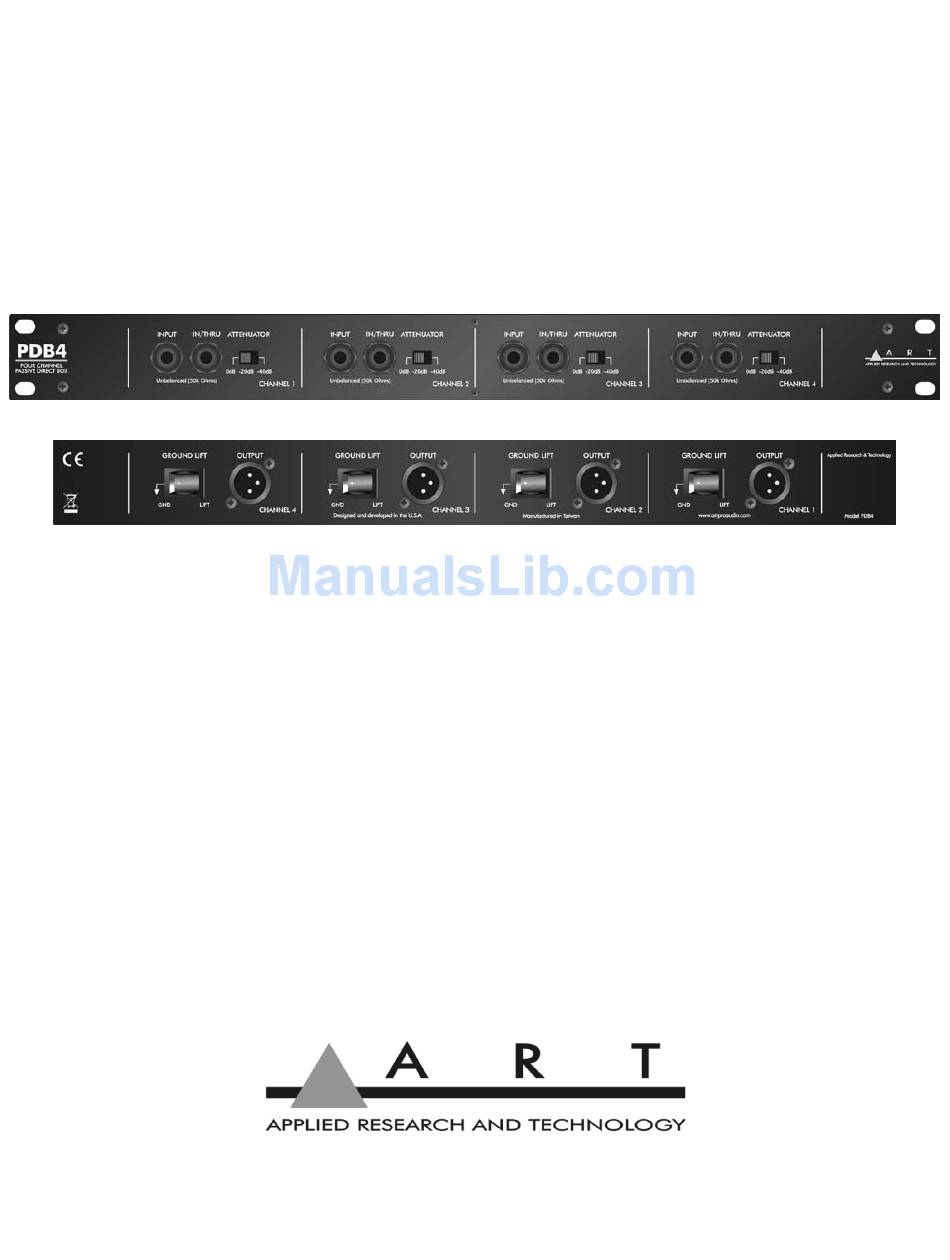

- Page 1 PDB4 Four Channel Passive Direct Box USER'S GUIDE...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS - READ FIRST This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual Read instructions Retain these safety and operating instructions for future reference. Heed all warnings printed here and on the equipment.
- Page 3 The ART PDB4 Four Channel Passive Direct Box is a deceptively simple, yet surprisingly useful addition to any serious collection of audio equipment. The PDB4 is a four channel passive direct box that features four quality fully transformer isolated direct boxes in a 1U 19-inch rack mount chassis.
- Page 4 Suggested setting – set the input attenuation to –40dB (amp level). However you decide to use it, we're sure you'll find the ART PDB4 Four Channel Passive Direct Box to be an indispensable addition to your audio equipment arsenal.
- Page 5 This warranty is void if the serial number is altered, defaced, or removed. ART reserves the right to make changes in design or make additions to or improvements upon this product without any obligation to install the same on products previously manufactured.
- Page 6 You may want to consult with your dealer for assistance in troubleshooting or testing your particular configuration. 2. If you believe that the ART unit is at fault, go to www.artproaudio.com. You may contact Customer Service for more assistance, or directly request a Return Authorization for service in the “resources”...
- Page 7 SPECIFICATIONS Ground Lift Switchable Input Attenuation Switchable (0dB, -20dB, -40dB) Input Impedance 50k Ohms Output Impedance 600 Ohms Input Jacks 1/4" TS unbalanced Output Jack XLR Male balanced Frequency Response 10Hz - 50kHz +/-0.5dB@+4dBuhigh, 19" Enclosure Steel 1U high, 19" rack mount Dimensions (HWD) 1.75”...
- Page 8 E-mail: support@artproaudio.com © 2013 Applied Research & Technology PDB4 V1.0...
