Natural gas and liquid propane gas gas-fired wall-mounted condensing boiler
Hide thumbs Also See for VITODENS 200-W:
Table of Contents

Advertisement

Quick Links

See also: Technician Manual , Technical Data Manual

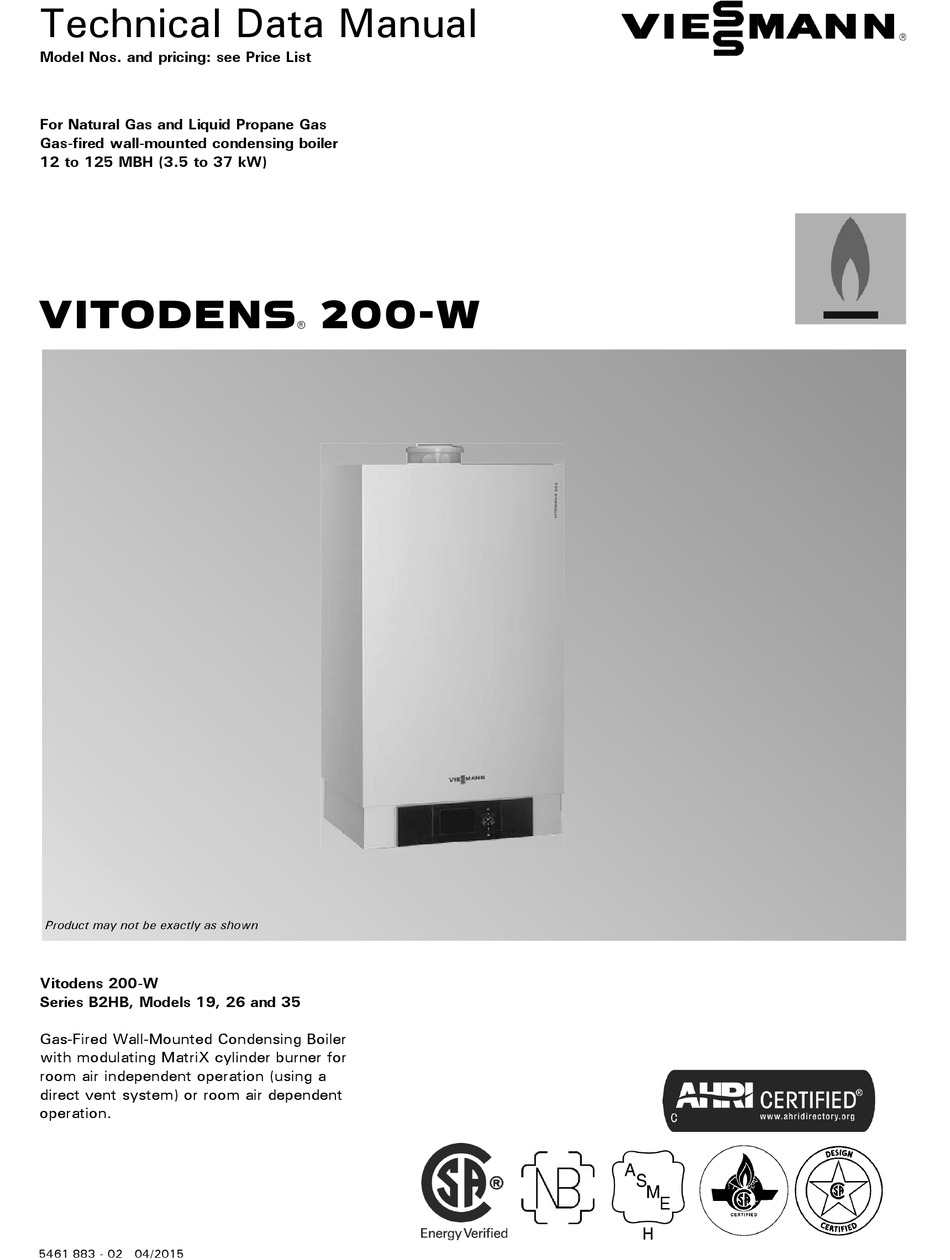

Technical Data Manual
Model Nos. and pricing: see Price List
For Natural Gas and Liquid Propane Gas
Gas-fired wall-mounted condensing boiler
12 to 125 MBH (3.5 to 37 kW)
VITODENS
200-W
r
Product may not be exactly as shown
Vitodens 200-W
Series B2HB, Models 19, 26 and 35
Gas-Fired Wall-Mounted Condensing Boiler
with modulating MatriX cylinder burner for
room air independent operation (using a
direct vent system) or room air dependent
operation.
H
5461 883 - 02 04/2015
