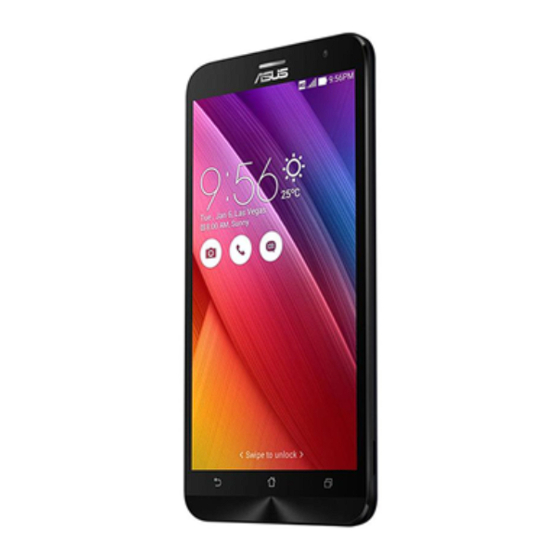

Asus Z008D User Manual

Hide thumbs

Advertisement

User Guide
E10273
Installing a micro SIM card
To install a micro SIM card:
1.
Locate the groove on the
bottom-right corner of your
ASUS Phone.
2.
Pry the cover loose
and then pull the rear
cover off.
3.
Insert the micro SIM card into one of
the slots.
Micro SIM card 1
Micro SIM card 2
IMPORTANT: Use only a micro SIM card on your ASUS
Phone. A trimmed SIM card may not properly fit into and
may not be detected by your ASUS Phone.
NOTE: Micro SIM card slot 1 supports 4G/3G/2G
network bands. Micro SIM card slot 2 supports 2G
network band only.
Second Edition/ March 2015
Model: ASUS_Z008D (ZE550ML),
ASUS_Z00AD (ZE551ML)
Before you start, ensure that you have read all the safety
information and operating instructions in this User Guide
to prevent injury or damage to your device.
NOTE: For the latest updates and more detailed
information, please visit www.asus.com.
Front features
P-sensor/Light sensor
Power key
Front camera
LED indicator
Receiver
Touch screen
display
Touch keys
Installing a microSD card
To install a microSD card:
1.
Locate the groove on the
bottom-right corner of your
ASUS Phone.
2.
Pry the cover loose
and then pull the rear
cover off.
3.
Insert the microSD card into
the microSD card slot.
CAUTION: Do not use sharp tools or solvent on your
device to avoid scratches on it.
Side features
Audio jack
Power key Microphone
Groove
Microphone
Micro USB port
NOTE: Pry open the rear cover from the groove.
Turning your ASUS Phone on or off
Press the power key at the top of your ASUS Phone to
power the device on or to power it off.
Power key
IMPORTANT: The first time you power on your ASUS
Phone, you will see the Welcome screen. Touch the
menu to select your preferred language then touch Next
Step. Follow the onscreen instructions to set up your
ASUS Phone.
Rear features
Flash
Rear camera
Volume key
Rear cover
Speaker
NOTES:
Remove the rear cover to display the dual micro
SIM and microSD card slots.
The micro SIM card slots support WCDMA, DC-
HSPA, GSM/EDGE, and FDD-LTE network bands.
The microSD card slot supports microSD and
microSDHC card formats.
FCC Regulations:
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in
a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
-
Reorient or relocate the receiving antenna.
-
Increase the separation between the equipment and
receiver.
-
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
-
Consult the dealer or an experienced radio/TV
technician for help.
Charging your ASUS Phone
To charge your ASUS Phone:
1. Connect the USB connector into the power adapter's
USB port.
2. Connect the other end of the micro USB cable to
your ASUS Phone.
3. Plug the power adapter into a wall socket.
3
2
1
IMPORTANT!
When using your ASUS Phone while it is plugged to
a power outlet, the grounded power outlet must be
near to the unit and easily accessible.
When charging your ASUS Phone through your
computer, ensure that you plug the micro USB
cable to your computer's USB 2.0 / USB 3.0 port.
Avoid charging your ASUS Phone in an
environment with ambient temperature of above
o
o
35
C (95
F).
NOTES:
Use only the power adapter that came with your
device. Using a different power adapter may
damage your device.
Using the bundled power adapter and ASUS Phone
signal cable to connect your ASUS Phone to a
power outlet is the best way to charge your ASUS
Phone.
The input voltage range between the wall outlet
and this adapter is AC 100V - 240V. The output
voltage of the micro USB cable is +9V=2A, 18W /
+5.2V=1.35A, 7W.
IC Regulations:
This device complies with Industry Canada's licence-
exempt RSSs. Operation is subject to the following two
conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including
interference that may cause undesired operation of
the device.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions
suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement."
CAN ICES-3(B)/NMB-3(B)
The device could automatically discontinue transmission
in case of absence of information to transmit, or
operational failure. Note that this is not intended to
prohibit transmission of control or signaling information
or the use of repetitive codes where required by the
technology.
-
the device for operation in the band 5150–5250
MHz is only for indoor use to reduce the potential for
harmful interference to co-channel mobile satellite
systems;
-
the maximum antenna gain permitted for devices
in the band 5725–5825 MHz shall comply with the
e.i.r.p. limits specified for point-to-point and non
point-to-point operation as appropriate.
The IC ID for this device is 3568A-Z00AD.
