Summary of Contents for IOGear GKM561R

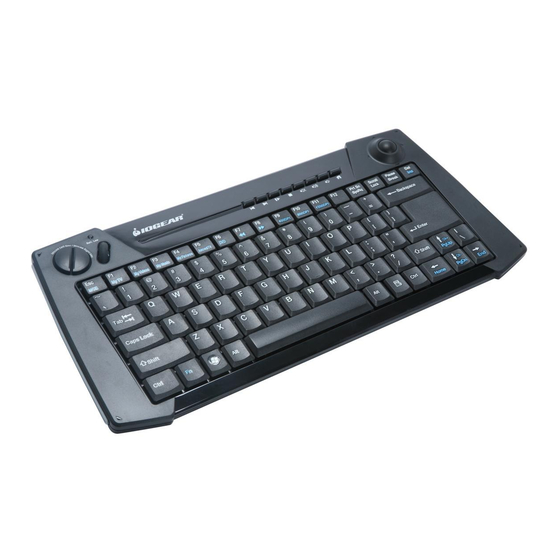

- Page 1 Quick Start Guide 2.4 GHz Multimedia Keyboard with Optical Trackball and Scroll Wheel GKM561R PART NO. Q1096-a www.iogear.com...
- Page 2 Overview Keyboard – Front View 5 6 7 8 9 10 11 12 1. Mouse Left Click 2. Mouse Right Click 3. Battery low Indicator 4. Scroll Wheel 5. Last Track 6. Next Track 500DPI 1000DPI 1500DPI 7. Play / Pause 8.
-
Page 3: Package Contents
Package Contents 1 x GKM561R 2.4GHz Multimedia Keyboard 1 x USB RF Receiver 1 x Cleaning Cloth 2 x AA Batteries 1 x Quick Start Guide 1 x Warranty Card Requirements Computer / Devices* • USB port Operating System** • Windows Vista ®... -
Page 4: Installation
Installation STEP 1 Connect the USB RF receiver into any open USB port of your computer while the computer is turned on. STEP 2 Open the battery cover on the back of the keyboard and insert the 2 included AA batteries into the battery tray.* Then, close the battery RESET ON/OFF... -
Page 5: Final Step
Pairing (Optional) STEP 1 Press the Reset button on the back of the keyboard next to the ON/OFF switch while the ON/OFF RESET keyboard is in ON position. STEP 2 Un-plug and reconnect the USB RF Receiver into any open USB port of your computer while the computer is turned on. -
Page 6: Sleep Mode
Sleep Mode When the keyboard is idle for 30 minutes, it will go into sleep mode for battery saving purposes. Simply press any key to wake the keyboard up and resume usage. Function Keys There are 19 sets of function keys on this keyboard. To invoke these functions, hold the function button (Fn) then press the function key (the keys with blue letters). - Page 7 Media Center Shortcut Keys Function Description Launch Windows Media Center Fn + MCE Launch My TV Fn + My TV Launch My Videos Fn + My Videos Launch My Music Fn + My Music Launch My Pictures Fn + My Pictures Record TV Fn + Record TV Play DVD (within Media Center only)
- Page 8 Removing the Optical Trackball STEP 1 Start by Powering Off the keyboard by switching the ON/OFF switch to the OFF position. ON/OFF RESET STEP 2 Unlock the trackball cover by twisting COUNTERCLOCKWISE until the raised dot indicators are aligned. Lift up the trackball cover to remove it.
- Page 9 Replacing the Optical Trackball STEP 1 Put the trackball inside the trackball assembly. Place the trackball cover over the trackball by aligning the raised indicators. STEP 2 Lock the trackball cover into place by twisting CLOCKWISE until down arrow is aligned with the raised indicator.
-
Page 10: Compliance Information
Compliance Information FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential setting. This product generates, uses, and can radiate radio frequency energy and, if not installed and used as directed, it may cause harmful interference to radio communications. -
Page 11: Limited Warranty
NEED ASSISTANCE SETTING UP THIS PRODUCT? Make sure you: 1. Visit www.iogear.com for more product information 2. Visit www.iogear.com/support for live help and product support Warranty Information This product carries a 3 Year Limited Warranty. For the terms and conditions of this warranty, please go to http://ww- w.iogear.com/support/warranty...
