IOGear GKM561R Quick Start Manual

Limited Warranty
WE'RE HERE TO HELP YOU!
NEED ASSISTANCE SETTING UP THIS PRODUCT?
Make sure you:
1. Use the live chat at www.iogear.com to try and solve any issues you may be
having with the product
2. Visit the Tech Info Library/FAQ on www.iogear.com (under the Support tab)
3. Call the 24/7 tech support line at 1-866-946-4327 (U.S. only) or
1-949-453-8782
Warranty Information
This product carries a 3 Year Limited Warranty. For the terms and conditions of this
warranty, please go to http://www.iogear.com/support/warranty or
call 1-866-946-4327
Register online at http://www.iogear.com/register
Important Product Information
Product Model
Serial Number
Contact
IOGEAR Inc.
Address: 23 Hubble, Irvine, CA 92618 USA
Toll Free: 866-9-IOGEAR
Phone: 949-453-8782
Web site: www.iogear.com
Email: support@iogear.com

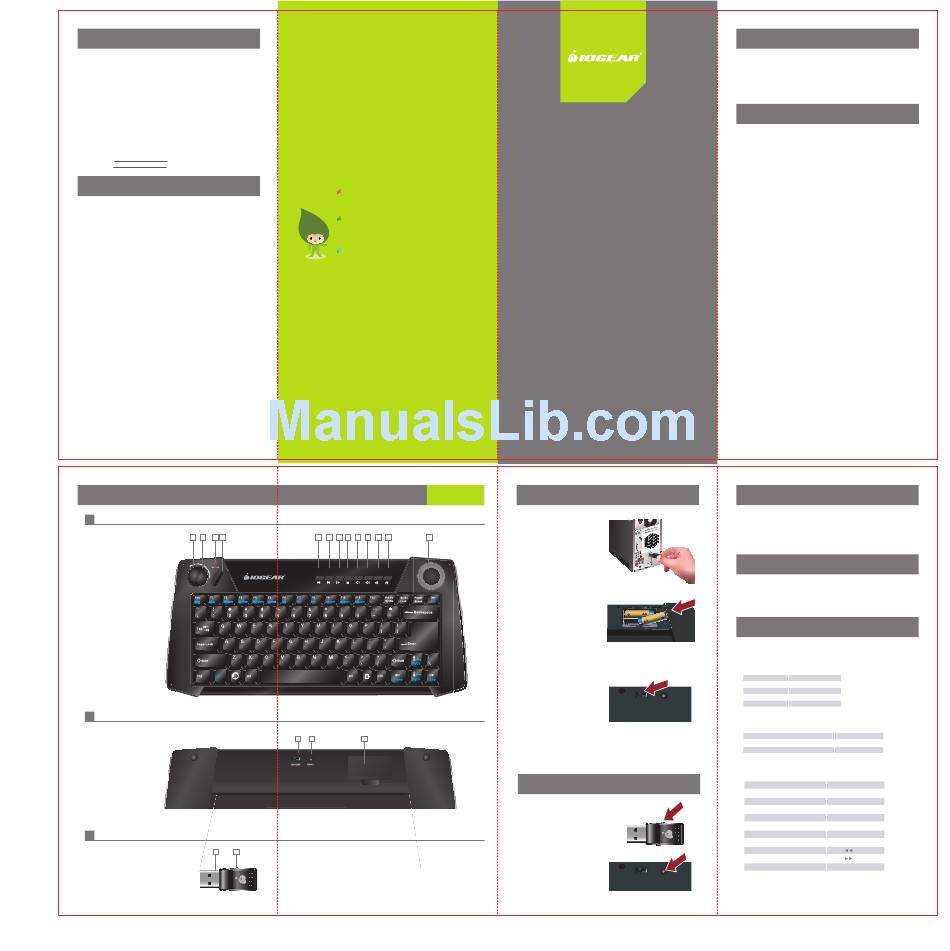

Overview

1 Keyboard – Front View
1. Mouse Left Click
1 2 3 4
2. Mouse Right Click
3. Battery low Indicator
4. Scroll Wheel
5. Last Track
6. Next Track
7. Play / Pause
8. Stop
9. Mute
10. Volume Up
11. Volume Down
12. Default Homepage
(Internet Explorer)
13. Laser Trackball
2 Keyboard – Back View
1. ON/OFF Switch
2. Reset Button
3. Battery Cover
3 USB RF Receiver
1. USB Connection
1 2
2. ID Button
About Us About Us About Us About Us
FUN
IOGEAR offers connectivity solutions that are innovative, fun, and
stylish, helping people enjoy daily life using our high technology
products.
GREEN
IOGEAR is an environmentally conscious company that emphasizes
the importance of conserving natural resources. The use of our
technology solutions helps reduce electronic waste.
HEALTH
IOGEAR supports healthy and fit lifestyles. By integrating products with
the latest scientific developments, IOGEAR's solutions enhance the life of
end-users.
© 2009 IOGEAR, INC.
Start Here!
5 6 7 8 9 10 11 12 13
1 2 3

Quick Start

Quick Start Quick Start Guide
2.4GHz Multimedia Keyboard with Laser Trackball 2.4GHz Multimedia Keyboard with Laser Trackball
and Scroll Wheel and Scroll Wheel
GKM561R
Q1096

Installation

STEP 1
Connect the USB RF receiver into
any open USB port of your
computer. Windows ® will then
recognize the receiver and install
the drivers automatically.
STEP 2
Open the battery cover in the back
of the keyboard and insert the 2
included AA batteries into the
battery tray.* Then, close the
battery tray by putting the battery
cover back on.
*Note: Please make sure the batteries are installed properly as the directions that are indicated
inside the battery tray
STEP 3
Turn on the keyboard by switching
the ON/OFF switch to the ON
position.
RESET
ON/OFF
FINAL STEP
Now the keyboard and trackball should be working properly. If the keyboard
and trackball are not working, please see the Pairing section.

Pairing

STEP 1
Press the ID button on the USB RF
receiver while it is connected to the
computer.
STEP 2
Press the Reset button in the back
of the keyboard next to the ON/OFF
ON/OFF RESET
switch while the keyboard is in ON
status.

Package Contents

1 x Multimedia Keyboard
1 x USB RF Receiver
1 x Cleaning Cloth
2 x AA Battery
1 x Quick Start Guide
1 x Warranty Card

System Requirements

Computer / Devices
• USB port
Operating System
• Windows ® XP/ Vista32/64*
• Mac OS X (or higher)**
Devices***
Consumer Electronic: Game Consoles, Media Servers, and HDTV
*Media Center hot keys only support Windows XP MCE and Vista
Premium editions.
**Some function keys are not available.
***Devices must have HID Support (USB Keyboard / Mouse Support) in
order to obtain keyboard functionality
FINAL STEP
Now the keyboard and trackball should be working properly. If the keyboard and
trackball are not working, please repeat step 1 and step 2 in Pairing section.
Sleep Mode
When the keyboard is idle for 30 minutes, it will go into sleep mode for battery
saving purpose. Simply press any key to wake the keyboard up and resume
usage.

Function Keys

There are 19 sets of function keys in this keyboard. To invoke these functions,
hold the function button (Fn) then press the function key (the keys with blue
letters).

Normal Function Keys

Function Description
Home Fn + Home
End Fn + End
Insert Fn + Ins
Page Up
Fn + PgUp
Page Down Fn + PgDn
Changing Laser Trackball's DPI
Function Description
Change trackball's resolution to 400DPI Fn + 400DPI
Change trackball's resolution to 800DPI Fn + 800DPI
Change trackball's resolution to 1200DPI Fn + 1200DPI

Media Center Shortcut Keys

Function
Description
Launch Windows Media Center Fn + MSE
Launch My TV Fn + My TV
Launch My Videos Fn + My Videos
Launch My Music
Fn + My Music
Launch My Pictures Fn + My Pictures
Record TV Fn + Record TV
Play DVD (within Media Center only) Fn + DVD
Rewind
Fn +
Fast Forward Fn +
Channel Up Fn + Ch+
Channel Down Fn + Ch-
