Alto ZEPHYR User Instructions

BOX CONTENTS

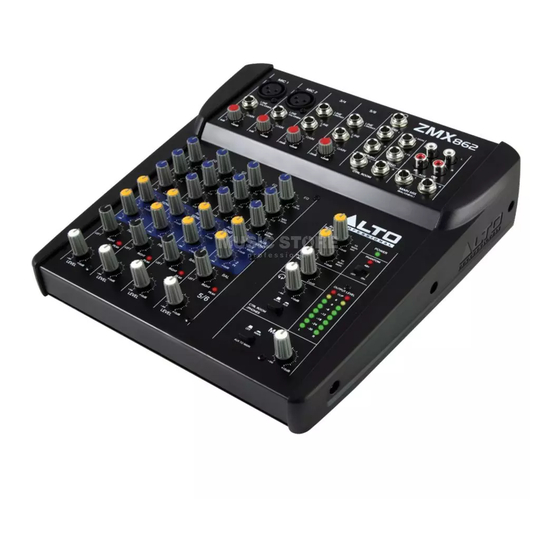

ZEPHYR mixer
Power adapter
Quickstart Guide
Safety Instructions & Warranty Information booklet

CONNECTION DIAGRAM

Microphones*
Keyboard*
- +
octave
m1
tap accomp store
m2
volume pitch x y z
phrase latch
Drum Machine*
* not included
Notes:
Microphones, monitors, amplifier, speakers, cables, etc. are not included.
To reduce electrical hum at high gain settings, keep the mixer's power supply away from your guitar
cable and the mixer's channel inputs.
To use an external effects rack unit, compressor, etc., use a Y-cable (1/4" stereo to two 1/4" mono) to
connect the AUX SEND "2 FX" output to the left and right inputs your external device. Connect the
outputs of your external device to the left and right AUX RETURN INPUTS.
Headphones*
push
a n a l o g m o d e l i n g s y n t h
External effects rack,
compressor, etc.*
2 TK
2 TK
2 TK
2
Power
House Speakers*
Monitors*
