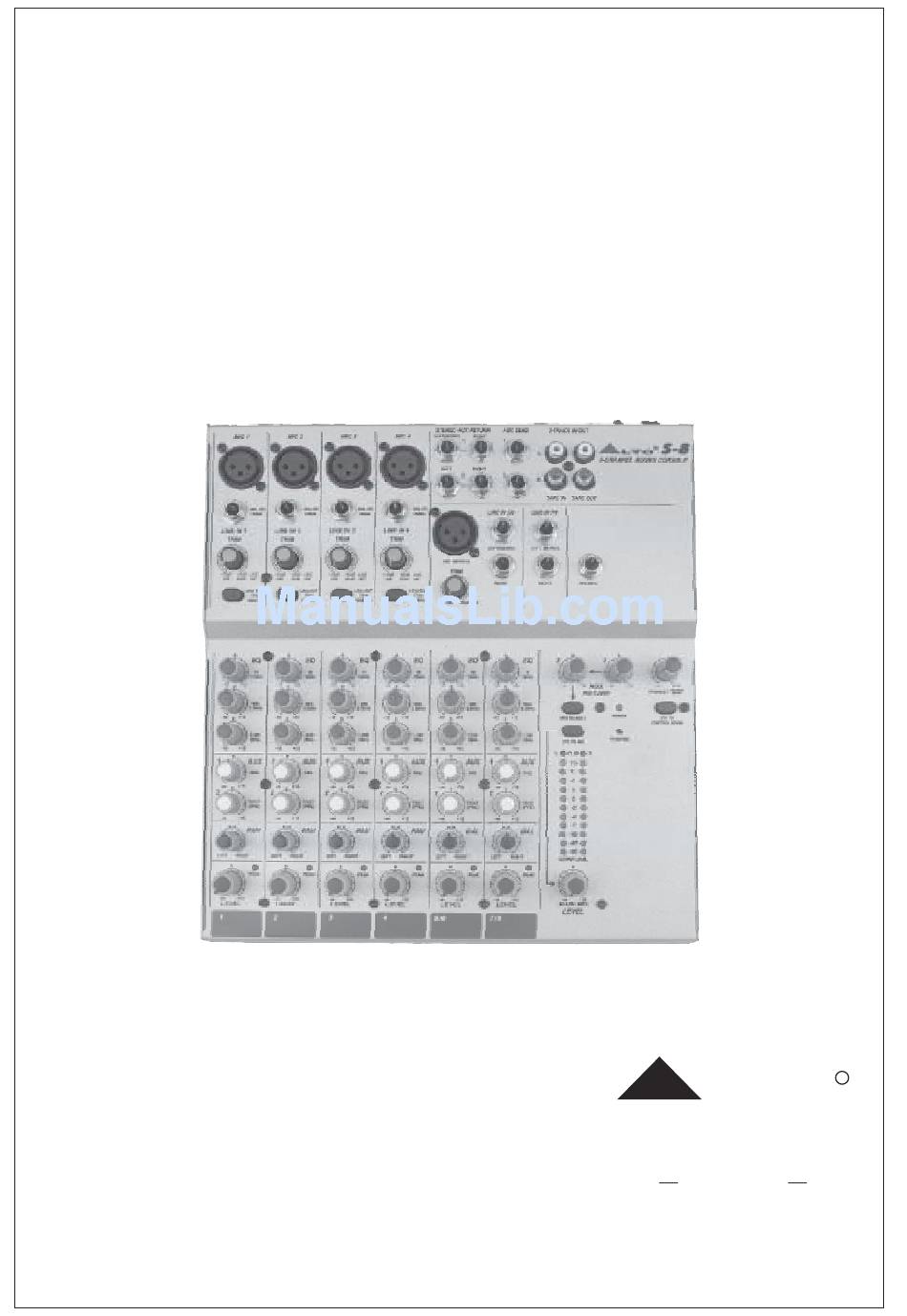

  • Page 1 User's Manual 8-CHANNEL MIXING CONSOLE www.altoproaudio.com Version 2.0 Dec. 2002 English...
  • Page 2: Safety Related Symbols

    SAFETY RELATED SYMBOLS CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol, wherever used, alerts you to the pre- sence of un-insulated and dangerous voltages with- in the product enclosure. These are voltages that may be sufficient to constitute the risk of electric shock or death.
  • Page 3 LTO S-8 is an extremely flexible, ultra-low noise 8-channel console, configured with 4 mono and 2 stereo input channels, each channel is equipped with a variety of key features including a warm, natural sounding EQ, Peak LEDs and PAN/BAL control etc..
  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1.INTRODUCTION...4 2.FEATURES...5 3.READY TO START?...6 4.CONTROL ELEMENTS...7 The mono MIC/LINE channels...8 INPUT LEVEL setting...8 LOW CUT FILTER...8 STEREO INPUT ...9 The 3 BANDS EQUALISER...9 AUX SENDS...10 PAN...10 PEAK...10 LEVEL...10 4.10 INSERT...10 4.11 MASTER SECTION ...11 -MAIN MIX LEVEL -LED METER -2 TRACK signal path -AUX RETURN...
  • Page 5: Introduction

    1. INTRODUCTION Your S-8 is a 8-channel mixer and it is one of the most popular compact mixing consoles in the world. In fact it has been sold already in terms of thousands of units worldwide. Despite its compact dimensions, great performances and sound quality are insured thanks to the specification of the components used and the building quality.
  • Page 6: Features

    2. FEATURES Your S-8 is provided with 4 mono Line/Mic input, 1 stereo Line/Mic input and an additional stereo Line input to be used with keyboards, Midi Instruments, etc. We have even included a 2-track input/output for recording and playback. Ultra low noise microphone preamplifiers, 3 bands eq on all input channels, pre and post Auxiliary bus and phantom power complete the picture.
  • Page 7: Ready To Start

    3.3 Before turning on the S-8 you shall connect it to a power amplifier and turn-on the mixer BEFORE the power amp- lifier. Once you have finished your working session you shall turn the mixer off AFTER the power amplifier.
  • Page 8: Control Elements

    4. CONTROL ELEMENTS MIC 1 MIC 2 BAL OR BAL OR BAL OR BAL OR UNBAL UNBAL UNBAL UNBAL LINE IN 1 LINE IN 2 TRIM TRIM +10dB -40dB LINE +10dB -40dB LINE 60dB MIC 60dB MIC LOW CUT LOW CUT LOW CUT LOW CUT 75Hz...
  • Page 9: The Mono Mic/Line Channels

    4. CONTROL ELEMENTS 4.1 The mono MIC/LINE channels These are Channel 1 through Channel 4. You can connect balanced, low im- pedance microphones to the XLR socket. On the 1/4" phone jack you can connect either a microphone or a line level instrument. You shall never connect an unbalanced microphone to the XLR socket if you do not want to damage both the Microphone and the Mixer.
  • Page 10: Stereo Input

    4.4 STEREO INPUTS These are Channel 5 through 8. They are organised in stereo pair (5&6 pair also features XLR Mic Input) and they are provided with 1/4" TRS phone sockets. If you connect only the left jack, the input will operate in mono mode.
  • Page 11: Aux Sends

    4.8 PEAK Inside your S-8 the audio signal is monitored in several different stages and then sent to the PEAK Led. When this Led blinks, it warns you that you are reaching signal saturation and possible distortion. The PEAK Led will blink with a level that is 6dB before actual clipping.
  • Page 12: Master Section

    This Control sets the amount of signal sent to the Control Room and headphone. - PHANTOM This LED indicates when the Phantom Power is switched on. - POWER This LED indicates when the Power is on in your S-8. CONTROL CONTROL PHONES /...
  • Page 13: 2-Track In/Out

    STEREO AUX RETURN LEFT(MONO) LEFT - 2-TRACK IN/OUT Input Use the Tape input if you wish to listen to your Mix from a Taper Recorder or DAT, You can assign the signal coming form the Taper Recorder either to a pair of studio monitor using the Control Room assignment on the front panel or you can also send the signal directly to the Main Mix.
  • Page 14: Rear Panel Description

    - AC INLET WITH FUSE HOLDER Use it to connect your S-8 to the Main AC with the supplied AC cord. Please check the Voltage available in your Country and make sure the voltage is identical to the values marking on the product. Replace the fuse with the...
  • Page 15: Installation And Connection

    5. INSTALLATION AND CONNECTION Ok, you have got to this point you are now in the position to successfully operate your S-8. However, we advise you to read carefully the following section to be the real Master of your own Mix. Not paying attention enough to the Input signal level, to the routing of the signal and the assignment of the signal will result in unwanted distortion, a corrupted signal or no sound at all.
  • Page 16 5.1 SOME FINAL TIPS ON WIRING CONFIGURATION You can connect unbalanced equipment to balanced inputs and outputs. Simply follow these schematics. Strain Clamp Strain Clamp Strain Clamp 2=Hot(+) 3=Cold(-) Use for Balanced Mic Inputs (For unbalanced use, connect pin 1 to 3) 3-pin XLR Male Plug (seen from soldering side) Ring=Right Signal...
  • Page 17 Ring=Return Signal (Connected together) Sleeve=Ground/Screen Tip=Signal Sleeve=Ground/Screen 'Tapped' Connection Direct Output Lead (Enables the Insert to be used as a Direct Output while maintaining the channel signal flow) Sleeve=Ground/Screen Ring=Return Signal Sleeve Ring -Stereo lead for insert Connection (To be used when the processor does not employ a single jack connection for the In/Out Connections) To Channel Insert To Tape or FX Input...
  • Page 18: For The Experts Who Want To Know More

    6. FOR THE EXPERTS WHO WANT TO KNOW MORE As we have told you previously in this Manual, the Aux Send 2 Control both on Mono and stereo channels is factory wired as POST-FADER. If you have some skill in electronic components soldering you can modify this setting and have all your AUX sends configured as PRE-FADER.
  • Page 19: System Block Diagrams

    7. SYSTEM BLOCK DIAGRAMS...
  • Page 20: Technical Specification

    8. TECHNICAL SPECIFICATION Mono input channels Microphone input Frequency response Distortion (THD & N) Gain range SNR (Signal to Noise Ratio) Line input Frequency response Distortion (THD & N) Sensitivity range Stereo input channels Line input Frequency response Distortion (THD & N) Impedances Microphone input Channel Insert return...
  • Page 21: Warranty

    9. WARRANTY 1. WARRANTY REGISTRATION CARD To obtain Warranty Service, the buyer should first fill out and return the enclosed Warranty Registration Card within 10 days of the Purchase Date. All the information presented in this Warranty Registration Card gives the manufacturer a better understanding of the sales status, so as to purport a more effective and efficient after-sales warranty service.
  • Page 22 SEIKAKU TECHNICAL GROUP LIMITED No. 1, Lane 17, Sec. 2, Han Shi W. Road, Taichung, 401 Taiwan http://www.altomobile.com Tel: 886-4-22313737 email: info@altomobile.com Fax: 886-4-22346757 All rights reserved to ALTO Mobile. Due to continued development in response to customer feedback, product features, specifications and/or internal/external design may be changed without prior notice.
