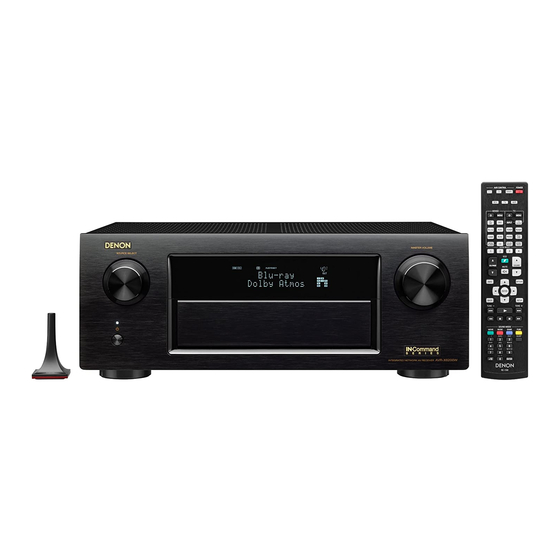

Page 1 Contents Connections Playback Settings Tips Appendix AVR-X6200W INTEGRATED NETWORK AV RECEIVER Owner’s Manual You can print more than one page of a PDF onto a single sheet of paper. Front panel Display Rear panel Remote Index...
Page 2: Table Of Contents
Accessories Connecting a set-top box (Satellite tuner/cable TV) Inserting the batteries Connecting a DVD player or Blu-ray Disc player Connecting a Blu-ray Disc player compatible with the Denon Link Operating range of the remote control unit HD function Features Connecting a video camcorder or game console...
Page 3 Contents Connections Playback Settings Tips Appendix Playing an iPod Listening to Internet Radio Listening to music on an iPod Listening to Internet Radio iPod Browse Mode settings Playing the last played Internet Radio station Performing repeat playback Using vTuner to add Internet Radio stations to favorites Performing random playback Playing back files stored on a PC and NAS Playing a USB memory device...
Page 4 Contents Connections Playback Settings Tips Appendix AirPlay function Selecting a sound mode Playing songs from your iPhone, iPod touch or iPad Selecting a sound mode Playing iTunes music with this unit Direct playback Selecting multiple speakers (devices) Pure Direct playback Perform iTunes playback operations with the remote control unit Auto surround playback of this unit...
Page 5 Contents Connections Playback Settings Tips Appendix Settings Inputs Input Assign Menu map Source Rename Menu operations Hide Sources Inputting characters Source Level Using the keyboard screen Input Select Using the number buttons Speakers Audio Audyssey ® Setup Subwoofer Level Adjust Procedure for speaker settings (Audyssey ®...
Page 6 Contents Connections Playback Settings Tips Appendix Network Operating external devices with the remote control unit Information Registering preset codes Connection Operating devices Wi-Fi Setup Initializing registered preset codes Settings Specifying the operating zone with the remote control IP Control Resetting the remote control unit Friendly Name Diagnostics Maintenance Mode...
Page 7 Contents Connections Playback Settings Tips Appendix Tips Tips Troubleshooting Resetting factory settings Appendix About HDMI Video conversion function Playing back a USB memory devices Playing back a Bluetooth device Playing back a file saved on a PC or NAS Playing back Internet Radio Personal memory plus function Last function memory Sound modes and channel output...
Page 8 Contents Connections Playback Settings Tips Appendix Upgrade Upgrade (Auro-3D) Audio Auro-Matic 3D Preset Auro-3D Auro-Matic 3D Strength Inputs Features Decode Mode High quality sound Manual Setup Connecting speakers Amp Assign 246, 249 Speaker installation 34, 37 Speaker Config. Layout including height speakers and top speakers Appendix Speaker configuration and “Amp Assign”...
Page 9: Accessories
Playback Settings Tips Appendix Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading this manual, be sure to keep it for future reference. Accessories Check that the following parts are supplied with the product.
Page 10: Inserting The Batteries
Contents Connections Playback Settings Tips Appendix Inserting the batteries NOTE 0 To prevent damage or leakage of battery fluid: 0 Do not use a new battery together with an old one. Slide the rear cover off the remote control unit in the 0 Do not use two different types of batteries.
Page 11: Features
Contents Connections Playback Settings Tips Appendix Features Audyssey DSX ® (v p. 210) High quality sound This unit is equipped with Audyssey DSX processor. By connecting ® front height speakers to this unit and playing back with Audyssey DSX ® With discrete circuit technology, the power amplifier provides processing you can experience a more vertically expansive front identical quality for all 9-channels (175 Watts x 9-channels)
Page 12 HD” (v p. 342) This unit is equipped with our exclusive “Denon Link HD” technology. When connected to a Denon disc player that has Denon Link HD, the sound localization becomes more precise, with increased detail and definition. The system works by carrying the critical clock timing signals via the dedicated Denon Link HD connection, minimizing the jitter caused by conventional digital connections.
Page 13 Contents Connections Playback Settings Tips Appendix Upgrade (Auro-3D) Auro-3D This unit is equipped with an Auro-3D decoder. With Auro-3D, Front Height (FHL+FHR), Surround Height (SHL+SHR) and Top Surround (TS/optional) are added to a conventional 5.1-channel system to achieve a natural and realistic sound field that is three-dimensional and fully immersive. After performing the Auro-3D upgrade you will be able to fully enjoy Auro-3D playback if you properly place the speakers for Auro-3D.
Page 14: High Performance
Contents Connections Playback Settings Tips Appendix Digital video processor upscales analog video signals (SD High performance resolution) to HD (720p/1080p) and 4K (v p. 222) 4K 60Hz input/output supported Up to 1080p Up scaling This unit is equipped with a 4K video upscaling function that allows When 4K Ultra HD (High Definition) is used, an input/output speed of 60 analog video or SD (Standard Definition) video to be output via HDMI at frames per second (60p) is achieved for video signals.
Page 15 Contents Connections Playback Settings Tips Appendix HDMI connections enable connection to various digital AV The device is equipped with a AirPlay ® function in addition to devices (8 inputs, 3 outputs) network functions such as Internet radio etc. (v p. 147) You can enjoy a wide variety of content, including listening to Internet For connection to a broad range of digital sources, this unit features 8 Radio, playing audio files stored on your PC, and displaying...
Page 16 Download the appropriate “Denon 2015 AVR Remote” for your iOS or Android devices. This unit needs to be connected to the same LAN or Wi-Fi (wireless LAN) network that the iPhone or iPod touch is connected to.
Page 17: Easy Operation
Contents Connections Playback Settings Tips Appendix Easy operation “Setup Assistant” provides easy-to-follow setup instructions First select the language when prompted. Then simply follow the instructions displayed on the TV screen to set up the speakers, network, etc. Easy to use Graphical User Interface This unit is equipped with a Graphical User Interface for improved operability.
Page 18: Part Names And Functions
Contents Connections Playback Settings Tips Appendix Part names and functions Front panel Front panel Display Rear panel Remote Index...
Page 19 Contents Connections Playback Settings Tips Appendix C SOURCE SELECT knob This selects the input source. (v p. 99) D Remote control sensor This receives signals from the remote control unit. (v p. 10) E Display This displays various pieces of information. (v p. 22) F MASTER VOLUME knob This adjusts the volume level.
Page 20 Contents Connections Playback Settings Tips Appendix With the door open E STATUS button Each press of this switches the status information that is shown on the display. r t y u F Information button (INFO) This displays the status information on the TV screen. (v p. 279) G Cursor buttons (uio p) These select items.
Page 21 Contents Connections Playback Settings Tips Appendix N BACK button This returns to the previous screen. O ENTER button This determines the selection. P SETUP button This displays the menu on the TV screen. (v p. 195) Q AUX1 INPUT connector Used to connect analog output compatible devices such as video Q3 Q4 camcorders and game consoles.
Page 22: Display
Contents Connections Playback Settings Tips Appendix Display A Input signal indicators D Tuner reception mode indicators The respective indicator will light corresponding to the input signal. These light up according to the reception conditions when the input (v p. 230) source is set to “HD Radio”.
Page 23 Contents Connections Playback Settings Tips Appendix L Input/output signal channel indicators The channel for input/output signals is displayed according to the setting configured for “Channel Indicators”. (v p. 278) When “Channel Indicators” is set to “Output” (Default) These light when audio signals are being output from the speakers. When “Channel Indicators”...
Page 24: Rear Panel
Contents Connections Playback Settings Tips Appendix Rear panel Front panel Display Rear panel Remote Index...
Page 25 Settings Tips Appendix B Denon Link HD connector Used to connect a Denon Link HD compatible Blu-ray Disc player. (v p. 86) C SIGNAL GND terminal Used to connect a ground wire for the turntable. (v p. 88) D Analog audio connectors (AUDIO) Used to connect devices equipped with analog audio connectors.
Page 26 Contents Connections Playback Settings Tips Appendix H FM/AM antenna terminals (ANTENNA) Used to connect FM antennas and AM loop antennas. (v p. 91) I TRIGGER OUT jacks Used to connect devices equipped with the trigger function. (v p. 96) J REMOTE CONTROL jacks Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room.
Page 27 Contents Connections Playback Settings Tips Appendix N PRE OUT connectors Used to connect a subwoofer with built-in amplifier or an external power amplifier. “Connecting the subwoofer” (v p. 43) “Connecting ZONE” (v p. 185) O Video connectors (VIDEO) Used to connect devices equipped with video connectors. “Connection 3 : TV equipped without an HDMI connector”...
Page 28: Remote Control Unit
Contents Connections Playback Settings Tips Appendix Remote control unit A AVR operation buttons (AVR CONTROL MAIN, Z2, Z3) These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated AVR CONTROL AVR CONTROL POWER POWER MAIN MAIN through the remote control unit. “Playback in ZONE2/ZONE3”...
Page 29: Connections
Contents Connections Playback Settings Tips Appendix G MUTE button (:) This mutes the output audio. “Turning off the sound temporarily (Muting)” (v p. 100) AVR CONTROL AVR CONTROL POWER POWER MAIN MAIN “Turning off the sound temporarily (Muting) (ZONE2/ ZONE3)” (v p. 191) DEV.
Page 30: Connections
Contents Connections Playback Settings Tips Appendix N POWER button (X) This turns the power on/off. “Turning the power on” (v p. 99) AVR CONTROL AVR CONTROL POWER POWER MAIN MAIN “Playback in ZONE2/ZONE3” (v p. 190) DEV. V. O TV operation buttons (TV X / TV MENU / TV INPUT) These turn the TV power on/off, switch the TV input and call up menus.
Page 31: Connections
Contents Connections Connections Playback Settings Tips Appendix o Contents o Cables used for connections Provide necessary cables according to the devices you want to Connecting speakers connect. Connecting a TV Connecting a playback device Speaker cable Connecting an iPod or USB memory device to the USB port Connecting an HD Radio antenna Connecting to a home network (LAN) Subwoofer cable...
Page 32: Connecting Speakers
Contents Connections Playback Settings Tips Appendix Connecting speakers Install speakers and connect them to this unit. (“Speaker installation” (v p. 32), “Speaker connection” (v p. 42)) Speaker installation Determine the speaker system depending on the number of speakers you Place the FRONT left and right speakers an are using and install each speaker and subwoofer in the room.
Page 33 Contents Connections Playback Settings Tips Appendix Place the FRONT HEIGHT left and right speakers FHL/FHR directly above the front speakers. Mount them as (Front height speaker close to the ceiling as possible and aim them left/right): towards the main listening position. Mount the TOP FRONT left and right speakers on TFL/TFR the ceiling slightly in front of your main listening...
Page 34 Contents Connections Playback Settings Tips Appendix Upgrade (Auro-3D) SHL/SHR Place the SURROUND HEIGHT left and right (Surround height speakers directly above the surround speakers. speaker left/right): Place the TOP SURROUND speaker directly (Top surround above the main listening position and aligned with speaker): the center channel speaker.
Page 35 Contents Connections Playback Settings Tips Appendix About Dolby Atmos Enabled speakers Dolby Atmos Enabled speakers reflect the sound off the ceiling to allow the sound to come from over your head by using a special upward- pointing speaker that is placed on the floor. You can enjoy the Dolby Atmos 3D sound even in an environment where speakers cannot be installed on the ceiling.
Page 36 Contents Connections Playback Settings Tips Appendix Height speakers layout 0 This unit is compatible with Audyssey DSX ® , Dolby Atmos and DTS:X which offers an even wider and deeper surround sensation. When using Audyssey DSX , install front wide speakers or front height speakers. ®...
Page 37 Contents Connections Playback Settings Tips Appendix Upgrade (Auro-3D) Height speakers layout Top surround speaker Surround height speaker Front height speaker Point slightly downwards Surround speaker Front speaker GViewed from the sideH GViewed from the topH z1 30° - 45° Front panel Display Rear panel Remote...
Page 38: Surround Back Speakers
Contents Connections Playback Settings Tips Appendix o When 7.1-channel speakers are installed using o When 9.1-channel speakers are installed using surround back speakers front wide speakers SW C Listening position 1: 22° - 30° 2: 55° - 60° 3: 90° - 110° 4: 135°...
Page 39 Contents Connections Playback Settings Tips Appendix o When 5.1-channel speakers are installed 1:22° - 30° 2:120° Front panel Display Rear panel Remote Index...
Page 40 Contents Connections Playback Settings Tips Appendix o Layout including height speakers and ceiling n Ceiling speaker layout example speakers Combination of 5.1-channel layout and top front/top rear speakers. n Height speaker layout example Combination of 5.1-channel layout and front height/rear height speakers.
Page 41 Contents Connections Playback Settings Tips Appendix n Dolby Atmos Enabled speaker layout example Upgrade (Auro-3D) Combination of 5.1-channel layout and front Dolby/surround Dolby n Auro-3D layout example speakers. Combination of 5.1-channel speakers with Front Height/Surround Height/Top Surround speakers. Front panel Display Rear panel Remote...
Page 42: Speaker Connection
Contents Connections Playback Settings Tips Appendix Speaker connection NOTE 0 Carry out the following settings when using a speaker with an impedance of 4 – 6 Here we connect the speakers in the room to this unit. Ω/ohms. This section explains how to connect them using typical examples. Press and hold the main unit’s o and p at the same time for at least 3 seconds.
Page 43: Connecting The Speaker Cables
Contents Connections Playback Settings Tips Appendix o Connecting the speaker cables o Connecting the subwoofer Carefully check the left (L) and right (R) channels and + (red) and – Use a subwoofer cable to connect the subwoofer. Two subwoofers can (black) polarities on the speakers being connected to this unit, and be be connected to this unit.
Page 44 Contents Connections Playback Settings Tips Appendix o About the cable label (supplied) for channel Speaker terminals Color identification FRONT L White FRONT R The channel display section for speaker terminals on the rear panel is CENTER Green color-coded for each channel to be identifiable. SURROUND L Light blue Attach the cable label corresponding to each speaker to each speaker...
Page 45 Contents Connections Playback Settings Tips Appendix Attach the cable label for each channel to its speaker cable as shown in the diagram. Refer to the table and attach the label to each speaker cable. Then, make connection so that the color of the speaker terminal matches that of the cable label.
Page 46: Speaker Configuration And "Amp Assign" Settings
Contents Connections Playback Settings Tips Appendix Speaker configuration and “Amp Assign” settings This unit has a built-in 9-channel power amplifier. In addition to the basic 5.1-channel system, a variety of speaker systems can be configured by changing the “Amp Assign” settings to suit the application, such as 7.1-channel systems, bi-amp connections and 2-channel systems for multi-zone playback. (v p.
Page 47: Contents Playback
Contents Connections Playback Settings Tips Appendix Upgrade (Auro-3D) 0 In addition to the connections described in p.48 - 78, this unit allows for various Refer to the example connection for “Example connection for the Auro-3D speaker connections with the “Amp Assign” setting. 9.1-channel system”...
Page 48 Contents Connections Playback Settings Tips Appendix o 5.1-channel playback This serves as a basic 5.1-channel surround system. FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK FRONT WIDE/HEIGHT2 FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1 Front panel Display Rear panel Remote Index...
Page 49 Contents Connections Playback Settings Tips Appendix o 7.1-channel playback Example connections when using surround back speakers This 7.1-channel surround system is the same as a basic 5.1-channel system but with surround back speakers. FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK FRONT WIDE/HEIGHT2 FRONT WIDE/HEIGHT2...
Page 50 Contents Connections Playback Settings Tips Appendix Example connections when using front wide speakers This 7.1-channel surround system is the same as a basic 5.1-channel system but with front wide speakers. FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK FRONT WIDE/HEIGHT2 FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1...
Page 51 Contents Connections Playback Settings Tips Appendix Example connections when using ceiling speakers This 7.1-channel surround system is the same as a basic 5.1-channel system but with ceiling speakers. FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK FRONT WIDE/HEIGHT2 FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1 TMR TML...
Page 52 Contents Connections Playback Settings Tips Appendix Example connections when using height speakers FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK FRONT WIDE/HEIGHT2 FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1 0 Set “Floor” - “Layout” to “5ch” and “Height Sp” to “2ch” in the menu when connecting in this configuration. (v p. 246) 0 The rear height speakers can be connected instead of the front height speakers.
Page 53 Contents Connections Playback Settings Tips Appendix Example connections when using Dolby Atmos Enabled speakers This 7.1-channel surround system is the same as a basic 5.1-channel system but with front Dolby speakers. FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK FRONT WIDE/HEIGHT2 FRONT WIDE/HEIGHT2 HEIGHT1...
Page 54 Contents Connections Playback Settings Tips Appendix o 9.1-channel playback This system, which is based on a 5.1-channel system, plays back up to 9.1-channels at the same time. You can connect speakers for up to 11-channels for MAIN ZONE. When you connect speakers for 10 or more channels, the output speakers automatically switch according to the input signal and sound mode.
Page 55 Contents Connections Playback Settings Tips Appendix Example connection when using one set of ceiling speakers FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK FRONT WIDE/HEIGHT2 FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1 TMR TML SBR SBL HEIGHT 1 z The top front or top rear speakers can be connected instead of the top middle 0 Set “Height”...
Page 56 Contents Connections Playback Settings Tips Appendix Example connection when using two sets of ceiling speakers FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK FRONT WIDE/HEIGHT2 FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1 HEIGHT 2 HEIGHT 1 z You can change the combination of the HEIGHT1 and HEIGHT2 channels in the 0 Set “Floor”...
Page 57 Contents Connections Playback Settings Tips Appendix Example connection when using one set of height speakers FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK FRONT WIDE/HEIGHT2 FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1 SBR SBL HEIGHT 1 z The rear height speakers can be connected instead of the front height speakers. 0 Set “Height”...
Page 58 Contents Connections Playback Settings Tips Appendix Example connection when using two sets of height speakers FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK FRONT WIDE/HEIGHT2 FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1 RHR RHL HEIGHT 2 HEIGHT 1 z You can change the combination of the HEIGHT1 and HEIGHT2 channels in the 0 Set “Floor”...
Page 59 Contents Connections Playback Settings Tips Appendix Example connection when using one set of Dolby Atmos Enabled speakers FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK FRONT WIDE/HEIGHT2 FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1 SBR SBL HEIGHT 1 z The surround Dolby speakers can be connected instead of the front Dolby 0 Set “Height”...
Page 60 Contents Connections Playback Settings Tips Appendix Example connection when using two sets of Dolby Atmos Enabled speakers FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK FRONT WIDE/HEIGHT2 FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1 SDR SDL FDR HEIGHT 2 HEIGHT 1 z You can change the combination of the HEIGHT1 and HEIGHT2 channels in the 0 Set “Floor”...
Page 61 Contents Connections Playback Settings Tips Appendix Upgrade (Auro-3D) Example connection for the Auro-3D 9.1-channel system This speaker configuration is optimized for Auro-3D playback. 1 CBL/SAT 4 GAME FRONT CENTER FRONT WIDE 2 DVD 5 CD SURROUND SUBWOOFER HEIGHT1 ZONE2 ZONE3 3 Blu-ray 6 MEDIA PLAYER SURROUND BACK...
Page 62 Contents Connections Playback Settings Tips Appendix z Channels output from the HEIGHT1 and FRONT WIDE/HEIGHT2 speaker terminals can be changed to the following patterns according to the speaker systems being used. The two sets of height speakers can be used if you are not using the front wide speakers. Set this from “Amp Assign” in the menu. (v p. 242) Combination of height speakers to be used Connected terminals Front wide...
Page 63 Contents Connections Playback Settings Tips Appendix Upgrade (Auro-3D) Combination of height speakers to be used Connected terminals Front wide Number of height/ Number of Dolby FRONT WIDE/HEIGHT2 speaker Combination pattern HEIGHT1 SPEAKER ceiling speakers Speakers SPEAKER Front Height & Surr. Height Front Height Surround Height Not used...
Page 64 Contents Connections Playback Settings Tips Appendix o 11.1-channel playback This system, which is based on a 5.1-channel system, plays back up to 11.1-channels at the same time. You can connect speakers for up to 13-channels for MAIN ZONE by using an external power amplifier. When you connect speakers for 12 or more channels, the output speakers automatically switch according to the input signal and sound mode.
Page 65 Contents Connections Playback Settings Tips Appendix Example connection when using two sets of height speakers HEIGHT 2 RHR RHL Power amplifier FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK FRONT WIDE/HEIGHT2 FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1 0 Set “Height” - “Height Sp” to “4ch” in the menu when connecting in this configuration.
Page 66 Contents Connections Playback Settings Tips Appendix Example connection when using two sets of Dolby Atmos Enabled speakers HEIGHT 2 SDR SDL Power amplifier FRONT FRONT CENTER SURROUND SURROUND SURROUND BACK SURROUND BACK FRONT WIDE/HEIGHT2 FRONT WIDE/HEIGHT2 HEIGHT1 HEIGHT1 0 Set “Height” - “Dolby Sp” to “4ch” in the menu when connecting in this configuration.
Page 67 Contents Connections Playback Settings Tips Appendix Upgrade (Auro-3D) Example connection for the Auro-3D 10.1-channel system This speaker configuration is optimized for Auro-3D playback. 1 CBL/SAT 4 GAME FRONT CENTER FRONT WIDE Power amplifier 2 DVD 5 CD SURROUND SUBWOOFER HEIGHT1 ZONE2 ZONE3 3 Blu-ray...
Page 68: Playback Settings
Contents Connections Playback Settings Tips Appendix z The combination of the HEIGHT1 and HEIGHT2 channels can be changed to the following patterns according to the speaker system being used. Set this from “Amp Assign” in the menu. (v p. 242) Combination of height speakers to be used Connected terminals Number of height/...
Page 69 Contents Connections Playback Settings Tips Appendix Upgrade (Auro-3D) Combination of height speakers to be used Connected terminals Number of height/ Number of Dolby SUBWOOFER2 PRE Combination pattern HEIGHT1 SPEAKER HEIGHT2 PRE OUT ceiling speakers Speakers Front Height & Surr. Height & Top Front Height Surround Height Top Surround...
Page 70 Contents Connections Playback Settings Tips Appendix o 7.1-channel playback (bi-amp connection of front speakers) This system plays back 7.1-channels. You can use the bi-amp connection for front speakers. Bi-amp connection is a method to connect separate amplifiers to the tweeter terminal and woofer terminal of a speaker that supports bi-amplification. This connection enables back EMF (power returned without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing a higher sound quality.
Page 71 Contents Connections Playback Settings Tips Appendix o Exclusive 9.1-channel playback + 2-channel playback speakers You can connect speakers used exclusively for 2-channel playback, which are used for the direct and stereo modes, and speakers used exclusively for 9.1 multi-channel playback. The speakers used exclusively for multi-channel playback and the speakers used exclusively for 2-channel playback are automatically switched for playback in accordance with the sound mode.
Page 72 Contents Connections Playback Settings Tips Appendix o Exclusive 7.1-channel playback + 2-channel playback (bi-amp connection) speakers You can connect speakers used exclusively for 2-channel playback, which are used for the direct and stereo modes, and speakers used exclusively for 7.1 multi-channel playback. You can use the bi-amp connection for the speakers exclusively used for 2-channel playback. The speakers used exclusively for multi-channel playback and the speakers used exclusively for 2-channel playback are automatically switched for playback in accordance with the sound mode.
Page 73 Contents Connections Playback Settings Tips Appendix o 7.1-channel playback + front speakers of second unit This system enables switching playback between front speakers A and B as desired. You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.
Page 74 Contents Connections Playback Settings Tips Appendix o 7.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2 or ZONE3) This type of configuration plays back 7.1-channels in MAIN ZONE and 2-channels in ZONE2. (Speakers can output audio from ZONE3 instead of ZONE2 (Assign Mode: 7.1ch + ZONE3)). You can connect speakers for up to 9-channels for MAIN ZONE.
Page 75 Contents Connections Playback Settings Tips Appendix o 5.1-channel playback (bi-amp connection of front speakers: MAIN ZONE) + 2-channel playback (ZONE2) This type of configuration plays back 5.1-channels in MAIN ZONE and 2-channels in ZONE2. You can use the bi-amp connection for front speakers in MAIN ZONE.
Page 76 Contents Connections Playback Settings Tips Appendix o 5.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2) + 2-channel playback (ZONE3) This type of configuration plays back 5.1-channels in MAIN ZONE and 2-channels in ZONE2 and ZONE3. MAIN ZONE 1 CBL/SAT 4 GAME FRONT CENTER FRONT WIDE...
Page 77 Contents Connections Playback Settings Tips Appendix o 7.1-channel playback (MAIN ZONE) + 1-channel playback (ZONE2) + 1-channel playback (ZONE3) This type of configuration plays back 7.1-channels in MAIN ZONE and 1-channel (monaural) in ZONE2 and ZONE3. You can connect speakers for up to 9-channels for MAIN ZONE. When you connect speakers for 8 or more channels, the output speakers automatically switch according to the input signal and sound mode.
Page 78: Connecting An External Power Amplifier
Contents Connections Playback Settings Tips Appendix o Connecting an external power amplifier You can use this unit as a pre-amp by connecting an external power amplifier to the PRE OUT connectors. By adding a power amplifier to each channel, the realness of the sound can be further enhanced. Select the terminal to use and connect the device.
Page 79: Connecting A Tv
Contents Connections Playback Settings Tips Appendix Connecting a TV Connect a TV to this unit so that the input video is output to the TV. You can also enjoy audio from the TV on this unit. How to connect a TV depends on the connectors and functions equipped on the TV. ARC (Audio Return Channel) function plays TV audio on this unit by sending the TV audio signal to this unit via HDMI cable.
Page 80: Connection 1 : Tv Equipped With An Hdmi Connector And Compatible With The Arc (Audio Return Channel)
Contents Connections Playback Settings Tips Appendix Connection 1 : TV equipped with an HDMI connector and compatible with the ARC (Audio Return Channel) Use an HDMI cable to connect a TV that is compatible with the ARC function to this unit. Set “HDMI Control”...
Page 81: Connection 2 : Tv Equipped With An Hdmi Connector And Incompatible With The Arc (Audio Return Channel)
Contents Connections Playback Settings Tips Appendix Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC (Audio Return Channel) Use an HDMI cable to connect the TV to this unit. To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit. OPTICAL HDMI Front panel...
Page 82: Connection 3 : Tv Equipped Without An Hdmi Connector
Contents Connections Playback Settings Tips Appendix Connection 3 : TV equipped without an HDMI connector Use a component video or a video cable to connect the TV to this unit. To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit. OPTICAL VIDEO COMPONENT VIDEO...
Page 83: Connecting A Playback Device
“Connecting a set-top box (Satellite tuner/cable TV)” (v p. 84) “Connecting a DVD player or Blu-ray Disc player” (v p. 85) “Connecting a Blu-ray Disc player compatible with the Denon Link HD function” (v p. 86) “Connecting a video camcorder or game console” (v p. 87) “Connecting a turntable”...
Page 84: Connecting A Set-Top Box (Satellite Tuner/Cable Tv)
Contents Connections Playback Settings Tips Appendix Connecting a set-top box (Satellite tuner/cable TV) This explanation uses the connection with a satellite tuner/cable TV STB as an example. Select the input connectors on this unit to match the connectors on the device that you want to connect to. (HDMI incompatible device) Satellite tuner/ Satellite tuner/...
Page 85: Connecting A Dvd Player Or Blu-Ray Disc Player
COMPONENT VIDEO AUDIO COAXIAL HDMI HDMI 0 When connecting a Blu-ray Disc player that is compatible with Denon Link HD, see “Connecting a Blu-ray Disc player compatible with the Denon Link HD function” (v p. 86). Front panel Display Rear panel...
Page 86: Connecting A Blu-Ray Disc Player Compatible With The Denon Link Hd Function
Connecting a Blu-ray Disc player compatible with the Denon Link HD function By making a Denon Link HD connection to a player compatible with the Denon Link HD function, you can enjoy higher quality playback compared with when only the HDMI connector connection is made.
Page 87: Connecting A Video Camcorder Or Game Console
Contents Connections Playback Settings Tips Appendix Connecting a video camcorder or game console This explanation uses the connection with a video camcorders as an example. Connect a playback device to this unit, such as a video camcorder or game console. Video camcorder HDMI...
Page 88: Connecting A Turntable
Contents Connections Playback Settings Tips Appendix Connecting a turntable This unit is compatible with turntables equipped with a moving magnet (MM) phono cartridge. When you connect to a turntable with a low output moving coil (MC) cartridge, use a commercially available MC head amp or a step-up transformer. If you set this unit’s input source to “Phono”...
Page 89: Connecting An Ipod Or Usb Memory Device To The Usb Port
USB memory device 0 Denon does not guarantee that all USB memory devices will operate or receive power. When using a portable USB hard disk drive (HDD) which came with an AC adapter, use that device’s supplied AC adapter. NOTE 0 USB memory devices will not work via a USB hub.
Page 90 Contents Connections Playback Settings Tips Appendix o Supported iPod/iPhone models • iPod classic • iPod nano • iPod touch • iPhone Front panel Display Rear panel Remote Index...
Page 91: Connecting An Hd Radio Antenna
Contents Connections Playback Settings Tips Appendix Connecting an HD Radio antenna After connecting the antenna and receiving a broadcast signal, fix the AM loop antenna antenna with tape in a position where the noise level becomes minimal. (for HD Radio broadcasting, supplied) (“Listening to an HD Radio™...
Page 92 Contents Connections Playback Settings Tips Appendix o AM loop antenna assembly o Using the AM loop antenna Suspending on a wall Put the stand section through the bottom of the loop Suspend directly on a wall without assembling. antenna from the rear and bend it forward. Insert the projecting part into the square hole in the stand.
Page 93: Connecting To A Home Network (Lan)
Contents Connections Playback Settings Tips Appendix Connecting to a home network (LAN) This unit can connect to a network using a wired LAN or wireless LAN. Wired LAN You can connect this unit to your home network (LAN) to enable various types of playback and operations as described below.
Page 94: Wireless Lan
Contents Connections Playback Settings Tips Appendix Wireless LAN 0 When using this unit, we recommend you use a router equipped with the following When connecting to the network via wireless LAN, connect the external functions: antennas for Bluetooth/wireless connectivity connection to the rear panel 0 Built-in DHCP server and stand them upright.
Page 95: Connecting An External Control Device
Contents Connections Playback Settings Tips Appendix Connecting an external control device REMOTE CONTROL jacks When this unit is installed in a location where the remote control signals cannot reach (installation in a cabinet etc.), it can still be controlled by the remote control by connecting a remote control receiver unit (sold separately).
Page 96: Trigger Out Jacks
Contents Connections Playback Settings Tips Appendix TRIGGER OUT jacks When a device with TRIGGER IN jack is connected, the connected device’s power on/standby can be controlled through linked operation to this unit. The TRIGGER OUT jack outputs a maximum 12 V DC /150 mA electrical signal. 12 V DC/150 mA trigger-compatible device NOTE 0 Use a monaural mini-plug cable for connecting the TRIGGER OUT jacks.
Page 97: Connecting The Power Cord
Contents Connections Playback Settings Tips Appendix Connecting the power cord After completing all the connections, insert the power plug into the power outlet. Power cord (supplied) To household power outlet (AC 120 V, 60 Hz) Front panel Display Rear panel Remote Index...
Page 98: Playback
Contents Connections Playback Playback Settings Tips Appendix o Contents Playback network audio/service Listening to Internet Radio Basic operation Playing back files stored on a PC and NAS Turning the power on Viewing photographs on the Flickr site Selecting the input source Listening to Pandora ®...
Page 99: Basic Operation
Contents Connections Playback Settings Tips Appendix Basic operation Turning the power on POWER X AVR CONTROL AVR CONTROL POWER POWER MAIN MAIN Press POWER X to turn on power to the unit. DEV. V. DEVICE DEVICE MENU MENU MENU MENU CBL / INPUT 0 You can press the input source select button when the unit is in standby mode to...
Page 100: Adjusting The Volume
Contents Connections Playback Settings Tips Appendix Adjusting the volume Playback a DVD player/Blu-ray Disc player Use VOLUME df to adjust the volume. The following describes the procedure for playing DVD player/Blu-ray Disc player. 0 The variable range differs according to the input signal and channel level setting. Prepare for playback.
Page 101: Playing An Ipod
Contents Connections Playback Settings Tips Appendix Playing an iPod You can use the USB cable provided with the iPod to connect the iPod with the unit’s USB port and enjoy music stored on the iPod. AVR CONTROL AVR CONTROL POWER POWER For information on the iPod models that can be played back with this MAIN...
Page 102: Listening To Music On An Ipod
0 Depending on the type of iPod and the software version, some functions may not operate. 0 Note that Denon will accept no responsibility whatsoever for any problems arising with the data on an iPod when using this unit in conjunction with the iPod.
Page 103: Ipod Browse Mode Settings
Contents Connections Playback Settings Tips Appendix iPod Browse Mode settings Operation buttons Function Playback In this mode, various lists and screens during playback on the iPod are Pause displayed on the TV screen. Stop This section describes the steps up to playing back tracks on the iPod in “On-Screen”.
Page 104 Contents Connections Playback Settings Tips Appendix o Operations accessible through the option menu This can be operated when the “iPod Browse Mode” is set to “On- Screen”. (v p. 103) “iPod Browse Mode settings” (v p. 103) “Performing repeat playback” (v p. 105) “Performing random playback”...
Page 105: Performing Repeat Playback
Contents Connections Playback Settings Tips Appendix Performing repeat playback Performing random playback Press OPTION with “iPod Browse Mode” set to “On- Press OPTION with “iPod Browse Mode” set to “On- Screen”. Screen”. The option menu screen is displayed. The option menu screen is displayed. Use ui to select “Repeat”, then press ENTER.
Page 106: Playing A Usb Memory Device
Contents Connections Playback Settings Tips Appendix Playing a USB memory device Playing back music or viewing still picture (JPEG) files stored on a USB memory device. AVR CONTROL AVR CONTROL POWER POWER Only USB memory devices conforming to mass storage class standards MAIN MAIN can be played on this unit.
Page 107: Playing Files Stored On Usb Memory Devices
ENTER. Playback starts. NOTE 0 Note that Denon will accept no responsibility whatsoever for any problems arising with the data on a USB memory device when using this unit in conjunction with the USB memory device. Front panel Display...
Page 108 Contents Connections Playback Settings Tips Appendix o Operations accessible through the option menu “Performing repeat playback” (v p. 152) “Performing random playback” (v p. 152) “Searching content with keywords (Text Search)” (v p. 154) “Playing back music and a favorite picture at the same time (Slideshow)”...
Page 109: Listening To Music On A Bluetooth Device
Contents Connections Playback Settings Tips Appendix Listening to music on a Bluetooth device Music files stored on Bluetooth devices such as smartphones, digital music players, etc. can be enjoyed on this unit by pairing and connecting AVR CONTROL AVR CONTROL POWER POWER this unit with the Bluetooth device.
Page 110: Playing Music From Bluetooth Device
Turn on Bluetooth from your mobile device’s control of this unit. settings menu, then select “Denon AVR-X6200W” when it appears The next time the input source is switched to Bluetooth, this unit in the device list. automatically connects to the last Bluetooth device that was connected.
Page 111 Contents Connections Playback Settings Tips Appendix Operation buttons Function NOTE Playback 0 To operate the Bluetooth device with the remote control of this unit, the Bluetooth Pause device needs to support the AVRCP profile. 0 The remote control of this unit is not guaranteed to work with all Bluetooth devices. Stop 0 Depending on the type of Bluetooth device, this unit outputs audio that is coupled Skip to previous track / Skip to next track...
Page 112: Pairing With Other Bluetooth Devices
Contents Connections Playback Settings Tips Appendix Pairing with other Bluetooth devices 0 This unit can be paired with a maximum of 8 Bluetooth devices. When a 9th Pair a Bluetooth device with this unit. Bluetooth device is paired, it will be registered in place of the oldest registered device.
Page 113: Reconnecting To This Unit From A Bluetooth Device
Contents Connections Playback Settings Tips Appendix Reconnecting to this unit from a Bluetooth device After pairing is completed, the Bluetooth device can be connected without performing any operations on this unit. This operation also needs to be performed when switching the Bluetooth device for playback.
Page 114: Listening To An Hd Radio™ Stations
Contents Connections Playback Settings Tips Appendix Listening to an HD Radio™ stations HD Radio stations offer higher sound quality than conventional FM/AM broadcasts. It is also possible to receive data services and select AVR CONTROL AVR CONTROL POWER POWER broadcasts from among up to eight multicast programs. MAIN MAIN HD Radio Technology provides higher quality sound than conventional...
Page 115 Contents Connections Playback Settings Tips Appendix HD Radio Technology manufactured under license from iBiquity Digital Corporation. U.S. and Foreign Patents. HD Radio™ and the HD, HD Radio, and “Arc” logos are proprietary trademarks of iBiquity Digital Corp. For detailed information on HD Radio Technology, please go to “www.hdradio.com/”...
Page 116: Listening To An Hd Radio Broadcast
Contents Connections Playback Settings Tips Appendix Listening to an HD Radio broadcast Use o p to select “FM” or “AM”, then press ENTER. When listening to an FM broadcast. Connect the antenna. “Connecting an HD Radio antenna” (v p. 91) When listening to an AM broadcast.
Page 117 Contents Connections Playback Settings Tips Appendix o Operations accessible through the option menu “Tuning in by entering the frequency (Direct Tune)” (v p. 118) “Changing the tune mode (Tune Mode)” (v p. 118) “Tuning in to stations and presetting them automatically (Auto Preset Memory)”...
Page 118: Tuning In By Entering The Frequency (Direct Tune)
Contents Connections Playback Settings Tips Appendix Tuning in by entering the frequency Changing the tune mode (Tune Mode) (Direct Tune) You can change the mode for tuning into FM and AM broadcasts. If you cannot tune in automatically with “Auto” mode, change the mode to You can enter the receiving frequency directly to tune in.
Page 119: Selecting An Audio Program
Contents Connections Playback Settings Tips Appendix Selecting an audio program Tuning in to stations and presetting them automatically (Auto Preset Select the tuning mode (“HD-Auto”, “Auto” or Memory) “Manual”). A maximum of 56 radio stations can be automatically preset. Press TUNE + or TUNE – to tune in the desired Multicast channel.
Page 120: Presetting The Current Broadcast Station (Preset Memory)
Contents Connections Playback Settings Tips Appendix Presetting the current broadcast Channel Default settings 92.10 / 92.30 / 92.50 / 92.70 / 93.10 / 93.50 / 93.70 / 94.10 station (Preset Memory) 1 – 8 94.30 / 94.50 / 94.70 / 94.90 / 95.10 / 95.30 / 95.50 / 95.70 Your favorite broadcast stations can be preset so that you can tune them 9 –...
Page 121: Specify A Name For The Preset Broadcast Station (Preset Name)
Contents Connections Playback Settings Tips Appendix Specify a name for the preset Use ui to select a name label, then press ENTER. broadcast station (Preset Name) The screen that lets you edit the Preset Name is displayed. If you select “Set Defaults”, then the unit returns to displaying the You can set the name to the preset broadcast station or change it.
Page 122: Skipping Preset Broadcast Stations (Preset Skip)
Contents Connections Playback Settings Tips Appendix Skipping preset broadcast stations To set the stations you want to skip by stations (Preset Skip) A Use o p to select the group of broadcast stations you want to skip. Perform auto preset memory to save all the broadcasting stations that can B Use ui to select the broadcast station you want to skip.
Page 123: Cancelling Preset Skip
Contents Connections Playback Settings Tips Appendix Cancelling Preset Skip While the “Preset Skip” screen is displayed, use o p to select a group containing a broadcast station to cancel the skip for. Use ui to select a broadcast station to cancel the skip for.
Page 124: Checking The Hd Radio Reception Information
Contents Connections Playback Settings Tips Appendix Checking the HD Radio reception information 0 If the station signal weakens while receiving a digital broadcast (while “HD” and text is displayed), the mode automatically switches to the analog reception mode (the reception frequency is displayed). Because of this, the “HD”...
Page 125: Listening To Internet Radio
Contents Connections Playback Settings Tips Appendix Listening to Internet Radio Internet Radio refers to radio broadcasts distributed over the Internet. Internet Radio stations from around the world can be received. AVR CONTROL AVR CONTROL POWER POWER The Internet radio station list on this unit the database service provided MAIN MAIN by vTuner radio station.
Page 126: Listening To Internet Radio
Contents Connections Playback Settings Tips Appendix Listening to Internet Radio Use ui to select the search method for the radio station that you wish to playback and then press ENTER. Prepare for playback. Check the network environment, then turn on this unit’s power. Select the various regions.
Page 127: Playing The Last Played Internet Radio Station
Contents Connections Playback Settings Tips Appendix Playing the last played Internet Radio Use ui p to select the station, then press ENTER. station Playback starts once buffering reaches “100%”. Operation buttons Function Press INTERNET RADIO. Playback The source switches to “Internet Radio” and the last played radio Stop station plays.
Page 128: Using Vtuner To Add Internet Radio Stations To Favorites
Contents Connections Playback Settings Tips Appendix Using vTuner to add Internet Radio Enter your E-mail address and a password of your stations to favorites choice. Select the search criteria (genre, region, language, There are many Internet Radio stations in the world, and this unit can tune etc.) of your choice.
Page 129: Playing Back Files Stored On A Pc And Nas
Contents Connections Playback Settings Tips Appendix Playing back files stored on a PC and NAS This unit can play back music files and playlists (m3u, wpl) stored on a PC and on Network Attached Storage (NAS) that supports DLNA. AVR CONTROL AVR CONTROL POWER POWER...
Page 130: Applying Media Sharing Settings
Start up Windows Media Player 12 on the PC. Select “Media Sharing” in the “Library”. Select “More streaming options...” in the “Stream”. Click the “Share my media” check box, select “Denon AVR-X6200W”, and then click “Allow”. Select “Allowed” in the “Denon AVR-X6200W” drop- down list.
Page 131: Playing Back Files Stored On A Pc And Nas
Contents Connections Playback Settings Tips Appendix Playing back files stored on a PC and Use ui to select the server including the file to be played, then press ENTER. Use iu p to select the file, then press ENTER. Use this procedure to play music files, image files or playlists. Playback starts once buffering reaches “100%”.
Page 132 Contents Connections Playback Settings Tips Appendix o Operations accessible through the option menu 0 The display switches between track title, artist name, and album title each time the main unit’s STATUS is pressed. “Performing repeat playback” (v p. 152) 0 When a WMA (Windows Media Audio), MP3 or MPEG-4 AAC file includes album “Performing random playback”...
Page 133: Viewing Photographs On The Flickr Site
Contents Connections Playback Settings Tips Appendix Viewing photographs on the Flickr site Flickr is an online photo sharing service. You can use this unit to view photographs that have been made public by Flickr users. You do not AVR CONTROL AVR CONTROL POWER POWER...
Page 134: Viewing Photographs Shared By Particular Users
Contents Connections Playback Settings Tips Appendix Viewing photographs shared by Use ui to select “Add Flickr Contact”, then press particular users ENTER. Enter the screen name that you wish to add to Prepare for playback. “Contact” (Screen Name: User name you wish to view). Check the network environment, then turn on this unit’s power.
Page 135 Contents Connections Playback Settings Tips Appendix Use ui to select the folder, then press ENTER. Use ui p to select the photograph, then press ENTER. The selected photograph is displayed. Displays the favorite photographs of the Favorites : specified user. Operation buttons Function Photostream :...
Page 136: Viewing All Photographs On Flickr
Contents Connections Playback Settings Tips Appendix o Operations accessible through the option Viewing all photographs on Flickr menu “Setting the Slideshow Interval” (v p. 156) Use ui to select “All Content”, then press ENTER. “Adjusting the picture quality for your viewing environment (Picture Mode)”...
Page 137: Listening To Pandora
DEVICE DEVICE Playback of Pandora in this unit requires the Pandora account to be linked MENU MENU MENU MENU to the unit. Therefore, access http://www.pandora.com/denon from your CBL / INPUT AUDIO AUDIO personal computer and perform the linkage. Blu-ray Blu-ray...
Page 138: Listening To Pandora
Use uio p to select “Pandora”, then press ENTER. Pandora I have a Pandora account I am to new to Pandora Online Music Please go to http://www.pandora.com/denon and follow the instructions there to create a new account. Favorites Internet Radio zzzzzz...
Page 139 Contents Connections Playback Settings Tips Appendix Input “Email address” and “Password”. For character input, see “Using the keyboard screen” (v p. 197). Press BACK to cancel the input. When “Cancel input?” is displayed, select “Yes”, then press ENTER. After inputting the “Email address” and “Password”, select “OK”, then press ENTER.
Page 140: Creating A New Station
Contents Connections Playback Settings Tips Appendix Creating a new station Operation buttons Function Playback You can create up to 100 radio stations. Pause Use ui to select “New Station”, then press ENTER. Stop Skip to next track Input a track or artist name, then press “OK”. Playback / Pause ENTER For character input, see “Using the keyboard...
Page 141: Listening To An Existing Station
Contents Connections Playback Settings Tips Appendix Listening to an existing station Use ui and select the radio station that you want to listen to, then press ENTER. 0 You can skip up to 6 tracks that are being played back within 1 hour. Listening to created radio stations at random Use ui to select “Shuffle”, then press ENTER.
Page 142: Giving Feedback And Managing Stations
Contents Connections Playback Settings Tips Appendix Giving feedback and managing Bookmarks the artist currently being played. stations Bookmark this track : You can check on a computer or iPhone etc. You can personalize your stations by providing feedback. For details, see the Pandora web page. Press when you don’t like the track that Press p while a track is playing.
Page 143: Sign Out
Contents Connections Playback Settings Tips Appendix Sign Out Disassociate this unit from your Pandora account. Use ui to select “Sign Out”, then press ENTER. When the popup menu appears, use o p to select “Yes”, then press ENTER. o Operations accessible through the option menu “Adjusting the audibility of dialog and vocals (Dialog Enhancer)”...
Page 144: Listening To Siriusxm Internet Radio
Contents Connections Playback Settings Tips Appendix Listening to SiriusXM Internet Radio You can access SiriusXM to enjoy access to a wide range of unique content. AVR CONTROL AVR CONTROL POWER POWER An All Access package lets you listen to SiriusXM on your computer, MAIN MAIN smartphone, tablet or Lynx Portable.
Page 145: Listening To Siriusxm Internet Radio
Contents Connections Playback Settings Tips Appendix Listening to SiriusXM Internet Radio Use uio p to select “SiriusXM”, then press ENTER. Over 155 channels commercial-free music, plus play-by-play sports, exclusive talk, comedy and entertainment. Online Music Prepare for playback. Favorites Internet Radio A Check the network environment, then turn on this unit’s power.
Page 146: Sign Out
Contents Connections Playback Settings Tips Appendix Sign Out Use ui to select the genre, then press ENTER. Disassociate this unit from your SiriusXM account. Use ui to select the file, then press ENTER. The selected file is displayed. Use ui to select “Sign Out”, then press ENTER. Operation buttons Function When the popup menu appears, use o p to select...
Page 147: Airplay Function
Contents Connections Playback Settings Tips Appendix AirPlay function Music files stored on your iPhone, iPod touch, iPad or iTunes can be played on this unit via the network. Router This unit 0 + is displayed on the menu screen while AirPlay is being operated. 0 Source input will be switched to “Online Music”...
Page 148: Playing Songs From Your Iphone, Ipod Touch Or Ipad
Contents Connections Playback Settings Tips Appendix Playing songs from your iPhone, iPod Playing iTunes music with this unit touch or iPad Install iTunes 10, or later, on a Mac or Windows PC that If you update your “iPhone/iPod touch/iPad” to iOS 4.2.1 or later, you can is connected to the same network as this unit.
Page 149: Selecting Multiple Speakers (Devices)
Contents Connections Playback Settings Tips Appendix Selecting multiple speakers (devices) Perform iTunes playback operations with the remote control unit of this unit It is possible to play iTunes songs on your home’s AirPlay compatible speakers (devices) other than those of this unit. With this unit’s remote control unit, you can perform iTunes song play, pause, and auto search (cue) operations.
Page 150: Spotify Connect Function
Contents Connections Playback Settings Tips Appendix Spotify Connect function Spotify is the world’s most popular streaming service. If you subscribe to Playing Spotify music with this unit Spotify Premium, you can control your new speaker with your phone or tablet. Because Spotify is built-in to your speaker, you can still take calls or Download the “Spotify App”...
Page 151: Convenience Functions
Contents Connections Playback Settings Tips Appendix Convenience functions This section explains how to use convenient functions that can be used for each input source. AVR CONTROL AVR CONTROL POWER POWER These functions can only be set in the MAIN ZONE. MAIN MAIN DEV.
Page 152: Performing Repeat Playback
Contents Connections Playback Settings Tips Appendix Performing repeat playback Performing random playback n Supported input sources: n Supported input sources : USB / Media Server / Bluetooth USB / Media Server / Bluetooth While content is playing, press OPTION. While content is playing, press OPTION. The option menu screen is displayed.
Page 153: Registering To Favorites
Contents Connections Playback Settings Tips Appendix Registering to Favorites Playing back content added to the “Save to Favorites” You can register a total of 100 favorites. n Supported input sources : Press ONLINE MUSIC. Internet Radio / Media Server / Pandora / SiriusXM Use uio p to select “Favorites”, then press ENTER.
Page 154: Deleting Content Added To Favorites
Contents Connections Playback Settings Tips Appendix Deleting content added to favorites Searching content with keywords (Text Search) Press ONLINE MUSIC. n Supported input sources : Use uio p to select “Favorites”, then press ENTER. USB / Internet Radio / Media Server Use ui to select the content you want to delete from While the content is playing, press OPTION.
Page 155 Contents Connections Playback Settings Tips Appendix Playing back music and a favorite picture at the same time (Slideshow) n Supported input sources : n Supported input sources : Internet Radio / Media Server Play back a still picture. Play back a still picture. Playing back still pictures stored on USB memory devices.
Page 156: Setting The Slideshow Interval
Contents Connections Playback Settings Tips Appendix Setting the Slideshow Interval Adjusting the audibility of dialog and vocals (Dialog Enhancer) Set the playback interval when playing back a slideshow of still picture (JPEG) files stored on a USB memory device or media server, or on the This function adjusts the center channel frequency band to enhance the Flickr website.
Page 157 Contents Connections Playback Settings Tips Appendix Adjusting the volume of each channel to match the input source (Channel 0 Select “Reset” and press ENTER if you want to restore the adjustment values of the various channels to “0.0 dB” (default). Level Adjust) 0 Headphone volume can be adjusted when a headphone is connected.
Page 158: Adjusting The Tone (Tone)
Contents Connections Playback Settings Tips Appendix Adjusting the tone (Tone) Select “On” in step 3 and press i to select the sound range to be adjusted. Adjusts the tonal quality of the sound. Bass: Adjust bass. Press OPTION. Treble: Adjust treble. The option menu screen is displayed.
Page 159: Displaying Your Desired Video During Audio Playback (Video Select)
Contents Connections Playback Settings Tips Appendix Displaying your desired video during If you selected “On” in step 3, press i and select audio playback (Video Select) “Source”. Use o p to select the input source for video you want This unit can display video from a different source on TV during audio to play back, then press ENTER.
Page 160 Contents Connections Playback Settings Tips Appendix Adjusting the picture quality for your Use o p to select picture mode. viewing environment (Picture Mode) No picture quality adjustment is done Off: with this unit. n Supported input sources : The standard mode suited for most Standard: CBL/SAT / DVD / Blu-ray / Game / AUX1 / living room viewing environments.
Page 161: Playing The Same Music In All Zones (All Zone Stereo)
Contents Connections Playback Settings Tips Appendix o Stopping the All Zone Stereo mode Playing the same music in all zones (All Zone Stereo) During playback in All Zone Stereo mode, press OPTION. You can play back the music being played back in MAIN ZONE The option menu screen is displayed.
Page 162: Selecting A Sound Mode
Contents Connections Playback Settings Tips Appendix Selecting a sound mode This unit allows you to enjoy various kinds of surround and stereo playback modes. AVR CONTROL AVR CONTROL POWER POWER Disc formats such as Blu-ray Disc and DVD, as well as being supported by MAIN MAIN digital broadcasting, and even by streaming movies and music from...
Page 163: Selecting A Sound Mode
Contents Connections Playback Settings Tips Appendix o Switching the sound mode Selecting a sound mode Press MOVIE, MUSIC or GAME to display a list of the sound modes that can be selected. Each time you press MOVIE, MUSIC or GAME, Press MOVIE, MUSIC or GAME to select a sound mode.
Page 164: Direct Playback
Contents Connections Playback Settings Tips Appendix Direct playback Pure Direct playback Sound recorded in source is played as is. This mode is for playback with higher sound quality than in Direct playback mode. Press PURE to select “Direct”. This mode turns off the main unit display and analog video circuit. Doing so suppresses noise sources that affect sound quality.
Page 165: Auto Surround Playback
Contents Connections Playback Settings Tips Appendix Auto surround playback This mode detects the type of input digital signal, and automatically selects the corresponding mode for playback. Perform stereo playback when the input signal is PCM. When the input signal is Dolby Digital or DTS, the music is played back according to the respective channel number.
Page 166 Contents Connections Playback Settings Tips Appendix o Description of sound mode types Dolby sound mode Sound mode type Description Dolby Surround This mode uses Dolby Surround Upmixer to extend various sources to natural and realistic multi channels for playback. Use ceiling speakers such as top middle speakers to realize a three-dimensional sound field. Dolby Digital This mode can be selected when playing sources recorded in Dolby Digital.
Page 167 Contents Connections Playback Settings Tips Appendix DTS sound mode Sound mode type Description DTS Surround This mode can be selected when playing sources recorded in DTS. This mode is suitable for playing discs recorded in DTS-ES. DTS ES Dscrt6.1 The surround back channel added using the discrete method is played as an independent channel. Since all channels are independent, the 360-degree spacial expressiveness and sound localization are enhanced.
Page 168 Contents Connections Playback Settings Tips Appendix Upgrade (Auro-3D) Auro-3D sound mode Sound mode type Description Auro-3D This mode uses an Auro-3D decoder to create three-dimensional audio output using the Height Channel. It is ideal for playback of signals encoded as Auro-3D with a Height Channel. If signals not encoded as Auro-3D are input, an Upmixer called the Auro-Matic is used to create highly realistic three-dimensional audio output.
Page 169 Contents Connections Playback Settings Tips Appendix PCM multi-channel sound mode Sound mode type Description Multi Ch In This mode can be selected when playing multi-channel PCM/DSD sources. Audyssey DSX ® sound mode Sound mode type Description This mode creates playback for the new channels (front wide or front height) in 5.1-channel systems. By adding front wide Audyssey DSX (A-DSX) ®...
Page 170 Contents Connections Playback Settings Tips Appendix Original sound mode Sound mode type Description Multi Ch Stereo This mode is for enjoying stereo sound from all speakers. Stereo audio (2-channel) sources are played back via the front (L/R) speakers, the surround speakers and surround back speakers (if connected).
Page 171 Contents Connections Playback Settings Tips Appendix Stereo sound mode Sound mode type Description Stereo This mode plays 2-channel stereo audio with no additional surround sound processing. Sound is output from the front left and right speakers, and subwoofer if connected. When multi-channel signals are inputted, they are mixed down to 2-channel audio and are played back with no additional surround sound processing.
Page 172 Contents Connections Playback Settings Tips Appendix o Sound mode that can be selected for each input signal The following sound modes can be selected using the MOVIE, MUSIC and GAME buttons. Adjust the sound field effect with the menu “Surround Parameter” to enjoy surround sound the way you like it. (v p. 199) Sound mode Input signal MOVIE button...
Page 173 Contents Connections Playback Settings Tips Appendix GAME button Input signal Sound mode MOVIE button MUSIC button Multi-channel z3 Stereo Dolby Digital Dolby Digital Dolby Digital + Dolby Surround Dolby Digital A-DSX z4 Dolby TrueHD Dolby TrueHD + Dolby Surround z5 Dolby TrueHD Dolby Atmos z6 Dolby TrueHD A-DSX z4...
Page 174 Contents Connections Playback Settings Tips Appendix GAME button Input signal Sound mode MOVIE button MUSIC button DTS-HD HI RES DTS-HD MSTR DTS-HD MSTR A-DSX z4 DTS-HD / DTS Express DTS Express DTS Express A-DSX z4 DTS-HD + Neural:X DTS-HD HI RES A-DSX z4 DTS:X DTS:X DTS:X MSTR...
Page 175 Contents Connections Playback Settings Tips Appendix Upgrade (Auro-3D) Input signal Sound mode MOVIE button MUSIC button GAME button Auro-3D z7 2-channel z1 / Multi-channel z3 Auro-2D Surround z8 z1 2-channel also includes analog input. z3 The sound mode that can be selected differs depending on the audio format of the input signal and the number of channels. For details, see “Types of input signals, and corresponding sound modes”...
Page 176 Contents Connections Playback Settings Tips Appendix o Views on the display Blu-ray Dolby D + A Shows a decoder to be used. In the case of the Dolby Digital Plus decoder, “Dolby D +” is displayed. B Shows a decoder that creates sound output. “k”...
Page 177: Hdmi Control Function
Contents Connections Playback Settings Tips Appendix HDMI control function A recent addition to the HDMI standard is CEC (Consumer Electronics Control), which allows control signals from one device to communicate with another device via the HDMI cable connection. Setting procedure Enable the HDMI control function of this unit.
Page 178: Sleep Timer Function
Contents Connections Playback Settings Tips Appendix Sleep timer function You can have the power automatically switched to standby once a set time has elapsed. This is convenient for viewing and listening while going to AVR CONTROL AVR CONTROL POWER POWER sleep.
Page 179: Using The Sleep Timer
Contents Connections Playback Settings Tips Appendix o Checking the remaining time Using the sleep timer Press SLEEP when the sleep timer is in operation. The remaining time appears on the display. Press MAIN, Z2 or Z3 to select the operating zone with the remote control.
Page 180: Quick Select Plus Function
Contents Connections Playback Settings Tips Appendix Quick select plus function Settings such as the input source, volume level and sound mode can be registered to the QUICK SELECT 1 - 4 buttons. AVR CONTROL AVR CONTROL POWER POWER You can simply press one of the registered QUICK SELECT buttons in MAIN MAIN MAIN...
Page 181: Calling Up The Settings
Contents Connections Playback Settings Tips Appendix Calling up the settings Press MAIN, Z2 or Z3 to select the operating zone with the remote control. The button for the selected zone is lit. Press QUICK SELECT. The Quick Select settings registered to the button you pressed are called up.
Page 182: Changing The Settings
Contents Connections Playback Settings Tips Appendix Changing the settings Press MAIN, Z2 or Z3 to select the operating zone with the remote control. The button for the selected zone is lit. Set the items below to the settings you want to register.
Page 183: Web Control Function
Switch the “IP Control” setting to “Always On”. This unit (v p. 268) Check the IP address of this unit with “Information”. (v p. 263) Network/Information Friendly Name Denon AVR-X6200W DHCP Connection Wired (Ethernet) IP Address 192.168.100.19 zzzzzz-000000 MAC Address Checking the IP address.
Page 184 Contents Connections Playback Settings Tips Appendix Enter the IP address of this unit in browser’s address When the top menu is displayed, click on the menu box. item you want to operate. For example, if the IP address of this unit is “192.168.100.19”, enter “http://192.168.100.19”.
Page 185: Playback In Zone2/Zone3 (Separate Room)
Contents Connections Playback Settings Tips Appendix Playback in ZONE2/ZONE3 (Separate room) You can operate this unit to enjoy video and audio in a room (ZONE2 and ZONE3) that is different from the room where this unit is placed (MAIN ZONE). You can simultaneously play back the same source in both the MAIN ZONE, ZONE2 and ZONE3.
Page 186 Contents Connections Playback Settings Tips Appendix o Connection 2 : Connection through the video output connector and speaker output connector When “Assign Mode” in the menu is set to any of the following audio is output from speakers in ZONE2 or ZONE3. (v p. 243) n Assign Mode: 7.1ch + ZONE2 n Assign Mode: 7.1ch + ZONE3 MAIN ZONE...
Page 187 Contents Connections Playback Settings Tips Appendix Assign Mode: 7.1ch + ZONE2/3-MONO MAIN ZONE ZONE2 ZONE3 This unit VIDEO VIDEO COMPONENT VIDEO MONITOR MONITOR/ZONE2 ZONE2 VIDEO COMPONENT VIDEO SURROUND BACK SURROUND BACK FRONT ASSIGNABLE SPEAKERS Front panel Display Rear panel Remote Index...
Page 188 Contents Connections Playback Settings Tips Appendix o Connection 3 : Connection through the video output connector and external power amplifiers The audio signals of this unit’s ZONE2 and ZONE3 audio output connectors are played on the ZONE2 and ZONE3 power amplifiers. ZONE2 ZONE3 MAIN ZONE...
Page 189 Contents Connections Playback Settings Tips Appendix 0 The analog audio signal and the 2-channel PCM signal input from HDMI connector or digital connectors (OPTICAL/COAXIAL) can be played back in ZONE2. 0 If you want to play back HDMI signals other than 2-channel PCM in ZONE2, set “HDMI Audio” to “PCM”. (v p. 275) 2-channel PCM signals are output from a device connected to the input source selected for ZONE2 and can be played back in ZONE2.
Page 190: Playback In Zone2/Zone3
Contents Connections Playback Settings Tips Appendix Playback in ZONE2/ZONE3 Press Z2 or Z3 to switch the zone mode. Z2 or Z3 button lights. POWER X Press POWER X to turn on the ZONE2 or ZONE3 power. AVR CONTROL AVR CONTROL POWER POWER MAIN...
Page 191: Turning Off The Sound Temporarily (Muting)
Contents Connections Playback Settings Tips Appendix o Adjusting the volume (ZONE2/ZONE3) Use VOLUME df to adjust the volume. At time of purchase, “Volume Limit” is set to “70 (–10 dB)”. (v p. 275) 0 Turn MASTER VOLUME after pressing ZONE2 SOURCE or ZONE3 SOURCE on the main unit to adjust the volume.
Page 192: Menu Map
Contents Connections Playback Settings Settings Tips Appendix Menu map When using menu operations, connect this unit to a TV and operate this unit while viewing the TV. The recommended settings are configured for this unit by default. You can customize this unit based on your existing system and your preferences. Setting items Detailed items Description...
Page 193: Source Rename
Used to check the network connection. Maintenance Mode Used when receiving maintenance from a Denon service engineer or custom installer. This mode is not designed for use by the end user, and should only be used by a trained service technician or custom installation professional.
Page 194 Information Shows information about this unit settings, input signals, etc. Usage Data Selects whether or not to send anonymous usage data to Denon. Setup Lock Protects settings from inadvertent changes. Begin Setup...
Page 195 Contents Connections Playback Settings Tips Appendix Menu operations AVR CONTROL AVR CONTROL POWER POWER MAIN MAIN MAIN Press MAIN on the remote control unit to set the DEV. V. operating zone to the MAIN ZONE. DEVICE DEVICE The MAIN button lights. MENU MENU MENU...
Page 196: Text Search
Contents Connections Playback Settings Tips Appendix Inputting characters On this unit, you can change the name displayed on the following screens to the names that you prefer. Preset Name (v p. 121) Text Search (v p. 154) Source Rename (v p. 228) Friendly Name (v p.
Page 197 Contents Connections Playback Settings Tips Appendix Using the keyboard screen Display the screen for inputting characters. Press ENTER to move the cursor to the character that you wish to change. GExampleH “Source Rename” screen Each time ENTER is pressed, the cursor moves by one character.
Page 198 Contents Connections Playback Settings Tips Appendix Using the number buttons When the keyboard screen is displayed, press 0 – 9. The 10 key input screen is displayed. Place the cursor at the character to be changed with o p and press the number button (0 – 9) until the desired character is displayed.
Page 199 Contents Connections Playback Settings Tips Appendix Audio Make audio-related settings. Subwoofer Level Adjust Surround Parameter This setting adjusts the volume level for the subwoofer. You can adjust the surround audio sound field effects to match your preferences. o Subwoofer Level Adjust The items (parameters) that can be adjusted depend on the signal being input and the currently set sound mode.
Page 200 Contents Connections Playback Settings Tips Appendix o Loudness Management o Dynamic Compression This sets whether to output as specified in “Dynamic Compression” or Compress dynamic range (difference between loud and soft sounds). output directly without compressing the dynamic range of audio Automatic dynamic range compression recorded in the disc.
Page 201 Contents Connections Playback Settings Tips Appendix o Low Frequency Effects o DTS Neural:X Adjust the low frequency effects level (LFE). DTS Neural:X Expands the non-object based audio signals and optimizes them for your speaker configuration. -10 dB – 0 dB (Default : 0 dB) Use “DTS Neural:X”.
Page 202: Auro-Matic 3D Preset
Contents Connections Playback Settings Tips Appendix Upgrade (Auro-3D) Upgrade (Auro-3D) o Auro-Matic 3D Preset o Auro-Matic 3D Strength Selects the Auro-Matic 3D Preset for fine tuning the Auro-3D Changes the level of the up-mixed channels in relation to the original experience to specific audio material.
Page 203: Delay Time
Contents Connections Playback Settings Tips Appendix o Delay Time o Room Size Adjust the audio delay time against video to extend the sound field Determine size of acoustic environment. image. Small: Simulate acoustics of a small room. 0 ms – 300 ms (Default : 30 ms) Simulate acoustics of a medium-small Medium small: room.
Page 204 Contents Connections Playback Settings Tips Appendix o Subwoofer Restorer Turn subwoofer output on and off. Compressed audio formats such as MP3, WMA (Windows Media Audio) and MPEG-4 AAC reduce the amount of data by eliminating signal The subwoofer is used. (Default): components that are hard for the human ear to hear.
Page 205 Contents Connections Playback Settings Tips Appendix Audio Delay 0 This item can be set with analog signals or PCM signal (Sample Rate = Compensates for incorrect timing between video and audio. 44.1/48 kHz) is input. 0 ms – 200 ms (Default : 0 ms) 0 This item default setting for “Online Music”, “iPod/USB”...
Page 206 Contents Connections Playback Settings Tips Appendix o Limit o Mute Level Make a setting for maximum volume. Set the amount of attenuation when muting is on. 60 (–20 dB) / 70 (–10 dB) / 80 (0 dB) Full The sound is muted entirely. (Default): Off (Default) –40 dB :...
Page 207 Contents Connections Playback Settings Tips Appendix o MultEQ ® XT32 Audyssey ® MultEQ ® XT32 compensates for both time and frequency Set Audyssey MultEQ XT32, Audyssey Dynamic EQ , Audyssey ® ® characteristics of the listening area based on Audyssey ®...
Page 208 Contents Connections Playback Settings Tips Appendix o Dynamic EQ o Reference Level Offset Solves the problem of deteriorating sound quality as volume is Audyssey Dynamic EQ ® is referenced to the standard film mix level. It decreased by taking into account human perception and room makes adjustments to maintain the reference response and surround acoustics.
Page 209: Dynamic Volume
Contents Connections Playback Settings Tips Appendix o Dynamic Volume o Audyssey LFC™ Solves the problem of large variations in volume level between TV, Adjusts the low frequency band to prevent bass and vibration from movies and other content (between quiet passages and loud being conveyed to neighboring rooms.
Page 210: Audyssey Dsx
Contents Connections Playback Settings Tips Appendix o Stage Width o Audyssey DSX ® Adjust sound stage width when using front wide speakers. Provides more immersive surround sound by adding the new channels. –10 – +10 (Default : 0) Turn on Audyssey DSX ®...
Page 211: Speaker Selection
Contents Connections Playback Settings Tips Appendix o Speaker Selection Graphic EQ Select whether to adjust tones for individual speakers or for all Uses the graphic equalizer to adjust the tone of each speaker. speakers. All: Adjust all speaker tones together. 0 Speakers for which “Graphic EQ”...
Page 212 Contents Connections Playback Settings Tips Appendix o Curve Copy Copy the Flat correction curve created in the Audyssey ® Setup. 0 “Curve Copy” is displayed after Audyssey ® Setup has been performed. o Set Defaults The “Graphic EQ” settings are returned to the default settings. Front panel Display Rear panel...
Page 213 Contents Connections Playback Settings Tips Appendix Video Make video-related settings. o Picture Mode Picture Adjust Select the desired picture mode according to the video content and Picture quality can be adjusted. your viewing environment. The standard mode suited for most living Standard: room viewing environments.
Page 214 Contents Connections Playback Settings Tips Appendix o Contrast Adjust picture contrast. 0 The two special adjustment modes, ISF Day and ISF Night, should be used by a certified technician to adjust the color calibration to match the installation -50 – +50 (Default : 0) conditions.
Page 215: Noise Reduction
Contents Connections Playback Settings Tips Appendix o Noise Reduction HDMI Setup Reduce overall video noise. Make settings for HDMI video/audio output. Low / Medium / High / Off (Default : Off) NOTE 0 When “HDMI Control” and “HDMI Pass Through” is set to “On”, it consumes more o Enhancer standby power.
Page 216: Hdmi Audio Out
Contents Connections Playback Settings Tips Appendix o HDMI Audio Out o Video Output Select HDMI audio output device. Select the HDMI monitor connector to be used. Play back through speakers connected to The presence of a TV connected to the (Default): the unit.
Page 217: Hdmi Control
Contents Connections Playback Settings Tips Appendix o HDMI Pass Through o HDMI Control Selects how this unit will transmit HDMI signals to the HDMI output in You can link operations with devices connected to HDMI and standby power mode. compatible with HDMI Control. Transmits the selected HDMI input Use HDMI control function.
Page 218: Inputs
Contents Connections Playback Settings Tips Appendix o Pass Through Source o TV Audio Switching Sets the HDMI connector that inputs HDMI signals when in standby. Sets automatic switching to the “TV Audio” input when a TV connected via HDMI sends an appropriate CEC control command to the AVR. The most recently used input source will Last: go into standby mode.
Page 219 Contents Connections Playback Settings Tips Appendix o Power Off Control Links the power standby of this unit to external devices. If power to a connected TV is turned off independently of the input source, power (Default): to this unit is automatically set to standby. With an input source being selected that is assigned either “HDMI”, “COMP”...
Page 220: Video Mode
Contents Connections Playback Settings Tips Appendix o Video Mode Output Settings Configure the video processing method to match the type of video Makes settings for video output. content. Auto Process video automatically based on (Default): the HDMI content information. 0 Can be set when “HDMI”, “COMP” or “VIDEO” is assigned for each input source. (v p.
Page 221: Video Conversion
Contents Connections Playback Settings Tips Appendix o Video Conversion o i/p Scaler The input video signal is converted automatically in conjunction with Set the video input signal to be subjected to i/p scaler processing. the connected TV. (v p. 317) i/p Scaler will convert the resolution of the input video signal to the value set in “Resolution”.
Page 222 Contents Connections Playback Settings Tips Appendix o Resolution n When the input source is set to “iPod/USB” and “Online Music” Set the output resolution. You can set “Resolution” separately for HDMI output of the analog video input and HDMI input. Use i/p scaler function.
Page 223: Progressive Mode
Contents Connections Playback Settings Tips Appendix o Progressive Mode o Aspect Ratio Set an appropriate progressive conversion mode for the source video Set the aspect ratio for the video signals output to the HDMI. signal. 16:9 Output at 16:9 aspect ratio. The video signal is automatically (Default): Auto...
Page 224 Contents Connections Playback Settings Tips Appendix Component Video Out On Screen Display Set the zone to which the component video output connector is assigned. Select the on-screen display user interface preferences. MAIN ZONE Assigns the component video output o Volume (Default): connector to MAIN ZONE.
Page 225 Contents Connections Playback Settings Tips Appendix o Now Playing TV Format Sets the display time for the playback display when the input source is Set the video signal format to be output for the TV you are using. “Online Music”, “iPod/USB”, “Bluetooth” or “HD Radio”. o Format Always On Show display continuously.
Page 226: Inputs
Contents Connections Playback Settings Tips Appendix Inputs Perform settings related to input source playback. You do not have to change the settings to use the unit. Make settings when needed. Input Assign 0 By default, each item is set as follows. By making connections as indicated by the input sources printed on the Input connector audio/video input connectors of this unit, you can just press one of the...
Page 227 Contents Connections Playback Settings Tips Appendix o HDMI o ANALOG Set this to change the HDMI input connectors assigned to the input Set this to change the analog audio input connectors assigned to the sources. input sources. Assign a analog audio input connector to 1 / 2 / 3 / 4 / 5 / 6 / 7 / Assign an HDMI input connector to the 1 / 2 / 3 / 4 / 5 / 6 / Front:...
Page 228 Contents Connections Playback Settings Tips Appendix o VIDEO Source Rename Set this to change the composite video input connectors assigned to Change the display name for input source. the input sources. This is convenient when the name of your device and the input source Assign the video input connector to the name of this unit are different.
Page 229: Inputs
Contents Connections Playback Settings Tips Appendix Hide Sources Source Level Remove from the display input sources that are not used. This function corrects the playback level of the selected input source’s audio input. Show Use this source. Make this setting if there are differences in the input volume levels (Default): between the different sources.
Page 230: Decode Mode
Contents Connections Playback Settings Tips Appendix o Decode Mode Input Select Set the audio decode mode for input source. Set the audio input mode and decode mode of each input source. It is normally recommended to set the audio input mode to “Auto”. But The input modes available for selection may vary depending on the input we recommend changing it to “PCM”...
Page 231 Contents Connections Playback Settings Tips Appendix Speakers The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically. This is called “Audyssey ® Setup”. You do not have to perform Audyssey Setup when you have already performed “Speaker Calibration” in “Setup Assistant”. ®...
Page 232 Contents Connections Playback Settings Tips Appendix o About the main listening position NOTE The main listening position is the position where listeners would 0 Make the room as quiet as possible. Background noise can disrupt the room measurements. Close windows and turn off the power on electronic devices normally sit or where one would normally sit alone within the listening (radios, air conditioners, fluorescent lights, etc.).
Page 233: Procedure For Speaker Settings (Audyssey
Contents Connections Playback Settings Tips Appendix Procedure for speaker settings Attach the Sound calibration microphone to the supplied microphone stand or own tripod and install it (Audyssey ® Setup) at the main listening position. When installing the Sound calibration microphone, point the tip of Preparation the microphone toward the ceiling and adjust the height to match the height of the ears of a listener in a seated position.
Page 234 Contents Connections Playback Settings Tips Appendix Connect the Sound calibration microphone to the Select “Start”, then press ENTER. SETUP MIC jack of this unit. Audyssey ® Setup can also make the following settings. Amp Assign The signals output from the SURROUND BACK, FRONT WIDE/ HEIGHT2 and HEIGHT1 speaker terminals can be switched in accordance with your speaker environment.
Page 235: Error Messages
Contents Connections Playback Settings Tips Appendix When the following screen is displayed, select “Begin When the detected speaker is displayed, select “Next” Test” and then press ENTER. and then press ENTER. Start the measurement of the first position. Audyssey Setup Speaker Detection Audyssey Setup Select “Begin Test”...
Page 236 Contents Connections Playback Settings Tips Appendix Move the Sound calibration microphone to position 2, Repeat step 8, measuring positions 3 to 8. select “Continue”, then press ENTER. The measurement of the second position starts. Measurements can be made in up to eight positions. 0 To skip measuring the fourth and subsequent listening position, press o to select “Complete”...
Page 237 Contents Connections Playback Settings Tips Appendix When the analysis and storage ends, unplug the Sound Perform the settings for Audyssey Dynamic EQ ® calibration microphone from the SETUP MIC jack on the Audyssey Dynamic Volume ® main unit and then press “Next”. The following screen is displayed during the analysis.
Page 238 Contents Connections Playback Settings Tips Appendix Select “Details” and press ENTER to verify the measurement results. Subwoofers may measure a greater reported distance than the actual distance due to added electrical delay common in subwoofers. NOTE 0 Do not change the speaker connection or subwoofer volume after Audyssey ®...
Page 239 Contents Connections Playback Settings Tips Appendix Error messages An error message is displayed if Audyssey ® Setup could not be completed due to speaker placement, the measurement environment, etc. If an error message is displayed, check the relevant items and perform the necessary measures. Be sure to turn off the power before checking speaker connections. Examples Error details Measures...
Page 240 Contents Connections Playback Settings Tips Appendix o Subwoofer level error message and how to Select “SW Level Matching” and then press ENTER. adjust Adjust the volume control on your subwoofer so that The optimal level of each subwoofer channel for Audyssey ®...
Page 241: Amp Assign
Contents Connections Playback Settings Tips Appendix Retrieving Audyssey ® Setup settings If you set “Restore...” to “Restore”, you can return to Audyssey Setup ® measurement result (value calculated at the start by MultEQ XT32) even ® when you have changed each setting manually. Audyssey Setup Your AV receiver can automatically measure the acoustics of your room then optimize your speakers using the included...
Page 242: Manual Setup
Contents Connections Playback Settings Tips Appendix Manual Setup Amp Assign Select the power amplifier usage method to match your speaker system. Perform when setting the speakers manually or when changing settings o Assign Mode made in Audyssey ® Setup. If you change the speaker settings after performing Audyssey Setup, ®...
Page 243 Contents Connections Playback Settings Tips Appendix Settings to assign all power amplifier Setting to assign the power amplifiers in within this unit to MAIN ZONE to play this unit for ZONE3 to 2-channels back up to 9.1-channels. You can connect speakers for up to 9.1- You can connect speakers for up to 11.1- channels for MAIN ZONE.
Page 244 Contents Connections Playback Settings Tips Appendix Setting to assign the power amplifiers in Setting to assign the power amplifiers in this unit for front speaker bi-amp this unit for connecting 2-channel connection to 2-channels. playback speakers to 2-channels. You can connect speakers for up to 9.1- You can switch the front speakers when 7.1ch (Bi-Amp): channels for MAIN ZONE.
Page 245 Contents Connections Playback Settings Tips Appendix o Speakers for ZONE2 / Speakers for ZONE3 / Setting to assign the power amplifiers Speakers for ZONE2/ZONE3 / Speakers for Bi- within this unit for connecting the second Amp/ Speakers for 2ch/ Speakers for Front B set of front speakers.
Page 246 Contents Connections Playback Settings Tips Appendix o Floor o Height n Layout n Height Sp Select the floor speakers location. Select the number of the height speakers and ceiling speakers used in MAIN ZONE. This layout combines a surround back or 5ch &...
Page 247 Contents Connections Playback Settings Tips Appendix n Layout Select the height, ceiling, or Dolby Atmos Enabled speaker location. The layouts that can be selected differ depending on the combinations of “Assign Mode” and “Floor” - “Layout” in the menu. (“Assign Mode”...
Page 248 Contents Connections Playback Settings Tips Appendix Settings AUDIO OUT connectors Height Speakers Dolby Speakers NOTE Layout HEIGHT1 HEIGHT2 Front Dolby & Top Rear Front Dolby Top Rear Front Dolby & Rear Height Front Dolby Rear Height Front Height & Surr. Dolby Front Height Surround Dolby Front Height &...
Page 249 Contents Connections Playback Settings Tips Appendix Upgrade (Auro-3D) Settings AUDIO OUT connectors Height Speakers Dolby Speakers NOTE Layout HEIGHT1 HEIGHT2 SUBWOOFER2 Front Height & Surr. Height Front Height Surround Height None Front Height Rear Height Front Height & Rear Heightz5 Front Height &...
Page 250: Speaker Config
Contents Connections Playback Settings Tips Appendix o Pre-out Speaker Config. When “Assign Mode” is set to “11.1ch”, selects the PRE OUT connect Select whether or not speakers are present, playback capacity for low the external power amplifier used in MAIN ZONE. bass frequencies and speaker size.
Page 251 Contents Connections Playback Settings Tips Appendix o Center o Surround Set the presence and size of the center speaker. Set the presence and size of the surround speakers. Use a large speaker that can adequately Use a large speaker that can adequately Large: Large: play back very low bass frequencies.
Page 252 Contents Connections Playback Settings Tips Appendix o Surr. Back o Front Wide Set the presence, size and number of surround back speakers. Set the presence and size of the front wide speakers. Use a large speaker that can adequately Use a large speaker that can adequately Large: Large: play back very low bass frequencies.
Page 253 Contents Connections Playback Settings Tips Appendix o Top Front o Top Rear Set the presence and size of the top front speakers. Set the presence and size of the top rear speakers. Use a large speaker that can adequately Use a large speaker that can adequately Large: Large: play back very low bass frequencies.
Page 254 Contents Connections Playback Settings Tips Appendix o Front Dolby o Back Dolby Set the presence and size of the front Dolby speakers. Set the presence and size of the back Dolby speakers. Use a large speaker that can adequately Use a large speaker that can adequately Large: Large: play back very low bass frequencies.
Page 255 Contents Connections Playback Settings Tips Appendix Upgrade (Auro-3D) Upgrade (Auro-3D) o Surround Height o Top Surround Set the presence and size of the surround height speakers. Set the presence and size of the top surround speaker. Use a large speaker that can adequately Use a large speaker that can adequately Large: Large:...
Page 256: Distances
Contents Connections Playback Settings Tips Appendix o Set Defaults Distances The “Distances” settings are returned to the default settings. Set distance from listening position to speakers. o Set the distance Measure beforehand the distance from the listening position to each speaker.
Page 257: Levels
Contents Connections Playback Settings Tips Appendix Levels Set the volume of the test tone to be the same at the listening position when it is output from each speaker. o Test Tone Start A test tone is output from the selected speaker. While listening to the test tone, adjust the volume output from the selected speaker.
Page 258: Crossovers
Contents Connections Playback Settings Tips Appendix o Set the crossover frequency Crossovers 40 Hz / 60 Hz / 80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / Set in accordance with the lower limit frequency of the base frequencies 200 Hz / 250 Hz (Default : 80 Hz) that can be played back through each speaker.
Page 259 Contents Connections Playback Settings Tips Appendix o LPF for LFE Bass Set LFE signal playback range. Set this when you want to change the Set subwoofer and LFE signal range playback. playback frequency (low pass filter point) of the subwoofer. o Subwoofer Mode 80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / 200 Hz / 250 Hz (Default : 120 Hz)
Page 260 Contents Connections Playback Settings Tips Appendix Front Speaker 2ch Playback Set the front speaker A/B to use for every sound mode. Select the method for setting the speakers used in the 2-channel direct and stereo playback modes. Front speaker A is used. (Default): o Setting Front speaker B is used.
Page 261 Contents Connections Playback Settings Tips Appendix o Subwoofer o SW Mode Set the presence of a subwoofer. Select low range signals to be reproduced by subwoofer. When “2ch Playback”-“Front” is set to Use a subwoofer. (Default): “Large”, only LFE signals are output from the subwoofer.
Page 262 Contents Connections Playback Settings Tips Appendix o Crossover o Level FL/Level FR Set the maximum frequency of the bass signal output from each Adjust the level of each channel. channel to the subwoofer. -12.0dB – +12.0dB (Default : 0.0dB) 40 Hz / 60 Hz / 80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / 200 Hz / 250 Hz (Default : 80 Hz) 0 This can be set when “2ch Playback”-“Subwoofer”...
Page 263 Contents Connections Playback Settings Tips Appendix Network To use this unit by connecting it to a home network (LAN), you must configure network settings. If you set up your home network (LAN) via DHCP, set “DHCP” to “On”. (Use the default setting.) This allows this unit to use your home network (LAN). When assigning an IP address to each device manually, you need to assign an IP address to this unit using the “IP Address”...
Page 264 2. Check that your iOS device is connected to the wireless LAN The router can be connected in the following ways. Select the connection (Wi-Fi) router and select “Denon AVR-X6200W” from “SET UP method to suit your home environment. NEW AIRPLAY SPEAKER...” at the bottom of the Wi-Fi configuration screen of your iOS device.
Page 265 Contents Connections Playback Settings Tips Appendix o WPS Router o Manual Use a WPS-compatible router to connect. Enter the name (SSID) and password of the network you wish to connect to. There are two ways to connect, using the push button method or the PIN code method.
Page 266 2. Connect the wireless LAN of the PC or tablet used to “Denon AVR-X6200W” Set up the IP Address, Subnet Mask, Default Gateway and DNS server when the message “Connect your Wi-Fi device to Wi-Fi network called “Denon...
Page 267: Default Gateway
Contents Connections Playback Settings Tips Appendix o DHCP o Default Gateway Selects how to connect to the network. When connected to a gateway (router), input its IP address. Configure the network settings o Primary DNS, Secondary DNS (Default): automatically from your router. If there is only one DNS address indicated in the documentation Off: Configure the network settings manually.
Page 268 0 If you do not understand about Internet connection, contact your ISP (Internet controller. Service Provider) or the store from which you purchased your computer. 0 When using the web control function or Denon 2015 AVR Remote, use with the “IP Control” setting set to “Always On”. NOTE 0 When “IP Control”...
Page 269: Physical Connection
For character input, see “Using the keyboard screen” (v p. 197). Checks the connection from this unit to the router. 0 The default Friendly Name on first use is “Denon AVR-X6200W”. o Set Defaults Failed to communicate with the router.
Page 270 Failed to connect to the Internet. Check professional. Error: the Internet connection environment or router settings. NOTE 0 Only use this function if so instructed by a Denon serviceperson or installer. Front panel Display Rear panel Remote Index...
Page 271: Eco Mode
Contents Connections Playback Settings Tips Appendix General Make various other settings. Language Set the language for display the menu on the TV screen. Configure the settings of the ECO Mode and auto standby mode. English / Français / Español (Default : English) o ECO Mode This mode can reduce the power consumption when the power of the unit is on.
Page 272: On Screen Display
Contents Connections Playback Settings Tips Appendix o Power On Default o On Screen Display Set the mode to ECO when the power is on. Display the power consumption of this unit using a meter on the TV screen. The ECO Mode will be set to the previous Last setting before the power was switched Always display the meter on the TV...
Page 273: Auto Standby
Contents Connections Playback Settings Tips Appendix o Auto Standby n ZONE2 / ZONE3 When there are no operations for a certain period of time as set here, Set so the unit power automatically switches to standby. the power is automatically shut off even if there is audio or video input. n MAIN ZONE Switches ZONE2/ZONE3 the standby 8 hours:...
Page 274 Contents Connections Playback Settings Tips Appendix o Lch Level ZONE2 Setup/ZONE3 Setup Adjust the left channel output level. Makes settings for audio playback with ZONE2 and ZONE3. -12 dB – +12 dB (Default : 0 dB) o Rch Level 0 Values set for “Volume Limit” and “Power On Volume” are displayed according to the setting specified for the volume “Scale”...
Page 275: Volume Level
Contents Connections Playback Settings Tips Appendix o HDMI Audio (ZONE2 only) o Volume Limit Selects the audio signal format for playing an HDMI source in ZONE2. Make a setting for maximum volume. Through The HDMI audio signal is passed through 60 (-20 dB) / 70 (-10 dB) / 80 (0 dB) (Default): this unit to the device in ZONE2.
Page 276 Contents Connections Playback Settings Tips Appendix o Mute Level Zone Rename Set the amount of attenuation when muting is on. Change the display title of each zone to one you prefer. Full The sound is muted entirely. MAIN ZONE / ZONE2 / ZONE3 (Default): The default setting is restored for the edited –40 dB :...
Page 277: Trigger Out 1/Trigger Out
Contents Connections Playback Settings Tips Appendix Trigger Out 1/Trigger Out 2 Front Display Select the conditions for activating trigger out. Makes settings related to the display on this unit. For details about how to connect the TRIGGER OUT jacks, see o Dimmer “TRIGGER OUT jacks”...
Page 278 Contents Connections Playback Settings Tips Appendix o Channel Indicators Information Sets whether to use the input signal display or output signal display for Show information about this unit settings, input signals, etc. the channel indication on the display. o Audio Uses the input signal display for the Input: channel indication on the display.
Page 279 Contents Connections Playback Settings Tips Appendix o Video o Notifications Show the HDMI input/output signals and HDMI monitor information for Displays and sets notifications. MAIN ZONE. Also, sets whether or not to display the notification when the power is turned on. HDMI Signal Info.
Page 280 Appendix Usage Data Firmware To help us improve our products and customer service, Denon collects Checks for the latest firmware information about updates and upgrades, anonymous information about how you use your AV receiver (such as updates the firmware, and sets up the notification message display for frequently used input sources and sound modes and speaker settings).
Page 281 Contents Connections Playback Settings Tips Appendix o Notifications When the latest firmware is available, a notification message is 0 This unit automatically retries updating if updating fails. If the update still fails, displayed on the TV screen at power on. either one of the following messages will appear on the screen.
Page 282 0 Information regarding the “Update” function and “Add New Feature” will be procedure. announced on the Denon website each time related plans are defined. The ID number can also be displayed by pressing and holding the main unit’s u and INFO for at least 3 seconds.
Page 283 Contents Connections Playback Settings Tips Appendix Setup Lock Protect settings from inadvertent changes. o Lock Turn protection on. Turn protection off. (Default): 0 When cancelling the setting, set “Lock” to “Off”. NOTE 0 When “Lock” is set to “On”, no setting items are displayed except for “Setup Lock”.
Page 284: Operating External Devices With The Remote Control Unit
Contents Connections Playback Settings Tips Appendix Operating external devices with the remote control unit When preset codes are registered in the included remote control unit, it can then be used to operate any devices you have, such as DVD players AVR CONTROL AVR CONTROL POWER...
Page 285 Press and hold down CD and OPTION until the DEV, TV and AVR indicators on the remote are flashing green, Use the following simple method to register the preset codes of Denon then release. Blu-ray Disc players, DVD players and CD players.
Page 286 Contents Connections Playback Settings Tips Appendix n Registering multiple players at the same time o Registering by entering preset numbers The following table shows the device groups that can be registered for Press and hold down QUICK SELECT 1 – 4 and OPTION each of the input source select buttons.
Page 287 Contents Connections Playback Settings Tips Appendix Press and hold down the input source button that you want to register the preset code to and SETUP until the DEV, TV and AVR indicators are flashing green. Enter the preset number (5 digits) listed for the device in the Preset Code Table using the number buttons (0 –...
Page 288 Contents Connections Playback Settings Tips Appendix Operating devices n CBL/SAT group (Set top box for satellite (SAT)/cable TV (CBL)/ To operate an external device, press the input source button registered Media player/IP TV) operation with the preset code, followed by one of the buttons in the following tables. Operation buttons Function AVR CONTROL...
Page 289 Contents Connections Playback Settings Tips Appendix n TV group n VCR/PVR group (TV) operation (Video cassette recorder (VCR)/personal video recorder (PVR)) operation Operation buttons Function Operation buttons Function AVR CONTROL AVR CONTROL POWER POWER AVR CONTROL AVR CONTROL POWER POWER MAIN MAIN TV power on/off...
Page 290: Audio Group
ENTER ENTER ENTER ENTER selection 0 Depending on the device, the DEVICE X button only performs the power-on operation. (Depending on the device, some Denon models can only be operated with the power turned on.) Front panel Display Rear panel...
Page 291 Contents Connections Playback Settings Tips Appendix Initializing registered preset codes Resetting the remote control unit All the settings are restored to their defaults. Press and hold down MAIN and OPTION until the DEV, Press and hold down DEVICE MENU until the DEV, TV TV and AVR indicators on the remote are flashing and AVR indicators on the remote are flashing green, green, then release.
Page 292: Tips
Contents Connections Playback Settings Tips Tips Appendix o Contents Troubleshooting Power does not turn on / Power is turned off Tips Operations cannot be performed through the remote control unit I want the volume not to become too loud by mistake Display on this unit shows nothing I want to keep the volume at the same level when I turn the power on No sound comes out...
Page 293: Tips
Contents Connections Playback Settings Tips Appendix Tips I want the volume not to become too loud by mistake Set the volume upper limit for “Volume Limit” in the menu beforehand. This prevents children or others from increasing the volume too much by mistake. You can set this for each zone.
Page 294 Contents Connections Playback Settings Tips Appendix I want to set the optimized listening environment after changing the configuration/position of the speakers or changing a speaker to a new one. Perform Audyssey ® Setup. This automatically makes the optimized speaker settings for the new listening environment. (v p. 231) I want to combine a desired video with the current music Set “Video Select”...
Page 295: Front Panel Display Rear Panel
Contents Connections Playback Settings Tips Appendix Troubleshooting If a problem should arise, first check the following: 1. Are the connections correct? 2. Is the set being operated as described in the owner’s manual? 3. Are the other devices operating properly? If this unit does not operate properly, check the corresponding symptoms in this section.
Page 296: Power Does Not Turn On / Power Is Turned Off
Contents Connections Playback Settings Tips Appendix o Power does not turn on / Power is turned off Symptom Cause / Solution Page Power does not turn on. Check whether the power plug is correctly inserted into the power outlet. Power automatically turns The sleep timer is set.
Page 297: Operations Cannot Be Performed Through The Remote Control Unit
Contents Connections Playback Settings Tips Appendix o Operations cannot be performed through the remote control unit Symptom Cause / Solution Page Operations cannot be Batteries are worn out. Replace with new batteries. performed through the Operate the remote control unit within a distance of about 23 ft/7 m from this unit and at an angle of within remote control unit.
Page 298: No Sound Comes Out
Contents Connections Playback Settings Tips Appendix o No sound comes out Symptom Cause / Solution Page No sound comes out of Check the connections for all devices. speakers. Insert connection cables all the way in. － Check that input connectors and output connectors are not reversely connected. －...
Page 299: Desired Sound Does Not Come Out
Contents Connections Playback Settings Tips Appendix o Desired sound does not come out Symptom Cause / Solution Page The maximum volume is set too low. Set the maximum volume using “Limit” on the menu. The volume does not increase. Appropriate volume correction processing is performed according to the input audio format and settings, －...
Page 300 Contents Connections Playback Settings Tips Appendix Symptom Cause / Solution Page DTS Neural:X cannot be selected when using the headphones. DTS Neural:X mode cannot － be selected. Dolby Surround mode Dolby Surround cannot be selected when using the headphones. － cannot be selected.
Page 301: Sound Is Interrupted Or Noise Occurs
Contents Connections Playback Settings Tips Appendix o Sound is interrupted or noise occurs Symptom Cause / Solution Page During playback from the When the transfer speed of the USB memory device is slow, sound may occasionally be interrupted. － Internet radio or USB The network communication speed is slow or the radio station is busy.
Page 302: No Video Is Shown On The Tv
Contents Connections Playback Settings Tips Appendix o No video is shown on the TV Symptom Cause / Solution Page Check the connections for all devices. No picture appears. Insert connection cables all the way in. － Check that input connectors and output connectors are not reversely connected. －...
Page 303 Contents Connections Playback Settings Tips Appendix Symptom Cause / Solution Page When ZONE2 is operated with the same input source selected for MAIN ZONE and ZONE2, video in When using HDMI ZONE2, － MAIN ZONE may be interrupted. the video output in MAIN ZONE is interrupted.
Page 304: The Menu Screen Is Not Displayed On The Tv
Contents Connections Playback Settings Tips Appendix o The menu screen is not displayed on the TV Symptom Cause / Solution Page The menu screen or status The menu screen is only displayed on this unit and a TV connected with an HDMI cable. If this unit is －...
Page 305: Ipod Cannot Be Played Back
Contents Connections Playback Settings Tips Appendix o iPod cannot be played back Symptom Cause / Solution Page iPod cannot be connected. When using iPod by connecting it to the USB port, some iPod variations are not supported. When iPod is connected by using a USB cable other than the genuine cable, iPod may not be －...
Page 306: Usb Memory Devices Cannot Be Played Back
Contents Connections Playback Settings Tips Appendix o USB memory devices cannot be played back Symptom Cause / Solution Page “No connection” is This unit cannot recognize the USB memory device. Disconnect and reconnect the USB memory device. displayed. Mass storage class compatible USB memory devices are supported. －...
Page 307: Bluetooth Cannot Be Played Back
Contents Connections Playback Settings Tips Appendix o File names on the iPod/USB memory device are not displayed properly Symptom Cause / Solution Page The file names are not Characters that cannot be displayed have been used. On this unit, characters that cannot be displayed －...
Page 308: The Internet Radio Cannot Be Played Back
Contents Connections Playback Settings Tips Appendix o The Internet radio cannot be played back Symptom Cause / Solution Page A list of broadcasting The LAN cable is not properly connected, or the network is disconnected. Check the connection status. stations is not displayed. Perform the network diagnostic mode.
Page 309: Music Files On Pc Or Nas Cannot Be Played Back
Contents Connections Playback Settings Tips Appendix o Music files on PC or NAS cannot be played back Symptom Cause / Solution Page Files stored on a computer Files are stored in a non-compatible format. Record in a compatible format. cannot be played. Files that are copyright protected cannot be played on this unit.
Page 310: The Hdmi Control Function Does Not Work
Contents Connections Playback Settings Tips Appendix o The HDMI control function does not work Symptom Cause / Solution Page The HDMI control function Check that “HDMI Control” in the menu is set to “On”. does not work. You cannot operate devices that are not compatible with the HDMI control function. In addition, depending on the connected device or the settings, the HDMI control function may not work.
Page 311: Cannot Connect To A Wireless Lan Network
Contents Connections Playback Settings Tips Appendix o Cannot connect to a wireless LAN network Symptom Cause / Solution Page Cannot connect to the The network name (SSID), password and encryption setting have not been set up correctly. Configure the network. network settings according to the setting details of this unit.
Page 312: When Using Hdmi Zone2, The Devices Does Not Function Properly
Contents Connections Playback Settings Tips Appendix o When using HDMI ZONE2, the devices does not function properly Symptom Cause / Solution Page When using MAIN ZONE, With the same input source selected for MAIN ZONE and ZONE2, when you operate MAIN ZONE, video －...
Page 313: Resetting Factory Settings
Contents Connections Playback Settings Tips Appendix Resetting factory settings Perform this procedure if the display is abnormal or if operations cannot be performed. Various settings are reset to the factory default values. Make settings again. INFO Turn off the power using X. Press X while simultaneously pressing INFO and BACK.
Page 314: About Hdmi
Contents Connections Playback Settings Tips Appendix Appendix About HDMI HDMI is an abbreviation of High-Definition Multimedia Interface, which is an AV digital interface that can be connected to a TV or amplifier. This unit supports input and output of 3D (3 dimensional) video signals With the HDMI connection, high definition video and high quality audio of HDMI.
Page 315 Contents Connections Playback Settings Tips Appendix Auto Lip Sync ARC (Audio Return Channel) This function can automatically correct delay between the audio and This function transmits audio signals from the TV to this unit through video. the HDMI cable and plays back the audio from the TV on this unit Use a TV that is compatible with the Auto Lip Sync function.
Page 316 Contents Connections Playback Settings Tips Appendix o Supported audio formats Copyright protection system In order to play back digital video and audio such as BD video or DVD 2-channel Linear 2-channel, 32 kHz – 192 kHz, 16/20/24 bit video via HDMI connection, both this unit and the TV or player must to support the copyright protection system known as HDCP (High- Multi-channel 7.1-channel, 32 kHz –...
Page 317: Video Conversion Function
Contents Connections Playback Settings Tips Appendix Video conversion function This unit automatically converts the input video signals as shown in the diagram before outputting them to the TV. This unit HDMI-compatible TV Video device Output Input (IN) (MONITOR OUT) Output HDMI signal HDMI signal HDMI connector...
Page 318 Contents Connections Playback Settings Tips Appendix This unit can convert the input video signals to the resolution that is set for “Resolution” in the menu before outputting them to the TV. (v p. 222) HDMI Output signal Input signal 480i/576i 480p/576p 720p 1080i...
Page 319: Playing Back A Usb Memory Devices
Contents Connections Playback Settings Tips Appendix Playing back a USB memory devices This unit is compatible with MP3 ID3-Tag (Ver. 2) standard. This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4. This unit is compatible with WMA META tags. If the image size (pixels) of an album artwork exceeds 500 ×...
Page 320: Usb Memory Device
Contents Connections Playback Settings Tips Appendix Playing back a Bluetooth device o Maximum number of playable files and folder The limits on the number of folders and files that can be displayed by This unit supports the following Bluetooth profile. this unit are as follows.
Page 321: Playing Back A File Saved On A Pc Or Nas
Contents Connections Playback Settings Tips Appendix Playing back a file saved on a PC or NAS This unit is compatible with MP3 ID3-Tag (Ver. 2) standard. This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4. This unit is compatible with WMA META tags.
Page 322: Playing Back Internet Radio
Contents Connections Playback Settings Tips Appendix Playing back Internet Radio Personal memory plus function The most recently used settings (input mode, HDMI output mode, sound o Playable broadcast station specifications mode, tone control, channel level, MultEQ ® XT32, Dynamic EQ, Dynamic Volume, Restorer and audio delay, etc.) are saved for each input source.
Page 323: Sound Modes And Channel Output
Contents Connections Playback Settings Tips Appendix Sound modes and channel output S This indicates the audio output channels or surround parameters that can be set. D This indicates the audio output channels. The output channels depend on the settings of “Speaker Config.”. (v p. 250) Channel output Front Surround...
Page 324 Contents Connections Playback Settings Tips Appendix z1 The applicable sound mode includes “Dolby Surround” and sound modes that have “+Dolby Surround” in the sound mode name. z2 The applicable sound mode includes “DTS Neural:X” and sound modes that have “+Neural:X” in the sound mode name. z3 A signal for each channel contained in an input signal is output as audio.
Page 325: Sound Modes And Surround Parameters
Contents Connections Playback Settings Tips Appendix Sound modes and surround parameters Surround Parameter Loudness Dynamic Sound mode Subwoofer Dialog Control Frequency Speaker Center Cinema EQ Management Compression Delay Time Room Size Level Adjust Select Spread Direct/Pure Direct (2-channel) z5 Direct/Pure Direct (Multi-channel) z5 DSD Direct (2-channel) DSD Direct (Multi-channel) z5 Stereo...
Page 326: Volume
Contents Connections Playback Settings Tips Appendix Surround Parameter Audyssey Dialog Tone Restorer Dynamic Audyssey Sound mode Auro-Matic 3D Auro-Matic 3D MultEQ® XT32 Dynamic EQ Audyssey Enhancer DTS Neural:X Volume LFC™ Preset Strength DSX® Direct/Pure Direct (2-channel) z5 Direct/Pure Direct (Multi-channel) z5 DSD Direct (2-channel) DSD Direct (Multi-channel) z5 Stereo...
Page 327: Sound Mode And Surround Parameters
Contents Connections Playback Settings Tips Appendix Upgrade (Auro-3D) Surround Parameter Loudness Dynamic Sound mode Subwoofer Dialog Control Frequency Speaker Center Cinema EQ Management Compression Delay Time Room Size Level Adjust Select Spread Auro-3D Auro-2D Surround Surround Parameter Audyssey Dialog Tone Restorer Dynamic Audyssey...
Page 328 Contents Connections Playback Settings Tips Appendix z1 This item can be selected when a Dolby Digital, Dolby Digital Plus, Dolby TrueHD or Dolby Atmos signal is played. z2 This item can be selected when a Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS:X or DTS signal is played. z3 This item can be selected when a DTS:X signal that is compatible with the Dialog Control function is input.
Page 329: Types Of Input Signals, And Corresponding Sound Modes
Contents Connections Playback Settings Tips Appendix Types of input signals, and corresponding sound modes F This indicates the default sound mode. S This indicates the selectable sound mode. 2-channel signal Multi-channel signal Dolby Dolby Dolby Sound mode NOTE Analog / (Super DTS ES DTS ES...
Page 330 Contents Connections Playback Settings Tips Appendix 2-channel signal Multi-channel signal Dolby Dolby Dolby Sound mode NOTE Analog / (Super DTS ES DTS ES Dolby Dolby (Super Digital DTS:X DTS-HD Digital Digital Auro-3D (-HD) Audio Multi Express Dscrt6.1 Mtrx6.1 Atmos TrueHD Audio (+/HD) Plus...
Page 331: Types Of Input Signals, And Corresponding Sound Modes
Contents Connections Playback Settings Tips Appendix Upgrade (Auro-3D) 2-channel signal Multi-channel signal Dolby Dolby Dolby Sound mode NOTE Analog / (Super DTS ES DTS ES Dolby Dolby (Super Digital DTS:X DTS-HD Digital Digital Auro-3D (-HD) Audio Multi Express Dscrt6.1 Mtrx6.1 Atmos TrueHD Audio...
Page 332 Contents Connections Playback Settings Tips Appendix z1 This item can be selected when using any of the Surround Back, Front Wide, Front Height, Top Front, Top Middle, Top Rear, Rear Height, Front Dolby, Surround Dolby or Back Dolby speaker. z2 This item can be selected when surround back speakers are used. z3 This item can be selected when the input signal is DTS-HD Master Audio.
Page 333: Explanation Of Terms
Contents Connections Playback Settings Tips Appendix Explanation of terms o Audyssey Audyssey Dynamic Surround Expansion (A-DSX) Audyssey DSX is a new surround enhancement technology that raises ® Audyssey Dynamic EQ ® the surround effect and impression to realize a larger surround space by Dynamic EQ solves the problem of deteriorating sound quality as volume adding a new channel to the existing 5.1 channel system.
Page 334 Contents Connections Playback Settings Tips Appendix Upgrade (Auro-3D) Audyssey Dynamic Volume ® Dynamic Volume solves the problem of large variations in volume level o Auro-3D between television programs, commercials, and between the soft and loud passages of movies. Audyssey Dynamic EQ ®...
Page 335 Contents Connections Playback Settings Tips Appendix o Dolby Dolby Digital Dolby Digital is a multi-channel digital signal format developed by Dolby Dolby Atmos Laboratories. Introduced first in the cinema, Dolby Atmos brings a revolutionary sense of A total of 5.1-channels are played: 3 front channels (“FL”, “FR” and “C”), 2 dimension and immersion to the Home Theater experience.
Page 336 Contents Connections Playback Settings Tips Appendix o DTS Dolby Speaker Technology (Dolby Atmos Enabled speakers) A convenient alternative to speakers built into the ceiling, Dolby Atmos Dialog Control Enabled speakers employ the ceiling above you as a reflective surface for Gives you control of the listening experience.
Page 337: High Quality Sound
Contents Connections Playback Settings Tips Appendix DTS-ES™ Discrete 6.1 DTS-HD High Resolution Audio DTS-ES™ Discrete 6.1 is a 6.1-channel discrete digital audio format DTS-HD High Resolution Audio is an improved version of the conventional adding a surround back (SB) channel to the DTS digital surround sound. DTS, DTS-ES and DTS 96/24 signals formats, compatible with sampling Decoding of conventional 5.1-channel audio signals is also possible frequencies of 96 or 48 kHz and up to 7.1-channels of discrete digital...
Page 338 Contents Connections Playback Settings Tips Appendix o Audio THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED ALAC (Apple Lossless Audio Codec) WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A This is a codec for lossless audio compression method developed by PARTICULAR PURPOSE ARE DISCLAIMED.
Page 339 Contents Connections Playback Settings Tips Appendix MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4 Speaker impedance These are the names for digital compression format standards used for This is an AC resistance value, indicated in Ω (ohms). the encoding of video and audio. Video standards include “MPEG-1 Greater power can be obtained when this value is smaller.
Page 340 Contents Connections Playback Settings Tips Appendix o Video o Network AirPlay ISF (Imaging Science Foundation) is an organization that certifies video AirPlay sends (plays) contents recorded in iTunes or on an iPhone/iPod technicians who are then qualified to carry out calibration and adjustment touch/iPad to a compatible device via the network.
Page 341 Contents Connections Playback Settings Tips Appendix WEP Key (network key) WPA-PSK/WPA2-PSK (Pre-shared Key) This is key information used for encrypting data when conducting data This is a simple authentication system for mutual authentication when a transfer. On this unit, the same WEP key is used for data encryption and preset character string matches on the wireless LAN access point and decryption, so the same WEP key must be set on both devices in order for client.
Page 342: Front Panel Display Rear Panel
Tips Appendix o Others Denon Link HD Denon Link HD uses the clock of the AV amplifier connected by Denon Link HD to achieve HDMI signal transfer with low jitter. HDCP When transmitting digital signals between devices, this copyright protection technology encrypts the signals to prevent content from being copied without authorization.
Page 343: Trademark Information
Contents Connections Playback Settings Tips Appendix Trademark information Manufactured under license from Audyssey Laboratories™. U.S. and “Made for iPod” and “Made for iPhone” mean that an electronic accessory foreign patents pending. Audyssey MultEQ ® XT32, Audyssey Dynamic has been designed to connect specifically to iPod, or iPhone, ®...
Page 344 Contents Connections Playback Settings Tips Appendix For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS in combination with the Symbol, DTS:X, and the DTSX logo are registered trademarks or trademarks of The Wi-Fi CERTIFIED logo is a registered trademark of the Wi-Fi DTS, Inc.
Page 345 Contents Connections Playback Settings Tips Appendix Upgrade (Auro-3D) Manufactured under license from Auro Technologies. Auro-3D ® and the related symbols are registered trademarks of Auro Technologies. All materials contained in this work are protected by copyright law and may not be reproduced, distributed, transmitted, displayed, published or broadcast without the prior written permission of Auro Technologies NV or in case of third party materials, the owner of that content.
Page 346: Specifications
Contents Connections Playback Settings Tips Appendix Specifications o Audio section Power amplifier Rated output: Front: 140 W + 140 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.05 % T.H.D.) 175 W + 175 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.) Center: 140 W (8 Ω/ohms, 20 Hz –...
Page 347 Contents Connections Playback Settings Tips Appendix Analog Input sensitivity/Input impedance: 200 mV/47 kΩ/kohms Frequency response: 10 Hz – 100 kHz — +1, –3 dB (Direct mode) S/N: 102 dB (IHF–A weighted, Direct mode) Distortion: 0.005 % (20 Hz – 20 kHz) (Direct mode) Rated output: 1.2 V Digital...
Page 348: Video Section
Contents Connections Playback Settings Tips Appendix o Video section Standard video connectors Input/output level and impedance: 1 Vp-p, 75 Ω/ohms Frequency response: 5 Hz – 10 MHz — 0, –3 dB Color component video connector Input/output level and impedance: Y signal — 1 Vp-p, 75 Ω/ohms signal —...
Page 349 Contents Connections Playback Settings Tips Appendix o Wireless LAN section Network type (wireless LAN standard): Conforming to IEEE 802.11b Conforming to IEEE 802.11g Conforming to IEEE 802.11n (Wi-Fi ® compliant) Security: WEP 64 bit, WEP 128 bit WPA/WPA2-PSK (AES) WPA/WPA2-PSK (TKIP) Radio frequency: 2.4 GHz No.
Page 350: Bluetooth Section
Contents Connections Playback Settings Tips Appendix o Bluetooth section Communications system: Bluetooth Version 2.1 + EDR (Enhanced Data Rate) Transmission power: Maximum 2.5 mW (Class 2) Maximum communication range: Approx. 32.8 ft/10 m in line of sight Frequency band: 2.4 GHz band Modulation scheme: FHSS (Frequency-Hopping Spread Spectrum) Supported profiles:...
Page 351 Contents Connections Playback Settings Tips Appendix Dimensions (Unit : in. (mm)) 17 1/8 (434) 2 3/8 (60) 1 7/8 (45) 13 5/8 (344) 1 7/8 (45) Weight: 31 lbs 1oz (14.1 kg) Front panel Display Rear panel Remote Index...
Page 352: Index
Cable TV ............84 7.1-channel ..........38, 49 Game console ..........87 9.1-channel ..........38, 54 General settings ........194, 271 Denon Link HD ..........342 Direct sound mode ........171 AirPlay ............147 Display ............22 HD Radio ..........91, 114 All Zone Stereo ..........
Page 353 Contents Connections Playback Settings Tips Appendix Input Assign ..........226 NAS ............. 129 Random playback ........ 105, 152 Input settings ........193, 226 Network settings .......... 263 Rear panel ............24 Input signal ........... 329 Remote control unit ........28 Input source ...........
Page 354 Contents Connections Playback Settings Tips Appendix Text Search ..........154 Web control ..........183 Tips .............. 293 Wi-Fi settings ..........264 Troubleshooting ........... 295 Wired LAN ..........93, 263 TV ............80, 81, 82 ZONE2/ZONE3 ........74, 185 USB memory device ......89, 106 Video camcorder ..........
Page 355: License
Contents Connections Playback Settings Tips Appendix License This section describes software license used for this unit. To maintain the correct content, the original (English) is used. Permission is hereby granted, free of charge, to any person obtaining a copy of this Boost software and associated documentation files (the “Software”), to deal in the Software http://www.boost.org/...
Page 356 Contents Connections Playback Settings Tips Appendix Definitions. “Articles” means, collectively, all articles written by Author which You may otherwise modify Your copy of this Work (excluding the Articles) in any way describes how the Source Code and Executable Files for the Work may be used by a to create a Derivative Work, provided that You insert a prominent notice in each user.
Page 357 Contents Connections Playback Settings Tips Appendix You may distribute the Executable Files and Source Code only under the terms of This License and the rights granted hereunder will terminate automatically upon any this License, and You must include a copy of, or the Uniform Resource Identifier for, breach by You of any term of this License.
Page 358 Contents Connections Playback Settings Tips Appendix libvorbis No term or provision of this License shall be deemed waived and no breach consented to unless such waiver or consent shall be in writing and signed by the http://www.xiph.org/vorbis/ party to be charged with such waiver or consent. Copyright (c) 2002-2004 Xiph.org Foundation This License constitutes the entire agreement between the parties with respect to the Work licensed herein.
Page 359 Contents Connections Playback Settings Tips Appendix 0 Redistributions of source code must retain the above copyright notice, this list of THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND conditions and the following disclaimer. CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF 0 Redistributions in binary form must reproduce the above copyright notice, this list MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE...
Page 360 Contents Connections Playback Settings Tips Appendix cURL THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, http://curl.haxx.se INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF COPYRIGHT AND PERMISSION NOTICE MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
Page 361 After you purchase this product, you may procure, modify or distribute the source code of the GPL/LGPL software that is used in the product. Denon provides the source code based on the GPL and LPGL licenses at the actual cost upon your request to our customer service center.

Denon AVR-X6200W Owner's Manual

Playback

Accessories

Part Names and Functions

Connections

Connecting a TV

Connecting a Playback Device

Connecting an Ipod or USB Memory Device to the USB Port

Connecting an HD Radio Antenna

Connecting to a Home Network (LAN)

Connecting an External Control Device

Connecting the Power Cord

Basic Operation

Playing an Ipod

Playing a USB Memory Device

Listening to Music on a Bluetooth Device

Listening to Internet Radio

Playing Back Files Stored on a PC and NAS

Viewing Photographs on the Flickr Site

Listening to Pandora

Listening to Siriusxm Internet Radio

Airplay Function

Spotify Connect Function

Convenience Functions

Selecting a Sound Mode

Sleep Timer Function

Quick Select Plus Function

Web Control Function

Playback in Zone2/Zone3 (Separate Room)

Menu Map

Inputting Characters

Hdmi Control

Tips/Troubleshooting

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Denon AVR-X6200W

Summary of Contents for Denon AVR-X6200W
