DepthQ HDS3D2 Quick Start Manual

H I G H D E F I N I T I O N S T E R E O S C O P I C 3 D V I D E O P R O J E C T O R H I G H D E F I N I T I O N S T E R E O S C O P I C 3 D V I D E O P R O J E C T O R H I G H D E F I N I T I O N S T E R E O S C O P I C 3 D V I D E O P R O J E C T O R H I G H D E F I N I T I O N S T E R E O S C O P I C 3 D V I D E O P R O J E C T O R H I G H D E F I N I T I O N S T E R E O S C O P I C 3 D V I D E O P R O J E C T O R
A p r o d u c t o f L i g h t s p e e d D e s i g n , I n c .

Connect 2D or 3D Source

You can connect more than one source if needed.
Connect from: Computer using the DVI to HDMI Cable
D
A
Use either the HDMI 1 or HDMI 2 input port (A). Audio is not transmitted via VGA. For 2D video + audio,
also connect either a mono RCA cable to AUDIO IN (B), or stereo RCA cables (not included) to L and R
Audio inputs (C). If your computer has a digital output, use the included HDMI or DVI cable for both
video and audio from one cable. Audio over DVI may not be transmitted by some graphics cards.
OR
Connect from: Blu-Ray, DVD, Receiver, Sat/Cable Box,
or Game Console using the HDMI Cable
Use either the HDMI 1 or HDMI 2 input port (A). Component, S-Video and Composite inputs may also
be used (cables not included). These formats do not carry Audio. Use (B) or (C) above.
For 3D also connect Sync to:
These devices can receive 3D Sync from several sources:
From the 3-pin DIN Sync Output (D) on the back of the projector
From a 3-pin DIN Sync Output on an NVIDIA Quadro
card at the back of your computer
Or in the case of NVIDIA 3D Vision TM , from an open USB port on
your computer.
Section 4 will guide you case-by-case.
HD 3D2
s
Quick
Start
B e l l e v u e , W a s h i n g t o n , U S A
B C
Your IR Emitter or DepthQ
Polarization Modulator
graphics
TM
DepthQ Modulator (not included)

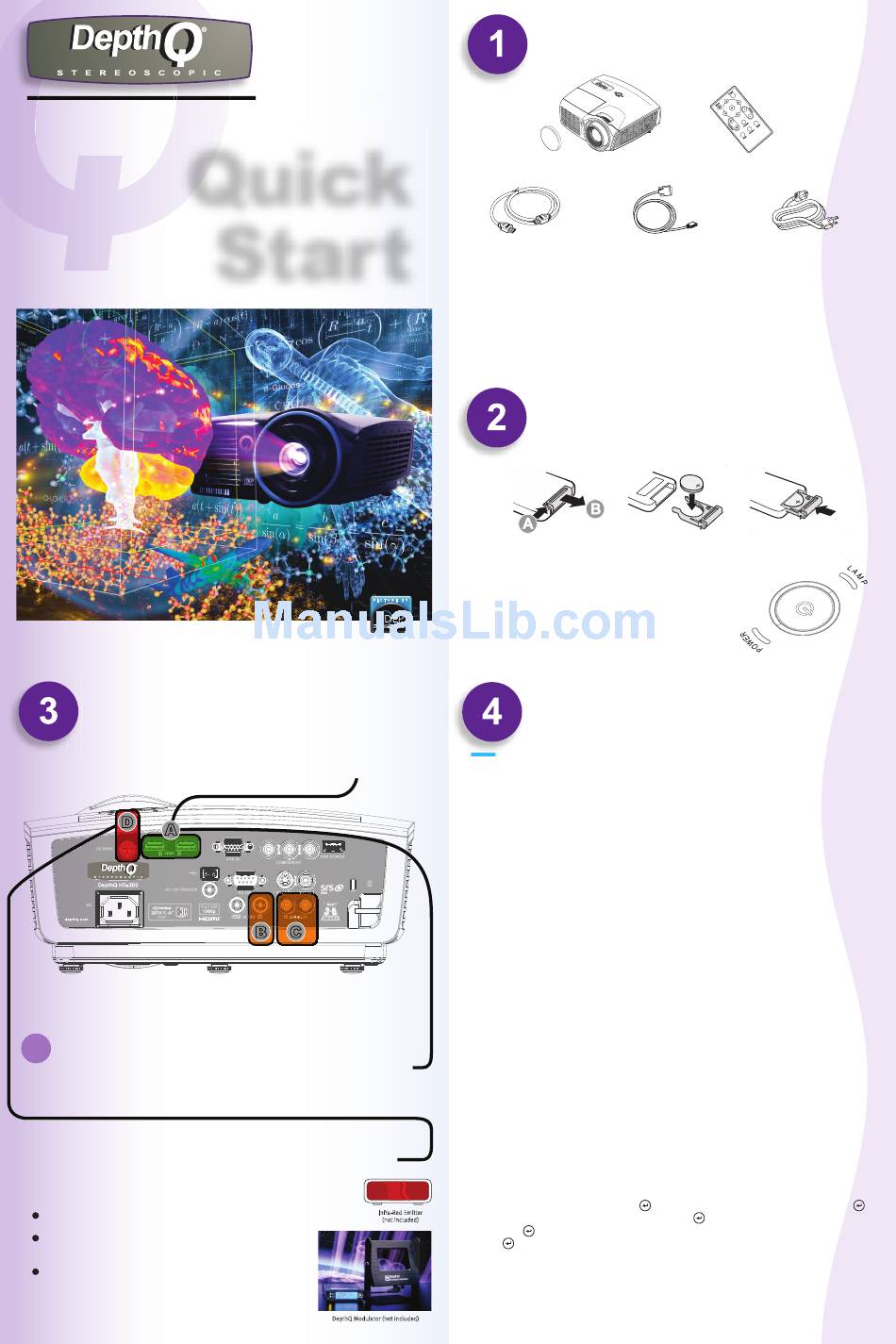

Unpack the Box

Here's what's included:
Projector with Lens Cap
HDMI
Cable
PLEASE NOTE: Eye-synchronization options include using Passive Polarized Glasses
(with DepthQ ® Polarization Modulator) or Active LC Shutter Glasses (using an IR
Emitter or DLP-Link
Visit depthq.com/accessories or depthq.com/modulator for more info.

Ensure Remote has a Battery

A 3V lithium battery (CR2025) battery is typically included (with an insulating
tab) to save battery life. To access and remove tab or change the battery:
1
Note: All projector control is accomplished using the remote.

Projector Status

The top of your projector includes an ON/OFF power
switch and LAMP & POWER LEDs to indicate status:
LAMP LED blinking RED = Error Code - see User Manual;
LAMP LED solid RED = Lamp Failure.
POWER LED blinking BLUE = Initializing or Cooling;
POWER LED solid BLUE = Standby or ON (Lamp is lit).
POWER LED solid BLUE and LAMP LED solid RED = OFF (Lamp is off)

Step-by-Step Set-Up Guide

2D 2D
Computer
Connect your source via HDMI or DVI to HDMI
2D
Blu-Ray, DVD, Receiver, Sat/Cable Box or Game Console
Connect your source via HDMI. If necessary, set your source to 1080P.
3D
Blu-Ray/Game Console + DepthQ
Step 1: Connect the HDMI cable between the 3D Blu-Ray Player/Game Console
and the back of the DepthQ
Step 2: Connect your DepthQ
output on the back of the DepthQ
Step 3: Position the DepthQ
center of your silver screen
Step 4: Play your 3D Blu-Ray/Game content. The DepthQ
Modulator Control Unit will report ~144Hz. Enjoy triple-flashed 144Hz 3D.
3D
Blu-Ray/Game Console + Generic Active or DLP Link
Step 1: Connect the HDMI cable between the 3D Blu-Ray Player and the back of
the DepthQ
Step 2: Connect your Active Shutter Glasses system to the 3D Sync output on the
back of the DepthQ
Step 3: Position your emitter per system instructions, connect power, activate
your 3D shutter glasses (if required) and don them.
Step 4: Play your 3D Blu-Ray/Game content. Enjoy triple-flashed 144Hz 3D.
3D
Sat/Cable + DepthQ
Step 1: Connect the HDMI cable between the Sat/Cable Box and the back of the
®
DepthQ ® HDs3D2 Projector.
Step 2: Play some 3D content to determine whether it is in a Side-by-Side or
Top/Bottom format.
Step 3: Turn on 3D in the DepthQ
HDs3D2 remote, press Menu; then use the left or right arrows to highlight
Settings 1
Infra-Red Emitter
then arrow up to highlite
(not included)
and ; then arrow up or down to select either
. Let the menu time out and it will disappear.
Step 4: Connect your DepthQ
output on the back of the DepthQ
Step 5: Position the DepthQ
center of your silver screen
Step 6: Play your 3D content. The DepthQ
will report ~120Hz. Enjoy double-flashed 120Hz 3D.
Remote Control
DVI to
HDMI Cable
Save your box and packing materials.
technology), These items must be purchased separately.
TM
2
1 . Set resolution to 1920x1080 at 60Hz.
HDs3D2 Projector.
® 2
Polarization Modulator Control Unit to the 3D Sync
®
HDs3D2 Projector.
®
Modulator in front of the lens, tilt it towards the
®
3 , connect power, and don your Passive 3D glasses.
HDs3D2 Projector.
® 2
HDs3D2 Projector.
®
Modulator
®
2
HDs3D2 Projector: Using the DepthQ
®
and press "Enter" , then arrow down to
3D Setting and ; then arrow up to select
Top/Bottom
® Polarization Modulator Control Unit to the 3D Sync
® HDs3D2 Projector.
Modulator in front of the lens, tilt it towards the
®
, connect power, and don your Passive 3D glasses.
3
Polarization Modulator Control Unit
®
Power
Cable
3
Modulator
®
Polarization
®
®4
®
Advanced 1 and press ;
3D Format
or Side by Side and
