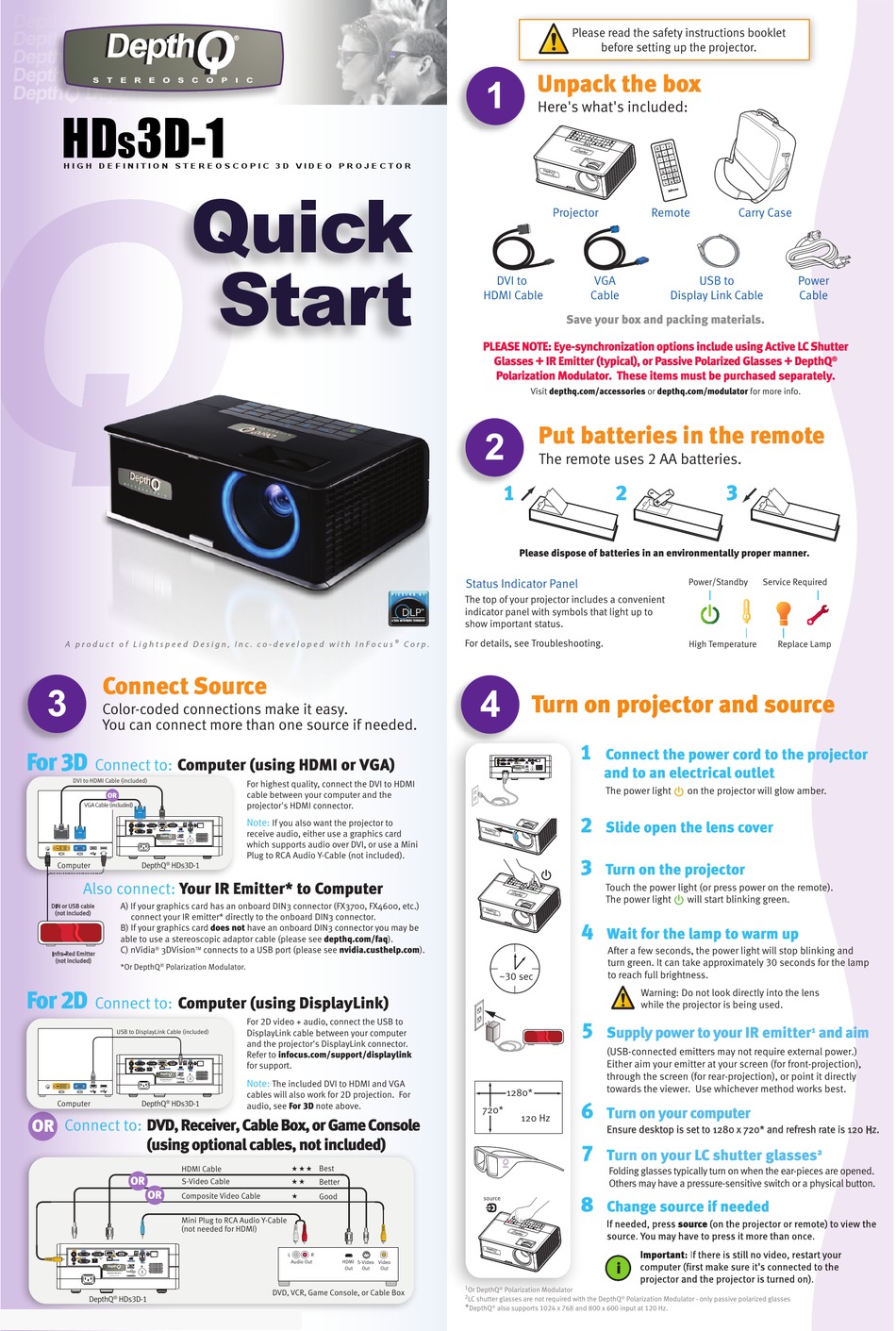

DepthQ HDs3D-1 Quick Start

HD 3D-1
s
H I G H D E F I N I T I O N S T E R E O S C O P I C 3 D V I D E O P R O J E C T O R
Quick
A p r o d u c t o f L i g h t s p e e d D e s i g n , I n c . c o - d e v e l o p e d w i t h I n F o c u s

Connect Source

Color-coded connections make it easy.
You can connect more than one source if needed.
For 3D
Computer (using HDMI or VGA)
Connect to:
DVI to HDMI Cable (included)
OR
VGA Cable (included)
DepthQ HD s 3D-1
d e p t h q . c o m
Computer DepthQ ® HDs3D-1
Also connect: Your IR Emitter* to Computer
A) If your graphics card has an onboard DIN3 connector (FX3700, FX4600, etc.)
DIN or USB cable
(not included)
connect your IR emitter* directly to the onboard DIN3 connector.
B) If your graphics card does not have an onboard DIN3 connector you may be
able to use a stereoscopic adaptor cable (please see depthq.com/faq).
C) nVidia 3DVision
®
Infra-Red Emitter
(not included)
*Or DepthQ ® Polarization Modulator.

For 2D

Computer (using DisplayLink)
Connect to:
USB to DisplayLink Cable (included)
DepthQ HD s 3D-1
d e p t h q . c o m
Computer DepthQ HDs3D-1
®
Connect to: DVD, Receiver, Cable Box, or Game Console
OR
(using optional cables, not included)
HDMI Cable
OR
S-Video Cable
OR
Composite Video Cable
Mini Plug to RCA Audio Y-Cable
(not needed for HDMI)
DepthQ HD 3D-1
s
d e p t h q . c o m
DepthQ ® HDs3D-1
Start
For highest quality, connect the DVI to HDMI
cable between your computer and the
projector's HDMI connector.
Note:
If you also want the projector to
receive audio, either use a graphics card
which supports audio over DVI, or use a Mini
Plug to RCA Audio Y-Cable (not included).
connects to a USB port (please see nvidia.custhelp.com).
TM
For 2D video + audio, connect the USB to
DisplayLink cable between your computer
and the projector's DisplayLink connector.
Refer to infocus.com/support/displaylink
for support.
Note:
The included DVI to HDMI and VGA
cables will also work for 2D projection. For
audio, see For 3D note above.
Best

Better

 Good
L R
Audio Out HDMI S-Video
Out Out
DVD, VCR, Game Console, or Cable Box

Unpack the box

Here's what's included:
DVI to
HDMI Cable
PLEASE NOTE: Eye-synchronization options include using Active LC Shutter
Glasses + IR Emitter (typical), or Passive Polarized Glasses + DepthQ
Polarization Modulator. These items must be purchased separately.
Visit depthq.com/accessories or depthq.com/modulator for more info.

Put batteries in the remote

The remote uses 2 AA batteries.
1
Please dispose of batteries in an environmentally proper manner.

Status Indicator Panel

The top of your projector includes a convenient
indicator panel with symbols that light up to
show important status.
For details, see Troubleshooting.
®
C o r p .
DepthQ HD 3D-1 s
d e p t h q . c o m
~30 sec
1280*
720*
120 Hz
source
Video
Out
1
Or DepthQ ® Polarization Modulator
2
LC shutter glasses are not required with the DepthQ
*
DepthQ also supports 1024 x 768 and 800 x 600 input at 120 Hz.
®
Please read the safety instructions booklet
before setting up the projector.
Projector Remote
VGA USB to
Cable Display Link Cable
Save your box and packing materials.
2
Power/Standby
High Temperature
1
Connect the power cord to the projector
and to an electrical outlet
The power light on the projector will glow amber.
2
Slide open the lens cover
3

Turn on the projector

Touch the power light (or press power on the remote).
The power light will start blinking green.
4

Wait for the lamp to warm up

After a few seconds, the power light will stop blinking and
turn green. It can take approximately 30 seconds for the lamp
to reach full brightness.
Warning: Do not look directly into the lens
while the projector is being used.
5

Supply power to your IR emitter

(USB-connected emitters may not require external power.)
Either aim your emitter at your screen (for front-projection),
through the screen (for rear-projection), or point it directly
towards the viewer. Use whichever method works best.
6

Turn on your computer

Ensure desktop is set to 1280 x 720* and refresh rate is 120 Hz.
7

Turn on your LC shutter glasses

Folding glasses typically turn on when the ear-pieces are opened.
Others may have a pressure-sensitive switch or a physical button.
8
Change source if needed
Polarization Modulator - only passive polarized glasses
®
Carry Case
Power
Cable
®
3
Service Required
Replace Lamp
and aim
1
2
