Summary of Contents for DepthQ HDs3D2

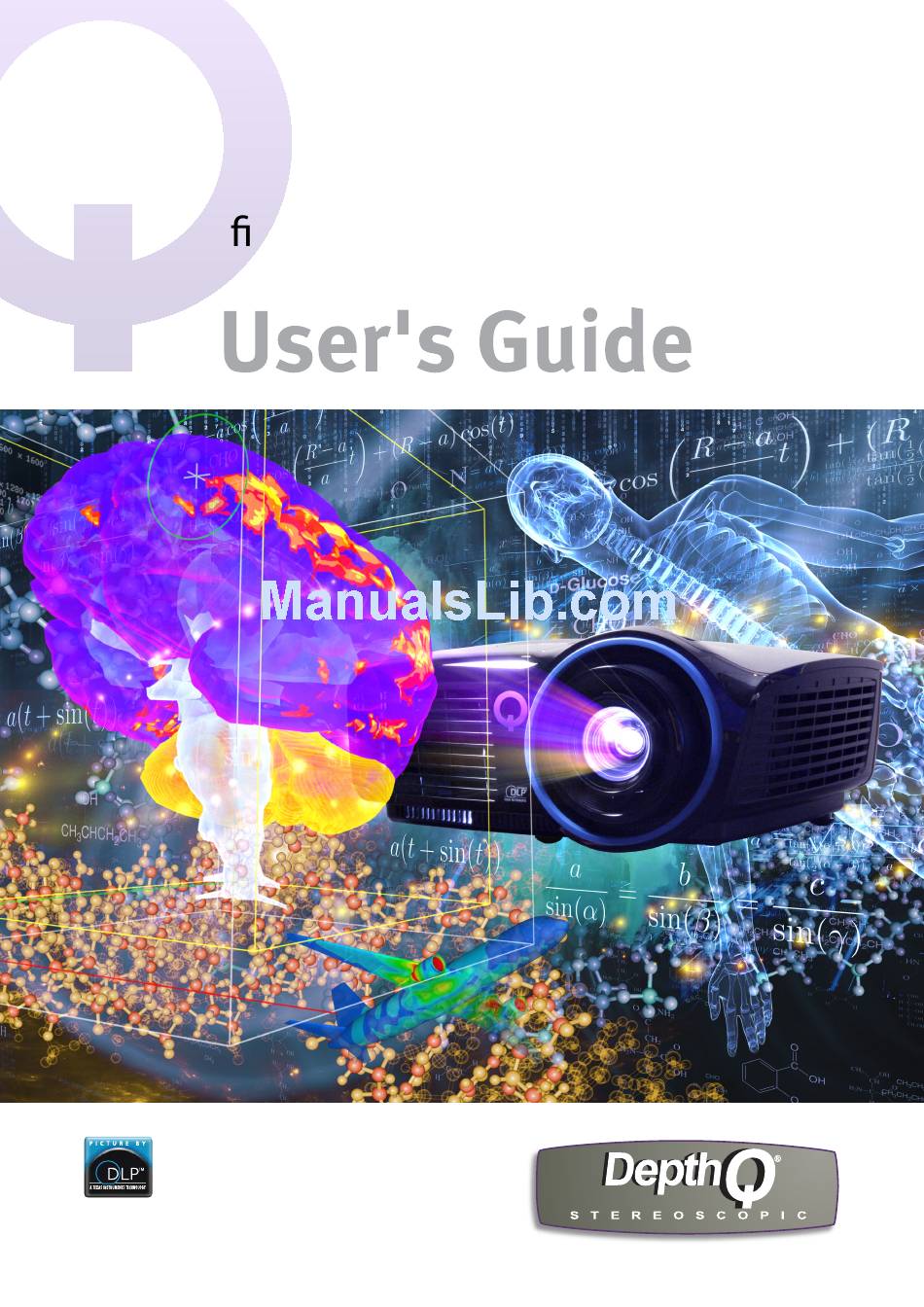

- Page 1 DepthQ HDs3D2 ® High De nition Stereoscopic 3D Projector Regulatory Model: IN8606HD 3534318701 DISPERINDAG No. 0287/1.824.51/09.03 by Lightspeed Design, Inc. Bellevue, WA USA...
- Page 2 Adobe Systems Incorporated. DLP® , DLP Link and the DLP logo are registered trademarks of Texas Instruments and BrilliantColor™ is a trademark of Texas Instruments. DepthQ and DepthQ Stereoscopic are trademarks or registered trademarks of Lightspeed Design, Inc. in the United States and other countries.
- Page 3 Important Safety Information Important: It is strongly recommended that you read this section carefully before using the projector. These safety and usage instructions will ensure that you enjoy many years of safe use of the projector. Keep this manual for future reference. Symbols Used Warning symbols are used on the unit and in this manual to alert you of hazardous situations.
- Page 4 Projector Installation Notice Place the projector in a horizontal position The tilt angle of the projector should not exceed 15 degrees. In addition, the projector should not be installed in any other way except desktop and ceiling mount positions. Otherwise lamp life could decrease dramatically, and may lead to other unpredictable damage.
- Page 5 Power Safety Only use the supplied power cord. Do not place anything on the power cord. Place the power cord where it will not be in the way of foot traffic. Remove the batteries from the remote control when storing or not in use for a prolonged period. Replacing the Lamp Replacing the lamp can be hazardous if done incorrectly.
-
Page 6: Table Of Contents
Table of Contents GETTING STARTED ..............................1 .............................1 ACKING HECKLIST ..........................2 IEWS OF ROJECTOR ARTS Front-right View ...............................2 Top view—On-screen Display (OSD) buttons and LEDs ................3 Rear view .................................4 Bottom view ..............................6 .............................7 EMOTE ONTROL ARTS ........................9 EMOTE ONTROL PERATING ANGE .......................9 ROJECTOR AND EMOTE... - Page 7 HDMI Q & A ..............................45 SPECIFICATIONS ............................... 46 ..............................46 PECIFICATIONS ..................... 47 ROJECTION ISTANCE VS ROJECTION Projection Distance and Size Table ......................47 ............................48 IMING ABLE ........................... 50 ROJECTOR IMENSIONS REGULATORY COMPLIANCE .......................... 51 FCC W ..............................51 ARNING ................................
-
Page 8: Getting Started
ETTING TARTED Packing Checklist Carefully unpack the projector and check that the following items are included: DLP P ROJECTOR WITH EMOTE CONTROL UICK TART UIDE OWER CORD HDMI DVI to HDMI CABLE CABLE Contact your dealer immediately if any items are missing, appear damaged, or if the unit does not work. It is recommended that you keep the original packing material in case you ever need to return the equipment for warranty service. -
Page 9: Views Of Projector Parts
Views of Projector Parts Front-Right View 2 3 4 5 ABEL ESCRIPTION EE PAGE IR receiver Receive IR signal from remote control Lens Projection Lens Focus ring Focuses the projected image Zoom ring Enlarges the projected image See Top view—On-screen Display (OSD) buttons Function keys and LEDs. -
Page 10: Top View-On-Screen Display (Osd) Buttons And Leds
Top View—On-Screen Display (OSD) Buttons and LEDs ABEL ESCRIPTION EE PAGE Turns the projector On and Off Lamp Failure LAMP LED Blinking Red Error code Projector is in standby or is fully Blue powered on (lamp is lit). POWER LED Projector is initializing or cooling down. -
Page 11: Rear View
Rear View 3 4 5 6 ABEL ESCRIPTION EE PAGE AC IN Connect a POWER cable Connect the 3D IR glasses transmitter 3D SYNC (Note: For Specific 3D IR glasses only) HDMI 1 Connect an HDMI cable from a HDMI device HDMI 2 Connect an HDMI cable from a HDMI device Service use only. - Page 12 DC12V Trigger Note: To use this feature, you must plug in the connector before turning on/off the projector. Screen controllers are supplied and supported by screen manufacturers. Do not use this jack for anything other than intended use. Connectivity Note: If your video equipment has multiple connection options, please note that HDMI provides the highest quality image, followed by Component and then S-video.
-
Page 13: Bottom View
Rotate adjuster lever to adjust angle position. Note: ® If you are installing the projector on the ceiling, we strongly recommend using DepthQ approved ceiling mounts for proper fitting, ventilation and installation. Refer to the installation guide that comes with the approved Ceiling Mount kit for more information. The warranty does not cover any damage caused by use of non-approved ceiling mount kits or by installing in an improper location. -
Page 14: Remote Control Parts
Remote Control Parts Important: 1. Avoid using the projector with bright fluorescent lighting turned on. Certain high-frequency fluorescent lights can disrupt remote control operation. 2. Be sure nothing obstructs the path between the remote control and the projector. If the path between the remote control and the projector is obstructed, you can bounce the signal off certain reflective surfaces such as projector screens. - Page 15 ABEL ESCRIPTION EE PAGE Navigates up and changes settings in the OSD Enter Changes settings in the OSD Power Turns the projector on or off Right Navigates to the right and changes settings in the OSD Volume + Increases volume Volume - Decreases volume Mute...
-
Page 16: Remote Control Operating Range
Remote Control Operating Range The remote control uses infrared transmission to control the projector. It is not necessary to point the remote directly at the projector. Provided you are not holding the remote perpendicular to the sides or the rear of the projector, the remote will function well within a radius of about 7 meters (23 feet) and 15 degrees above or below the projector level. -
Page 17: Setup And Operation
ETUP AND PERATION Inserting the Remote Control Batteries Remove the battery compartment cover by sliding the cover in the direction of the arrow (A). Pull out the cover (B). Insert the battery with the positive side facing up. Replace the cover. Caution: 1. -
Page 18: Turning The Projector On And Off
Turning the Projector On and Off Connect the power cord to the projector. Connect the other end to a wall outlet. POWER LED on the projector light. Turn on the connected devices. Ensure the POWER LED is not flashing. Then press the POWER button to turn on the projector. - Page 19 To turn the projector off, press the POWER button. When the “Power Off? Press Power again” message appears, press the POWER button. The projector turns off. Caution: 1. Be sure to remove the lens cap before starting projector. 2. Do not unplug the power cord until the POWER LED stops flashing–indicating the projector has cooled down.
-
Page 20: Setting An Access Password (Security Lock)
Keep the password in a safe place. Without the password, you will not be able to use the projector. ® If you lose the password, contact DepthQ Support for information on clearing the password. Press the MENU button to open the OSD menu. - Page 21 Enter the password in the order you set it on step 5. If you forget the ® password, please contact DepthQ Visit our website at www.depthq.com/support or call us. –14 –...
-
Page 22: Adjusting The Projector Level
Adjusting the Projector Level Take note of the following when setting up the projector: The projector table or stand should be level and sturdy. Position the projector so that it is perpendicular to the screen. Ensure the cables are in a safe location. You could trip over them. To adjust the angle of the picture, turn the tilt-adjuster right or left until the desired angle has been achieved. -
Page 23: Adjusting The Zoom, Focus And Keystone
Adjusting the Zoom, Focus and Keystone Use the Image-zoom control (on the projector only) to resize the projected image and screen size Use the Image-focus control (on the projector only) to sharpen the projected image Use the KEYSTONE buttons on the remote control to correct trapezoid image issues (wider top or bottom). -
Page 24: On-Screen Display (Osd) Menu Settings
(OSD) M CREEN ISPLAY ETTINGS OSD Menu Controls The projector has an OSD that lets you make image adjustments and change various settings. Navigating the OSD You can use the remote control arrow buttons to navigate and make changes to the OSD. 1. -
Page 25: Setting The Osd Language
Setting the OSD Language Set the OSD language to your preference before continuing. 1. Press the MENU button. Press the ◄► buttons to navigate to Settings 1. Press the ▲▼ buttons to move to the Advanced 1 menu. (Enter) or ► to enter the Advanced 1 sub menu. Press the ▲▼ buttons until 2. -
Page 26: Osd Menu Overview
OSD Menu Overview Use the following illustration to quickly find a setting or determine the range for a setting. Image Display Mode Presentation, Bright, Game, Movie, TV, sRGB, Blackboard, User, ISF_Day, ISF_Night Brightness Contrast Computer Horizontal Position Vertical Position Frequency Tracking Auto Image Advanced... -
Page 27: Image Menu
Image Menu Attention ! When image options are changed, the Display Mode changes to User. Press the MENU button to open the OSD menu. Press the buttons to move to the Image Menu. Press the buttons to move up and down in the Image menu. Press the buttons to enter and change setting values. -
Page 28: Computer Menu
Computer Menu Press the MENU button to open the OSD menu. Press the ◄► buttons to move to the Image menu. Press the ▲▼ buttons to move to the Computer menu and then press (Enter) or ►. Press the ▲▼ buttons to move up and down in the Computer menu. ESCRIPTION Press the ◄►... -
Page 29: Advanced Features
Advanced Features Press the Menu button to open the OSD menu. Press the buttons to move to the Image menu. buttons to move to the Advanced menu and then press Press the (Enter) or . Press the buttons to move up and down in the Advanced menu. ESCRIPTION Brilliant Color Press the... -
Page 30: White Balance
White Balance (Enter) or ► button to enter the White Balance sub menu. Press ▼▲ to move up and Press the down in the White Balance menu. ESCRIPTION Press the ◄► buttons to adjust the Red Gain. R Gain Press the ◄► buttons to adjust the Green Gain. G Gain Press the ◄►... -
Page 31: Color Manager
Color Manager Press the Menu button to open the OSD menu. Press the buttons to move to the Image menu. buttons to move to the Color Manager menu and then press Press the (Enter) or . Press buttons to move up and down in the Color Manager menu. ESCRIPTION Select to enter the Red Color Manager. -
Page 32: Settings 1 Menu
Settings 1 Menu Press the MENU button to open the OSD menu. Press the buttons to move to the Settings 1 menu. Press the buttons to move up and down in the Settings 1 menu. Press the buttons to enter and change setting values. ESCRIPTION Source Press the... -
Page 33: Audio
Audio Press the Menu button to open the OSD menu. Press the ◄► buttons to move to the Settings 1 menu. Press the ▼▲ buttons to move to the Audio menu and then press (Enter) or ►. Press the ▼▲ buttons to move up and down in the Audio menu. ESCRIPTION Press the ◄►... -
Page 34: Advanced 1 Features
To enjoy the 3D function, first enable the Play Movie in 3D setting found in your 3D Blu-Ray device under the 3D Disc Menu. ® 3D can also be sourced from a computer. For specific guidelines, please refer to the DepthQ HDs3D2 Quick Start Guide. - Page 35 5. You need to enable the 3D source (some 3D Blu-Ray content may have a 3D on-off selection feature). ® 6. You need 3D shutter glasses or a DepthQ Modulator with passive glasses. Consult the documentation of your glasses for specific information.
-
Page 36: Advanced 2 Features
Advanced 2 Features Press the Menu button to open the OSD menu. Press the ◄► buttons to move to the Settings 1 menu. Press the ▲▼ buttons to move to the Advanced 2 menu and then press (Enter) or ►. Press the ▲▼... -
Page 37: Settings 2 Menu
Settings 2 Menu Press the MENU button to open the OSD menu. Press the buttons to move to the Settings 2 menu. Press the buttons to move up and down in the Settings 2 menu. ESCRIPTION Auto Source Press the buttons to enter and enable or disable automatic source detection. -
Page 38: Status
Status Press the ▲▼ buttons to move up and down in the Settings 2 menu. Select the Status menu and (Enter) or ► to enter. press ESCRIPTION Active Source Displays the current active source type. Displays resolution/video information for RGB sources and color standard for Video Video Information sources. -
Page 39: Advanced 1 Features
Advanced 1 Features Press the Menu button to open the OSD menu. Press the buttons to move to the Settings 2 buttons to move to the Advanced 1 menu and then press menu. Press the (Enter) or Press the buttons to move up and down in the Advanced 1 menu. Press the buttons to enter and change setting values. - Page 40 Lamp Hour Reset Please refer to Resetting the Lamp Timer on page 38 to reset the lamp hour counter. – 33 –...
-
Page 41: Advanced 2 Features
Advanced 2 Features Press the Menu button to open the OSD menu. Press the ◄► buttons to move to the Settings 2 menu. Press the ▲▼ buttons to move to the Advanced 2 menu and then press (Enter) or ►. Press the ▲▼... - Page 42 Source Filter Press the ENTER button to enter the Source Filter sub menu. This sub menu allows you to enable and disable source inputs. ESCRIPTION Press the ◄► buttons to enter and enable or disable the VGA1 source. Press the ◄► buttons to enter and enable or disable the Component Video source. Component Video Press the ◄►...
-
Page 43: Maintenance And Security
AINTENANCE AND ECURITY Replacing the Projection Lamp The projection lamp should be replaced when it burns out. It should only be replaced with a certified replacement part, which you can order from your local dealer. Important: a. The projection lamp used in this product contains a small amount of mercury. b. - Page 44 Remove the lamp compartment cover. Remove the three screws from the lamp module. Lift the module handle up. Pull firmly on the module handle to remove the lamp module. Reverse steps 1 to 5 to install the new lamp module. While installing, align the lamp module with the connector and ensure it is...
-
Page 45: Resetting The Lamp Timer
Resetting the Lamp Timer After replacing the lamp, you should reset the lamp hour timer to zero. Refer to the following: Press the MENU button to open the OSD menu. Press the ◄► buttons to move to the Settings 2 menu. Press the ▼ button to move down to Advanced 1 and press enter. -
Page 46: Cleaning The Projector
Cleaning the Projector Cleaning the projector to remove dust and grime will help ensure trouble-free operation. Warning: 1. Be sure to turn off and unplug the projector at least 30 minutes before cleaning. Failure to do so could result in a severe burn. 2. -
Page 47: Using The Cable Lock System And Security Bar
Using the Cable Lock System and Security Bar Using the Cable Lock If you are concerned about security, attach the projector to a permanent object with the Kensington slot and a security cable. Note: A Cable Lock System can be purchased from Lightspeed Design, Inc. or your dealer. Refer to the information that comes with the lock for instructions on how to use it. -
Page 48: Troubleshooting
ROUBLESHOOTING Common Problems and Solutions These guidelines provide tips to deal with problems you may encounter while using the projector. If the problem remains unsolved, contact your dealer for assistance. After spending time troubleshooting, the problem can often be traced to something as simple as a loose connection. -
Page 49: Led Error Messages
In the event of an error, please disconnect the AC power cord and wait for one (1) minute before restarting the projector. If the Power or Lamp LEDs are still blinking or any other situation that isn't listed in the chart ® above please contact DepthQ Support. Image Problems Problem: No image appears on the screen 1. -
Page 50: Lamp Problems
Problem: The image is blurred 1. Adjust the Focus on the projector. 2. Press the Auto button on the remote control. 3. Ensure the projector-to-screen distance is within the specified range. 4. Check that the projector lens is clean. Problem: The image is wider at the top or bottom (trapezoid effect) 1. -
Page 51: Audio Problems
3. Have the projector serviced. 3D Problems ® For 3D troubleshooting advice, please refer to the DepthQ HDs3D2 Quick Start Guide. Having the Projector Serviced If you are unable to solve the problem, you should have the projector serviced. Pack the projector in ®... -
Page 52: Hdmi Q & A
HDMI Q & A Q. What is the difference between a “Standard” HDMI cable and a “High-Speed” HDMI cable? Recently, HDMI Licensing, LLC announced that cables would be tested as Standard or High - Speed cables. ˙Standard (or “category 1”) HDMI cables have been t ested to perform at speeds of 75Mhz or up to 2.25Gbps, which is the equivalent of a 720p/1080i signal. -
Page 53: Specifications
PECIFICATIONS Specifications Model DepthQ® HDs3D2 Display type 0.65 DMD 1080P, DC3,S600 with DDP4422 ASIC Resolution 1080p 1920x1080 Projection distance 53.1 cm - 8.9 m (20.9 in - 29.3 ft) (10 in - 14 ft) Projection screen size 25.4 cm - 4.27 m... -
Page 54: Projection Distance Vs. Projection Size
Projection Distance vs. Projection Size Projection Distance and Size Table DepthQ® HDs3D2 ROJECTION ROJECTION MAGE IAGONAL ISTANCE ISTANCE MAGE IDTH MAGE EIGHT FFSET INCH INCH INCH INCH INCH INCH 1524 / 60 1328.2 / 52.29 747.3 / 29.42 1846.3 / 72.7 2776.1 / 109.3... -
Page 55: Timing Mode Table
Timing Mode Table HDMI OMPOSITE IGNAL ESOLUTION OMPONENT ( KH VIDEO NALOG IGITAL NTSC 15.734 PAL/SECAM 15.625 640 x 400 37.9 85.08 720 x 400 31.5 70.1 720 x 400 37.9 85.04 640 x 480 31.5 640 x 480 37.9 72.8 640 x 480 37.5... - Page 56 HDMI OMPOSITE IGNAL ESOLUTION OMPONENT ( KH VIDEO NALOG IGITAL ○ ○ － － 1280 x 960 ○ ○ － － 1280 x 960 85.9 ○ ○ － － 1360 x 768 47.7 ○ ○ － － 1400 x 1050 65.3 ○...
-
Page 57: Projector Dimensions
Projector Dimensions 285.1mm [11.22"] –50 –... -
Page 58: Regulatory Compliance
EGULATORY OMPLIANCE FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. -
Page 59: Serial Communication
PPENDIX Serial Communication The following table describes the serial communication configuration that should be used when interfacing to CLI via the serial port. Windows HyperTerminal or ProComm are two tools that can be used to send CLI commands across the serial port. Setting Value Bits per second... - Page 60 Function Command RW Min Max Default Step Parameter Valid only when Display Mode = User Source Color Temp 0:Warm Specific 1:Normal 2:Cold Valid only when Display Contrast Mode = User 0:VGA1 5:HDMI-1 6:HDMI-2 Current Source 10:Component 12:Video 13:S-Video Digital Zoom -10~10 0:No error 1:Lamp not lit after 5 At-...
- Page 61 Function Command RW Min Max Default Step Parameter 0:English 1:French 2:German 3:Spanish 4:Portuguese 5:Simplified Chinese 6:Traditional Chinese 7:Italian 8:Norwegian 9:Swedish Language 10:Dutch 11:Russian 12:Finnish 13:Korean 14:Arabic 15:Turkish 16:Japanese 17:Brazilian Portuguese 18:Kazakh 19:Vietnamese 20:Danish Menu 0:Clear; 1:Display 0:Menu Key 1:Up Key 2:Down Key Menu Navigation 3:Select Key...
- Page 62 Displays the numbers of hours that the projector has Projector Low Power 9999 run in Low Power (Eco) Hours mode over its life (including all lamps). DepthQ® HDs3D2 118V Projector Model string 119V Projector Resolution string 1080p 121V Projector Total Hours 9999...
