DepthQ HDs3D2 Quick Start Manual

H I G H D E F I N I T I O N S T E R E O S C O P I C 3 D V I D E O P R O J E C T O R
A p r o d u c t o f L i g h t s p e e d D e s i g n , I n c . c o - d e v e l o p e d w i t h I n F o c u s ® C o r p .
Connect 2D or 3D Source
You can connect more than one source if needed.
Connect from: Computer using the DVI to HDMI Cable
D
A
Use either the HDMI 1 or HDMI 2 input port (A). Audio is not transmitted via DVI. For 2D video + audio,
also connect either a mono RCA cable to AUDIO IN (B), or stereo RCA cables (not included) to L and R
Audio inputs (C). If your computer has an HDMI output, use the HDMI cable for both video and audio
from one cable.
OR
Connect from: Blu-Ray, DVD, Receiver, Sat/Cable Box,
or Game Console using the HDMI Cable
Use either the HDMI 1 or HDMI 2 input port (A). Component, S-Video and Composite inputs may also
be used (cables not included). These formats do not carry Audio. Use (B) or (C) above.
For 3D also connect Sync to:
These devices can receive 3D Sync from several sources:
From the 3-pin DIN Sync Output (D) on the back of the projector
From a 3-pin DIN Sync Output on an NVIDIA Quadro
card at the back of your computer
Or in the case of NVIDIA 3D Vision TM , from an open USB port on
your computer.
Section 4 will guide you case-by-case.
HD 3D2
s
Quick
Start
B C
Your IR Emitter or DepthQ
Polarization Modulator
graphics
TM
DepthQ Modulator (not included)

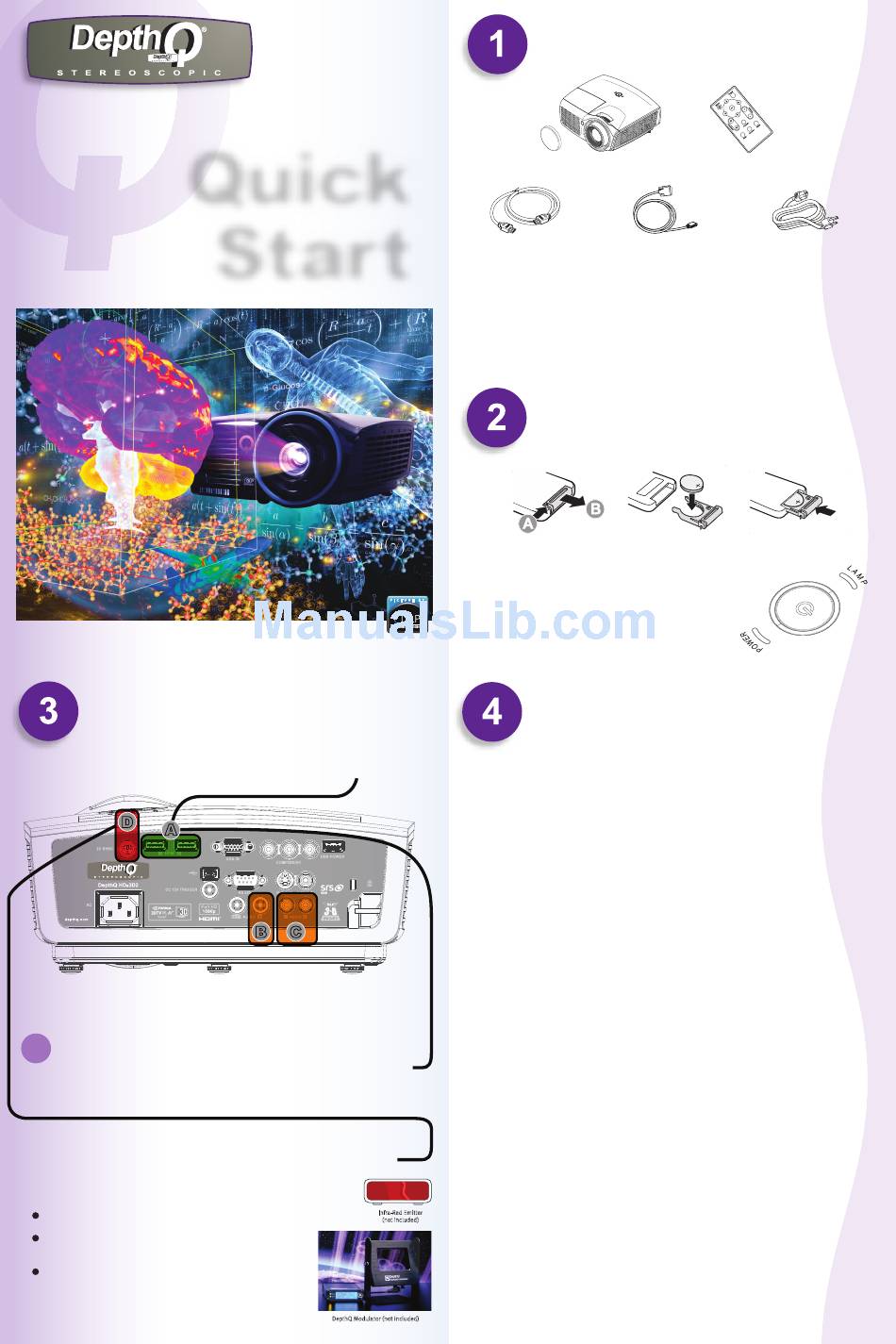

Unpack the Box
Here's what's included:
Projector with Lens Cap
HDMI
Cable
PLEASE NOTE: Eye-synchronization options include using Active LC Shutter Glasses
+ IR Emitter (typical), DLP-Link
+ DepthQ Polarization Modulator. These items must be purchased separately.
®
Visit depthq.com/accessories or depthq.com/modulator for more info.
Ensure Remote has a Battery
A 3V lithium battery (CR2025) battery is typically included (with an insulating
tab) to save battery life. To access and remove tab or change the battery:
1
Note: All projector control is accomplished using the remote.
Projector Status
The top of your projector includes an ON/OFF power
switch and LAMP & POWER LEDs to indicate status:
LAMP LED blinking RED = Error Code - see User Manual;
LAMP LED solid RED = Lamp Failure.
POWER LED blinking BLUE = Initializing or Cooling;
POWER LED solid BLUE = Standby or ON (Lamp is lit).
Step-by-Step Set-Up Guide
2D
Computer
Connect your source via HDMI or DVI to HDMI
2D
Blu-Ray, DVD, Receiver, Sat/Cable Box or Game Console
Connect your source via HDMI. If necessary, set your source to 1080P.
3D
Blu-Ray/Game Console + DepthQ
Step 1: Connect the HDMI cable between the 3D Blu-Ray Player/Game Console
and the back of the DepthQ
Step 2: Connect your DepthQ
output on the back of the DepthQ
Step 3: Position the DepthQ
center of your silver screen
Step 4: Play your 3D Blu-Ray/Game content. The DepthQ
Modulator Control Unit will report ~144Hz. Enjoy triple-flashed 144Hz 3D.
3D
Blu-Ray/Game Console + Generic Active or DLP Link
Step 1: Connect the HDMI cable between the 3D Blu-Ray Player and the back of
the DepthQ
Step 2: Connect your Active Shutter Glasses system to the 3D Sync output on the
back of the DepthQ
Step 3: Position your emitter per system instructions, connect power, activate
your 3D shutter glasses (if required) and don them.
Step 4: Play your 3D Blu-Ray/Game content. Enjoy triple-flashed 144Hz 3D.
3D
Sat/Cable + DepthQ
Step 1: Connect the HDMI cable between the Sat/Cable Box and the back of the
®
DepthQ ® HDs3D2 Projector.
Step 2: Play some 3D content to determine whether it is in a Side-by-Side or
Above-Below format.
Step 3: Turn on 3D in the DepthQ
HDs3D2 remote, press Menu; then use the left or right arrows to highlight
Settings 1
Infra-Red Emitter
arrow up to highlite
(not included)
Format and press "Enter"; then arrow up or down to select either Top/Bottom or
Side by Side
Step 4: Connect your DepthQ
output on the back of the DepthQ
Step 5: Position the DepthQ
center of your silver screen
Step 6: Play your 3D content. The DepthQ
will report ~120Hz. Enjoy double-flashed 120Hz 3D.
Remote Control
DVI to
HDMI Cable
Save your box and packing materials.
TM 3D Glasses, or Passive Polarized Glasses
2
1 . Set resolution to 1920x1080 at 60Hz.
HDs3D2 Projector.
® 2
Polarization Modulator Control Unit to the 3D Sync
®
HDs3D2 Projector.
®
Modulator in front of the lens, tilt it towards the
®
3 , connect power, and don your Passive 3D glasses.
HDs3D2 Projector.
® 2
HDs3D2 Projector.
®
Modulator
®
2
HDs3D2 Projector: Using the DepthQ
®
and "Enter", then arrow down to Advanced 1
3D Setting and press "Enter"; then arrow up to select
and press "Enter". Let the menu time out and it will disappear.
® Polarization Modulator Control Unit to the 3D Sync
® HDs3D2 Projector.
Modulator in front of the lens, tilt it towards the
®
, connect power, and don your Passive 3D glasses.
3
Polarization Modulator Control Unit
®
Power
Cable
3
Modulator
®
Polarization
®
®4
®
and press "Enter"; then
3D
