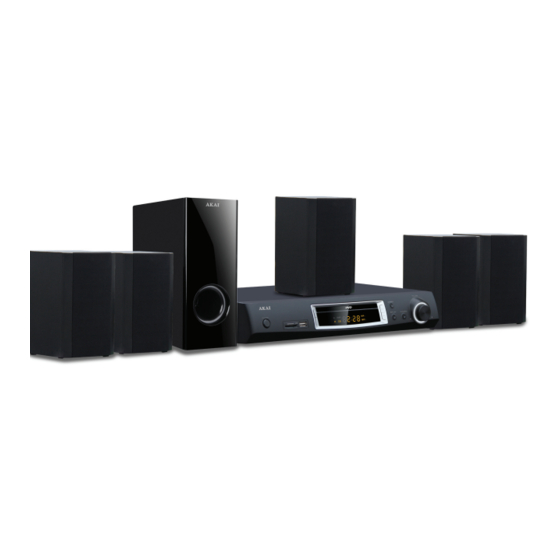

AHC 1500 – Home Theater System
User manUal
en
© Elmarc, 14/09

Advertisement

Table of Contents
loading

Related Manuals for Akai AHC 1500

Summary of Contents for Akai AHC 1500

  • Page 1 AHC 1500 – Home Theater System User manUal © Elmarc, 14/09...

  • Page 2: Table Of Contents

    Table of contents Intended use Safety 2.1 Labels in this manual 2.2 General safety instructions Preparations for use 3.1 Unpacking 3.2 Package contents Installation 4.1 Install batteries 4.2 Connecting the system 4.3 Connecting random equipment 4.4 Connecting to the mains Functions 5.1 Remote control 5.2 AHC1500 Home Theater System Operation 6.1 General setup menu operation 6.2 DVD/CD functions 6.3 Copy content from a CD to a USB device. 6.4 Radio functions 6.5 USB and memory card 6.6 LINE-IN 6.7 AUDIO OUT Cleaning and maintenance...

  • Page 3: Intended Use

    1 Intended use The Home Theater System plays music from CDs and music, videos and photos from DVDs, memory card and USB. Music can also be played via the AUDIO OUT port. The FM function lets you listen to the radio. The appliance also plays photos from Kodak picture CDs. Read the manual carefully before the first use. DVDs and DVD appliances are manufactured under the worldwide agreed DVD regional code system that the appliance will operate only with corresponding disc of the same regional code. If the code number on the label of a DVD does not match that on the label alongside, the DVD will not play on this appliance. 5 The appliance has built in copyright protection technology that prevents copying from a disc to any media. If a video recorder is connected to the appliance, the video output image will be distorted during recording. Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. Confidential unpublished works. Copyright 1992-1997 Dolby Laboratories. All rights reserved. 5 Because of the great variety of products with USB ports and their sometimes quite manufacturer-specific functions we can neither guarantee that all devices will be recognised, nor that all operating options that are possible in theory will actually work.

  • Page 4: Safety

    2 Safety 2.1 Labels in this manual 6 WARNING A warning means that injury or death is possible if the instructions are not obeyed. 1 CAUTION A caution means that damage to the equipment is possible. 5 A note gives additional information, e.g. for a procedure. 2.2 General safety instructions 6 Please note! Install the product as indicated in this manual. If in doubt, consult a recognised technician and always take account of local installation codes and regulations. 6 Warning! Do not install the product in any place that might be exposed to extreme heat or cold. 6 Warning! Do not install the product outdoors or in any place where it might become wet. 6 Warning! It is not permitted to open the product yourself or to have it opened, neither is it permitted to repair the product yourself or to have it repaired. This will void the warranties. Please let any maintenance be carried out by certified maintenance personnel. 6 WARNING Do not put force on the appliance. The appliance can fall and can cause serious injury.
  • Page 5 1 CAUTION Do not block the ventilation holes. 5 This appliance is double insulated; therefore no earth wire is required. Always check that the mains voltage corresponds to the voltage on the rating plate. 5 This appliance employs a laser system. To prevent direct exposure to the laser beam, do not open the appliance. Visible laser radiation when open and interlock defeated.

  • Page 6: Preparations For Use

    3 Preparations for use 3.1 Unpacking • Unpack the appliance carefully. • Check the package contents as described below. If any item is missing, please contact your reseller. • Remove the labels from the front panel carefully if present. 5 We recommend that you retain the original carton and packing materials in case it ever becomes necessary to return your product for service. This is the only way to safely protect the product against damage in transit. If you do dispose of the carton and the packing materials, please remember to recycle with due care to the environment. 3.2 Package contents The following items are included in the received package: • 1 x AHC1500 Home Theatre System • 5 x Speaker • 1x Subwoofer • 1 x Remote control • 2 x Batteries (AA)

  • Page 7: Installation

    4 Installation 4.1 Install batteries • Remove the battery cover. • Insert the batteries matching the (+) and (-) polarity markings. • Re-install the battery cover. 1 CAUTION Incorrect installation can cause battery leakage and corrosion which will damage the appliance. Corrosion, oxidation, battery leakage and any other gradually acidic defect of this nature will invalidate the guarantee. 4.2 Connecting the system • Determine the position of the different boxes.

  • Page 8: Connecting Random Equipment

    • Connect the speakers to the appliance. 4.3 Connecting random equipment Connect the tv • Use one of the cables as presented in the image below. Component HDMI Video S-Video • Insert an FM aerial or a suitable cable into the FM ANT IN connection.

  • Page 9: Connecting To The Mains

    4.4 Connecting to the mains • Connect the appliance to the mains. • Switch on the appliance.

  • Page 10: Functions

    5 Functions 5.1 Remote control 1. STANDBY button 22. CH- button 2. Digit buttons 23. CH+ button 3. 10+ button 24. FF- button 4. PROGRAM button 25. FF+ button 5. Stop button 26. VOL+ button 6. SOURCE button 27. VOL- button 7. Arrow key up 28. COPY button 8. MENU/PBC button 29. PLAY/PAUSE button 9. Arrow key left 30. TITLE button 10. ENTER button 31.
  • Page 11 General functions SOURCE button • To select the source mode TUNER/LINE-IN/DVD, press the SOURCE button (6). LINE-IN TUNER Set the volume of the loudspeakers The front loudspeakers • To adjust the volume, press the FRONT- (41) button or the FRONT+ button (39). The central loudspeaker • To adjust the volume, press the CEN- (16) button or the CEN+ button (18). Subwoofer • To adjust the volume, press the SW- (17) button or the SW+ button (19). The loudspeakers for the surrounding noise • To adjust the volume, press the SUR- (40) button or the SUR+ button (38).

  • Page 12: Ahc1500 Home Theater System

    5.2 AHC1500 Home Theater System 9 10 21 22 23 1. STANDBY button 13. Volume dial 2. Memory card slot (SD/MMC) 14. On / Off key (POWER) 3. USB slot 15. Mains cable 4. FF- button 16. Connection to speakers 5. FF+ button 17. Aerial connection (FM radio) 6. CD compartment 18. HDMI-output 7. LCD Display 19. AUDIO OUT 8. NEXT button 20.

  • Page 13: Operation

    6 Operation 5 All functions of the appliance are accessible using the remote control. All instructions refer to operation with the remote control, unless indicated otherwise. 6.1 General setup menu operation This chapter explains a complete setup of the appliance: settings of screen display, audio setup and video setup. Preparation • Turn on the television. • Switch on the AHC1500. • Press the SETUP button (11). The Setup menu appears. General • Press the arrow buttons (left and right) (9,31) to select a menu. The submenu is displayed directly. • Press the arrow buttons (up and down) (7,32) to scroll through the submenu. • Press the ENTER button (10) to select a setting, or the left arrow button to cancel the selection. • Press the SETUP (11) button to store the settings and exit.
  • Page 14 The GENERAL menu Picture format • In the TV DISPLAY section, press the arrow buttons (7,9,31,32) to select 4:3 4:3 PANSCAN or 4:3 LETTERBOX for a conventional TV set. Select 16:9 for a wide screen TV set. ANGLE MARK • In the ANGLE MARK section, press the arrow buttons to switch this function ON or OFF. When switched ON, the appliance shows the angle mark when multi-camera angles are available. 5 The ability to use this feature depends on the type of DVD. OSD LANG • In the OSD LANG section, press the arrow buttons to choose the language. CAPTIONS • In the CAPTIONS section, press the arrow buttons to switch this function ON or OFF. When switched ON, the appliance shows hidden text when it is available. 5 The ability to use this feature depends on the type of DVD. Screensaver on/off. The screensaver will be turned on automatically when there is no picture. High Definition Compatible Digital (HDCD) • Select the value (2x, 1x or OFF) for full sound richness of HDCD- encoded CDs. LAST MEMORY last memory: on/off • When the DVD is paused, playback will automatically resume from...
  • Page 15 • Adjust the volume CENTRE SPEAKER • The central loudspeaker • Adjust the volume REAR SPEAKER • The loudspeakers for the surrounding noise • Adjust the volume Subwoofer • Adjust the volume SPDIF SETUP Set the digital audio signal. • Select SPDIF OFF to switch off the digital audio signal output. • Select SPDIF RAW to set the digital audio signal output to its raw format (DTS/Dolby Digital 5.1). • Select SPDIF PCM to set the digital audio signal output to PCM format. EQUALISER • EQ TYPE: select from the various sound effects Bass boost • Set the desired level SUPER BASS • Set the desired level TREBLE BOOST • Set the desired level 3D PROCESSING • 3D processing creates a virtual sound experience for various audio settings.
  • Page 16 The VIDEO menu Video setup page COMPONENT • S-video: Select this format when the Composite video output is used. • YUV: Set the video output in analog component video format. RESOLUTION • Select the desired resolution. QUALITY Set the video quality. • SHARPNESS: Adjust the screen sharpness. • BRIGHTNESS: Adjust the screen brightness. • CONTRAST: Adjust the contrast of the image. • GAMMA: Adjust the colour intensity. • HUE: Adjust the colour intensity. • SATURATION: Adjust the saturation of the image. • LUMA DELAY: Compensate the delay in the colour signal. HDMI SETUP • HDMI: select ON / OFF to turn HDMI on / off. DEEP COLOR • Set the depth of colour at 24, 30 or 36 bit. The PREFERENCES menu Preference setup page TV TYPE • Select the video output format to match the appliance to the TV system: PAL, AUTO or NTSC.
  • Page 17 DISC MENU • In the DISC MENU section, choose the language for the disc menu. PARENTAL Set a rating for movies played by the appliance. Movies rated higher than the level set for the parental lock can not be viewed. 5 This function is only available with discs that have parental rating encoded. PASSWORD MODE Switch the password function on or off. • Enter the correct password to switch the mode on or off. PASSWORD Change the default password. • Enter the current password in the first box. Enter the new password in the second box. Enter the new password again in the third box to confirm. 5 The default password (1234) is always active. Even if the password has been reset. DEFAULT Restore all default settings of the appliance, except the settings for the menu items PARENTAL and PASSWORD.

  • Page 18: Dvd/Cd Functions

    6.2 DVD/CD functions Preparation • Turn on the television. • Switch on the AHC1500. • To select the source mode DVD, press the SOURCE button (6). • Press the OPEN/CLOSE button (21). • Insert a CD/DVD. After the disc has been loaded, a content menu will display on the TV screen. • Press the arrow buttons (7,9,31,32) to select a menu item. • Press the ENTER button (10) to enter the selected menu item. • To start playback, press the PLAY/PAUSE button (29) once. During playback, the following functions are available: • To select a chapter (DVD) or track (CD), press the digit buttons (2). • Press the GOTO button to acces the quick menu. Use numerical buttons to input track number and track time. Press ENTER to confirm a selection.
  • Page 19 • To select the next or previous chapter (DVD) or track (CD), press the PREV button (22) or the NEXT button (23). • To forward or rewind the DVD, press the FWD button (24) or the REV button (25). The available speed rates are: 2x, 4x, 8x, 16x, 32x. • To pause playback, press the PLAY/PAUSE button (29) once; to resume playback, press the button again. • To stop playback temporarily, press the STOP button (5) once. Press the button again to stop playback permanently, or press the PLAY/PAUSE button (29) to resume playback. • To select extra information of a DVD or CD (remaining time/passed playtime/track number/chapter number), press the OSD button (36). • Press the MENU (8) key to open the menu. • To view a specific title of a DVD, press the TITLE button (30). Use the arrow buttons to select the title. • To switch on the subtitles of a DVD, press the SUBTITLE button (14). • To select the camera angle, press the ANGLE button (15). • To select the audio language of a DVD, press the LANGUAGE button (35) repeatedly until the desired language is set. • To playback in slow-motion, either forward or backward, press the SLOW button (37) repeatedly. The available speeds are: 1/2, 1/4, 1/6, 1/8, 1/16. • Press repeatedly on the (N/P) key in order to switch between NTSC, PAL and AUTO playing mode. Using the REPEAT function • - Press the REPEAT button (34) once to repeat the current chapter or track.
  • Page 20 Program track sequence For video discs and audio CDs • To stop playback, press the STOP button (5). • To play a list of tracks (max. 20) in a program, press the PROG button (4). • Press the up/down arrow buttons (7,32) to select a folder or a file. • Press the ENTER button (10). • Press the (7,9,31,32) keys to move the desired track. • Press the ENTER button (10) to confirm the selection. Repeat the previous step to select more tracks and confirm every selection with the ENTER button (10). • Press the PROG (4) key to save the program. • Press the button PLAY/ PAUSE (29) to start program playback. • To play the program again, press the PROG button (4) after the program has finished. Press the PLAY/PAUSE button (29) to start the program again. • To stop the program during playback, press the STOP button (5). • To delete the program during the playback, press the STOP button (5) twice. Using the MP3/MPEG4 playback function • Insert an MP3/MPEG4 disc. A content menu will display on the TV screen.
  • Page 21 Using the Kodak picture CD playback function • Insert a Kodak picture CD. • Press the STOP button (5) to enter the thumbnail mode. Choose an option (Slide show/Menu/prev-next) and press ENTER (10). • Select an image using the arrow keys (7,9,31,32). Press ENTER (10) to view the image. • In the overview with the small images you can also select the functions SLIDE SHOW, MENU, PREV or NEXT. Use the arrow keys (7,9,31,32) to select the desired functions and ENTER (10) to confirm. • Press the PLAY/PAUSE button (29) to hold the slide show at the current picture. • Press the PLAY/PAUSE button (29) to resume the slide show. • Press the PREV or NEXT buttons (22,23) to select the previous or next picture. Using the Video CD playback function • Insert a Video CD. • Press the PBC button (8) to switch on the playback function. • To start playback, press the PLAY/PAUSE button (29) once. • Press the PBC button (8) to quit the playback and return to the main menu.

  • Page 22: Copy Content From A Cd To A Usb Device

    6.3 Copy content from a CD to a USB device. 5 Ensure there is sufficient free space on the USB device. Preparation • Turn on the television. • Switch on the AHC1500. • To select the source mode DVD, press the SOURCE button (6). • Press the OPEN/CLOSE button (21). • Insert a CD. • Press the DVD/USB button (12). • Press the STOP button (5). • Press the COPY button (28). Copying a file from one source to another source • Select the desired file using the (7,9,31,32) keys.

  • Page 23: Radio Functions

    6.4 Radio functions Preparation • Switch on the AHC1500. • Press the SOURCE key (6) to select the radio mode. Program radio stations automatically • Press the SEARCH button (13). 20 stations are being searched and stored automatically. • Press the PREV (22) Button or the NEXT (23) Button to select the desired station. Programming a radio station manually • Turn on the television. • Press the FF- (24) Button or the FF+ (25) Button to select the desired station. • Press the PROG (4) button first and then choose the desired preset number location by pressing the numeric buttons (2) or the PREV (22) and the NEXT (23) button. • Touch PROG (4) to add the current station to your favourites...

  • Page 24: Usb And Memory Card

    6.5 USB and memory card TV ON Preparation • Turn on the television. • Switch on the AHC1500. USB functions • Insert the USB device in the slot . The device can only be connected one way. • To select the source mode USB, press the SOURCE button (6). • Press the DVD/USB button (12).
  • Page 25 Memory card functions 5 Caution! The contents of a memory card can be played back only if the device does not have a CD/DVD in it or a USB device is connected. Remove the CD/DVD or USB device if present. • Insert the SD/MMC device in the slot. The device can only be connected one way. • To select the source mode USB, press the SOURCE button (6). • Press the DVD/USB button (12). After the device has been connected, a content menu will display on the TV screen. • Press the arrow button (7,32)(up and down) to select a folder or a file. • Press the ENTER button (10) to enter the selected folder or file. You can also use the digit buttons (2) to select a folder or to play the file. • Press the arrow button (7,32)(up and down) to select a folder or a file. • Press ENTER (10) to confirm. • Press the MENU button (8) to return to the content menu during playback. During playback, the following functions are available: • To select a track, press the PREV button (22) or the NEXT button (23) until the desired track is set. • To pause playback, press the PLAY/PAUSE button (29) once; to resume playback, press the button again. • To stop playback, press the STOP button (5). • To remove the device, gently pull it out of the slot. 5 Due to the great variety of products with USB ports and their sometimes quite manufacturer-specific functions we can neither guarantee that all devices will be recognised, nor that all operating...

  • Page 26: Line-In

    6.6 LINE-IN Preparation • Switch on the AHC1500. LINE IN • To connect an external audio device, insert the cable plug in the LINE- IN jack . • To select the source mode LINE-IN, press the SOURCE button (6). “LINE-IN” appears on the display.

  • Page 27: Audio Out

    6.7 AUDIO OUT AV OUT Preparation • Switch on the AHC1500. AUDIO OUT • To connect an external audio device, insert the cable plug in the OUDIO OUT jack . • To select the source mode LINE-IN, press the SOURCE button (6).

  • Page 28: Cleaning And Maintenance

    7 Cleaning and maintenance 6 WARNING Before performing any cleaning or maintenance, switch off and unplug the appliance. • Clean the outside of the appliance with a soft cloth. When the appliance is very dirty, dampen the cloth slightly with water and a neutral solution. 7.1 Handle and care of a disc 1 Hold the disc with fingers. Hold the disc outer edge and/or the centre spindle hole. Do not touch the disc surface. 1 Do not bend or press the disc. Do not expose the disc to direct sunlight or heating sources. 1 Clean the disc surface with a soft, dry cleaning cloth. Wipe the disc surface gently, radially, from centre towards the outer edge. 1 Do not apply thinner, alcohol, chemical solvent, or sprays when cleaning. Such cleaning fluids will permanently damage the disc surface.

  • Page 29: Technical Data

    8 Technical data AHC1500 Home Theatre System • Voltage: 220-240VAC ~ 50/60 Hz • Power consumption: 85W • Frequency response: +/- 3 dB • Speaker output: 5 x 10W RMS • Subwoofer output: 25W Disc output • Television system: PAL/NTSC • Frequency range: 20Hz ~20KHz • Signal/noise ratio: >80dB • Dynamic range: >80dB connections • USB 2.0 slot • Memory card slot (SD/MMC) Remote control • Battery size: 2 x AAA Radio • Frequency range: 87,5~108 MHz Supported media formats • Disc types: DVD / DVD+R(W) / DVD-R(W) / CD / CD-R / CD-RW • Picture formats: JPEG / Kodak Picture CD...

  • Page 30: Disposal Of Used Electric And Electronic Equipment

    9 Disposal of used electric and electronic equipment The meaning of the symbol on the material, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical and electronic equipments waste. In the European Union and Other European countries which there are separate collection systems for used electrical and electronic product. By ensuring the correct disposal of this product, you will help prevent potentially hazardous to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. Please do not therefore dispose of your old electrical and electronic equipment with your household waste. Do not dispose of batteries as household waste but take them to a battery recycling facility. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. For more information and warranty conditions, please visit: www.akai.eu...
