EarthQuake 3365B Operator's Manual

3365 series front-tine tiller original operating instructions briggs & stratton 6.75 ft-lb gross torque briggs & stratton 6.75 ft-lb gross torque briggs & stratton 6.75 ft-lb gross torque briggs & stratton 8.5 ft-lb gross torque
Hide thumbs Also See for 3365B:
Table of Contents

Advertisement

Quick Links

Model 3365B
Briggs & Stratton
6.75 ft-lb Gross Torque
Model 3365CE
Briggs & Stratton
6.75 ft-lb Gross Torque
Get parts online at
www.getearthquake.com
Model 3365PS
Briggs & Stratton
6.75 ft-lb Gross Torque

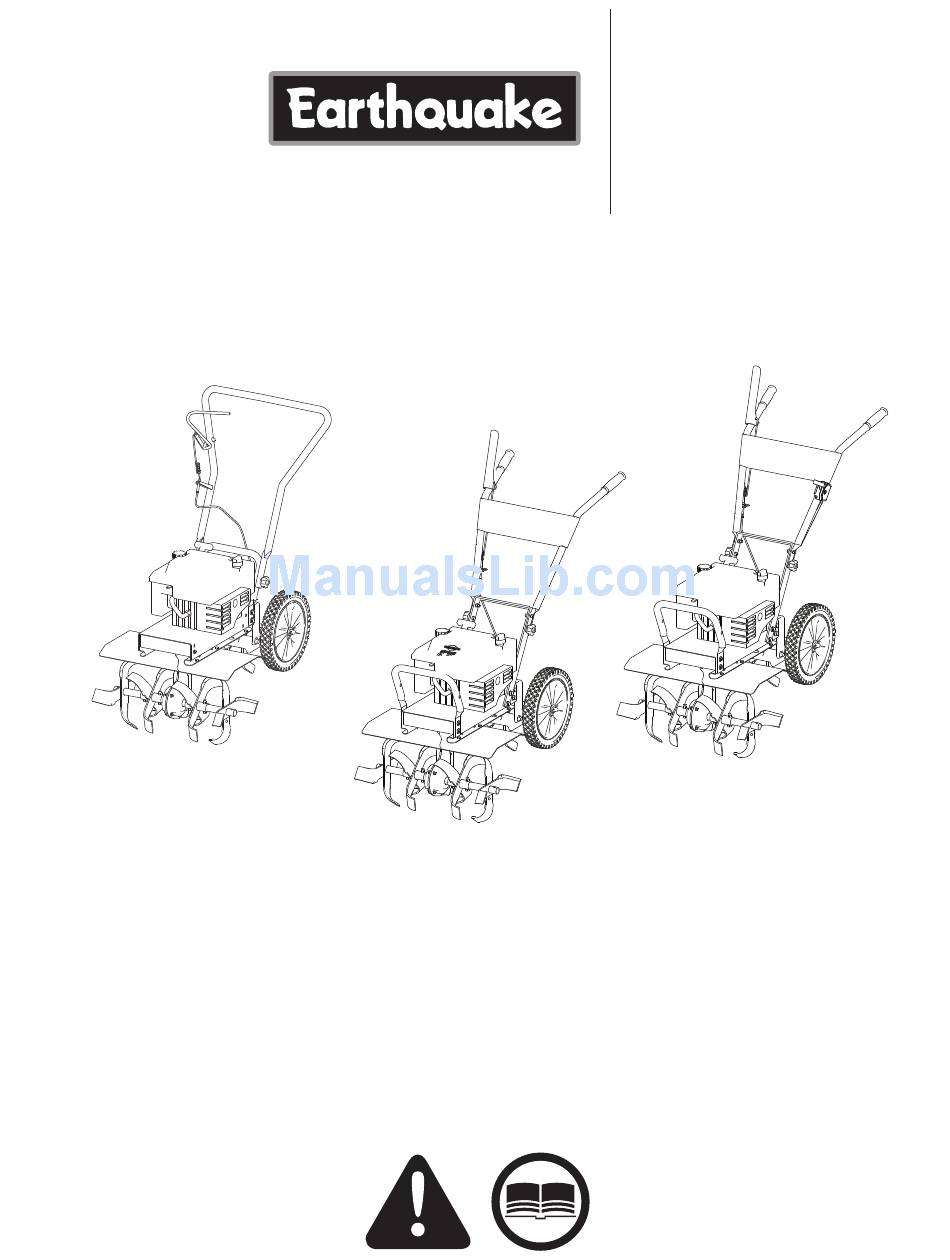

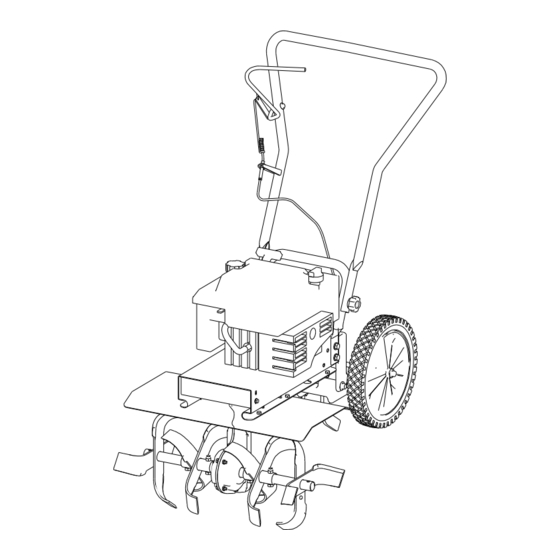

Operator's Manual
Original Operating Instructions
3365 Series
Front-Tine Tiller
3365PSCE
Briggs & Stratton
8.5 ft-lb Gross Torque
GAS/OIL
RATIO
50:1
REV2: 01/03/13
© 2013 Ardisam, Inc.
All Rights Reserved
P/N: 14183
ECN: 9633/4
