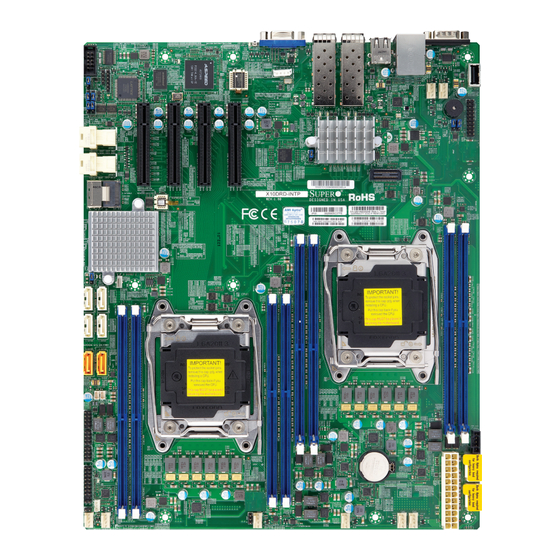

X10DRD-iTP
X10DRD-iNTP
X10DRD-LTP
USER'S MANUAL
Revision 1.0c

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUPERO X10DRD-iTP and is the answer not in the manual?

Questions and answers

Related Manuals for Supermicro SUPERO X10DRD-iTP

Summary of Contents for Supermicro SUPERO X10DRD-iTP

  • Page 1 X10DRD-iTP X10DRD-iNTP X10DRD-LTP USER’S MANUAL Revision 1.0c...
  • Page 2 This product, including software and docu- mentation, is the property of Supermicro and/or its licensors and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: About This Motherboard

    X10DRD-iTP/iNTP/LTP motherboard supports Intel® Node Manager 3.0, Intel MCTP Protocol, and Management Engine (ME). This motherboard is ideal for gen- eral purpose, cloud computing server platforms, optimized for the next-generation data centers. Please refer to our website (http://www.supermicro.com) for CPU and memory support updates. Manual Organization Chapter 1 describes the features, specifications, and performance of the moth- erboard.

  • Page 4: Conventions Used In The Manual

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Conventions Used in the Manual Pay special attention to the following symbols for proper system installation: Warning: Important information given to ensure proper system installation or to prevent damage to the components or injury to yourself; Note: Additional information given to differentiate between models or instructions provided for proper system setup.

  • Page 5: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 6: Table Of Contents

    System Health Monitoring ................1-12 ACPI Features ....................1-13 Power Supply ....................1-13 Advanced Power Management ..............1-14 Intel Intelligent Power Node Manager (NM) (Available when the Supermicro ® Power Manager [SPM] is installed)............... 1-14 Management Engine (ME) ................1-14 Chapter 2 Installation Standardized Warning Statements ..............
  • Page 7 Table of Contents 10G_SPF/Ethernet LAN Ports..............2-19 Unit Identifier Switches/UID LED Indicators ..........2-20 Front Control Panel ..................2-21 Front Control Panel Pin Definitions............... 2-22 NMI Button ....................2-22 Power LED ....................2-22 HDD/UID LED ..................2-23 NIC1/NIC2 LED Indicators ............... 2-23 Overheat (OH)/Fan Fail/PWR Fail/UID LED ..........
  • Page 8 X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Chapter 3 Troubleshooting Troubleshooting Procedures ................3-1 Technical Support Procedures ................ 3-4 Battery Removal and Installation ..............3-6 Frequently Asked Questions ................3-7 Returning Merchandise for Service..............3-8 Chapter 4 BIOS Introduction ...................... 4-1 Main Setup ...................... 4-2 Advanced Setup Configurations..............

  • Page 9: Chapter 1 Overview

    Checklist Congratulations on purchasing your computer motherboard from an acknowledged leader in the industry. Supermicro boards are designed with the utmost care and at- tention to detail to provide you with the highest standards in quality and performance. Please check that the following items have all been included with your motherboard.
  • Page 10 X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Motherboard Image Note: All graphics shown in this manual were based upon the latest PCB revision available at the time of publication of the manual. The mother- board you received may or may not look exactly the same as the graphics shown in this manual.

  • Page 11: Motherboard Layout

    CPU1 Slot 4/Slot 5 PCI-E 3.0 x8 (CPU1 required) CPU1 Slot 6 PCI-E 3.0 x8 (CPU1 required) CPU2 Slot 7 PCI-E 3.0 x8 (CPU2 required) S-SATA 0-3 iPass Connector Note: For the latest CPU/Memory updates, please refer to our website at http://www.supermicro.com/products/motherboard/ for details.
  • Page 12 X10DRD-iTP/iNTP/LTP Motherboard User’s Manual X10DRD-iTP/iNTP/LTP Quick Reference LAN2 USB0/1 LAN1 SFP2 JUSBRJ45 SFP1 COM1 AST2400 USB2/3 JIPMB1 IPMI_LAN NIC CTRL Intel 82599 X10DRD-LTP REV:1.00 BIOS BAR CODE IPMI CODE BIOS LICENSE SAN MAC MAC CODE CPU2 CLOSE 1st CPU1 OPEN 1st CLOSE 1st OPEN 1st JBAT1...
  • Page 13 NVM Express PCI-E 3.0 x4 ports supported by CPU1 (for X10DRD-iNTP only) I-SATA 0-5 SATA 3.0 connectors supported by Intel PCH (I-SATA 0-5), (I-SATA4/I-SATA5: can be used as Supermicro SuperDOMs [Devices-on-Module] with built-in power connectors) I-SGPIO1/2 Seria_Link General Purpose I/O headers 1/2 for SATA ports...
  • Page 14 X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Internal speaker/buzzer UID-SW (JUIDB1) UID (Unit Identification) switch (BP) USB 0/1 (2.0) Backpanel USB 2.0 ports 0/1 (BP) USB 2/3 (2.0) Front accessible USB 2.0 connections (USB 2/3) header (BP) USB 4/5 (2.0) Backpanel USB 2.0 ports 4/5 (FP) USB 6 (2.0) Front accessible Type A 2.0 connector (USB6) Backpanel VGA port...

  • Page 15: Motherboard Features

    Chapter 1: Overview Motherboard Features • Dual Intel E5-2600 v3 Series processors (Socket ® R3-LGA 2011); each processor supports dual full- width Intel QuickPath Interconnect (QPI) links (of up to 9.6 GT/s one direction per QPI) Note: Please install both CPUs for full access to the PCI-E slots, DIMM slots, and onboard controllers.

  • Page 16: Peripheral Devices

    Power-on mode for AC power recovery • Intel Intelligent Power Node Manager 3.0 (available ® when the Supermicro Power Manager [SPM] is in- stalled and a special power supply is used. See the note on Page 1-14.) • Management Engine (ME)
  • Page 17 CPU TDP sizing. Note 2: For IPMI configuration instructions, please refer to the Embedded IPMI Configuration User's Guide available @ http://www.supermicro.com/ support/manuals/. Note 3: It is strongly recommended that you change BMC log-in informa- tion upon initial system power-on.

  • Page 18: System Block Diagram

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual X10DRD-i(N)TP/LTP VCCP0 12v VCCP1 12v VR12.5 VR12.5 6 PHASE 6 PHAS E 145W 145W PROCESSOR 2 PROCESSOR 1 port 0,1 REAR 2.0 REAR 2.0 System Block Diagram Note 1: This is a general block diagram and may not exactly represent the features on your motherboard.

  • Page 19: Processor And Chipset Overview

    Chapter 1: Overview Processor and Chipset Overview Built upon the functionality and capability of the Intel E5-2600 v3 Series proces- sors (Socket R3) and the Intel C612 PCH, the X10DRD-iTP/iNTP/LTP motherboard provides system performance, power efficiency, and feature sets to address the needs of next-generation computer users.

  • Page 20: Special Features

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Special Features Recovery from AC Power Loss The Basic I/O System (BIOS) provides a setting that determines how the system will respond when AC power is lost and then restored to the system. You can choose for the system to remain powered off (in which case you must press the power switch to turn it back on) or for it to automatically return to the power-on state.

  • Page 21: Acpi Features

    Chapter 1: Overview ACPI Features ACPI stands for Advanced Configuration and Power Interface. The ACPI specifi- cation defines a flexible and abstract hardware interface that provides a standard way to integrate power management features throughout a system, including its hardware, operating system, and application software. This enables the system to automatically turn on and off peripherals such as network cards, hard-disk drives, and printers.

  • Page 22: Advanced Power Management

    Intel Intelligent Power Node Manager (NM) (Available ® when the Supermicro Power Manager [SPM] is installed) The Intel Intelligent Power Node Manager 3.0 (IPNM) provides your system with ® real-time thermal control and power management for maximum energy efficiency.

  • Page 23: Chapter 2 Installation

    The following statements are industry-standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support Department for assis- tance. Only certified technicians should attempt to install or configure components.
  • Page 24 X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta.

  • Page 25: Product Disposal

    Chapter 2: Installation Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要が あります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

  • Page 26: Static-Sensitive Devices

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual ‫القىانين واللىائح الىطنية‬ ‫جميع‬ ‫وفقا ل‬ ‫ينبغي التعامل معه‬ ‫هذا المنتج‬ ‫من‬ ‫التخلص النهائي‬ ‫عند‬ 경고! 이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다. Waarschuwing De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming met alle nationale wetten en reglementen.

  • Page 27: Motherboard Installation

    Chapter 2: Installation Motherboard Installation All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all mounting holes for both motherboard and chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are recommended because they ground the motherboard to the chas- sis.

  • Page 28: Installing The Motherboard

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Installing the Motherboard Note: Always connect the power cord last, and always remove it before adding, removing, or changing any hardware components. 1. Install the I/O shield into the chassis. 2. Locate the mounting holes on the motherboard. 3.

  • Page 29: Processor And Heatsink Installation

    CPU socket cap is in place and that none of the socket pins are bent; otherwise, contact your retailer immediately. Refer to the Supermicro website for updates on CPU support. Installing the LGA2011 Processor 1. There are two load levers on the LGA2011 socket. To open the socket cover, first press and release the load lever labeled "Open 1st."...
  • Page 30 X10DRD-iTP/iNTP/LTP Motherboard User’s Manual 2. Press the second load lever labeled "Close 1st" to release the load plate that covers the CPU socket from its locking position. Press down on load Pull lever away from lever "Close 1st" socket 3. With the lever labeled "Close 1st" fully retracted, gently push down on the lever labeled "Open 1st"...
  • Page 31 Chapter 2: Installation 4. Use your thumb and index finger to loosen the lever and open the load plate. 5. Using your thumb and index finger, hold the CPU by its edges. Align the CPU keys, which are semicircle notches, against the socket keys. Socket Keys CPU Keys 6.
  • Page 32 X10DRD-iTP/iNTP/LTP Motherboard User’s Manual 7. With the CPU inside the socket, inspect the four corners of the CPU to make sure that the CPU is properly installed. Gently close Push down and lock the the load plate lever labeled "Close 1st" 8.

  • Page 33: Installing A Passive Cpu Heatsink

    Chapter 2: Installation Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die -- the re- quired amount has already been applied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the motherboard and the heatsink bracket underneath.

  • Page 34: Removing The Cpu And The Heatsink

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Removing the CPU and the Heatsink Warning: We do not recommend that the CPU or the heatsink be removed. However, if you do need to uninstall the CPU or the heatsink, please follow the instructions below to uninstall the heatsink to avoid damaging the CPU or the motherboard.

  • Page 35: Installing And Removing The Memory Modules

    Chapter 2: Installation Installing and Removing the Memory Modules Note: Check Supermicro's website for a list of recommended memory modules. CAUTION Exercise extreme care when installing or removing DIMM modules to avoid damaging the DIMM modules or the motherboard. Installing & Removing DIMMs 1.
  • Page 36 Memory speed support depends on the CPUs installed in the motherboard. For the latest memory updates, please refer to our website at http:// www.supermicro.com/products/motherboard. Processor & Memory Module Population Configuration For the memory to work properly, follow the tables below for memory installation.
  • Page 37 DDR4 Memory POR for Haswell-E Chapter 2: Installation Populating RDIMM/LRDIMM ECC Memory Modules Speed (MT/s) Speed (MT/s); Voltage Voltage (V) Slot Per Channel (SPC) and DIMM Pe Ranks Per DIMM DIMM and Capacity (GB) 1 Slot Per 2 Slots Per Channel Type Data Channel...

  • Page 38: Control Panel Connectors And I/O Ports

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Control Panel Connectors and I/O Ports The I/O ports are color-coded in conformance with the industry standards. See the picture below for the colors and locations of the various I/O ports. Back Panel Connectors and I/O Ports LAN2 USB0/1 LAN1...

  • Page 39: Serial Ports

    Chapter 2: Installation Serial Ports Two COM connections (COM1 and COM2) are located on the motherboard. COM1 is located on the I/O back panel. COM2, located close to CPU1 Slot4 (PCI-E 3.0 x 8), provides front access support. Refer to the board layout below for the locations. COM2 Video Connection A Video (VGA) port is located next to SFP+/LAN Port 2 on the I/O back panel.

  • Page 40: Universal Serial Bus (Usb)

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Universal Serial Bus (USB) Back Panel USB 0/1, 2/3 (2.0) Pin Definitions Four USB 2.0 ports (USB 0/1, 2/3) Pin# Definition Pin# Definition are located on the I/O back panel. In addition, an internal USB 2.0 header USB_PN1 USB_PN0 provides two USB 2.0 connections...

  • Page 41: 10G_Spf/Ethernet Lan Ports

    Chapter 2: Installation 10G_SPF/Ethernet LAN Ports Two 10_Gigabit SFP+ (Small-form Factor Pluggable) Ethernet LAN ports, supported by the Intel 82599, are located on the I/O back panel. SPF/LAN ports 1/2 provide NC-SI network connections. In addition, an IPMI-dedicated LAN, supported by the AST2400 BMC (Baseboard Management Controller), is also located on the I/O back panel to provide LAN support for IPMI 2.0.

  • Page 42: Unit Identifier Switches/Uid Led Indicators

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Unit Identifier Switches/UID LED UID Switch Indicators Pin# Definition A rear Unit Identifier (UID) switch and a rear Ground UID LED (LED1) are located next to the Ground VGA port on the motherboard. The front UID Button In switch and the UID LED are both located on Ground...

  • Page 43: Front Control Panel

    These connectors are designed specifically for use with Supermicro's server chassis. See the figure below for the descriptions of the various control panel buttons and LED indicators. Refer to the following section for descriptions and pin definitions.

  • Page 44: Front Control Panel Pin Definitions

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Front Control Panel Pin Definitions NMI Button NMI Button Pin Definitions (JF1) The non-maskable interrupt button Pin# Definition header is located on pins 19 and 20 Control of JF1. Refer to the table on the right Ground for pin definitions.

  • Page 45: Hdd/Uid Led

    Chapter 2: Installation HDD/UID LED HDD LED Pin Definitions (JF1) The HDD LED connection is located Pin# Definition on pins 13 and 14 of JF1. Attach a UID Switch cable to pin 14 to show the HDD activ- HD Active ity status.

  • Page 46: Overheat (Oh)/Fan Fail/Pwr Fail/Uid Led

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Overheat (OH)/Fan Fail/PWR Fail/ OH/Fan Fail/ PWR Fail/Blue_UID UID LED LED Pin Definitions (JF1) Pin# Definition Connect an LED cable to pins 7 and Blue UID LED 8 of the front control panel to use the Overheat/Fan Fail/Power Fail and OH/Fan Fail/Power Fail UID LED connections.

  • Page 47: Reset Button

    Chapter 2: Installation Reset Button Reset Button Pin Definitions (JF1) The Reset Button connection is located Pin# Definition on pins 3 and 4 of JF1. Attach it to a Reset hardware reset switch on the computer Ground case to support system reset. Refer to the table on the right for pin definitions.

  • Page 48: Connecting Cables

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Connecting Cables Power Connectors ATX Power 24-pin Connector Pin Definitions (JPW1) A 24-pin main power supply connector Pin# Definition Pin # Definition (JPWR1), and two 8-pin CPU power con- +3.3V +3.3V nectors (JPWR2/JPWR3) are located on -12V (NC) +3.3V the motherboard.

  • Page 49: Fan Headers

    Chapter 2: Installation Fan Headers Fan Header Pin Definitions This motherboard has eight system/CPU Pin# Definition fan headers (Fans 1-8) on the mother- Ground board. All these 4-pin fans headers are +12V backward-compatible with the traditional Tachometer 3-pin fans. However, fan speed control is PWR Modulation available for 4-pin fans only by Thermal Management via the IPMI 2.0 interface.

  • Page 50: Internal Speaker

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Internal Speaker Internal Buzzer Pin Definition The Internal Speaker (SP1) can be used to Pin# Definitions provide audible notifications using various Pin 1 Pos. (+) Beep In beep codes. See the table on the right for pin Pin 2 Neg.

  • Page 51: Tpm/Port 80 Header

    Chapter 2: Installation TPM/Port 80 Header TPM/Port 80 Header Pin Definitions A Trusted Platform Module (TPM)/ Pin # Definition Pin # Definition Port 80 header is located at JTPM1 LCLK to provide TPM support and a Port LFRAME# <(KEY)> 80 connection. Use this header to en- LRESET# No Connection hance system performance and data...

  • Page 52: Power Smb (I C) Connector

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Power SMB (I C) Connector PWR SMB Pin Definitions The Power System Management Bus Pin# Definition C) connector (JPI C1) monitors Clock power supply, fan, and system tem- Data peratures. See the table on the right PMBUS_Alert for pin definitions.

  • Page 53: I-Sgpio 1/2 Headers

    Chapter 2: Installation I-SGPIO 1/2 Headers I-SGPIO Headers Pin Definitions Two SGPIO (Serial Link General Pin# Definition Definition Purpose Input/Output) headers are lo- cated on the motherboard. I-SGPIO1 Ground Data supports onboard I-SATA 0-3 ports, Load Ground while I-SGPIO2 supports I-SATA 4/5. Clock See the table on the right for pin Note: NC= No Connection...

  • Page 54: Jumper Settings

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Jumper Settings Explanation of Jumpers Connector Pins To modify the operation of the mother- board, jumpers can be used to choose between optional settings. Jumpers create Jumper shorts between two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board.

  • Page 55: Cmos Clear

    Chapter 2: Installation CMOS Clear JBT1 is used to clear the CMOS. Instead of pins, this "jumper" consists of contact pads to prevent accidental clearing of the CMOS. To clear the CMOS, use a metal object such as a small screwdriver to touch both pads at the same time to short the connection.

  • Page 56: Vga Enable

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual VGA Enable VGA Enable Jumper Settings Jumper JPG1 allows the user to enable Jumper Setting Definition the onboard VGA connector. The default Enabled (Default) setting is on pins 1-2 to enable the con- Disabled nection. See the table on the right for jumper settings.

  • Page 57: I 2 C Bus To Pci-Express Slots

    Chapter 2: Installation C Bus to PCI-Express Slots C for PCI-E slots Jumper Settings Use Jumpers JI C1 and JI C2 to connect Jumper Setting Definition the System Management Bus (I C) to Pins 1-2 Enabled PCI-Express slots to improve PCI per- Pins 2-3 Disabled (Default) formance.

  • Page 58: Onboard Led Indicators

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Onboard LED Indicators IPMI LAN IPMI-Dedicated LAN LEDs Link LED Activity LED An IPMI LAN is located on the I/O back panel. This LAN port has two LED indica- IPMI LAN Link LED (Left) & Activity LED (Right) tors.

  • Page 59: Sfp+/Lan 1/2 Activity Leds

    Chapter 2: Installation SFP+/LAN 1/2 Activity LEDs SFP+/LAN 1 & 2 Activity LEDs The SFP+/LAN 1 Activity LED is located at LED3, Status and SFP+/LAN 2 Activity LED is located at LED5 Color/State Definition on the motherboard. When LED3 is blinking, SFP+/ LED3: SFP+/LAN1: Green: Blinking...

  • Page 60: 2-10 Sata 3.0/S-Sata 3.0 Connections

    SATA 3.0 Connections Six SATA 3.0 ports (I-SATA 0-5), supported by the Intel PCH C612, are located on the motherboard. Please note that I-SATA 4/5 also support Supermicro Su- perDOMs, which are yellow SATADOM (Device-On-Module) connectors with power pins built in, and do not require separate external power cables. SuperDOMs are backward-compatible with non-Supermicro SATADOMs that require the external power supply.

  • Page 61: Chapter 3 Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the "Technical Support Procedures" and/or "Returning Merchandise for Service" section(s) in this chapter. Note: Always disconnect the power cord before adding, changing, or installing any hardware components.

  • Page 62: System Boot Failure

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual No Video 1. If the power is on but you have no video, remove all add-on cards and cables. 2. Use the speaker to determine if any beep codes are present. Refer to Ap- pendix A for details on beep codes. System Boot Failure If the system does not display POST or does not respond after the power is turned on, check the following:...

  • Page 63: Memory Errors

    2. Memory support: Make sure that the memory modules are supported by test- ing the modules using memtest86 or a similar utility. Note: Refer to the product page on our website @ http:\\www.supermicro. com for memory and CPU support and updates.

  • Page 64: Technical Support Procedures

    Technical Support Procedures Before contacting Technical Support, please take the following steps. Also, please note that as a motherboard manufacturer, Supermicro also sells motherboards through its channels, so it is best to first check with your distributor or reseller for...
  • Page 65 1. Please go through the Troubleshooting Procedures and Frequently Asked Questions (FAQ) sections in this chapter or see the FAQs on our website (http://www.supermicro.com/) before contacting Technical Support. 2. BIOS upgrades can be downloaded from our website (http://www.supermicro.

  • Page 66: Battery Removal And Installation

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Battery Removal and Installation Battery Removal To remove the onboard battery, follow the steps below: 1. Power off your system and unplug your power cable. 2. Locate the onboard battery as shown below. 3. Using a tool such as a pen or a small screwdriver, push the battery lock out- wards to unlock it.

  • Page 67: Frequently Asked Questions

    Note: The SPI BIOS chip used on this motherboard cannot be removed. Send your motherboard back to our RMA Department at Supermicro for repair. For BIOS Recovery instructions, please refer to the AMI BIOS Recovery Instructions posted at http://www.supermicro.com.

  • Page 68: Returning Merchandise For Service

    Shipping and handling charges will be applied for all orders that must be mailed when service is complete. For faster service, You can also request a RMA authorization online (http://www.supermicro.com/RmaForm/). This warranty only covers normal consumer use and does not cover damages in- curred in shipping or from failure due to the alternation, misuse, abuse or improper maintenance of products.

  • Page 69: Chapter 4 Bios

    When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. Note: the AMI BIOS has default text messages built in. Supermicro retains the option to include, omit, or change any of these text messages.

  • Page 70: Main Setup

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential dam- ages arising from a BIOS update. If you have to update the BIOS, do not shut down or reset the system while the BIOS is updating.
  • Page 71 Day MM/DD/YYYY format. The time is entered in HH:MM:SS format. Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. Supermicro X10DRD-i BIOS Version: This item displays the version of the BIOS ROM used in the system.

  • Page 72: Advanced Setup Configurations

    X10DRD-iTP/iNTP/LTP User’s Manual Advanced Setup Configurations Use the arrow keys to select Advanced setup and press <Enter> to access the submenu items: Warning: Take Caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency or an incorrect timing setting may cause the system to malfunction.

  • Page 73: Power Configuration

    Chapter 4: AMI BIOS Wait For 'F1' If Error Select Enabled to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled. INT19 (Interrupt 19) Trap Response Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will "capture"...

  • Page 74: Cpu Configuration

    X10DRD-iTP/iNTP/LTP User’s Manual CPU Configuration  This submenu displays the information of the CPU as detected by the BIOS. It also allows the user to configuration CPU settings. Socket 1 CPU Information/Socket 2 CPU Information This submenu displays the following information regarding the CPU installed in Socket 1 and (or) Socket 2 as detected by the BIOS.
  • Page 75 Chapter 4: AMI BIOS Execute Disable Bit (Available if supported by the OS & the CPU) Select Enable to enable the Execute-Disable Bit technology which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to overwhelm the processor or damage the system during an attack.

  • Page 76: Chipset Configuration

    X10DRD-iTP/iNTP/LTP User’s Manual Intel Virtualization Technology (Available when supported by the CPU) Select Enable to support Intel Virtualization Technology, which will allow one platform to run multiple operating systems and applications in independent parti- tions, creating multiple "virtual" systems in one physical computer. The options are Enable and Disable.
  • Page 77 Chapter 4: AMI BIOS IIO2 Configuration CPU2 SLOT7 PCI-E 3.0 x8 Use this feature to set the PCI-Exp bus speed for the slot specified above. The options are Gen (Generation) 1 (2.5 GT/s), Gen (Generation) 2 (5 GT/s), and Gen (Generation) 3 (8 GT/s). IOAT Configuration Enable IOAT (I/O Acceleration Technology) Select Enable to enable Intel I/OAT (I/O Acceleration Technology), which signifi-...
  • Page 78 X10DRD-iTP/iNTP/LTP User’s Manual QPI (Quick Path Interconnect) Configuration The following QPI information will be displayed: • Number of CPU • Number of II0 • Current QPI Link Speed: This item displays the current QPI Link speed. • Current QPI Link Frequency: This item displays the frequency of the QPI Link.

  • Page 79: Memory Configuration

    Chapter 4: AMI BIOS Memory Configuration Integrated Memory Controller (IMC) Enforce POR Select Enable to enforce POR restrictions on DDR4 frequency and voltage programming. The options are Enabled and Disabled. Memory Frequency Use this feature to set the maximum memory frequency for onboard memory modules.
  • Page 80 X10DRD-iTP/iNTP/LTP User’s Manual • P1-DIMMD1 • P2-DIMME1 • P2-DIMMF1 • P2-DIMMG1 • P2-DIMMH1 Memory RAS (Reliability_Availability_Serviceability) Configuration Use this submenu to configure the following Memory RAS settings. Memory RAS Configuration Setup RAS Mode When Disable is selected, RAS is not supported. When Mirror is selected, the motherboard maintains two identical copies of all data in memory for data backup.

  • Page 81: South Bridge Configuration

    Chapter 4: AMI BIOS correctable error, the error is corrected and sent to the requestor (the original source). Memory is updated as well. Select Enable to use Demand Scrubbing for ECC memory correction. The options are Enable and Disable. Device Tagging Select Enable to support device tagging.

  • Page 82: Sata Configuration

    X10DRD-iTP/iNTP/LTP User’s Manual SATA Configuration  When this submenu is selected, AMI BIOS automatically detects the presence of the SATA devices that are supported by the Intel PCH chip and displays the fol- lowing items: SATA Controller This item enables or disables the onboard SATA controller supported by the Intel PCH chip.
  • Page 83 Chapter 4: AMI BIOS Port 0 ~ Port 5 SATA Device Type Use this item to specify if the SATA port specified by the user should be con- nected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.

  • Page 84: Ssata Configuration

    X10DRD-iTP/iNTP/LTP User’s Manual • Software Preserve Support Port 0~ Port 5 Select Enabled to enable a SATA port specified by the user. The options are Disabled and Enabled. Port 0 ~ Port 5 Hot Plug Select Enabled to enable hot-plugging support for a port specified by the user, which will allow the user to replace a SATA disk drive installed on this port without shutting down the system.
  • Page 85 Chapter 4: AMI BIOS the I/O is inactive for an extended period of time, and the power state will return to normal when the I/O becomes active. The options are Enabled and Disabled. sSATA Port 0~ Port 3 This item displays the information detected on the installed on the sSATA port. specified by the user.
  • Page 86 X10DRD-iTP/iNTP/LTP User’s Manual Support Aggressive Link Power Management When this item is set to Enabled, the SATA AHCI controller manages the power usage of the SATA link. The controller will put the link to a low power state when the I/O is inactive for an extended period of time, and the power state will return to normal when the I/O becomes active.
  • Page 87 Chapter 4: AMI BIOS Server ME (Management Engine) Configuration This feature displays the following system ME configuration settings. • General ME Configuration • Operational Firmware Version • Recovery Firmware Version • ME Firmware Features • ME Firmware Status #1 • ME Firmware Status #2 •...
  • Page 88 X10DRD-iTP/iNTP/LTP User’s Manual Maximum Payload Select Auto for the system BIOS to automatically set the maximum payload value for a PCI-E device to enhance system performance. The options are Auto, 128 Bytes, and 256 Bytes. Maximum Read Request Select Auto for the system BIOS to automatically set the maximum size for a read request for a PCI-E device to enhance system performance.

  • Page 89: Super Io Configuration

    Chapter 4: AMI BIOS Onboard NVMe1 Option ROM/Onboard NVMe2 Option ROM Use this option to select the type of device installed in NVMe Connector 1 or NVMe Connector 2 used for system boot. The options are Disabled and EFI. Onboard Video OPROM This feature controls how the system executes UEFI (Unified Extensible Firmware Interface) and Legacy Video OPROM.

  • Page 90: Serial Port Console Redirection

    X10DRD-iTP/iNTP/LTP User’s Manual Serial Port 2 Attribute Select SOL to use COM Port 2 as a Serial_Over_LAN (SOL) port for console redi- rection. The options are COM and SOL. Serial Port Console Redirection  COM 1 Console Redirection COM1 Console Redirection Select Enabled to enable COM Port 1 for Console Redirection, which will allow a client machine to be connected to a host machine at a remote site for networking.
  • Page 91 Chapter 4: AMI BIOS Stop Bits A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard serial data communication. Select 2 Stop Bits if slower devices are used. The options are 1 and 2. Flow Control Use this item to set the flow control for Console Redirection to prevent data loss caused by buffer overflow.
  • Page 92 X10DRD-iTP/iNTP/LTP User’s Manual SOL/COM2 Console Redirection Select Enabled to use the SOL port for Console Redirection. The options are Enabled and Disabled. *If the item above set to Enabled, the following items will become available for user's configuration: SOL/COM2 Console Redirection Settings Use this feature to specify how the host computer will exchange data with the client computer, which is the remote computer used by the user.
  • Page 93 Chapter 4: AMI BIOS Flow Control Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop sending data when the receiving buffer is full. Send a "Start" signal to start data-sending when the receiving buffer is empty.
  • Page 94 X10DRD-iTP/iNTP/LTP User’s Manual Serial Port for Out-of-Band Management/Windows Emergency Management Services (EMS) The submenu allows the user to configure Console Redirection settings to sup- port Out-of-Band Serial Port management. EMS Console Redirection Select Enabled to use a COM port selected by the user for EMS Console Redi- rection.

  • Page 95: Acpi Settings

    Chapter 4: AMI BIOS The setting for each these features is displayed: Data Bits, Parity, Stop Bits ACPI Settings  WHEA Support Select Enabled to support the Windows Hardware Error Architecture (WHEA) plat- form and provide a common infrastructure for the system to handle hardware errors within the Windows OS environment to reduce system crashes and to enhance system recovery and health monitoring.

  • Page 96: Iscsi Configuration

    Select Enabled to enable TXT (Trusted Execution Technology) settings to improve data and network security. The options are Disabled and Enabled. Note: For more information on TPM, please refer to the TPM manual at http://www.supermicro.com/manuals/other/AOM-TPM-9655V_9655H.pdf iSCSI Configuration This item displays iSCSI configuration information:...

  • Page 97: Event Logs

    Chapter 4: AMI BIOS Event Logs Use this feature to configure Event Log settings. Change SMBIOS Event Log Settings  This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.

  • Page 98: View Smbios Event Log

    X10DRD-iTP/iNTP/LTP User’s Manual When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full. Select Do Nothing for the system to do nothing when the SMBIOS event log is full. The options are Do Nothing and Erase Immediately. SMBIOS Event Log Standard Settings Log System Boot Event Select Enabled to log system boot events.

  • Page 99: Ipmi

    Chapter 4: AMI BIOS IPMI Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. IPMI Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status This item indicates the status of the IPMI firmware installed in your system. System Event Log ...

  • Page 100: Bmc Network Configuration

    X10DRD-iTP/iNTP/LTP User’s Manual When SEL is Full This feature allows the user to determine what the BIOS should do when the sys- tem event log is full. Select Erase Immediately to erase all events in the log when the system event log is full. The options are Do Nothing and Erase Immediately. Note: Reboot the system for the changes to take effect.
  • Page 101 Chapter 4: AMI BIOS Station MAC Address This item displays the Station MAC address for this computer. Mac addresses are 6 two-digit hexadecimal numbers. Router IP Address This item displays the Router IP address for this computer. 4-33...

  • Page 102: Security Settings

    X10DRD-iTP/iNTP/LTP User’s Manual Security Settings This menu allows the user to configure the following security settings for the system. Password Check If this feature is set to Setup, a password is required for a user to enter the BIOS Setup utility. If Always selected, the user will need to enter a password when entering the Setup utility and upon each system boot.

  • Page 103: Boot Settings

    Chapter 4: AMI BIOS Boot Settings Use this feature to configure Boot Settings: Setup Prompt Timeout This feature allows the user to determine how long the system should wait for the setup activation key before it boots up. The default setting is 1 (second). Boot Mode Select Use this item to select the type of device to be used for system boot.
  • Page 104 X10DRD-iTP/iNTP/LTP User’s Manual • Dual Boot Order #8 • Dual Boot Order #9 • Dual Boot Order #10 • Dual Boot Order #11 • Dual Boot Order #12 • Dual Boot Order #13 • Dual Boot Order #14 • Dual Boot Order #15 ...
  • Page 105 Chapter 4: AMI BIOS  NETWORK Disk Drive BBS Priorities • Legacy Boot Order #1  UEFI Application Boot Priorities • UEFI Boot Order #1 4-37...

  • Page 106: Save & Exit

    X10DRD-iTP/iNTP/LTP User’s Manual Save & Exit Select the Save & Exit tab from the BIOS setup screen to configure the settings below. Discard Changes and Exit Select this option to quit the BIOS setup without making any permanent changes to the system configuration, and reboot the computer. Select Discard Changes and Exit from the Exit menu and press <Enter>.
  • Page 107 Chapter 4: AMI BIOS Save As User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <En- ter>. This enables the user to save any changes to the BIOS setup for future use. Restore User Defaults To set this feature, select Restore User Defaults from the Exit menu and press <En- ter>.
  • Page 108 X10DRD-iTP/iNTP/LTP User’s Manual Notes 4-40...

  • Page 109: Appendix A Bios Error Beep Codes

    Appendix A: BIOS POST Error Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed upon each system boot, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue to boot.
  • Page 110 X10DRD-iTP/iNTP/LTP Motherboard User’s Manual Notes...

  • Page 111: Appendix B Software Installation Instructions

    Appendix B Software Installation Instructions B-1 Installing Software Programs The Supermicro FTP site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the FTP site, go into the CDR_Images directory and locate the ISO file for your motherboard.

  • Page 112: Installing Superdoctor® 5

    X10DRD-iTP/iNTP/LTP Motherboard User’s Manual B-2 Installing SuperDoctor ® The Supermicro SuperDoctor® 5 is a hardware monitoring program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program monitors system health information, such as CPU temperature, system voltages, system power consumption, and fan speed, and provides alerts via email or the Simple Network Management Protocol (SNMP).

  • Page 113: Appendix C Uefi Bios Recovery Instructions

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update. If you need to update the BIOS, do not shut down or reset the system while the BIOS is updating to avoid possible boot failure.
  • Page 114 Root "\" Directory of a USB device or a writeable CD/DVD. Note: If you cannot locate the "Super.ROM" file in your driver disk, visit our website at www.supermicro.com to download the BIOS image into a USB flash device and rename it "Super.ROM" for BIOS recovery use.
  • Page 115 Appendix C: UEFI BIOS Recovery 4. After locating the new BIOS binary image, the system will enter the BIOS Recovery menu as shown below. Note: At this point, you may decide if you want to start with BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below. 5.
  • Page 116 X10DRD-iTP/iNTP/LTP Motherboard User’s Manual 6. After the process of BIOS recovery is completed, press any key to reboot the system. 7. Using a different system, extract the BIOS package into a bootable USB flash drive. 8. When a DOS prompt appears, enter FLASH.BAT BIOSname.### at the prompt.
  • Page 117 Accordingly, Supermicro disclaims any and all liability, and should the buying party use or sell such products for use in such ultra-hazardous applications, it does so entirely at its own risk. Furthermore, the buying party agrees to fully indemnify, defend, and hold Supermicro harmless for and against any and all claims, demands,...

This manual is also suitable for:

Supero x10drd-intpSupero x10drd-ltp

Table of Contents
