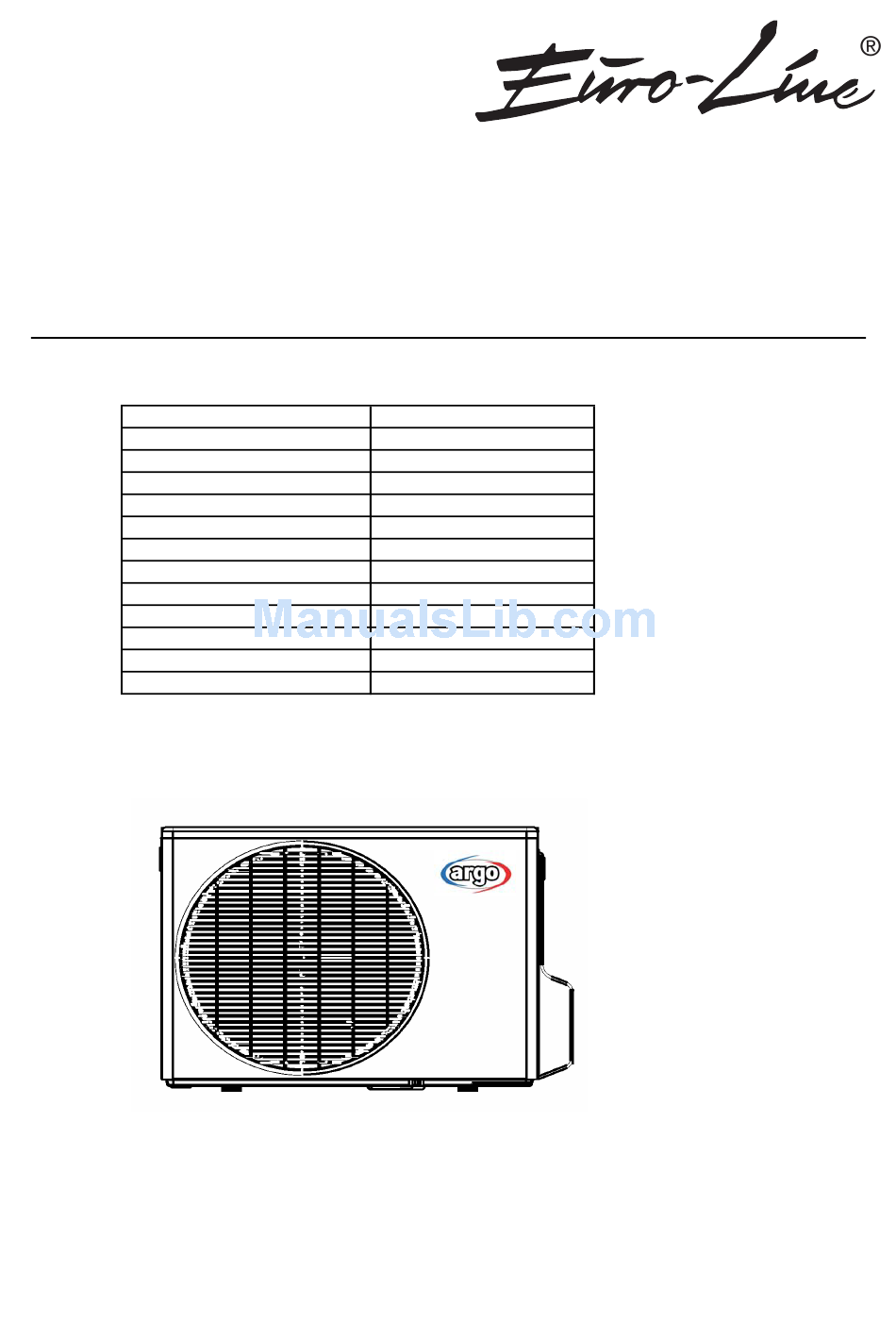

TECHNICAL DATA
& SERVICE MANUAL
OUTDOOR UNIT: AE22AC/ACL/AH
SPLIT SYSTEM AIR CONDITIONER
Model No.
AE22AH
AE28AH
AE38AH
AE22AC
AE28AC
AE38AC
AE42AC
AE42AH
AE22ACL
AE28ACL
AE38ACL
AE42ACL
AE28AC/ACL/AH
AE38AC/ACL/AH
AE42AC/ACL/AH
Product Code No.
387031006
387031007
387031008
387031009
387031010
387031011
387031043
387031048
387031053
387031054
387031055
387031056
0.8180.470.0
07/2005
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Euro-Line AE22AH
Summary of Contents for Euro-Line AE22AH
-
Page 1: Technical Data
TECHNICAL DATA & SERVICE MANUAL OUTDOOR UNIT: AE22AC/ACL/AH AE28AC/ACL/AH AE38AC/ACL/AH AE42AC/ACL/AH SPLIT SYSTEM AIR CONDITIONER Model No. Product Code No. AE22AH 387031006 AE28AH 387031007 AE38AH 387031008 AE22AC 387031009 AE28AC 387031010 AE38AC 387031011 AE42AC 387031043 AE42AH 387031048 AE22ACL 387031053 AE28ACL 387031054... - Page 2 • Ground the unit following local electrical codes. IMPORTANT! • The Yellow/Green wire cannot be used for any connection Please read before installation different from the ground connection. • Connect all wiring tightly. Loose wiring may cause overheating This air conditioning system meets strict safety and operating at connection points and a possible fire hazard.
-
Page 3: Table Of Contents
Table of Contents Page 1. OPERATING RANGE 2. SPECIFICATIONS 2-1 Unit specifications 2-2 Major Component specifications 2-3 Other Component specifications 3. DIMENSIONAL DATA 4. REFRIGERANT FLOW DIAGRAM 5. PERFORMANCE DATA 5-1 Performance Charts 5-2 Cooling Capacity 5-3 Heating Capacity 6. ELECTRICAL DATA 6-1 Electrical characteristics 6-2 Electric Wiring Diagram 6-3 System Wiring Diagram... -
Page 4: Operating Range
1. OPERATING RANGE Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp. Maximum 32°C D.B. / 23°C W.B. 46°C D.B. Cooling Minimum 21°C D.B. / 15°C W.B. 10°C D.B. / -10°C D.B.(*) Maximum 27°C D.B. 24°C D.B. / 18°C W.B. Heating Minimum -9°C D.B. -
Page 5: Specifications
2. SPECIFICATIONS 2-1 Unit Specifications AE22AC/ACL/AH 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Heating Performance * AW22AL Capacity 2,32 2,44 7920 8330 BTU/h Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Heating Electrical Rating 198 ~ 264 Available voltage range 2,95 Running amperes... - Page 6 AE28AC/ACL/AH 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Heating Performance * AW28AL Capacity 2,75 2,85 9380 9720 BTU/h Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Heating Electrical Rating 198 ~ 264 Available voltage range Running amperes Power input Power factor...
- Page 7 AE38AC/ACL/AH 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Heating Performance * AW38AL Capacity 3,63 4,00 12380 13640 BTU/h Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Heating Electrical Rating 198 ~ 264 Available voltage range 5,00 Running amperes 1115...
- Page 8 AE42AC/ACL/AH 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Heating Performance * AW42AL Capacity 4,00 4,48 13640 15280 BTU/h Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Heating Electrical Rating 198 ~ 264 Available voltage range Running amperes 1330 1395...
-
Page 9: Major Component Specifications
2-2 Major Component Specifications Outdoor Unit: AE22AC/ACL/AH Compressor Rotary (Hermetic) Type GK086PAE Compressor model 2022 (at 220V) Nominal output FVC68D…330±10 Compressor oil…Amount Ω C-R: 4,8 Coil resistance (Ambient temp. 25°C) C-S: 4,76 External protector Safety devices Type MRA98854-12026 Overload relay 150±5 Operating Temp. - Page 10 Outdoor Unit: AE28AC/ACL/AH Compressor Rotary Type GK113PAG Compressor model 2637 (at 220V) Nominal output FVC68D…330±10 Compressor oil…Amount Ω C-R:4.02 Coil resistance (Ambient temp. 20°C) C-S:4.19 External - MRA12130-12026 Safety devices Type 150±5 Operating Temp. Open °C 69±9 Close °C Run capacitor µF Fan &...
- Page 11 Outdoor Unit: AE38AC/ACL/AH Compressor Rotary Type PA145X2C-4FT Compressor model 3520 (at 220V) Nominal output RB68AF/T68/α68TF…480 Compressor oil…Amount Ω C-R:2,35 Coil resistance (Ambient temp. 20°C) C-S:3,22 Internal - UP3RE0591-T56 Safety devices Type Operating Temp. Open °C Close °C 29,9 Operating current (at 25°C) Run capacitor µF Fan &...
- Page 12 Outdoor Unit: AE42AC/ACL/AH Compressor Rotary Type RN 165 VHSMT Compressor model 4070 (at 220V) Nominal output MEL56…520 Compressor oil…Amount Ω C-R:2,23 Coil resistance (Ambient temp. 20°C) C-S:4,07 Internal - UP3QF0501-T56 Safety devices Type 150±5 Operating Temp. Open °C 90±10 Close °C Trip in 3 to 10 s at 36A Operating current (at 25°C)
-
Page 13: Other Component Specifications
2-3 Other Component Specifications Outdoor Unit: AE22AC/ACL/AH AE28AC/ACL/AH SQ-213(Coil) SHF-4H-23U(Valve) 4-way Valve (20S) AC 220/240V,50Hz,6W Coil rating Ω (at 20°C) Coil resistance Outdoor sensor Ω (at 25°C) 10K±2% Resistance AE38AC/ACL/AH SQ-213(Coil) SHF-7H-34U(Valve) 4-way Valve (20S) AC 220/240V,50Hz,6W Coil rating Ω (at 20°C) Coil resistance Outdoor sensor Ω... -
Page 14: Dimensional Data
3. DIMENSIONAL DATA... -
Page 15: Refrigerant Flow Diagram
4. REFRIGERANT FLOW DIAGRAM Indoor Unit: AW22AL Outdoor Unit: AE22AC/ACL/AH... - Page 16 Indoor Unit: AW28AL Outdoor Unit: AE28AC/ACL/AH...
- Page 17 Indoor Unit: AW38AL Outdoor Unit: AE38AC/ACL/AH...
- Page 18 Indoor Unit: AW42AL Outdoor Unit: AE42AC/ACL/AH...
-
Page 19: Performance Data
5. PERFORMANCE DATA 5-1 Performance charts AE22AC/ACL/AH Cooling Characteristics Heating Characteristics Notes: Points of Rating condition Data related to matching with AW22AL... - Page 20 AE28AC/ACL/AH Cooling Characteristics Heating Characteristics Notes: Points of Rating condition Data related to matching with AW28AL...
- Page 21 AE38AC/ACL/AH Cooling Characteristics Heating Characteristics Notes: Points of Rating condition Data related to matching with AW38AL...
- Page 22 AE42AC/ACL/AH Cooling Characteristics Heating Characteristics Notes: Points of Rating condition Data related to matching with AW42AL...
-
Page 23: Cooling Capacity
5-2 Cooling Capacity AE22AC/ACL/AH OUTDOOR UNIT: AW22AL INDOOR UNIT: 220 - 240V ~ 50Hz RATING CAPACITY 2,32 kW moisture removal 0,8 l/h POWER INPUT 0,68 kW max power input 0,8 kW AIR FLOW RATE 380 m³/h RATING CONDITIONS Cooling: Indoor air temperature 27°C D.B. / 19°C W.B. Outdoor air temperature 35°C D.B. - Page 24 AE28AC/ACL/AH OUTDOOR UNIT: AW28AL INDOOR UNIT: 220 - 240V ~ 50Hz RATING CAPACITY 2,75 kW moisture removal 1,1 l/h POWER INPUT 0,8 kW max power input 1 kW AIR FLOW RATE 450 m³/h RATING CONDITIONS Cooling: Indoor air temperature 27°C D.B. / 19°C W.B. Outdoor air temperature 35°C D.B.
- Page 25 AE38AC/ACL/AH OUTDOOR UNIT: AW38AL INDOOR UNIT: 220 - 240V ~ 50Hz RATING CAPACITY 3,63 kW moisture removal 1,5 l/h POWER INPUT 1,115 kW max power input 1,5 kW AIR FLOW RATE 635 m³/h RATING CONDITIONS Cooling: Indoor air temperature 27°C D.B. / 19°C W.B. Outdoor air temperature 35°C D.B.
- Page 26 AE42AC/ACL/AH OUTDOOR UNIT: AW42AL INDOOR UNIT: 220 - 240V ~ 50Hz RATING CAPACITY 4,00 kW moisture removal 1,5 l/h POWER INPUT 1,33 kW max power input 1,8 kW AIR FLOW RATE 660 m³/h RATING CONDITIONS Cooling: Indoor air temperature 27°C D.B. / 19°C W.B. Outdoor air temperature 35°C D.B.
-
Page 27: Heating Capacity
5-3 Heating Capacity 120% 100% Outdoor temperature (°C W.B.) NOTE 1- Black dot in the chart indicates the following rating condition. Indoor: 20°C D.B. Outdoor: 7°C D.B. / 6°C W.B. 2- The above chart includes the weighted deicing influence... -
Page 28: Electrical Data
6. ELECTRICAL DATA 6-1 Electrical characteristics OUTDOOR UNIT: AE22AC/ACL/AH COOLING Complete Unit performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 3,10 Power input 0,680 Rating Conditions: Indoor Air Temperature 27°C D.B. / 19°C W.B. Outdoor Air Temperature 35°C D.B. HEATING Complete Unit performance at... - Page 29 OUTDOOR UNIT: AE28AC/ACL/AH COOLING Complete Unit performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 3,60 Power input 0,800 Rating Conditions: Indoor Air Temperature 27°C D.B. / 19°C W.B. Outdoor Air Temperature 35°C D.B. HEATING Complete Unit performance at 230V 1-Phase 50 Hz Rating conditions Running Amps.
- Page 30 OUTDOOR UNIT: AE38AC/ACL/AH COOLING Complete Unit performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 5,00 Power input 1,115 Rating Conditions: Indoor Air Temperature 27°C D.B. / 19°C W.B. Outdoor Air Temperature 35°C D.B. HEATING Complete Unit performance at 230V 1-Phase 50 Hz Rating conditions Running Amps.
- Page 31 OUTDOOR UNIT: AE42AC/ACL/AH COOLING Complete Unit performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 6,10 Power input 1,330 Rating Conditions: Indoor Air Temperature 27°C D.B. / 19°C W.B. Outdoor Air Temperature 35°C D.B. HEATING Complete Unit performance at 230V 1-Phase 50 Hz Rating conditions Running Amps.
-
Page 32: Electric Wiring Diagram
6-2 Electric Wiring Diagram AE22AH OUTDOOR UNIT: AE22AC AE28AH AE38AC OUTDOOR UNIT: AE28AC AE38AH... - Page 33 AE42AC OUTDOOR UNIT: AE42AH AE42ACL OUTDOOR UNIT:...
- Page 34 AE22ACL OUTDOOR UNIT: AE28ACL AE38ACL...
-
Page 35: System Wiring Diagram
6-3 System Wiring Diagram AE22AC/ACL/AH OUTDOOR UNIT: AE28AC/ACL/AH AE38AC/ACL/AH AE42AC/ACL/AH... - Page 36 Via Varese, 90 - 21013 Gallarate - Va - Italy Tel. +39 0331 755111 - Fax +39 0331 776240 www.argoclima.it...
