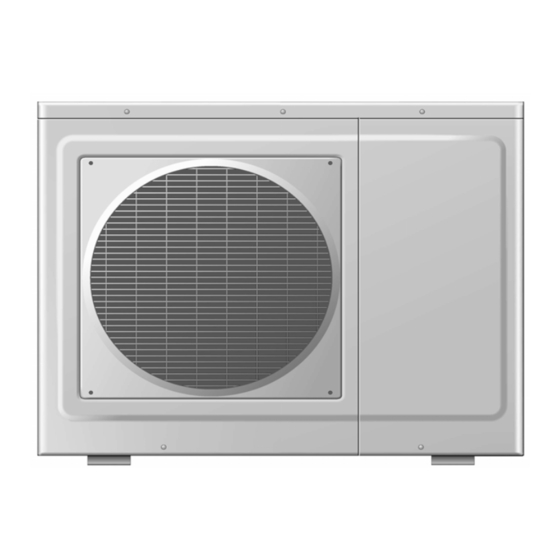

- Page 1 TECHNICAL DATA & SERVICE MANUAL OUTDOOR UNIT: AE52AC/ACL AE52AH AE52AC3/ACL3 AE52AH3 SPLIT SYSTEM AIR CONDITIONER Model No. Product Code No. AE52AC 387031044 AE52AC3 387031045 AE52AH 387031049 AE52AH3 387031050 AE52ACL 387031057 AE52ACL3 387031058 0.8180.462.0 08/2005...
- Page 2 • Ground the unit following local electrical codes. IMPORTANT! • The Yellow/Green wire cannot be used for any connection Please read before installation different from the ground connection. • Connect all wiring tightly. Loose wiring may cause overheating This air conditioning system meets strict safety and operating at connection points and a possible fire hazard.
-
Page 3: Table Of Contents
Table of Contents Page 1. OPERATING RANGE 2. SPECIFICATIONS 2-1 Unit specifications 2-2 Major Component specifications 2-3 Other Component specifications 3. DIMENSIONAL DATA 4. REFRIGERANT FLOW DIAGRAM 5. PERFORMANCE DATA 5-1 Performance Charts 5-2 Cooling Capacity 5-3 Heating Capacity 6. ELECTRICAL DATA 6-1 Electrical characteristics 6-2 Electric Wiring Diagram 6-3 System Wiring Diagram... -
Page 4: Operating Range
1. OPERATING RANGE Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp. Maximum 32°C D.B. / 23°C W.B. 46°C D.B. Cooling Minimum 21°C D.B. / 15°C W.B. 10°C D.B. / -10°C D.B.(*) Maximum 27°C D.B. 24°C D.B. / 18°C W.B. Heating Minimum -9°C D.B. -
Page 5: Specifications
2. SPECIFICATIONS 2-1 Unit Specifications AE52AC/ACL 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Heating Performance * AW52AL Capacity 5,50 18760 BTU/h Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Heating Electrical Rating 198 ~ 264... - Page 6 AE52AH 220 - 240V ~ 50Hz Power source 230V Voltage rating Cooling Heating Performance * AW52AL Capacity 5,50 5,56 18760 18960 BTU/h Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Heating Electrical Rating 198 ~ 264 Available voltage range Running amperes 1690 1600...
- Page 7 AE52AC3/ACL3 380 - 415V 3N ~ 50Hz Power source 415V Voltage rating Cooling Heating Performance * AW52AL Capacity 5,50 5,56 18760 18960 BTU/h Air circulation (High) m³/h Moisture removal (High) Liters/h Cooling Heating Electrical Rating 342 ~ 418 Available voltage range 3,06 Running amperes 1690...
-
Page 8: Major Component Specifications
2-2 Major Component Specifications Outdoor Unit: AE52AC/ACL AE52AH Compressor Rotary (Hermetic) Type PA200X2CS-4KU1 Compressor model 4860(at 220V) Nominal output VG74…750 Compressor oil…Amount Ω C-R:1.85 Coil resistance (Ambient temp. 25°C) C-S:2.62 Internal protector Safety devices Type UP3SE0391-T39 Overload relay Operating Temp. Open °C... - Page 9 Outdoor Unit: AE52AC3/ACL3 AE52AH3 Compressor Rotary (Hermetic) Type NN21YDAMT Compressor model 5500(at 220V) Nominal output MEL 56…1300 Compressor oil…Amount Ω 3,59 Coil resistance (Ambient temp. 25°C) Internal protector Safety devices Type CS01D350H03(SDR-S400) Overload relay Operating Temp. Open °C Close °C Operating amp.(Ambient temp.25°C) Fan &...
-
Page 10: Other Component Specifications
Contact Rating Positive phase: ON Operation Negative phase: OFF Power Relay GC3-18/01KKTH Type AC 220/230V,50Hz/60Hz Coil Rating Contact rating Coil resistance Ω 1000±10% AE52AC AE52ACL AE52AH Power Relay CJX9B-25S/01TH Type AC 220/230V,50Hz/60Hz Coil Rating Contact rating 1100±10% Coil resistance Ω AE52ACL... -
Page 11: Dimensional Data
3. DIMENSIONAL DATA AE52AC/ACL Outdoor Unit: AE52AH AE52AC3/ACL3... -
Page 12: Refrigerant Flow Diagram
4. REFRIGERANT FLOW DIAGRAM Indoor Unit: Outdoor Unit: AE52AC/ACL AE52AC3/ACL3... - Page 13 Indoor Unit: Outdoor Unit: AE52AH AE52AH3...
-
Page 14: Performance Data
5. PERFORMANCE DATA 5-1 Performance charts AE52AC/ACL AE52AH AE52AC3/ACL3 AE52AH3 Cooling Characteristics Heating Characteristics... -
Page 15: Cooling Capacity
5-2 Cooling Capacity AE52AC/ACL OUTDOOR UNIT: AE52AH AE52AC3/ACL3 AE52AH3 AW52AL INDOOR UNIT: 220 - 240V ~ 50Hz RATING CAPACITY 5,50 kW moisture removal 1,8 l/h POWER INPUT 1,69 kW max power input 2,26 kW AIR FLOW RATE 930 m³/h RATING CONDITIONS Cooling: Indoor air temperature 27°C D.B. -
Page 16: Heating Capacity
5-3 Heating Capacity 120% 100% Outdoor temperature (°C W.B.) NOTE 1- Black dot in the chart indicates the following rating condition. Indoor: 20°C D.B. Outdoor: 7°C D.B. / 6°C W.B. 2- The above chart includes the weighted deicing influence... -
Page 17: Electrical Data
6. ELECTRICAL DATA 6-1 Electrical characteristics OUTDOOR UNIT: AE52AC/ACL AE52AH COOLING Complete Unit performance at 230V 1-Phase 50 Hz Rating conditions Running Amps. 7,50 Power input 1,690 Rating Conditions: Indoor Air Temperature 27°C D.B. / 19°C W.B. Outdoor Air Temperature 35°C D.B. - Page 18 OUTDOOR UNIT: AE52AC3/ACL3 AE52AH3 COOLING Complete Unit performance at 380V 3-Phase 50 Hz Rating conditions Running Amps. 3,06 Power input 1,690 Rating Conditions: Indoor Air Temperature 27°C D.B. / 19°C W.B. Outdoor Air Temperature 35°C D.B. HEATING Complete Unit performance at 380V 3-Phase 50 Hz Rating conditions Running Amps.
-
Page 19: Electric Wiring Diagram
6-2 Electric Wiring Diagram AE52AC/AH OUTDOOR UNIT: AE52ACL OUTDOOR UNIT:... - Page 20 AE52AC3/AH3 OUTDOOR UNIT: AE52ACL3 OUTDOOR UNIT:...
-
Page 21: System Wiring Diagram
6-3 System Wiring Diagram AE52AC/ACL AE52AH AE52AC3/ACL3 AE52AH3... - Page 22 Via Varese, 90 - 21013 Gallarate - Va - Italy Tel. +39 0331 755111 - Fax +39 0331 776240 www.argoclima.it...
