Euro-Line AWR508HL Technical & Service Manual

Split system air conditioner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

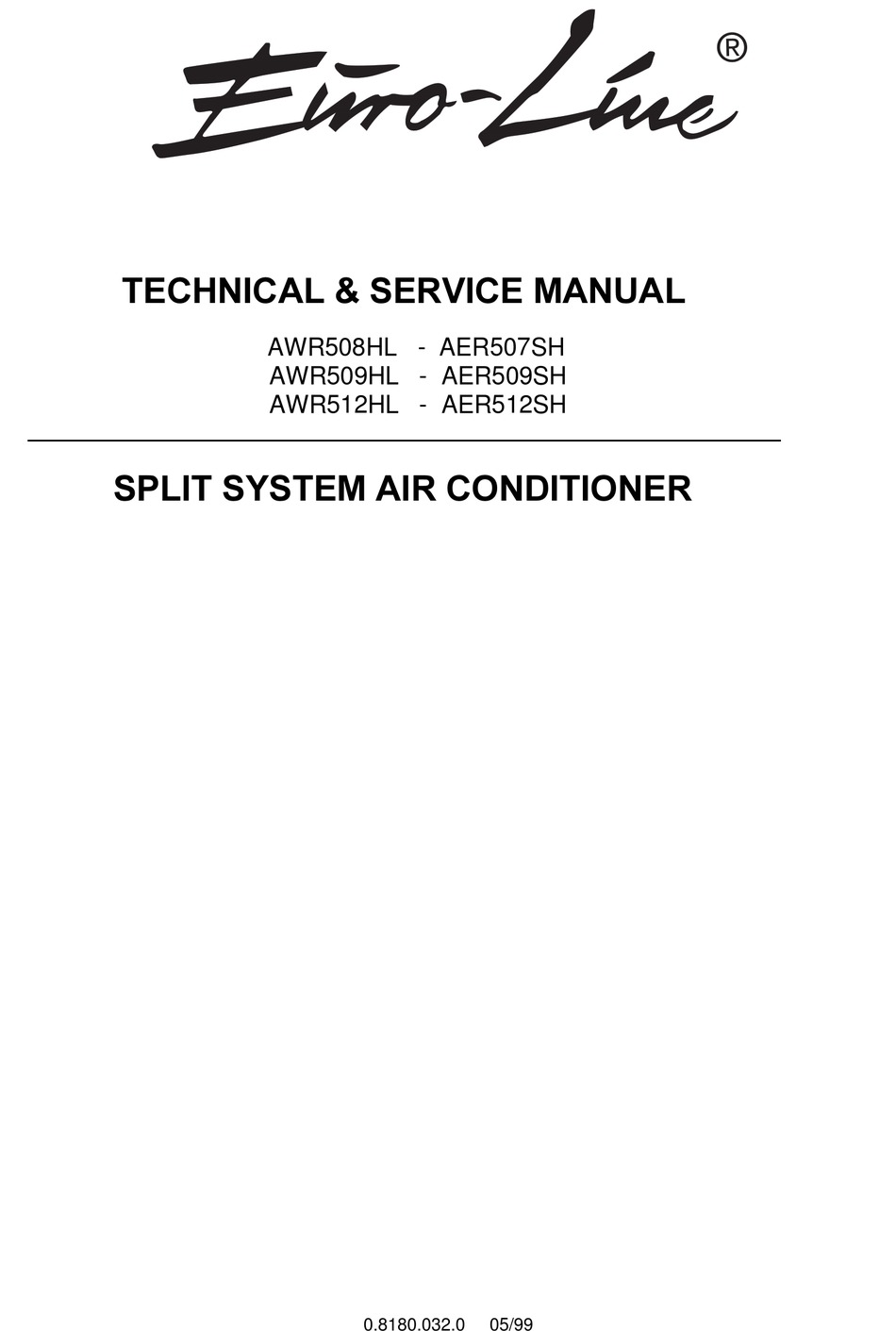

7(&+1,&$/
6(59,&( 0$18$/
AWR508HL - AER507SH
AWR509HL - AER509SH
AWR512HL - AER512SH
63/,7 6<67(0 $,5 &21',7,21(5
0.8180.032.0
05/99

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWR508HL and is the answer not in the manual?

Questions and answers

Related Manuals for Euro-Line AWR508HL

Summary of Contents for Euro-Line AWR508HL

  • Page 1 7(&+1,&$/ 6(59,&( 0$18$/ AWR508HL - AER507SH AWR509HL - AER509SH AWR512HL - AER512SH 63/,7 6<67(0 $,5 &21',7,21(5 0.8180.032.0 05/99...
  • Page 2 Important! When Transporting Be careful when picking up and moving the indoor and Please Read Before Starting outdoor units. Get a partner to help, and bend your knees when lifting to reduce strain on your back. Sharp This air conditioning system meets strict safety and edges or thin aluminum fins on the air conditioner can operating standards.

  • Page 3: Table Of Contents

    Table of Contents Page 1. OPERATING RANGE ..........................1 2. SPECIFICATIONS 2-1. Unit Specifications .......................... 2 2-2. Major Component Specifications....................5 2-3. Other Component Specifications.....................11 3. DIMENSIONAL DATA..........................12 4. REFRIGERANT FLOW DIAGRAM ......................15 5. PERFORMANCE DATA 5-1. Performance charts ........................17 5-2.

  • Page 4: Operating Range

    1. OPERATING RANGE Temperature Indoor Air Intake Temp. Outdoor Air Intake Temp. Maximum 32°C D.B. / 23°C W.B. 43°C D.B. Cooling Minimum 19°C D.B. / 14°C W.B. 19°C D.B. Maximum 27°C D.B. 24°C D.B. / 18°C W.B. Heating Minimum 16°C D.B. –...

  • Page 5: Specifications

    2. SPECIFICATIONS 2-1. Unit Specifications Indoor Unit AWR508HL Outdoor Unit AER507SH Power Source 220–240V ~ 50Hz Voltage rating 230 V Performance Cooling Heating Capacity 2.20 2.55 BTU/h 7,500 8,700 Air circulation (High) Moisture removal (High) Liters/h — Electrical Rating Cooling...
  • Page 6 Indoor Unit AWR509HL Outdoor Unit AER509SH Power Source 220–240V ~ 50Hz Voltage rating 220/230/240 V Performance Cooling Heating Capacity 2.65 2.65 2.70 3.20 3.20 3.25 BTU/h 9,000 9,000 9,200 10,900 / 10,900 / 11,100 Air circulation (High) Moisture removal (High) Liters/h —...
  • Page 7 Indoor Unit AWR512HL Outdoor Unit AER512SH Power Source 220–240V ~ 50Hz Voltage rating 220/230/240 V Performance Cooling Heating Capacity 3.30 3.35 3.35 3.90 3.90 4.00 BTU/h 11,300 / 11,400 / 11,400 13,300 / 13,300 / 13,600 Air circulation (High) Moisture removal (High) Liters/h —...

  • Page 8: Major Component Specifications

    2-2. Major Component Specifications 2-2-1. Indoor Unit Indoor Unit AWR508HL Controller Part No. POW-K98EH(A), POW-K8EH(B) Controls Microprocessor Control circuit fuse 250 V 3.15 A Remote Control Unit RCS-8HPS3E Fan & Fan Motor Type Cross-flow Q'ty ... Dia. and length 1 ... ø95 / L617 Fan motor model ...
  • Page 9 Indoor Unit AWR509HL Controller PCB Part No. POW-K98EH(A), POW-K8EH(B) Controls Microprocessor Control circuit fuse 250 V 3.15 A Remote Control Unit RCS-8HPS3E Fan & Fan Motor Type Cross-flow Q'ty ... Dia. and length 1 ... ø95 / L617 Fan motor model ... Q'ty KFV4Q-11H5P-S ...
  • Page 10 Indoor Unit AWR512HL Controller PCB Part No. POW-K78EH(A), POW-K8EH(B) Controls Microprocessor Control circuit fuse 250 V 3.15 A Remote Control Unit RCS-8HPS3E Fan & Fan Motor Type Cross-flow Q'ty ... Dia. and length 1 ... ø95 / L617 Fan motor model ... Q'ty KFV4Q-11H5P-S ...
  • Page 11 2-2-2. Outdoor Unit Outdoor Unit AER507SH Controller POW-C96GH Compressor Type Rotary (Hermetic) Compressor model C-RN75H5B 80225235 Nominal output Compressor oil ... Amount FV68S ... 500 Ω Coil resistance (Ambient temp. 25°C) C–R : 3.38 C–S : 7.49 Safety devices Type External(OLR A) External(OLR T) Overload relay...
  • Page 12 Outdoor Unit AER509SH Controller PCB POW-C96GH Compressor Type Rotary (Hermetic) Compressor model C-RN90H5A 80228335 Nominal output Compressor oil ... Amount FV68S ... 500 Ω Coil resistance (Ambient temp. 25°C) C–R : 3.07 C–S : 7.97 Safety devices Type External(OLR A) External(OLR T) Overload relay MRA99057-9201...
  • Page 13 Outdoor Unit AER512SH Controller PCB POW-C96GH Compressor Type Rotary (Hermetic) Compressor model C-RN110H5B 80235645 Nominal output 1,100 Compressor oil ... Amount FV68S ... 550 Ω Coil resistance (Ambient temp. 25°C) C–R : 1.962 C–S : 5.38 Safety devices Type External(OLR A) External(OLR T) Overload relay MRA98596-9201...

  • Page 14: Other Component Specifications

    2-3. Other Component Specifications Indoor Unit AWR508HL - AWR509HL AWR512HL Transformer (TR) ATR-J105 Rating Primary AC 230V, 50 / 60 Hz Secondary 19V, 0.526A Capacity 10VA Ω (at 21°C) Coil resistance Primary (WHT – WHT): 205 ± 10% Secondary (BRN – BRN): 2.0 ±...

  • Page 15: Dimensional Data

    3. DIMENSIONAL DATA Indoor Unit AWR508HL - AWR509HL AWR512HL Drain hose ø18 Remote control unit 18.5 99.5 58.5 Narrow tube ø6.35 (1/4") Center of tubing hole (2 places) Wide tube ø9.52 (3/8") AWR508-509 Wide tube ø12.7 (1/2") AWR512 Unit : mm...
  • Page 16 Outdoor Unit AER507SH - AER509SH Air intake Air discharge 4 – ø12 holes 4 – ø3.1 holes N O T E <Location of Service Valve> Service valves are located behind the side panel. See the illustration below ( * ). Wide tube service valve ø9.52 (3/8") Narrow tube service valve...
  • Page 17 Outdoor Unit AER512SH Air intake Air discharge Wide tube service valve 4 – ø12 holes ø12.7 (1/2") Narrow tube service valve 4 – ø3.3 holes ø6.35 (1/4") Unit : mm...

  • Page 18: Refrigerant Flow Diagram

    4. REFRIGERANT FLOW DIAGRAM Indoor Unit AWR508HL - AWR509HL Outdoor Unit AER507SH - AER509SH Indoor unit Outdoor unit Accumulator Wide tube service Wide tube valve 4-way Muffler valve O.D. ø9.52 mm (3/8 ") Narrow tube service Capillary tube Capillary tube...
  • Page 19 Insulation of Refrigerant Tubing IMPORTANT Because capillary tubing is used in the outdoor unit, both the wide and narrow tubes of this air conditioner become cold. To prevent heat loss and wet floors due to dripping of condensation, both tubes must be well insulated with a proper insulation material.

  • Page 20: Performance Data

    5. PERFORMANCE DATA 5-1. Performance charts Indoor Unit AWR508HL Outdoor Unit AER507SH Cooling Characteristics Heating Characteristics Indoor inlet air Indoor inlet air D.B. temp. (°C) D.B. temp. (°C) –5 Outdoor inlet air D.B. temp. (°C) Outdoor inlet air D.B. temp. (°C)
  • Page 21 Indoor Unit AWR509HL Outdoor Unit AER509SH ■ Cooling Characteristics ■ Heating Characteristics Indoor inlet air Indoor inlet air D.B. temp. (°C) D.B. temp. (°C) –5 Outdoor inlet air D.B. temp. (°C) Outdoor inlet air D.B. temp. (°C) Indoor inlet air Indoor inlet air D.B.
  • Page 22 Indoor Unit AWR512HL Outdoor Unit AER512SH ■ Cooling Characteristics ■ Heating Characteristics Indoor inlet air Indoor inlet air D.B. temp. (°C) D.B. temp. (°C) –5 Outdoor inlet air D.B. temp. (°C) Outdoor inlet air D.B. temp. (°C) Indoor inlet air Indoor inlet air D.B.

  • Page 23: Air Throw Distance Chart

    5-2. Air Throw Distance Chart Indoor Unit AWR508HL Cooling Room air temp. : 27°C Fan speed High Horizontal distance (m) Axis air velocity 0° Flap angle 30° Heating Room air temp. : 20°C Fan speed High Horizontal distance (m) Axis air velocity 45°...
  • Page 24 Indoor Unit AWR509HL Cooling Room air temp. : 27°C Fan speed High Horizontal distance (m) Axis air velocity 0° Flap angle 30° Heating Room air temp. : 20°C Fan speed High Horizontal distance (m) Axis air velocity 45° Flap angle 60°...
  • Page 25 Indoor Unit AWR512HL Cooling Room air temp. : 27°C Fan speed High Horizontal distance (m) Axis air velocity 0° Flap angle 30° Heating Room air temp. : 20°C Fan speed High Horizontal distance (m) Axis air velocity 45° Flap angle 60°...

  • Page 26: Cooling Capacity

    5-3. Cooling Capacity Indoor Unit AWR508HL Outdoor Unit AER507SH 240V Single Phase 50Hz RATING CAPACITY 2.20 kW AIR FLOW RATE 430 m EVAPORATOR CONDENSER ENT. TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B. D.B. 2.22 2.12 2.02 1.93 1.81 1.67 0.56 0.61...
  • Page 27 Indoor Unit AWR509HL Outdoor Unit AER509SH 240V Single Phase 50Hz RATING CAPACITY 2.70 kW AIR FLOW RATE 470 m EVAPORATOR CONDENSER ENT. TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B. D.B. 2.72 2.60 2.48 2.37 2.22 2.05 0.71 0.77 0.82 0.89 0.96 1.03 1.86...
  • Page 28 Indoor Unit AWR512HL Outdoor Unit AER512SH 240V Single Phase 50Hz RATING CAPACITY 3.35 kW AIR FLOW RATE 490 m EVAPORATOR CONDENSER ENT. TEMP. °C OUTDOOR AMBIENT TEMP. °C W.B. D.B. 3.38 3.23 3.08 2.93 2.76 2.54 0.96 1.04 1.11 1.19 1.30 1.42 2.22...

  • Page 29: Heating Capacity

    5-4. Heating Capacity –8 –5 Outdoor temperature (°C D.B.) NOTE … Point of Rating condition Black dot in the chart indicate the following rating condition. Indoor : 20°C D.B. Outdoor : 7°C D.B. / 6°C W.B. 2) Above characteristics indicate instantaneous operation, which does not take into account defrost operation.

  • Page 30: Electrical Data

    6. ELECTRICAL DATA 6-1. Electrical Characteristics Indoor Unit AWR508HL Outdoor Unit AER507SH COOLING Indoor Unit Outdoor Unit Complete Unit Fan Motor Fan Motor Compressor Performance at 230V ~ 50Hz Rating Conditions Running Amps. 0.11 0.26 Power Input 0.025 0.058 0.737 0.82...
  • Page 31 Indoor Unit AWR509HL Outdoor Unit AER509SH COOLING Indoor Unit Outdoor Unit Complete Unit Fan Motor Fan Motor Compressor Performance at 220 – 240V ~ 50Hz Rating Conditions Running Amps. 0.11 / 0.12 0.25 / 0.27 Power Input kW 0.025 / 0.029 0.054 / 0.063 0.91 / 0.94...
  • Page 32 Indoor Unit AWR512HL Outdoor Unit AER512SH COOLING Indoor Unit Outdoor Unit Complete Unit Fan Motor Fan Motor Compressor Performance at 220 – 240V ~ 50Hz Rating Conditions Running Amps. 0.13 / 0.14 0.30 / 0.32 Power Input kW 0.029 / 0.033 0.066 / 0.076 1.22 / 1.26...

  • Page 33: Electric Wiring Diagrams

    6-2. Electric Wiring Diagrams To avoid electrical shock hazard, be sure to Indoor Unit AWR508HL - AWR509HL AWR512HL disconnect power before checking, servicing WARNING and/or cleaning any electrical parts.
  • Page 34 To avoid electrical shock hazard, be sure to Outdoor Unit AER507SH - AER509SH disconnect power before checking, servicing WARNING and/or cleaning any electrical parts.
  • Page 35 To avoid electrical shock hazard, be sure to Outdoor Unit AER512SH disconnect power before checking, servicing WARNING and/or cleaning any electrical parts.

  • Page 36: Function

    7. FUNCTION 7-1. Room Temperature Control Cooling Room temperature control is obtained by cycling the compressor ON and OFF under control of the room temperature sensor in the remote control unit. The room temperature (and other information) is transmitted every 3 minutes by the remote control unit to the controller in the indoor unit.
  • Page 37 Heating Room temperature control is obtained by cycling the compressor ON and OFF under control of the room temperature sensor in the remote control unit. The room temperature (and other information) is transmitted every 3 minutes by the remote control unit to the controller in the indoor unit.

  • Page 38: Dry Operation

    7-2. Dry Operation (Dehumidification) Dry operation uses the ability of the cooling cycle to remove moisture from the air, but by running at low level to dehumidify without greatly reducing the room temperature. The air conditioner repeats the cycle of turning ON and OFF automatically as shown in the chart below according to the room temperature.

  • Page 39: Freeze Prevention

    7-4. Freeze Prevention (Cooling) This function prevents freezing of the indoor heat exchange coil. When the compressor has been running for 10 minutes or more and the temperature of the indoor heat exchange coil falls below –1°C, the control circuit stops the compressor for at least 6 minutes. The compressor does not start again until the temperature rises above 8°C or 6 minutes has elapsed.

  • Page 40: Overload Prevention

    7-5. Overload Prevention (Heating) This function prevents overheating of the indoor heat exchange coil. When the temperature of the indoor heat exchange coil rises above B°C, and if the indoor fan is L (low speed), then the fan speed changes from L (low speed) to M (medium speed). When the temperature of the indoor heat exchange coil rises above A°C, the outdoor fan stops.

  • Page 41: Cold Draft Prevention

    7-6. Cold Draft Prevention (Heating) This function controls indoor fan speed so a strong draft of cold air will not blow out before the indoor heat exchange coil have sufficiently warmed up. STANDBY lamp on front of the indoor unit lights up when this function is working. when 10 minutes has elapsed,the fan speed is automatically switched to set speed regardless of indoor heat exchange coil temperature.

  • Page 42: Defrosting Operation

    7-7. Defrosting Operation (Heating) Defrosting Flowchart Compressor ON Release of overload prevention (Outdoor fan operates.) Overload prevention works. Does outdoor fan stop? Outdoor fan is either operated Indoor heat exchanger coil Integrated operating time of Integrated operating time of or stopped for more than 10 temperature drops 0.8°C per compressor is more than compressor is more than 1.5...
  • Page 43 Defrosting Mode Timing Chart Start of defrosting Release of defrosting 32 seconds 11 minutes 32 seconds Compressor Outdoor fan 2 seconds 2 seconds Solenoid coil (4 – way valve) Indoor fan Set speed Set speed Standby lamp Indoor heat exch. coil temp.

  • Page 44: Troubleshooting

    8. TROUBLESHOOTING 8-1. Check before and after troubleshooting WARNING Hazardous voltage can cause ELECTRIC SHOCK or DEATH. Disconnect power or turn off circuit breaker before you start checking or servicing. 8-1-1. Check power supply wiring. Check that power supply wires are correctly connected to terminals L and N on the terminal plate in the indoor unit.

  • Page 45: Air Conditioner Does Not Operate

    8-2. Air conditioner does not operate. 8-2-1. Circuit breaker trips (or fuse blows). A. When the circuit breaker is set to ON, it is tripped soon. (Resetting is not possible.) There is a possibility of ground fault. Check insulation resistance. If resistance value is 2MΩ...
  • Page 46 B. Circuit breaker trips in several minutes after turning the air conditioner on. There is a possibility of short circuit. • Check capacity of circuit breaker. Replace with suitable one (larger capacity). Capacity of circuit breaker is suitable. In case of Heating operation : Measure resistance of outdoor fan •...
  • Page 47 C. Check remote control unit. • Try to run with another remote control unit. First remote control unit is defective. • Check for residue buildup on Clean transmitter. transmitter of remote control unit. • Check for residue buildup on remote control receiver on front of indoor Clean receiver.
  • Page 48 8-2-3. Only outdoor unit does not run. A. Check setting temperature. COOL HEAT Is room temperature too low ? Is room temperature too high ? Try to lower setting temperature by Try to raise setting temperature by temperature setting button ( button).

  • Page 49: Some Part Of Air Conditioner Does Not Operate

    8-3. Some part of air conditioner does not operate. 8-3-1. Only indoor fan does not run. • Check fan casing Remove foreign foreign matter on matter or repair. Fan cannot inside. be turned. • Check fan rotation. Turn fan gently once or twice by hand.
  • Page 50 8-3-4. Only compressor does not run. Overload relay is working. • Check compressor motor (Either OLR T or OLR A) capacitor. (C1) • Measure resistance of Temperature of compressor is abnormally high. compressor motor winding. Refrigerant gas shortage. Recover refrigerant. (R407C) •...

  • Page 51: Air Conditioner Operates, But Abnormalities Are Observed

    8-4. Air conditioner operates, but abnormalities are observed. 8-4-1. Operation does not switch from HEAT to COOL (or COOL to HEAT). • Remote control unit may be defective. Receiver in lamp Ass'y may be defective. • Measure resistance of 4–way valve's winding.
  • Page 52 8-4-2. Poor cooling or heating. • Check position of remote control unit. Change position of remote Cool air from air conditioner reaches • control unit. position directly. • Wide and narrow tubes between Insulate both wide and narrow indoor unit and outdoor unit are tubes separately and then insulated.

  • Page 53: If A Sensor Is Defective

    8-5. If a sensor is defective. 8-5-1. Indoor coil temp. thermistor (TH1) is defective. • Operation lamp on front side of • Thermistor (TH1 ) is defective. indoor unit is flashing on and off. (*) • Replace thermistor. Alarm Signal (*) NOTE Operation lamp on the front side of the indoor unit will flash on and off when the indoor coil thermistor is defective.

  • Page 54: Refrigerant R407C: Special Precautions When Servicing The Unit

    9. REFRIGERANT R407C : SPECIAL PRECAUTIONS WHEN SERVICING UNIT 9-1. Characteristics of new refrigerant R407C 9-1-1. What is new refrigerant R407C R407C is a new refrigerant that contains three types of non-azeotropy-type mixed refrigerant which does not adversely affect the Earth's ozone layer. Its refrigeration capacity and energy efficiency are about the same level as the conventional refrigerant R22 9-1-2.

  • Page 55: Tools Specifically For R407C

    9-3. Tools specifically for R407C For servicing, use the following tools for R407C Tool Distinction Tool Name • Gauge manifold • Charging hose • Gas leak detector • Refrigerant cylinder • Charging cylinder Tools specifically for R407C • Refrigerant recovery unit •...

  • Page 56: In Case Of Compressor Malfunction

    9-5. In case of compressor malfunction Should the compressor malfunction, be sure to replace compressor as quickly as CAUTION possible. Use only the tools indicated exclusively for R407C. See "10-3. Tools specifically for R407C". 10-5-1.Procedure for replacing compressor (1) Recovering refrigerant •...
  • Page 57 (5) Recharging Valve • Be sure to charge the specified amount of refrigerant in liquid state using the service port of wide tube service valve. The proper amount is listed on the unit's nameplate. When the entire amount cannot be charged all at once, charge gradually while operating the unit in Cooling Operation.

  • Page 58: In Case Refrigerant Is Leaking

    9-6. In case refrigerant is leaking Never attempt to charge additional refrigerant when refrigerant has been leaking CAUTION from the unit. Follow the procedure described below to locate points of leaks and carry out repairs, then recharge the refrigerant. (1) Detecting Leaks •...
  • Page 59 (6) Recharging Valve • Be sure to charge the specified amount of refrigerant in liquid state using the service port of wide tube service valve. The proper amount is listed on the unit's nameplate. When the entire amount cannot be charged all at once, charge gradually while operating the unit in Cooling Operation.

  • Page 60: Charging Additional Refrigerant

    9-7. Charging additional refrigerant 9-7-1.When tubes are extended • Observe the proper amount of refrigerant as stated in this service manual or the installation manual that came with the indoor unit. Charge additional refrigerant in liquid state. Never charge additional refrigerant if refrigerant is leaking from the unit. Follow CAUTION instructions given in "10-6.

  • Page 61: Checking Electrical Components

    10. CHECKING ELECTRICAL COMPONENTS power plug 10-1. Measurement of Insulation (Local supply) Resistance Ground The insulation is in good condition if the resistance exceeds 2MΩ. probe Insulation 10-1-1. Power Supply Wires tester NOTE Clamp the grounding terminal of the power plug with a lead clip of the insulation resistance tester and The shape of the power plug may differ from measure the resistance by placing a probe on either of...

  • Page 62: Checking Continuity Of Fuse On Pcb Ass'y

    10-2.Checking Continuity of Fuse on PCB Ass'y Fuse Remove the PCB Ass’y from the electrical component box. Then pull out the fuse from the PCB Ass’y. (Fig. 5) PCB Ass’y Check for continuity using a multimeter as shown in Fig. 6. Fig.
