IQeye Alliance-pro Series
Vandal-resistant IP Camera
Installation and Operating Instructions
1

Advertisement

Table of Contents
loading

Summary of Contents for Iqinvision IQA3xNI Series

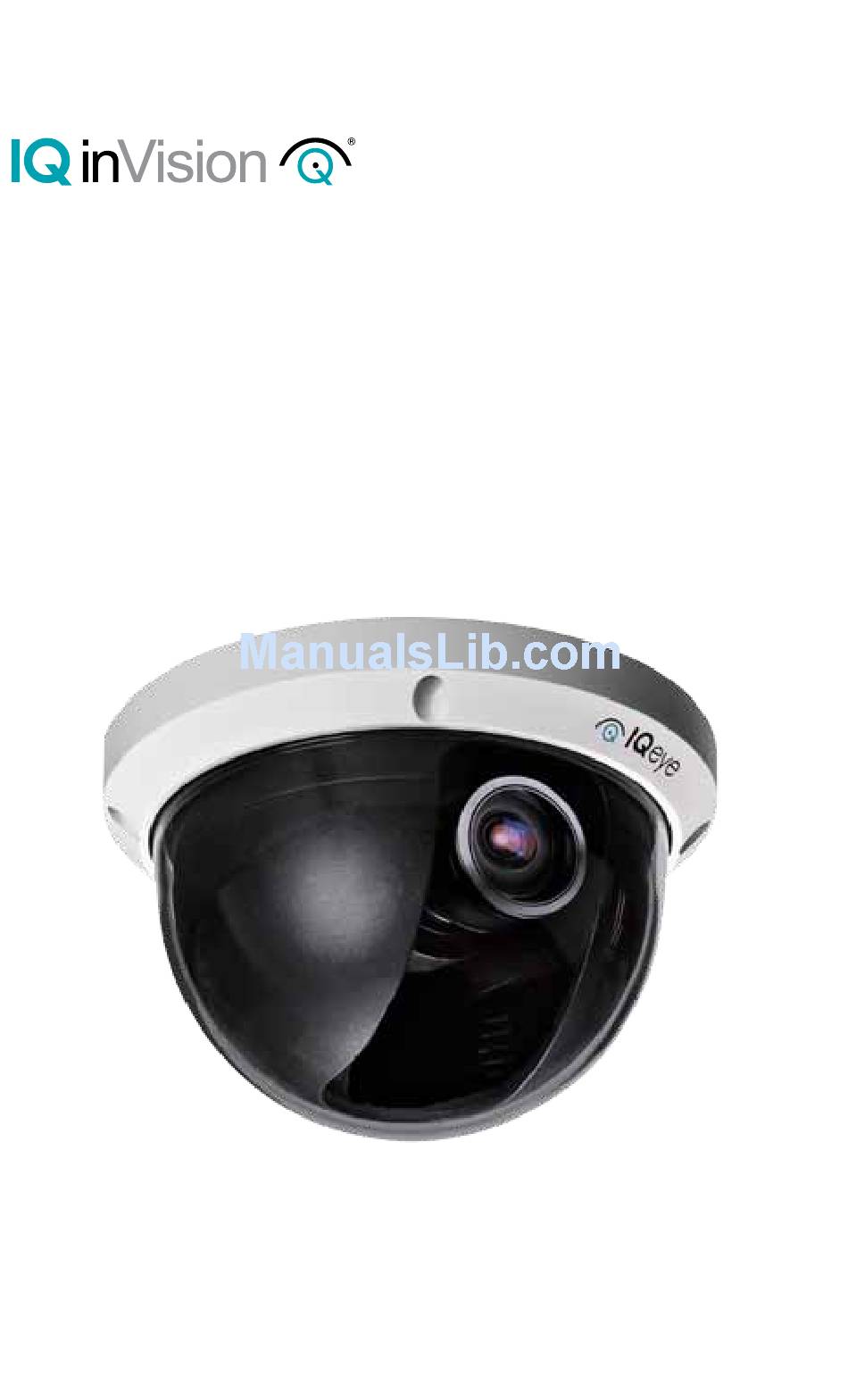

  • Page 1 IQeye Alliance-pro Series Vandal-resistant IP Camera Installation and Operating Instructions...
  • Page 2: Table Of Contents

    Contents Unpacking Service Description Installation Parts List Mounting Options Removal of Dome Cover and Camera Assembly Install Interior Mounting Plate Connect Camera Camera Positioning, Field-of-View Set-up and Focus Reboot and Factory Restore Close Camera PC Connection of Alliance-pro Warranty...
  • Page 3: Unpacking

    > Mounting Template > IQtools CD-ROM 2 Service If the unit needs repair service or parts, the customer should contact IQinVision for authorization to return, as well as shipping instructions. IQinVision 33122 Valle Road San Juan Capistrano, CA 92675-4853 Phone: +1-949-369-8100 or 1-877-850-0805 (toll-free in U.S.)
  • Page 4: Description

    3 Description IQeye Alliance-pro Series is an advanced network dome camera available in multiple resolutions from VGA to multi-megapixel. With a variety of models to choose from, the IQeye Alliance-pro is ideal for applications requiring true day/night functionality or H.264 compression for lower file sizes, while still delivering high-quality images at megapixel resolutions.
  • Page 5: Parts List

    5 Parts List Figure 5.1 and Figure 5.2 depict the major camera assembly parts included: IQA3xNI Series a. Alliance Mounting Plate b. Alliance Camera, Lens c. Alliance Shroud d. Alliance Dome Cover Assembly Figure5.1 IQA3xNE and IQA3xNX Series a. Alliance Exterior Back Box b.
  • Page 6: Mounting Options

    6 Mounting options Alliance-pro cameras can be mounted in one of two configurations, wall or ceiling. Both mounting configurations are shown in Figure 6.1 and Figure 6.2. Figure 6.1 Figure 6.2 In the wall mount configuration, use the 3-axis gimbal to level the field of view for any camera position.
  • Page 7: Removal Of Dome Cover And Camera Assembly

    7 Removal of Dome Cover and Camera Assembly a. Using the supplied Torx T-20 security tool, loosen the four tamper-proof screws holding the dome cover to the enclosure assembly. Note these screws are captive. These screws should not be removed from the dome cover trim ring.
  • Page 8: Install Interior Mounting Plate

    In addition, follow local regulations and laws which may have specific requirements governing the installation of security equipment on a ceiling tile surface. IQinVision strongly recommends the use of a ceiling tile brace and other mounting hardware designed to secure the Alliance-pro to the ceiling frame infrastructure.
  • Page 9 a. Power the camera using either direct power or Power-over-Ethernet. 1. Direct Power: Connect either a 12-24VDC or 24VAC power source to the camera. Wire polarity is not important, therefore + or – connections can be connected to either terminal as shown in Figure 9.2. Figure 9.2 NOTE: Using a power source with specifications other than those defined will damage the camera, and will void the product warranty.
  • Page 10: Camera Positioning, Field-Of-View Set-Up And Focus

    c. If Audio and I/O connections are being used, attach them to the appropriate terminals on the Audio / Triggers terminal block on the camera as shown in Figure 9.4. Figure 9.4 d. Carefully feed the connected wires one at a time back through the pass through hole.
  • Page 11: Reboot And Factory Restore

    The Alliance-pro is equipped with an analog video port, RCA type, which can be found next to the reset / reboot buttons. This analog port utilizes IQinVision’s exclusive IQfocus utility which allows precise focusing of the camera. Note that IQfocus shuts off 30 minutes after the Alliance-pro is powered up or immediately after sending a digital stream.
  • Page 12: Close Camera

    12 Close Camera a. Once the field-of-view and focus have been verified, make sure all adjustment screws and locks are firmly tightened. b. Remove the analog test monitor RCA connection (if used). c. Close the shroud by pivoting it back against the camera, while being careful not to disturb the lens.
  • Page 13 c. The “Assign IP” window allows the IP Address, Subnet, and Gateway of the camera to be changed. It also allows the camera to be configured to DHCP. Click the “Apply” button after making the desired changes (Figure 13.2). NOTE: Changing between a static IP address and DHCP will cause the camera to reboot. Figure 13.2 d.
  • Page 14 e. To perform further configuration of the camera click on the “Setup” tab. NOTE: The default username is “root” and the default password is “system”. f. To prepare the camera to serve the H.264 stream, select H.264 from the video drop-down (Figure 13.5).
  • Page 15: Warranty

    (e) if the product has had the model or serial number altered, defaced or removed, (f) to consumables (such as storage media or batteries) (g) to products that have been purchased “as is” and IQinVision, the seller or the liquidator expressly...
  • Page 16 901-0255 Rev A 33122 Valle Road San Juan Capistrano, CA 92675-4853 USA phone +1 949 369 8100 fax +1 949 369 8105 www.iqeye.com...
