Iqinvision 7 Series Quick Install Manual

Megapixel indoor ip camera
Hide thumbs Also See for 7 Series:

Advertisement

Quick Links

Download this manual

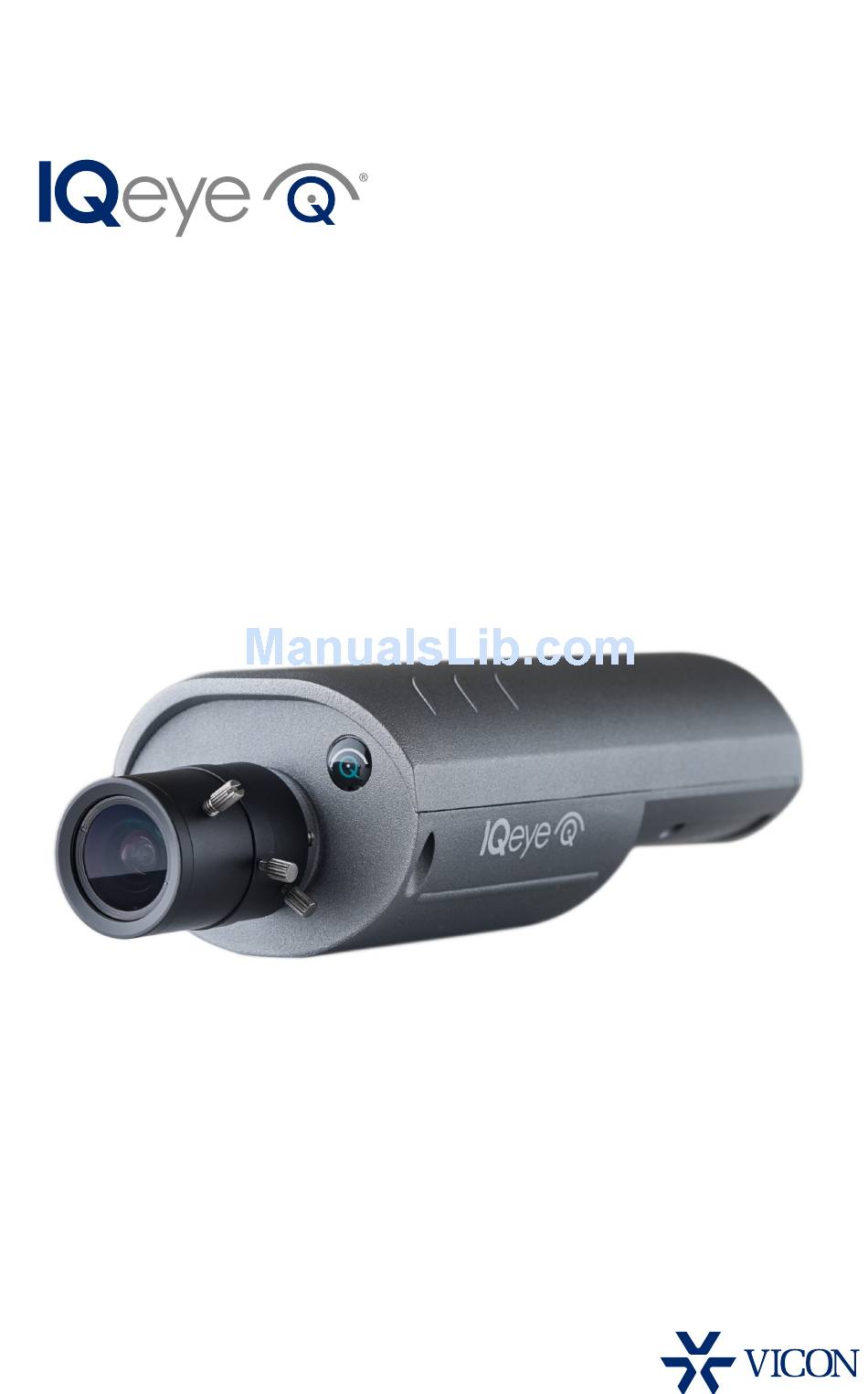

IQeye 7 Series
Megapixel Indoor IP Camera
Quick Install Guide
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 7 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Iqinvision 7 Series

Summary of Contents for Iqinvision 7 Series

  • Page 1 IQeye 7 Series Megapixel Indoor IP Camera Quick Install Guide...
  • Page 2 1 Camera Connection Overview SDHC Card Slot - An SDHC card (not included) can be used for on-camera recording. Network Connector - RJ-45 Power-over-Ethernet connector. Power Connector - Captive 2-pin screw terminal for 12-24VDC or 24VAC power source. Analog Video Out - 2.8mm connector with continuous analog video output for NTSC or PAL video systems.

  • Page 3: Getting Started

    2 Audio/Trigger Pin Out 3 Getting Started 1. Plug the IQeye camera into the network. 2. Power the camera using either Power-over-Ethernet or direct power. Power-over-Ethernet: Input from an IEEE802.3af Power-over-Ethernet (PoE) power injector or switch as show in Figure 1. Figure 1 Direct Power: Connect either a 12-24VDC or 24VAC power source to the camera.
  • Page 4 IQ76x-AVC (Figure 3) or by using a browser to view the camera image. Figure 3 4 PC Configuration of 7 Series NOTE: The default user name for all IQeye devices is “root” and the default password is “system”. IQeye cameras are configured for DHCP and will have an IP address assigned if a DHCP server is on the network.
  • Page 5 3. To view a camera, double-click a camera entry or highlight a camera in the list and click the “Web Page” button (Figure 6). The “Live” page will be displayed through the default browser (IE recommended). It is also possible to open Internet Explorer and enter the IP address of the IQeye camera in the address field of the browser.
  • Page 6 5. To complete focusing using the one-touch focus method go to the Setup > Focus tab (Figure 8). Figure 8 6. Set the iris on the lens to the ‘Open’ position then lock it down with the iris set screw. 7.
  • Page 7 9. Focus the lens using adjustment on the lens, then lock the focus adjustment set screw. NOTE: The focus adjustment should be close to ensure the one-touch focus adjustment can be completed. The following image (Figure 9) is an example of an image not focused enough to ensure a remote one-touch focus can be completed.
  • Page 8 11. To prepare the camera to serve the H.264 stream, select “H.264” from the drop-down menu (Figure 12). To view the H.264 stream in full screen mode (without ‘Live’ page controls), double click on the video window. Double-click on the video window again to return back to the ‘Live’ page. Figure 12 For additional information and technical documents, please visit www.vicon-security.

  • Page 9: Shipping Instructions

    Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. Vicon Industries Inc.

  • Page 10: Vicon Standard Equipment Warranty

    Vicon Standard Equipment Warranty Vicon Industries Inc. (the “Company”) warrants your equipment to be free from defects in material and workmanship under Normal Use from the date of original retail purchase for a period of three years, with the following exceptions: 1.
  • Page 11 The warranty does not apply (a) to faulty and improper installation, maintenance, service, repair and/or alteration in any way that is not contemplated in the documentation for the product or carried out with Vicon consent in writing, operation adjustments covered in the operating manual for the product or normal maintenance, (b) to cosmetic damages, (c) if the product is modified or tampered with, (d) if the product is damaged by acts of God, misuse, abuse, negligence, accident, normal wear and tear and deterioration, improper environmental conditions (including, but not limited...
  • Page 12 No one is authorized to assume any liability on behalf of the Company, or impose any obligations on it in connection with the sale of any Goods, other than that which is specified above. In no event will the Company be liable for indirect, special, incidental, consequential, or other damages, whether arising from interrupted equipment operation, loss of data, replacement of equipment or software, costs or repairs undertaken by the Purchaser, or other causes.
