Asante FriendlyNET GX6-2400W Specification Sheet

A Communication Division of UIC Corporation
10/100/1000 Gigabit Network Friendly Switching
Gigabit is easy with the powerful FriendlyNET GX6-2400W. Just plug in the network
connections (10, 100 or 1000 Mbps) and you'll be up and running within minutes.
The GX6-2400W switch automatically negotiates the best speed, duplex (full or half) and
wiring (Auto-Uplink™) for optimal performance. All 24 ports RJ45 and 2 port of ber optics
are runtime swappable.
GX6-2400W perfectly suited for the corporate edge network, small business/enterprise, or
workgroup network. Built around a very sophisticated single-chip architecture, the
GX6-2400W delivers true non-blocking, wire-speed Gigabit performance on all ports and
an aggregate 2000 Mbps of transport capability to deliver bulk data, multimedia, le
transfer, image and video information in real-time.
The GX6-2400W gives you exible choices of either copper cable or ber optical cable on
ports 23 and 24. Using SFP MiniGBIC modules you can connect the network to a ber optical
network backbone, or extend the transmission distance with the use of single-mode or
multi-mode Gigabit ber cables.
The Smart management feature taps into the GX6-2400W's on-board web con guration
to enable high-end services, like trunking, mirroring, virtual LANs (VLANs) and quality
of service (QoS). And It saves on your energy bill.
With SNMP-based features, it delivers the network service-ready straight out of the box.
GX6-2400W is ideal for building up or extending your unmanaged or managed networks
and securing end user's long term investment .
Superior Performance
- 48Gbps bandwidth non-blocking
- VLAN Tagging (IEEE802.1Q)
- Rate Limiting
- Storm Control
- Link Aggregation (IEEE 802.3ad)
- QoS (IEEE 802.1p/DSCP)
- Rapid Spanning Tree Protocol (IEEE802.1w)
- IGMP Snooping
- Flow Control (IEEE 802.3x)
- IEEE 802.1X with Radius Server
- Source IP Filtering
Simple
- True Plug and Play
- Auto MDI/MDI-X Detection
- Auto-UpLink Sense
- E ortless Installation
- RJ45 and SFP MiniGBIC connectors
Free telephone technical support for connecting to Mac OS, Linux and Windows
clients and servers.

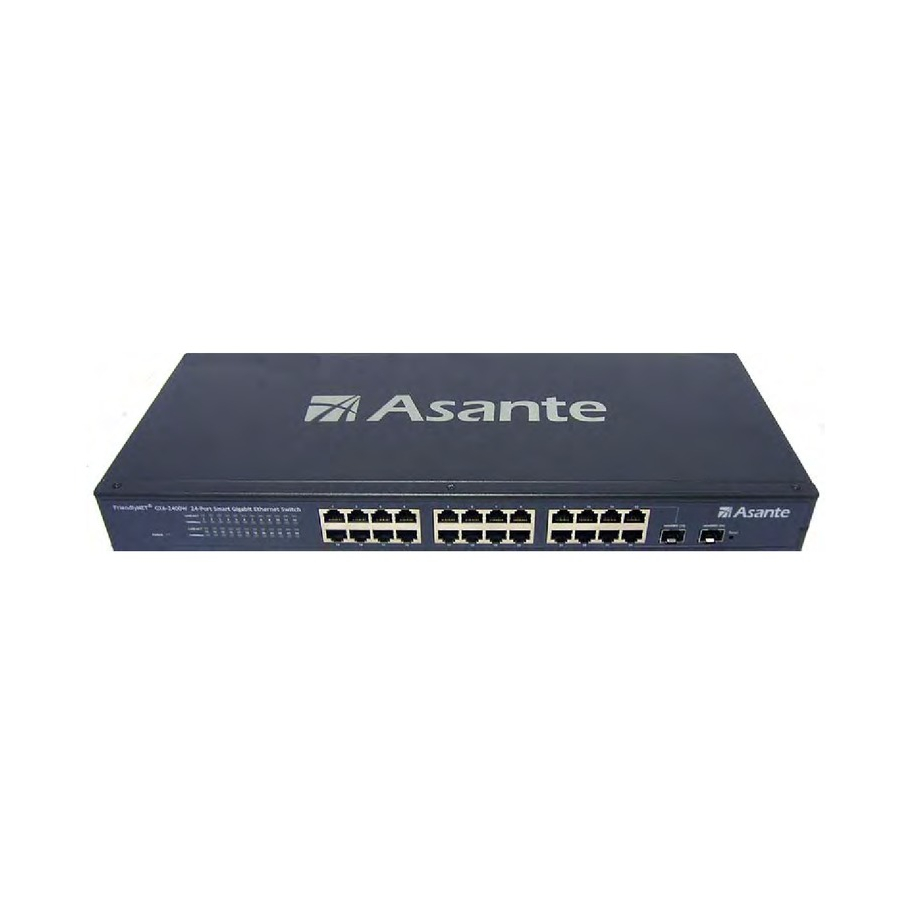

FriendlyNET
24-Port 10/100/1000 WebSmart Gigabit
Ethernet Switch + 2 Combo SFPs
Green Technology Switching Family
Smart Management
- Green technology
- Web enabling access
- Port mirroring
- Performance Monitor
- VLAN control
- SNMP management
- Port Trunking
- QoS/DSCP for Tra c Prioritization
- 802.1X radius control(MD5 Encryption)
- Port Security - MAC Based Filtering
Safe Choice
- Best price performance SOHO/enterprise
switch
- Simple and Manageable
- All runtime swappable
- Empower Gigabit performance
- Upgradeable rmware
®
GX6-2400W
