- Page 1 TT INTEGRABLE GAR final GB 1/10/01 13:56 Page 1 INSTRUCTION MANUAL Wine Cabinet STUDIO Fitted...
-
Page 2: Table Of Contents
Page 2 Contents Description of your wine cabinet …………………………… P 3 Various TRANSTHERM cabinet models …………………… P 4 Installing your wine cabinet ………………………………… P 5 Installing your wine cabinet in a fitted cupboard …………… P 5 Commissioning ……………………………………………… P 8 Settings panel …………………………………………………... -
Page 3: Description Of Your Wine Cabinet

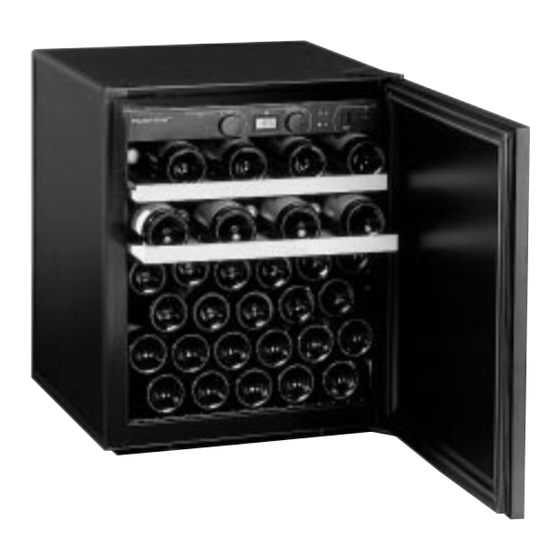

TT INTEGRABLE GAR final GB 1/10/01 13:56 Page 3 Description of your wine cabinet Cabinet body Wine rack Upper hinge Adjustable feet Burgundy rack Condensation drain hole Door Hygrometer Lower hinge Settings and control panel Bordeaux rack English - P3... -
Page 4: Various Transtherm Cabinet Models
Page 4 Various TRANSTHERM cabinet models In order to adapt to different requirements and usages, there are 3 types of TRANSTHERM wine cabinets. These cabinets have different characteristics and specifications. How do I know the model of my cabinet? important... -
Page 5: Installing Your Wine Cabinet
6. It is important that there is a space from the bottom to the top behind the cabinet. In the event that another cabinet is to be installed on top of the one containing the Transtherm unit, make sure that this space continues right to the top. - Page 6 TT INTEGRABLE GAR final GB 1/10/01 13:56 Page 6 2 - Installing the upper securing plate: Remove the two black plastic bungs. Position and secure the plate using the two M5X15 screws. Remove the hinge cover. 3 - Placing inside the cupboard: Position the cabinet inside the cupboard, against the right hand side if the door is left hand opening, or vice versa for right hand opening.
- Page 7 TT INTEGRABLE GAR final GB 1/10/01 13:56 Page 7 Securing the hinge The line of the 2 holes must be perfectly parallel with the edge of the frame. 1 - Screw the hinge guide onto the door of the wine cabinet. 2 - Open the door of the wine cabinet to 90°, slide the rail onto the guide and screw the...
-
Page 8: Commissioning
TT INTEGRABLE GAR final GB 1/10/01 13:56 Page 8 Commissioning - Once you have waited 48 hours, connect your cabinet to the mains, having checked that there is power to the socket (check fuses and their amperage, the state of the trip, and if necessary try out another electrical appliance to verify the supply). -
Page 9: Temperature Settings
TT INTEGRABLE GAR final GB 1/10/01 13:56 Page 9 Temperature settings You set your wine cabinet’s temperatures from the control panel located on the upper part of your cabinet using the hot and cold thermostat adjustment buttons (see page 8 Nos. 1 and 3). Standard Setting The table below gives the standard setting enabling you to obtain the right temperature for conserving your wines. -
Page 10: Layout And Loading Recommendations
TT INTEGRABLE GAR final GB 1/10/01 13:56 Page 10 Layout and loading recommendations Every rack can be used as a storage rack or as a sliding rack. Your cabinet’s racks have 8 cut-outs for Bordeaux or Alsace bottle, and 7 for Burgundy or Champagne bottles. -
Page 11: Important Wine Concepts
TO THESE ABNORMAL CONDITIONS CAN HAVE A DETRIMENTAL EFFECT ON YOUR WINES. Hygrometry You cabinet is equipped with an exclusive TRANSTHERM system enabling the creation, inside your wine cabinet, of the correct hygrometry level required to perfectly seal the corks in your bottles. -
Page 12: Everyday Care Of Your Wine Cabinet
13:56 Page 12 Everyday care of your wine cabinet Your TRANSTHERM cabinet is a simple tried and tested item of equipment. The following few operations enable you to obtain optimum operation and an extended life cycle. 1 - Regularly remove dust (once a year) from the condenser (black metal grill fastened to the back of your wine cabinet). -
Page 13: Operating Anomalies
TT INTEGRABLE GAR final GB 1/10/01 13:56 Page 13 Operating anomalies When starting up The compressor will not operate at the temperature required, and at less than the ambient temperature: 1 - Ensure that there is power to the electrical supply plug by connecting another electrical appliance to it, as well as checking that the On/Off switch is in position 1. - Page 14 In the same way, any intervention on the electrical circuit should be performed by an electrician. ANY INTERVENTION PERFORMED BY A TECHNICAL SERVICE NOT APPROVED BY TRANSTHERM WILL LEAD TO THE GUARANTEE BEING CONSIDERED AS NULL AND VOID English - P14...
-
Page 15: Specifications
TT INTEGRABLE GAR final GB 1/10/01 13:56 Page 15 Specifications Reference Model Temperatures Height Width Depth Weight Tolerance FITTED STUDIO 640mm 557mm 540mm 35 kg +/- 2°C Usage restrictions Electrical Refrigerant Hz Frequency Consumption Model Voltage* power per 24hrs T°min T°max FITTED 128W... - Page 16 The information contained in this document may be subject to modification without prior notice. TRANSTHERM offers no guarantee on this item if it is subjected to use other than that for which it is designed. TRANSTHERM cannot be held responsible for any errors in this manual, nor for any damage linked to or following the provision, performance or use of this item.
- Page 17 TT INTEGRABLE GAR final GB 1/10/01 13:56 Page 17 Notes English - P17...
- Page 18 TT INTEGRABLE GAR final GB 1/10/01 13:56 Page 18...
