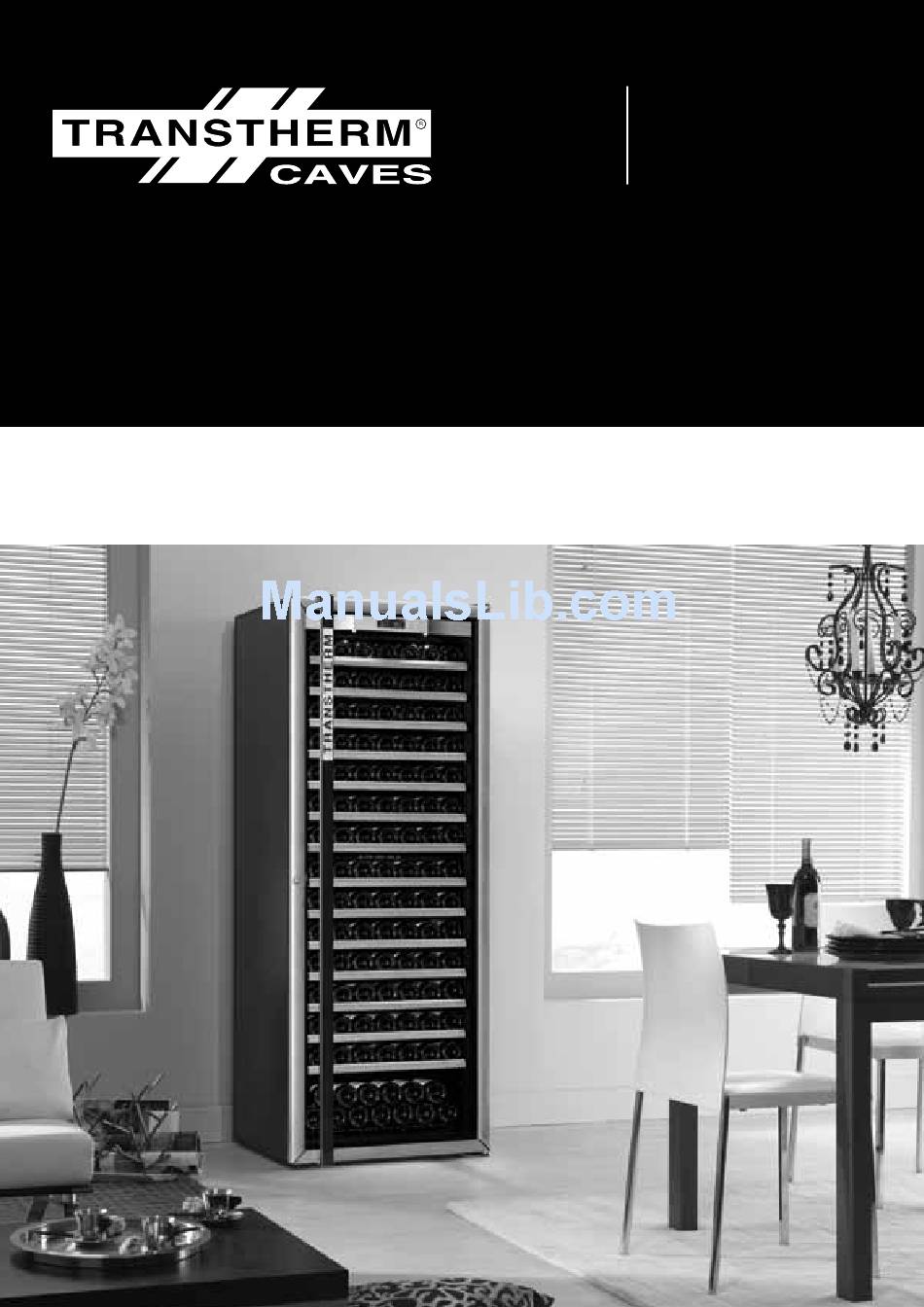

- Page 1 Gamme PRESTIGE PRESTIGE range Mode d’emploi - User Manual - Mode d’emploi - User Manual Mode d’emploi - User Manual - Mode d’emploi - User Manual...
- Page 2 TRANSTHERM 24, rue Francis de Pressensé - 69628 Villeurbanne Cedex - France info@transtherm.net...
- Page 3 The information contained in this document may be changed without warning. Transtherm offers no guarantee for this appliance when it is used for purposes other than those for which it was designed. Transtherm shall not be held responsible for any errors contained in this manual or for any damage linked to or resulting from the supply, performance or use of this appliance.
- Page 4 ontents 1 - Description of your wine cabinet 2 - Power supply 3- Protecting the environment and saving energy 4 - Installing your wine cabinet Door reversibility 5 - Layout – Storage 9-10 6 - Commissioning your wine cabinet I - Connection II-A - Description (I-temperature model: Loft Vintage, Manoir, Ermitage) III-A - Temperature setting II-B - Description (3-temperature model: Castel)
-
Page 5: D Escription Of Your Wine Cabinet
1 - D escription oF your Wine cABinet Cabinet body Lower hinge (x2) Setting and control panel Product identification label Lighting (2 LEDs) Thermodynamic pump aperture Door catch Door (fitted with a removable handle and Sliding shelf a dual-action lock) Cabinet stiffener (do not remove) –... -
Page 6: Power Supply
3 - c Aring For the environment AnD energy sAving Disposal of packaging Speak to your Transtherm retailer. He will explain the removal and All packaging used by Transtherm is made from collection arrangements set up in the Transtherm network. - Page 7 • • be supplied with power (standard outlet, 16 A, earthed with 30mA* If there is a problem, contact your Transtherm retailer. circuit breaker). (* not applicable to some countries). Precautions • Take the lead (which you will find in your cabinet’s “accessories” bag) and plug it into the connector, located at the back of the cabinet, on the •...
-
Page 8: Door Reversibility
4 - i nstAllAting your Wine cABinet Door reversibility Upper hinge Door pin Caps Door pin cap Caps Torx screw Phillips screw Door catch Lower hinge This allows you to change the direction in which the door opens. Follow the instructions below (example for changing a right-hand door into a left- 180°... - Page 9 In the same way, place one or two bottles of each of your different wines on the sliding shelves and keep spare bottles on Your Transtherm wine cabinet has been designed to safely hold a maximum the storage shelves. You then simply replace bottles when they number of bottles.
- Page 10 5 - l Ayout torAge C. Then replace the sliding shelf Sliding shelf Guide The cellar board A cellar board is provided with all solid door models to keep track of each bottle located within the cabinet. You can write on the cellar board thanks to the pencil given in the accessories bag (all doors types).
-
Page 11: C Ommissioning Your Wine Cabinet
6 - c ommissioning your Wine cABinet 1. Connection Have your socket checked (presence of correct sized fuses and 30 mA circuit breaker). Do not plug several cabinets into an adaptor. 1I. Description (I-temperature model: Loft Vintage, Manoir, Ermitage) The tactile keys are very sensitive. There is no need to apply force, only a light touch is required to register the command. - Page 12 6 - c ommissioning your Wine cABinet II-B. Description (3-temperatures model: Castel) The tactile keys are very sensitive. There is no need to apply force, a light touch is sufficient to register the command. Remember to remove your finger from the panel between presses. Lighting mode Lighting mode access and confirmation key Open door alarm...
- Page 13 6 - c ommissioning your Wine cABinet II-C. Description (multi-temperatures model: Réserve) The tactile keys are very sensitive. There is no need to apply force, a light touch is sufficient to register the command. Remember to remove your finger from the panel between presses. Lighting mode Standby key Open door alarm...
-
Page 14: E Veryday Maintenance
Lighting which comes on when the door opens (it is switched off when the cabinet door is closed). Lighting disabled 7 - e veryDAy mAintenAnce Your Transtherm cabinet is a tried and tested appliance. Maintenance operations to be carried out approximately once a year • Unplug and unload the appliance. •... -
Page 15: E Nergy And Technical Features
9 - e nergy AnD technicAl FeAtures Prestige Reference Temperatures Dimensions Weight when Recommended temperature range H x W x D (mm) empty kg T° mini °C / °F T° maxi °C / °F 1 temperature Loft Vintage Glass door LOXXPV3 960 x 680 x 690 0 / 32... - Page 16 10 - l intAge - ACUPHT - 12 ACMS 12 ACMS 12 AXUH 66 AXUH 66 AXUH 77 AXUH 77 - AXUHT - 77 - AXUHT - 66 - 14 - 14 91 bouteilles - 91 bottles * 92 bouteilles - 92 bottles * Stockage - Storage Mixte - Mixed ACMS 12...
- Page 17 10 - m Anoir - ACUPHT 12 - ACUPHT 12 - AXUHT - 33 - AXUHT - 44 - AXUHT - 66 - AXUHT - 66 - AXUHT - 77 - 21 - 14 168 bouteilles - 168 bottles * 177 bouteilles - 177 bottles * Stockage - Storage Mixte - Mixed...
- Page 18 10 - e rmitAge eserve - AXUHT - 44 - AXUHT - 66 - ACUPHT - 12 - ACUPHT - 12 - ACUPHT - 12 - AXUHT - 77 - AXUHT - 44 - AXUHT - 77 - AXUHT - 77 - 14 - 14 234 bouteilles - 234 bottles *...
- Page 19 10 - c Astel - 11 - 11 - ACUPHT 12 - ACUPHT 12 - AXUHT - 33 - ACUPHT 12 - AXUHT - 55 - AXUHT - 44 - AXUHT - 22 - AXUHT - 33 - 30 - 30 - 14 - 14 209 bouteilles - 209 bottles *...
- Page 20 otes ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
- Page 21 otes ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________ ______________________________________________________________________________...
