SHA Quick Start Guide
DeLorme inReach Explorer
Satellite Tracker and Communicator
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the inReach Explorer and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DeLorme inReach Explorer

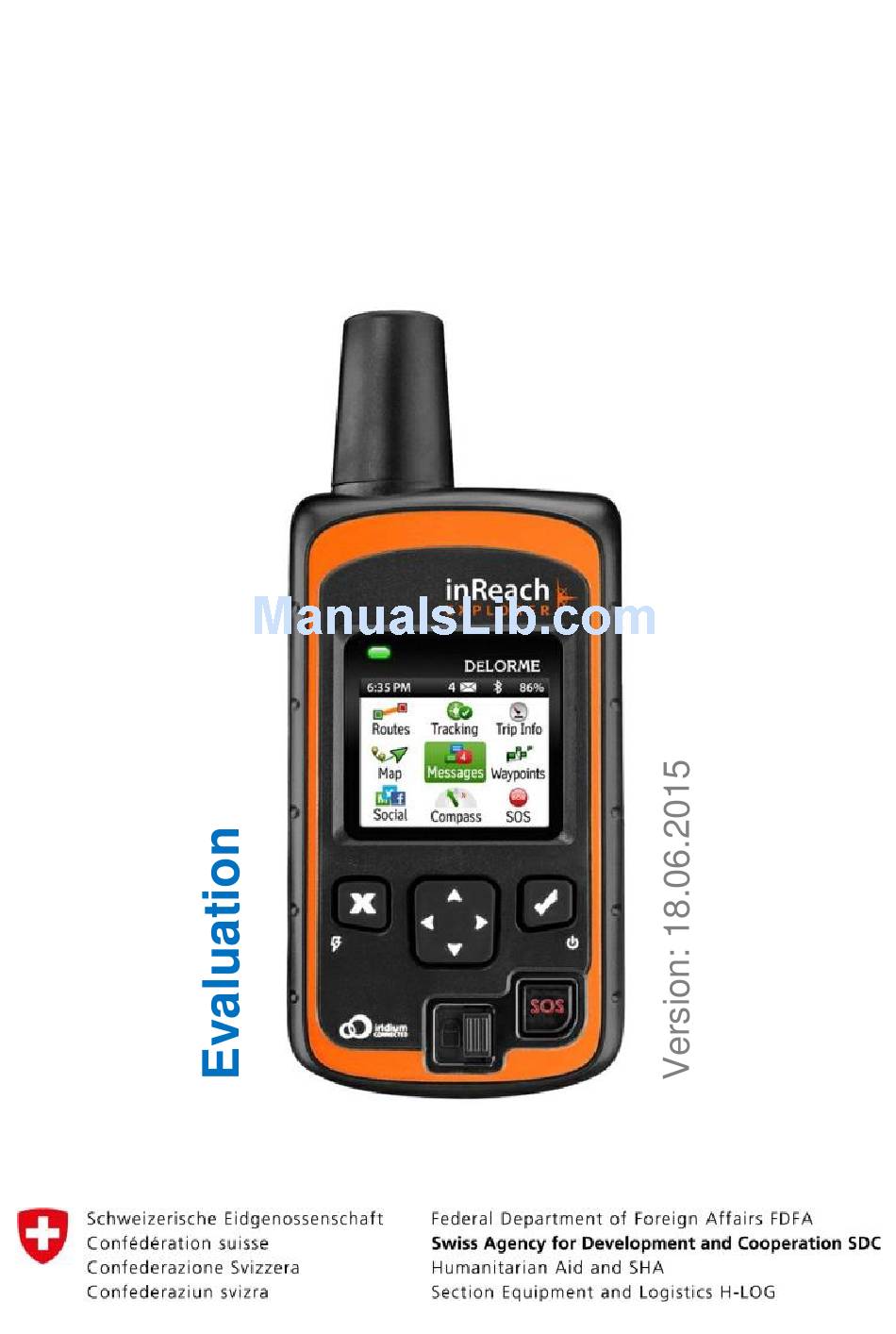

  • Page 1 SHA Quick Start Guide DeLorme inReach Explorer Satellite Tracker and Communicator...
  • Page 3: Table Of Contents

    Table of contents Important Information........4 Privacy Notes ............ 5 Battery Maintenance and Charging ....6 Specifications and Features ......7 Hardware Overview .......... 9 Turn on Device ..........10 Send Preset Message ........10 Send Text Message ........11 Trigger SOS Alarm .........
  • Page 4: Important Information

    Important Information The DeLorme inReach Explorer is a modern and reli- able communication device with a worldwide cover- age. But even the best communication devices can have flaws and only work when maintained correctly. Therefore, please consider the following information:...
  • Page 5: Privacy Notes

    Privacy Notes The DeLorme inReach Explorer is a satellite tracker and communicator dedicated for official use only. In order to enhance the operation’s efficiency and en- sure the best possible emergency response, the fol- lowing information is visible to authorized personnel:...
  • Page 6: Battery Maintenance And Charging

    Battery Maintenance and Charging Safety Damaged or overheated lithium batteries are a safety hazard and have to be handled with extreme care! Specifications and limitations Rechargeable internal (non-removable) lithium poly- mer battery (2’450 mAh at 3.7 V). The battery should not be exposed to temperatures above 60°C.
  • Page 7: Specifications And Features

    Specifications and Features Hardware Dimensions: 14.8 x 6.3 x 2.7 cm Weight: 190 g Operation temperature: -20°C bis +60°C Environmental properties: Waterproof Dustproof IP67 / Mil-STD-810G Battery: Lithium Polymer 2’450 mAh, 3.7 V, 9 Wh Communication Network provider: Iridium 66 Satellites Coverage: Worldwide Subscription type:...
  • Page 8 Navigation Sensors: GPS receiver Digital compass Barometric altimeter Accelerometer Navigation features: Current position Tracks Waypoints Predefined routes...
  • Page 9: Hardware Overview

    Hardware Overview...
  • Page 10: Turn On Device

    Turn on Device Press the “Power/Enter” button until the display is turned on. Confirm to turn on the device with the navi- gation and enter button. Send Preset Message What is a preset message? Preset messages consist of a predefined text and recipient, which can be used to send standard mes- sages (i.
  • Page 11: Send Text Message

    Send Text Message What is a text message? Text messages are individual 160-character messag- es which can be sent to cellphones (SMS), e-mail accounts or other inReach devices. How can I send a text message? Choose “Messages” in the main menu. Add recipients from your contacts or enter them directly, using e-mail addresses or phone numbers (incl.
  • Page 12: Receive Message

    How can I trigger die the SOS alarm? Slide the SOS button lock to the left and press the SOS button. Important! As for all types of messages, a clear view to the sky is required to trigger an SOS alarm. 10.
  • Page 13: Add Waypoint

    How can I turn on tracking? Choose “Tracking” in the main menu und select “Start Tracking”. The device will start sending track points. Tracking will be disabled when the inReach is turned off and has to be re-enabled if needed. How can I change the tracking interval? Choose “Settings”...
  • Page 14: Find Waypoint

    After pairing the device you can, among other things… … read messages … write and send text messages conveniently … download maps and view waypoints … manage waypoints … edit device settings For more information and instructions please consult the respective manual on http://manuals.delorme.com...
  • Page 15: Costs

    25 bytes Check for new messages 10 bytes By default the inReach will check for new messages every 20 min. How much does the subscription cost? Subscription Plan: DeLorme 4 Monthly fee: USD 39.00 12’000 bytes Monthly allowance: Additional bytes: USD 1.60 per...
  • Page 16 Logixs Art Nr 107434...
