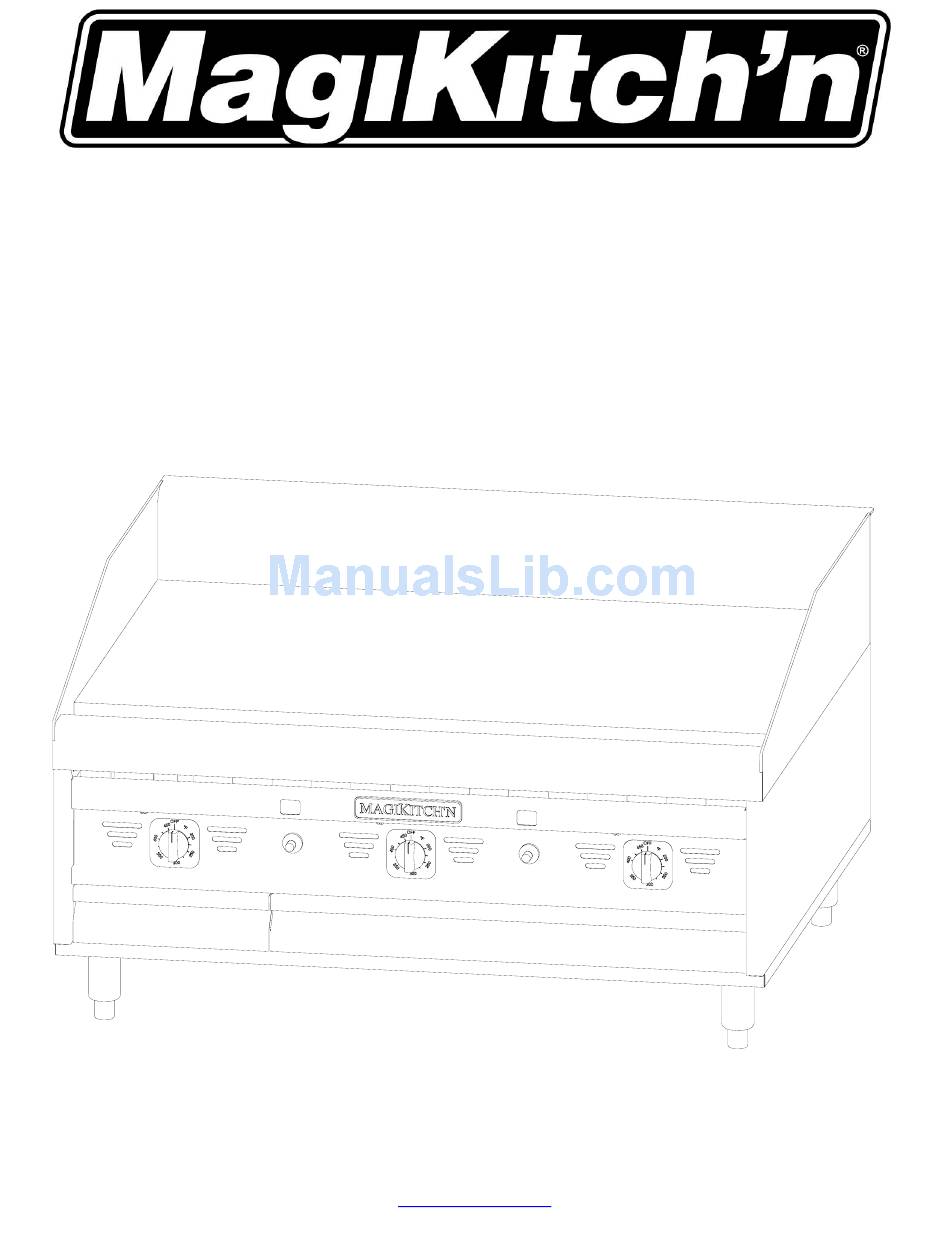

- Page 1 GAS GRIDDLE INSTALLATION & OPERATION MANUAL MKG24, MKG36, MKG48, MKG60 & MKG72 Built After June 1, 2003 MAILING - P.O. BOX 501, CONCORD, NH 03302-0501 SHIPPING - 10 FERRY ST. CONCORD, NH 03301 TEL: 800-258-3708 • 603-225-6684 • FAX: 603-225-8497 www.magikitchn.com...
-
Page 2: For Your Safety
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE DO NOT store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance. Improper installation, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment. -
Page 3: Table Of Contents
4.2. SUGGESTED COOKING TIMES & TEMPERATURES: ... 9 CLEANING & MAINTENANCE SECTION:... 10 5.1. DAILY CLEANING:... 10 5.2. GRIDDLE SURFACE CLEANING, END OF SHIFT:... 10 5.2.1. Plain Steel Cooking Surface:... 10 5.2.2. Chrome Plated Cooking Surface: ... 10 5.3. MONTHLY MAINTENANCE:... 10 5.3.1. -
Page 4: Installation Section
Contact the shipper immediately; the shipper is only responsible for 15 days after delivery. Check the packing list enclosed with your griddle to ensure that you have received all the parts to the griddle. If you are missing any parts, contact the dealer from whom the griddle was purchased. -
Page 5: Fuel Types
MKG SERIES GAS GRIDDLE NEVER supply the appliance with a gas that is not indicated on the data plate. Using the incorrect gas type will cause improper operation. If you need to convert the appliance to another type of fuel, contact your dealer. -
Page 6: Installation, Set Up
A. Uncrate appliance and locate installation accessories shipped with the appliance. 1.5.1. For Counter Use With Legs: CAUTION To prevent equipment damage, DO NOT tilt your MagiKitch'n griddle on only two legs, or on its sides. (See picture at right) A set of 4” legs is shipped with the appliance (unless appliance was specifically ordered without legs). -
Page 7: For Use On Optional Equipment Stand
CAUTION Only two of the four supplied casters are equipped with a locking feature. Install the griddle so that the two locking casters are at the front of the unit. The casters should be LOCKED before the unit is placed into operation. -
Page 8: Final Gas Connection
MKG SERIES GAS GRIDDLE 1.6. FINAL GAS CONNECTION: A properly installed gas supply system will deliver adequate pressure (7 to 8 inches w.c. for natural gas, 11 to 12 inches w.c. for propane) to all appliances connected to the line, operating at full demand. -
Page 9: Gas Settings
2.1. LIGHTING INSTRUCTIONS: 2.1.1. Snap Action Thermostat Appliances: Turn all thermostat knobs to the “OFF” position. Open front door of the griddle, turn the manual gas shut off valve to the “ON” position. Press and hold the leftmost RED pilot button, see... -
Page 10: Initial Startup
New griddles should be carefully tempered and cared for in order to avoid possible damage. To break in a new griddle, Wipe the griddle surface clean. A mild soapy water solution may be used to clean the surface, if this solution is used be sure to rinse thoroughly with fresh water to eliminate any soap residue. -
Page 11: Thermostat Calibration Section
Each control typically operates a pair of burners with a Snap action, Electric or Solid State. The controls were set at the factory. However, if the griddle’s surface temperature varies greatly from the setting on the thermostat knob, adjust the thermostat using the following procedure: 3.1. -
Page 12: Basic Operation
Sandwiches, etc. Grilled Cheese Hot Dogs *Based on cubed potatoes brought to a boil then cooled prior to finishing on griddle. To reduce burning and sticking of the potatoes, coat the griddle surface with vegetable oil and turn potatoes frequently. NOTICE: Temperature °F... -
Page 13: Cleaning & Maintenance Section
MagiKitch'n Chrome Griddle Surface. USING ABRASIVE MATERIALS WILL VOID YOUR WARRANTY. B. Clean and wipe out grease chutes. C. Wipe down the exterior, the sides and front of the griddle are stainless steel, any stainless steel cleaner can be used to clean these surfaces. -
Page 14: Troubleshooting Chart
All parts and service for your MagiKitch'n griddle should be ordered and installed by a MagiKitch'n Authorized Service and Parts (ASAP) dealer. Failure to do so might result in the warranty being voided. -
Page 15: Optional
Using MagiKitch'n chrome griddle accessories are important to maintaining the life of the griddle's chrome surface. 5.5.2. Optional: To order accessories for your griddle, call your local MagiKitch’n dealer for prices and availability. Accessories by Model Service Shelf 8" 5125-1511601-C Service Shelf 10"... - Page 16 MAILING ADDRESS - P.O. BOX 501, CONCORD, NH 03302-0501 SHIPPING ADDRESS - 10 FERRY ST. CONCORD, NH 03301 PHONE- 800-258-3708 • 603-225-6684 • FAX: 603-225-8497 www.magikitchn.com...
