Luminex GigaCore 26i with PoE User Manual

Gigabit managed av ethernet switch
Hide thumbs Also See for GigaCore 26i with PoE:
Table of Contents

Advertisement

Quick Links

GigaCore 26i
GigaCore 26i with PoE
Gigabit Managed AV Ethernet Switch
User Manual
V2.4.0
Rev 2
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GigaCore 26i with PoE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Luminex GigaCore 26i with PoE

Summary of Contents for Luminex GigaCore 26i with PoE

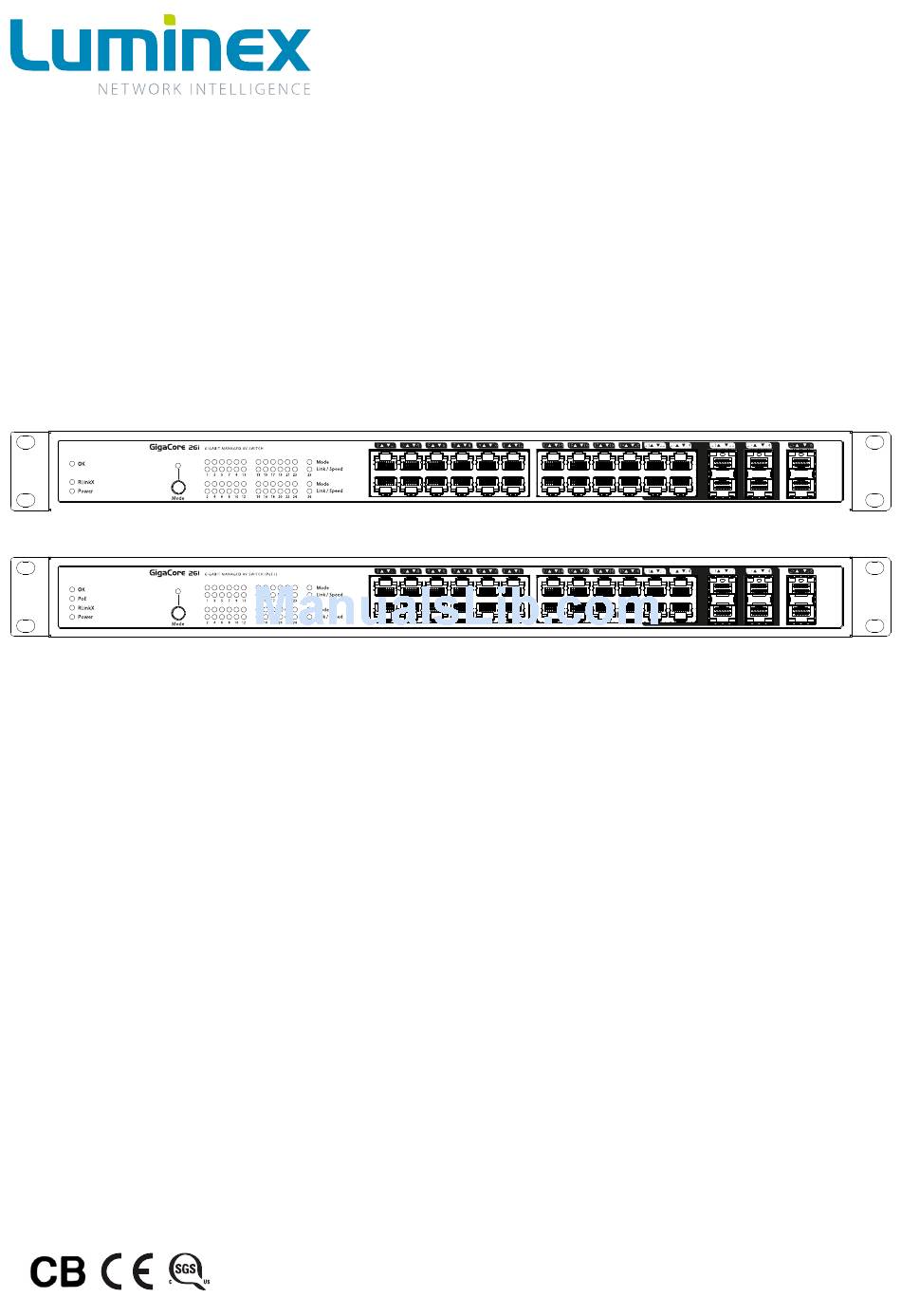

  • Page 1 GigaCore 26i GigaCore 26i with PoE Gigabit Managed AV Ethernet Switch User Manual V2.4.0 Rev 2 English...

  • Page 2: Safety Instructions

    Safety instructions The lightning flash with arrowhead symbol, within an equilateral The exclamation point within an equilateral triangle is intended triangle, is intended to alert the user to the presence of uninsulated to alert the user to the presence of important operating and “dangerous voltage”...
  • Page 3 WARNING: To prevent the Gigacore26i (with PoE) from overheating, do not operate it in an area that exceeds the maximum recommended ambient temperature of 50°C for the Gigacore 26i and 40°C for the Gigacore 26i with PoE. POWER CABLE: Use only approved power cables.

  • Page 4: Compliance Information

    IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT! This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Luminex Lighting Control Equipment nv may void your authority, granted by the FCC, to use the product. ■...

  • Page 5: Warranty Information

    Returning under warranty Any Product unit or parts returned to Luminex LCE must be packaged in a suitable manner to ensure the protection of such product unit or parts, and such package shall be clearly and prominently marked to indicate that the package contains returned product units or parts.

  • Page 6: Table Of Contents

    Table of Content ■ Safety instructions ■ Compliance information ■ Warranty information ■ Limited warranty ■ Returning under warranty ■ Freight ■ Registration ■ In the box ■ Description ■ Front panel ■ Rear panel ■ LED indicators ■ Installing Mini GBIC (SFP) transceivers ■...
  • Page 7 This page is intentionally left blank...

  • Page 8: Description

    2 - PoE LED: Indicates the status of the PoE functionality different states for the Port Mode LEDs and the PoE supplies (GigaCore 26i with PoE only) 7 - 26 x Port Mode LED: According to the selected state, 3 - RLinkX: Indicates the RLinkX status...

  • Page 9: Led Indicators

    The GigaCore 26i (with PoE) comes with six SFP cages at the front of the unit. These cages accept mini GBIC transceivers. Recommended transceivers In order to get best the performances, Luminex recommends the use of the following transceivers: LU 90 00871 GigaCore 1.25Gd Multi-Mode fiber transceiver...

  • Page 10: Connecting The Redundant Power Supply Unit

    Connecting the Redundant Power Supply Unit The GigaCore 26i (with PoE) provides a connector to an optional Luminex Redundant Power Supply Unit, providing redundancy on power level for both the mains as the PoE power. Attach only the following RPSU to the RPSU connector: LU 01 00061 GigaCore RPSU MKII THIS UNIT HAS MORE THAN ONE POWER SUPPLY.

  • Page 11: Gigacore Features Explained

    These features will be explained in the following pages : RLinkX RLinkX, which stands for Redundant Link by LumineX, is an automated system to easily create redundant paths between your GigaCore switches. Switches automatically create active and backup paths, providing an effortless methode to create safe networks.

  • Page 12: Groups

    Groups Groups function allows the user to segment the network into several subnets. The main benefit of this function is that no subnet will affect the other ones, on protocol level. The user can create several groups on the network, and each device included in a group will be able to communicate with devices of this group only.

  • Page 13: Multilinkx

    MultiLinkX Most of the time, a redundant link set with RLinkX between two GigaCore switches will fit for every day event. A 1000Mbps link is more than enough for most of the current applications. However, it can happen that you’ll need to transfer a larger amount of data between the switches.
  • Page 14 MultiLinkX enables you to gather several links together, and turn them into one virtual link. This provides you with more bandwidth available between the switches, and thus more throughput. MultiLinkX can accept as many ports as you want into an aggregation, and up to 8 aggregations can be created on a switch. Working with PtP When working with PtP (Precision Time Protocol), you’ll notice an inverted PTP icon to indicates the PTP enabled port in an aggregation.

  • Page 15: Starting

    An IEC socket is located at the rear of the unit. Please use an IEC plug compliant cable to feed power to the unit. Luminex recommends the use of a power cable, fitted with a locking mechanism to ensure a reliable connection to the device.

  • Page 16: Status Page

    Wink: The feature allows you to easily identify a GigaCore switch in a stack of device. Click on the Luminex Logo on the switch image, all four status LEDs on the left hand side of the switch will start blinking three times.

  • Page 17: Global Page

    Global Page The global page contains four sub menus that are described below: Device setttings This menu allows you to change IP and ID settings of the unit, and also the brightness of the front panel’s LEDs. IP settings: Assign here the IP address of your switch. This IP address will be used to reach the switch’s web interface. If your network is equipped with a DHCP server, you can enable the DHCP client of the switch, for it to receive automatically an IP address from the DHCP server.
  • Page 18 Port settings This menu allows you to change the port’s speed, and add a legend to each port. Port speed drop down menu offers the folowing speed : ■ Disabled : Disable the port. Port will appeared grayed out on the top switch image ■...
  • Page 19 Utilities This page brings you the tool to reset your unit in different ways, and to set some default security parameters. Reset This menu allows the user to bring the switch into different levels of reset. Preserve IP settings Tick the upper check box if you wish to bring the unit back to the default settings, and keep the actual IP parameters set on the switch.
  • Page 20 Firmware This menu allows you to upload a new firmware to the switch. Please visit the support section of our web site to get the latest firmware available for your GigaCore switch. To upgrade the switch, simply click on the Upload Firmware button, and select the firmware on your computer. The upgrade procedure takes about 4 minutes to complete.

  • Page 21: Rlinkx

    MultiLinkX, our aggregation protocol , has been designed to work flawlessly with RLinkX, our redundancy protocol. To provide users with a more advanced and efficient method to recover topology in case of link failure, Luminex has developped a new method for best link cost calculation in an aggregated network, based on the available bandwidth per link.

  • Page 22: Groups

    Groups Groups : Groups is a technology which offers the user to easily segment its network into several subnets (see “Groups” on page This menu allows you to assign ports into the 20 embedded groups of the switch. A group is a combination of port, and user can assign as many port as wanted into a group. The GigaCore range offers three types of groups : ■...

  • Page 23: Multilinkx

    MultiLinkX MultiLinkX allows you to gather several links together, in order to increase the available bandwidth between switches. MultiLinkX is available for ISL ports only. To enabled MultiLinkX, sinply select group zero (ISL) in the group page, and tick the box to enable MultiLinkX. Press Apply to submit the changes.
  • Page 24 The advanced pane offers the user to access extended parameters such as : VID : Luminex groups technology relies on the 802.1Q VLAN protocol. By default, Luminex groups have a default VLAN ID. If required, user can change the VID of the group. Mind that if you wish to change this VID, you’ll need to change it on each switch using this group.

  • Page 25: Poe

    PoE (Power over Ethernet) is a convenient way to transport both data and power over the same network cable, and thus powering a device with its data cable. Your GigaCore switch can then be a data connection box and power source for your end devices.
  • Page 26 Settings The setting page allows you to assign the following PoE parameters to the 24 front ports : ■ Enable / Disable PoE per port ■ Assign a priority on the port To change the PoE parameters of one or several ports, please apply the following procedure : ■...

  • Page 27: Profile Manager

    Profile Manager The profile manager allows the user to easily save / recall / export / import a configuration. A profile will contain the following parameters : ■ Device settings ■ Port settings ■ RLinkX settings ■ Groups settings ■ PoE settings. In this way, user can create a comprehensive configuration of a switch, save it as a profile, and recall it later when needed.
  • Page 28 Click on Ok. Your profile is now saved in the switch It is a good habit to always create a default configuration for your switch! ■ Recall a profile To recall a profile, select it amongst the ten available profiles in upper tab. Here, you can preview the content of this profile.
  • Page 29 Once you’ve selected the profile you wish to recall, the switch will reboot, and will reload the requested profile. The recall process can take a minimum of 30 seconds, to a maximum of 2 minutes. If you intend to reload a profile with a different IP address, you can try to reach the newly loaded IP address after about 50 seconds, manually from the switche’s web interface.

  • Page 30: Reset The Unit

    Reset the unit In the case you need to reset the unit without the web interface, the GigaCore 26i and GigaCore 26i with PoE offers different levels of reset, based on the ones you can find on the web interface.

  • Page 31: Reload Default

    Reload Default Condition 1: Unit is currently running Condition 2: Profile stored in slot 1 needs to be locked through the utility menu (see “Default Profile” on page 19) Hold the mode button for at least five seconds to see the four status’ LED blinking green. If you release the button while the status’...

  • Page 32: Specifications

    Specifications Sheet 1/2 ■ ■ Connectivity GigaCore 26i GigaCore 26i with PoE ■ ■ 24 x 10/100/1000Mbps RJ45 connectors (including 4 dual 24 x 10/100/1000Mbps RJ45 connectors (including 4 dual media media ports) ports) ■ Network ■ ■ 6 x SFP cages, compliant with 10/100/1000Mbps Mini GBIC...
  • Page 33 Sheet 2/2 Management ■ GigaCore 26i ■ GigaCore 26i with PoE ■ Configuration ■ ■ Through the built-in web server Through the built-in web server Power Input ■ ■ 100-240VAC 100-240VAC ■ Power Input ■ ■ 50-60Hz 50-60Hz ■ 0,5 - 0,29A ■...

  • Page 34: Additional Documentation

    --> Support The GigaCore 26i and GigaCore 26i with PoE user manual is available in the support section of our web site. DISCLAIMER Luminex LCE operates a policy of continuous development. Luminex LCE reserves the right to make changes and improvements to any of the products described in this document above without prior notice.
  • Page 35 This page is intentionally left blank...
  • Page 36 Berkenlaan 8A T +32 11 812 189 3940 Hechtel-Eksel info@luminex.be Belgium support@luminex.be www.luminex.be...
