H2O DMX PRO
Universal DMX Control:
universal DMX-512 controller to control the individual lasers, rotation
and macros. A DMX controller allows you to create unique programs
tailored to your individual needs.
1. The Hypnotic RGB is a 3 channel DMX fixture. See page 12 for
detailed description of the DMX values and traits.
2. To control your fixture in DMX mode, follow the set-up procedures
on pages 5-6 as well as the set-up specifications that are includ-
ed with your DMX controller. Follow the instructions on page 8 to
set the DMX address.
3. Use the controller's faders to control the various DMX fixture traits.
4. For longer cable runs (more than a 100 feet) use a terminator on
the last fixture.
5. For help operating in DMX mode consult the manual included
with your DMX controller.
Focusing Lens: The lens can be focused by turning it clockwise or
counter-clockwise to focus the lens to your desire.
H2O DMX PRO
Master-Slave Configuration
to 16 units together and operate without a controller. In Master-Slave
operation one unit will act as the controlling unit and the others will
react to the controlling units programs. Any unit can act as a Master or
as a Slave.
1. Using approved DMX data cables, daisy chain your units togeth-
er via the XLR connector on the rear of the units. Remember the
Male XLR connector is the input and the Female XLR connector
is the output. The first unit in the chain (master) will use the female
XLR connector only - The last unit in the chain will use the male
XLR connector only. For longer cable runs we suggest a termina-
tor at the last fixture.
2. On the Master unit press the MENU button until "SLND" is dis-
played, and press ENTER. Press the UP or DOWN buttons so that
"MAST" is displayed and press ENTER.
3. On the slave units
press the MENU button until "SLND" is dis-
played, and press ENTER. Press the UP or DOWN buttons so that
"SL 1"
is displayed and press ENTER.
4. The slave units will now follow the Master unit.
American DJ Supply - www.americandj.com - H2O DMX PRO Instruction Manual Page 11
© ®
DMX Control
This function allows you to use a Elation
Master-Slave Configuration
This function will allow you to link up
H2O DMX PRO
Channel Value
®
1
1 - 255
2
0 - 9
10 - 120 CLOCKWISE ROTATION FAST - SLOW
121 - 134
135 - 245 COUNTER-CLOCKWISE SLOW - FAST
246 - 255
3
0 - 10
11 - 21
22 - 32
33 - 43
44 - 54
55 - 65
66 - 76
77 - 87
88 - 98
99 - 109
110 - 120
121 - 127
128 - 186
187 - 196
197 - 255
H2O DMX PRO
American DJ Supply - www.americandj.com - H2O DMX PRO Instruction Manual Page 12
© ®
DMX Values & Traits
Function
MASTER DIMMER
0% - 100%
ROTATION
NO ROTATION
NO ROTATION
NO ROTATION
COLOR
WHITE
WHITE & ORANGE
ORANGE
ORANGE & GREEN
GREEN
GREEN & BLUE
BLUE
BLUE & YELLOW
YELLOW
YELLOW & PURPLE
PURPLE
PURPLE & WHITE
CLOCKWISE COLOR ROTATION
FAST - SLOW
STOP
COUNTER-CLOCKWISE ROTATION
SLOW - FAST

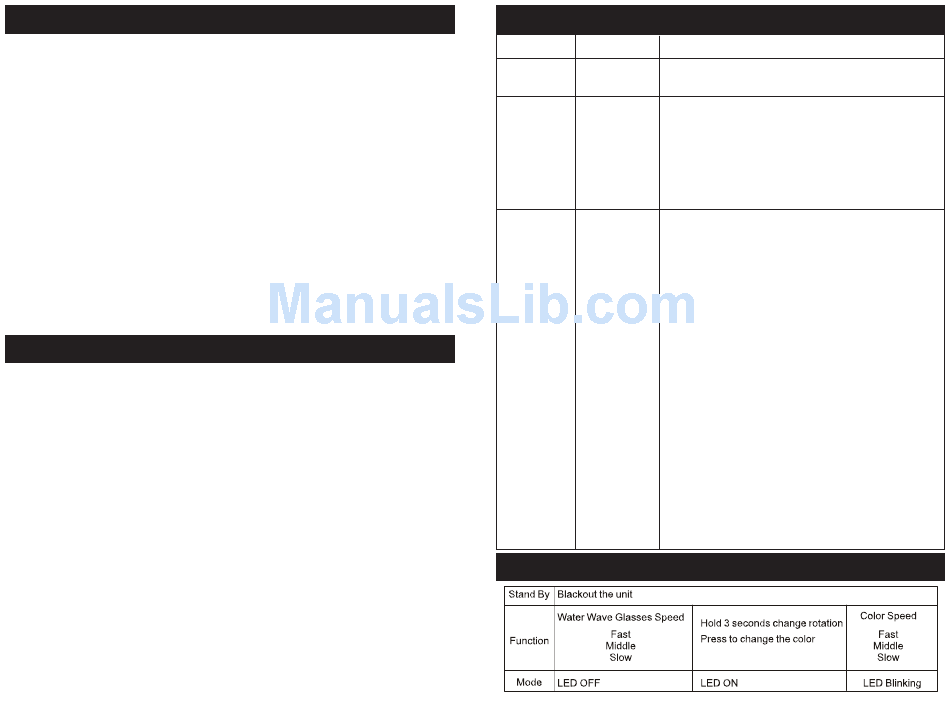

UC3 Control
