ADJ H2O DMX PRO User Instructions page 4

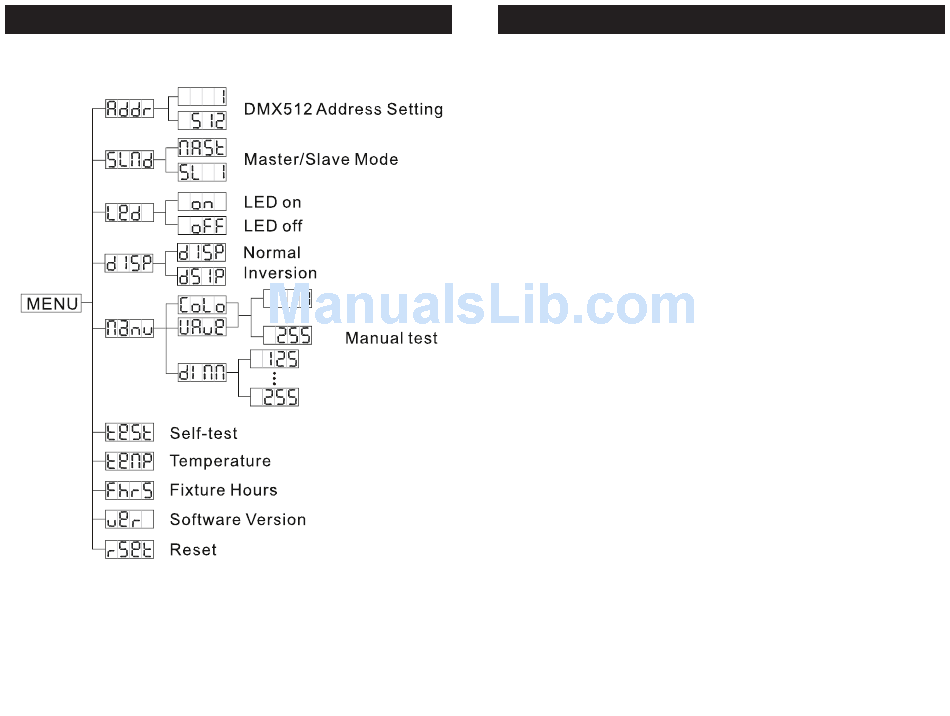

H2O DMX PRO System Menu H2O DMX PRO System Menu
On-Board System Menu.
The H2O DMX PRO comes with an easy
to navigate system menu. This next section will detail the functions of
each command in the system menu. Please read the next section
thoroughly!
To access the main menu press the MENU button. Press the UP or
DOWN buttons until you reach function you wish to change. When you
reach the function you wish to change press the ENTER button. When
a function is selected use the UP or DOWN buttons to change the func-
tion settings. Once your changes are made press the ENTER button,
and then press and hold the MENU button for at least three seconds
to confirm and lock the change into the system memory. If the MENU
button is not pressed and held within eight seconds the fixture will
automatically confirm and lock the change into the system memory. To
exit without making any changes press the MENU button.
ADDR
- DMX Address Setting via control board -
1. Press the MENU button until "ADDR" is displayed, press
ENTER.
2. "X" will now be displayed, "X" represents the displayed address.
Press the UP or DOWN buttons to find your desired address.
3. Press ENTER to confirm, then connect your DMX controller.
SLND -
This will let you set unit as a master or a slave in a
master/slave configuration.
1. Press the MENU button until "SLND" is displayed, press
ENTER. Either "MAST" or "SL 1" will be displayed.
2. Press the UP or DOWN buttons until your desired setting is
displayed, press ENTER to confim.
LED
- With this function the LED display will turn off after 2
minutes.
1. Press the MENU button until "LED" is displayed, press
ENTER.
