CONTROL KNOB

Fig A (MCWC16MCG)
. Changes in ambient room temperature will affect the internal temperatures (choose correct
setting of the thermostat knob).
.
In STOP (0) position the appliance does not operate (cooling system is switched off ),
yet power supply is not interrupted.
.
Temperature in the appliance also depends on how often the door is opened.

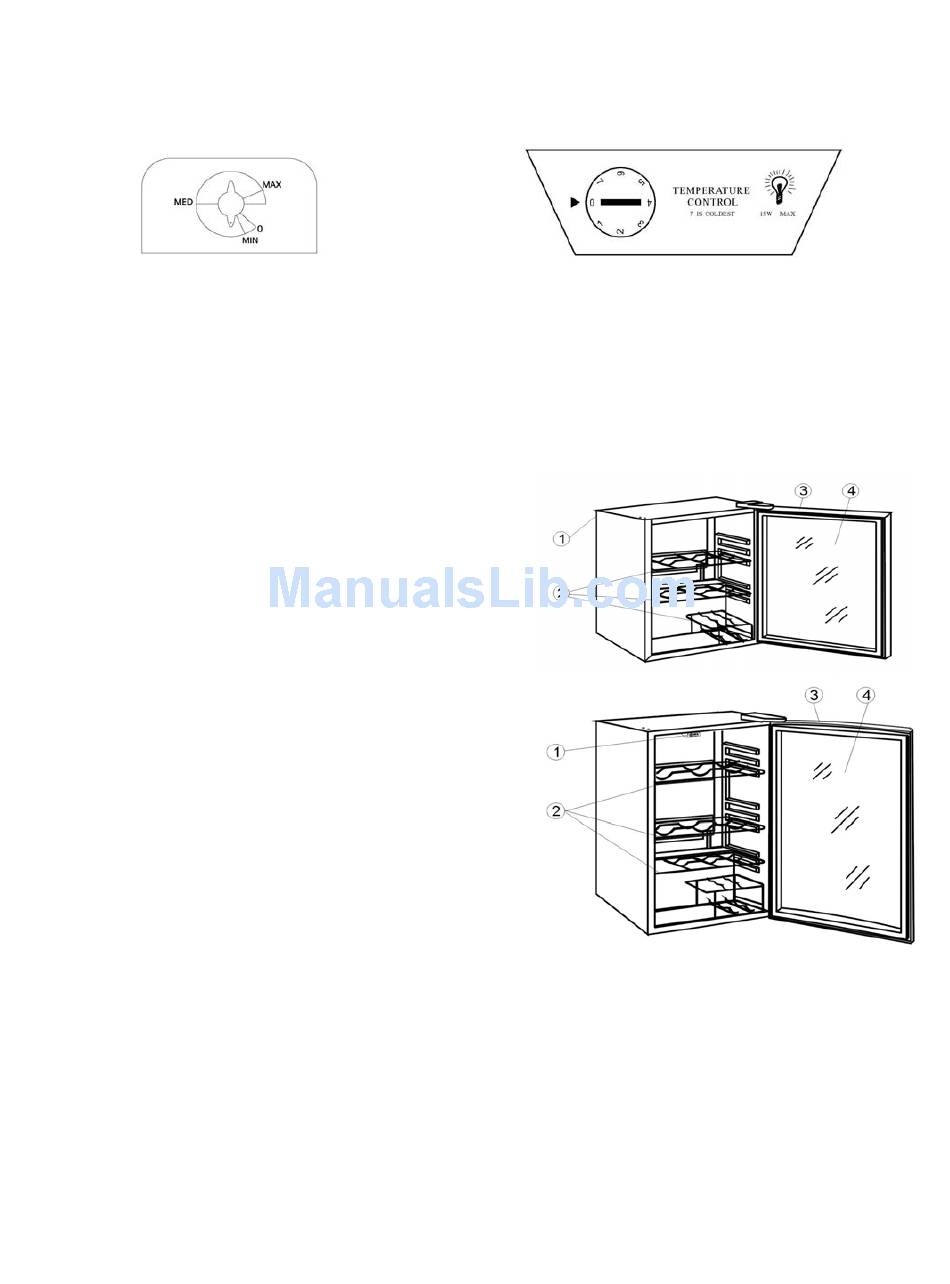

ILLUSTRATION OF THE APPLIANCE

THERMOSTAT DIAL:
1.
For controlling the temperature inside the
wine cooler. Turns the motor on as soon as
the temperature rises above the desired
level.
PLASTIC COATED OR CHROMED SHELVES:
2.
Odor resistant, rustproof, and removable
for easy cleaning.
MAGNETIC GASKET: Tight fitting door
3.
seal keeps all the cooling power locked
inside. No hooks or latches.
TEMPERED GLASS DOOR & INTERIOR LIGHT:
4.
Allows easy interior visibility.
(Interior light for MCWC30MCG

TEMPERATURE RANGE GUIDE:

Upper-Section
19.0 /66.2
MIN.
17.0 /62.6
MED.
MAX. 13.6 /56.4
The above temperatures may fluctuate between +/- 5 .
only)
F
0
F
0
F
0
Fig B (MCWC30MCG)
Mid-Section
17.0 /62.6 F
0
14.0 /57.2 F
0
9.8 /49.6 F
0
6
Lower-Section
14.0 /57.2 F
0
10.0 /50.0 F
0
5.5 /41.9 F
0
