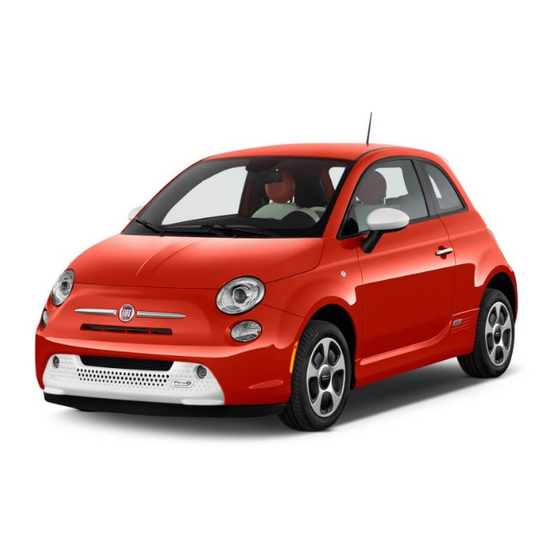

Page 1 FIAT 500e 2 0 1 5 O W N E R ’ S M A N U A L...
Page 2 FIAT is a registered trademark of Fiat Group Marketing & WARNING! Corporate Communication S.p.A., used under license by FCA US LLC.
Page 3: Introduction 3
TABLE OF CONTENTS SECTION PAGE INTRODUCTION ............. . . 3 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE .
Page 5: Table Of Contents
INTRODUCTION CONTENTS INTRODUCTION ......4 VEHICLE IDENTIFICATION NUMBER ..7 HOW TO USE THIS MANUAL ....5 VEHICLE MODIFICATIONS/ALTERATIONS .
Page 6: Introduction
Italian styling that is as good for the maintaining its validity environment as is fun to drive! • The range of additional services available to FIAT This Owner’s Manual has been prepared with the assis- Chrysler Automobiles customers...
Page 7: How To Use This Manual
INTRODUCTION 5 HOW TO USE THIS MANUAL Consult the Table of Contents to determine which section contains the information you desire. Since the specification of your vehicle depends on the items of equipment ordered, certain descriptions and illustrations may differ from your vehicle’s equipment. The detailed index at the back of this Owner’s Manual contains a complete listing of all subjects.
Page 8 6 INTRODUCTION...
Page 9: Vehicle Identification Number
INTRODUCTION 7 WARNINGS AND CAUTIONS This Owner’s Manual contains WARNINGS against operating procedures that could result in a collision or bodily injury. It also contains CAUTIONS against proce- dures that could result in damage to your vehicle. If you do not read this entire Owner’s Manual, you may miss important information.
Page 10: Vehicle Modifications/Alterations
8 INTRODUCTION VEHICLE MODIFICATIONS/ALTERATIONS WARNING! Any modifications or alterations to this vehicle could seriously affect its roadworthiness and safety and may lead to a collision resulting in serious injury or death. Stamped VIN Location NOTE: It is illegal to remove or alter the VIN.
Page 11 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS IMPORTANT VEHICLE INFORMATION ..12 ▫ Smartphone Features ....16 ▫...
Page 12 10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ▫ Vehicle Charge Indicators....28 ▫ Transmitter Battery Replacement ...38 A WORD ABOUT YOUR KEYS .
Page 13 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11 ▫ Supplemental Restraint System (SRS) ..59 ▫ Safety Checks You Should Make Inside The Vehicle ......96 ▫...
Page 14: Important Vehicle Information
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE IMPORTANT VEHICLE INFORMATION Your 500e operates entirely on electricity stored in the high voltage battery. Unlike a conventional vehicle or Hybrid there is no internal combustion engine. Battery Electric Vehicles have unique operating characteristics that you should become familiar with to ensure you are getting the optimal performance from your vehicle.
Page 15 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13 • Lithium-ion batteries hold their charge; they only lose WARNING! (Continued) approximately 3 percent of their charge per month. when your vehicle requires service by a trained • Lithium-ion batteries have no memory, which means technician at an authorized dealer.
Page 16: 500E Electric Vehicle Features
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: 500e ELECTRIC VEHICLE FEATURES Understanding the unique characteristics of your 500e • During vehicle start up and shut down a clicking noise will help ensure maximum performance and the best may be heard from within the vehicle. When the driving range from your vehicle.
Page 17: Single-Speed Transmission
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15 The audible warning system uses an in-car sound syn- Auto Park thesizer with a speaker located in the underhood com- Auto Park will automatically place the transmission into partment. The warning system is automatically activated PARK if there is an indication that the driver may leave when selecting DRIVE or REVERSE.
Page 18: Climate Control (Hvac System)
Smartphone Features The air conditioning compressor is powered by the high With the “FIAT Access” smartphone app, you can moni- voltage battery system and is used to cool the vehicle tor the state of charge of the high voltage battery or occupants and the high voltage battery while the vehicle is being driven or when it is being charged.
Page 19 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17 initiate charging from your phone. You can also turn on How do I get the “FIAT Access” smartphone App? your car’s climate control system remotely. The smart- Visit the 500e registration website: phone app provides the following features: https://www.fiataccess.com/500eSubscribe...
Page 20 18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ID is found in the vehicle’s instrument cluster. To locate the connectivity ID follow the steps below: 1. Press the menu button on the instrument cluster. Connectivity ID 3. Select “Connectivity ID.” Menu Button 2.
Page 21 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19 2. You will now be asked to fill in your contact informa- tion and a user name and password. 3. Once finished with registration you will be directed to your 500e owner’s site. 4.
Page 22: Electric System Operation
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A Level 2 charging station can be installed at your ELECTRIC SYSTEM OPERATION residence. The Level 2 unit and installation service is Level 1 Charging available for purchase at your authorized dealer. (120V —...
Page 23: Charge Times
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21 Charge Times Type of Charge Estimated Charge Time The following factors determine the time it takes to Level 1 (120V/15A) Approximately 23 hours charge the high voltage battery: Level 2 (240V/30A) Approximately 4 hours •...
Page 24 22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE SAE J1772 Charge Receptacle Your vehicle uses an industry standard SAE J1772 charge receptacle (vehicle’s inlet) for both AC Level 1 (120V) and AC Level 2 (240V) charging. EVSE Location NOTE: The EVSE charge cord is used for Level 1 charging only.
Page 25: Evse Operation And Status Information
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23 EVSE Operation And Status Information Indicator Description 2 — Fault Indicator Green indicates READY RED indicates a fault 3 — Charge Level All ON indicates system ready Indicator LED’s and not charging LED’s turning on and off in sequence indicates vehicle charging...
Page 26 24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Fault Fault Charge Level Indicator Charge Level Indicator Indicator Time AC LED Indicator LED’s LED’s • • • • • • • • • After the EVSE is connected to the vehicle’s charge inlet •...
Page 27: Charging The High Voltage Battery
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25 3. Remove the Level 1 EVSE from its storage bin by Fault Charge Level Indicator lifting the rear cargo cover. Indicator Time LED’s • • • • • • • • • •...
Page 28 26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 5. Plug the EVSE into a standard 120V AC outlet that is properly grounded. It is recommended that the EVSE is connected to an AC outlet on a circuit which is not electrically loaded by other devices.
Page 29 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27 Charge Indicator Charge Receptacle Door 8. When charging is complete, or the vehicle needs to be NOTE: unplugged, remove the EVSE by pushing the button • In the event of an error in the charging process, the AC on the charge connector and pull firmly to remove it power to the vehicle will stop and a red indicator will from the charge receptacle.
Page 30: Vehicle Charge Indicators
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Vehicle Charge Indicators Instrument Cluster High Voltage Battery Gauge There is a battery gauge indicator located on the instru- ment cluster. The battery gauge will display, with pro- gressive color indication, the current state of charge for the high voltage battery;...
Page 31 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29 Charge Low And Limited Power Messages The state of charge is monitored during normal opera- tion. If the state of charge reaches certain thresholds the following messages will also be displayed on the cluster: •...
Page 32 30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: The limited power mode can also be activated if NOTE: At 0% state of charge or below the following the high voltage battery temperature is too high or too features will be disabled if in use: low.
Page 33 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31 NOTE: In the event of an error in the charging process the outer two lights will blink. Number Of Indicator Percent Of Battery Lights Illuminated Charge 1 Light 0 – 20% 2 Lights 21 –...
Page 34: A Word About Your Keys
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The vehicle is supplied with a code card containing key A WORD ABOUT YOUR KEYS code numbers to order duplicate keys, and the autho- The key fob contains the Remote Keyless Entry (RKE) rized dealer that sold you your new vehicle has the key transmitter with an integrated key.
Page 35 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33 WARNING! • Before exiting a vehicle, always apply the parking brake, place the transmission into PARK, and re- move the Key Fob from the ignition. When leaving the vehicle, always lock your vehicle. •...
Page 36: Locking Doors With A Key
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Key-In-Ignition Reminder WARNING! (Continued) Opening the driver’s door when the key is in the ignition • Do not leave children or animals inside parked and the ignition switch position is OFF/LOCK sounds a vehicles in hot weather.
Page 37: Replacement Keys
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35 NOTE: A key which has not been programmed is also Replacement Keys considered an invalid key, even if it is cut to fit the NOTE: Only keys that have been programmed to the ignition switch lock cylinder for that vehicle.
Page 38: General Information
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE General Information REMOTE KEYLESS ENTRY (RKE) — IF EQUIPPED The Sentry Key® system complies with FCC rules part 15 and with RSS-210 of Industry Canada. Operation is This system allows you to lock or unlock the doors and subject to the following conditions: liftgate from distances up to approximately 66 ft (20 m) using a hand-held Remote Keyless Entry (RKE) transmit-...
Page 39: To Unlock The Doors And Liftgate
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37 To Unlock The Doors And Liftgate Push and release the UNLOCK button on the RKE transmitter once to unlock the driver’s door or twice, within five seconds, to unlock all doors and the liftgate. The turn signal lights will flash to acknowledge the unlock signal.
Page 40: Transmitter Battery Replacement
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Transmitter Battery Replacement NOTE: Perchlorate Material – special handling may ap- ply. See www.dtsc.ca.gov/hazardouswaste/perchlorate The recommended replacement battery is CR2032. 1. Push the mechanical key release button and release the mechanical key to access the battery case screw lo- cated on the side of the Key Fob.
Page 41 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39 Key Fob Screw Location Battery Case Removed 3. Take out the battery case. Remove and replace the 4. Refit the battery case inside the Key Fob and turn the battery observing its polarity. screw to lock it into place.
Page 42: General Information
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If your RKE transmitter fails to operate from a normal General Information distance, check for these two conditions: This device complies with Part 15 of the FCC rules and RSS 210 of Industry Canada. Operation is subject to the 1.
Page 43 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41 WARNING! • Do not leave children or animals inside parked vehicles in hot weather. Interior heat build-up may cause serious injury or death. • For personal security and safety in the event of an collision, lock the vehicle doors as you drive as well as when you park and leave the vehicle.
Page 44: Power Door Locks - If Equipped
42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Power Door Locks — If Equipped WARNING! (Continued) A power door lock switch is incorporated into the driver • Allowing children to be in a vehicle unattended is door handle. Push or pull the handle to lock or unlock the dangerous for a number of reasons.
Page 45: Auto Door Locks
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43 To change the setting proceed as follows: 1. Briefly push the MENU button to enter the MENU screen. 2. Push the UP or DOWN button to highlight “Auto Door Locks”. Push the MENU button, use the UP or DOWN buttons to turn setting ON...
Page 46: Power Windows
44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE POWER WINDOWS Power Window Switches There are single window controls located on the shifter bezel, below the climate controls, which operate the driver and passenger door windows. The window con- trols will operate when the ignition switch is in the ON/RUN position.
Page 47: Auto-Down
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45 Auto-Down LIFTGATE The driver’s door window switch has an Auto-Down To unlock the liftgate, use the Remote Keyless Entry feature. Push the window switch for approximately one (RKE) transmitter or activate the power door lock second, release, and the window will go down automati- switches located on the front door handles.
Page 48: Occupant Restraint Systems
46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE OCCUPANT RESTRAINT SYSTEMS Some of the most important safety features in your vehicle are the restraint systems: • Seat Belt Systems • Supplemental Restraint Systems (SRS) Air Bags • Child Restraints Important Safety Precautions Please pay close attention to the information in this section.
Page 49 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47 2. If a child from 2 to 12 years old (not in a rear-facing 6. All occupants should always wear their lap and child restraint) must ride in the front passenger seat, shoulder belts properly.
Page 50: Seat Belt Systems
48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ejection and the risk of injury caused by striking the WARNING! inside of the vehicle. Everyone in a motor vehicle should be belted at all times. • Never place a rear-facing child restraint in front of an air bag.
Page 51 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49 After the sequence completes, the Seat Belt Reminder BeltAlert can be activated or deactivated by your autho- Light remains illuminated until the respective seat belts rized dealer. FCA US LLC does not recommend deacti- are buckled.
Page 52 50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! WARNING! (Continued) • Do not allow people to ride in any area of your • Relying on the air bags alone could lead to more vehicle that is not equipped with seats and seat severe injuries in a collision.
Page 53 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51 WARNING! (Continued) WARNING! (Continued) • A lap belt worn too high can increase the risk of • A seat belt that is too loose will not protect you injury in a collision. The seat belt forces won’t be at properly.
Page 54 52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. The seat belt latch plate is above the back of the front WARNING! (Continued) seat, and next to your arm in the rear seat (for vehicles • A shoulder belt placed behind you will not protect equipped with a rear seat).
Page 55 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53 3. When the seat belt is long enough to fit, insert the latch plate and pull on the lap belt. A snug seat belt reduces plate into the buckle until you hear a “click.” the risk of sliding under the seat belt in a collision.
Page 56 54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 6. To release the seat belt, push the red button on the 3. Slide the latch plate upward over the folded webbing. buckle. The seat belt will automatically retract to its The folded webbing must enter the slot at the top of stowed position.
Page 57 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55 Pregnant women should wear the lap part of the seat belt WARNING! across the thighs and as snug across the hips as possible. Keep the seat belt low so that it does not come across the •...
Page 58 56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The pretensioners are triggered by the Occupant Re- Restraints” section of this manual. The table below straint Controller (ORC). Like the air bags, the preten- defines the type of feature for each seating position. sioners are single use items.
Page 59 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57 In Automatic Locking Mode, the shoulder belt is auto- Driver Center Passenger matically pre locked. The seat belt will still retract to First Row remove any slack in the shoulder belt. The Automatic Second Locking Mode is available on all passenger seating positions with a combination lap/shoulder belt.
Page 60 58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE How To Engage The Automatic Locking Mode WARNING! 1. Buckle the combination lap and shoulder belt. • The seat belt assembly must be replaced if the 2. Grasp the shoulder portion and pull downward until switchable Automatic Locking Retractor (ALR) fea- the entire seat belt is extracted.
Page 61: Supplemental Restraint System (Srs)
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59 • Seat Belt Pretenioners Supplemental Restraint System (SRS) Air Bag System Components • Seat Belt Buckle Switch Your vehicle may be equipped with the following air bag • Seat Track Position Sensors system components: Advanced Front Air Bags •...
Page 62 60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE WARNING! • Being too close to the steering wheel or instrument panel during Advanced Front Air Bag deployment could cause serious injury, including death. Air bags need room to inflate. Sit back, comfortably extending your arms to reach the steering wheel or instrument panel.
Page 63 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61 Advanced Front Air Bag Features the driver or front passenger seat belt is buckled. The seat belt buckle switch may adjust the inflation rate of the The Advanced Front Air Bag system has multistage Advanced Front Air Bags.
Page 64 62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE On the other hand, depending on the type and location of WARNING! (Continued) impact, Advanced Front Air Bags may deploy in crashes • Relying on the air bags alone could lead to more with little vehicle front-end damage but that produce a severe injuries in a collision.
Page 65 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63 way as the air bags inflate to their full size. The Advanced Supplemental Driver Knee Air Bag Front Air Bags fully inflate in less time than it takes to This vehicle is equipped with a Supplemental Driver blink your eyes.
Page 66 64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE deploys through the seat seam into the space between the occupant and the door. The SAB moves at a very high speed and with such a high force that it could injure you if you are not seated properly, or if items are positioned in the area where the SAB inflates.
Page 67 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65 The SABIC deploys downward, covering the side win- dows. An inflating SABIC pushes the outside edge of the headliner out of the way and covers the window. The SABICs inflate with enough force to injure you if you are not belted and seated properly, or if items are positioned in the area where the SABICs inflate.
Page 68 66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The SABICs and SABs (“Side Air Bags”) are designed to WARNING! activate in certain side impacts. The Occupant Restraint Controller (“ORC”) determines whether the deployment • Your vehicle is equipped with left and right of the Side Air Bags in a particular impact event is Supplemental Side Air Bag Inflatable Curtains appropriate, based on the severity and type of collision.
Page 69 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67 compartment. The Side Air Bags may deploy during WARNING! angled or offset frontal collisions where the Advanced Front Air Bags deploy. • Side Air Bags need room to inflate. Do not lean against the door or window.
Page 70 68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If A Deployment Occurs • As the air bags deflate, you may see some smoke-like particles. The particles are a normal by-product of the The Advanced Front Air Bags are designed to deflate process that generates the non-toxic gas used for air immediately after deployment.
Page 71 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69 on the nature of the event, the ORC will determine WARNING! whether to have the Enhanced Accident Response Sys- tem perform the following functions: Deployed air bags and seat belt pretensioners cannot protect you in another collision.
Page 72 70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Customer Action Customer Will See 1. Turn ignition OFF. (Turn Signal Switch Must be placed in Neutral State). 2. Turn ignition ON. Left Turn Light is OFF. Right Turn Light BLINKS. 3. Turn Right Turn Signal Switch ON. Right Turn Light is ON SOLID.
Page 73 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71 If a reset procedure step is not completed within 45 The ORC contains a backup power supply system that seconds, then the turn signal lights will turn off and the may deploy the air bags even if the battery loses power or reset procedure must be performed again in order to be it becomes disconnected prior to deployment.
Page 74 72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE free, if any of the following occurs, have an authorized WARNING! dealer service the air bag system immediately. Ignoring the Air Bag Warning Light in your instru- • The Air Bag Warning Light does not come on during ment panel could mean you won’t have the air bags the four to eight seconds when the ignition switch is to protect you in a collision.
Page 75 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73 Maintaining Your Air Bag System WARNING! (Continued) • Do not attempt to modify any part of your air bag WARNING! system. The air bag may inflate accidentally or may • Modifications to any part of the air bag system not function properly if modifications are made.
Page 76 74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Event Data Recorder (EDR) These data can help provide a better understanding of the circumstances in which crashes and injuries occur This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR is to record, in NOTE: EDR data are recorded by your vehicle only if a certain crash or near crash-like situations, such as an air non-trivial crash situation occurs;...
Page 77: Child Restraints
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75 Child Restraints WARNING! (Continued) Everyone in your vehicle needs to be buckled up at all great that you could not hold the child, no matter times, including babies and children. how strong you are. The child and others could be badly injured.
Page 78 76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE NOTE: • http://www.tc.gc.ca/eng/roadsafety/safedrivers- childsafety-index-53.htm • For additional information, refer to www.seatcheck.org or call 1–866–SEATCHECK. Canadian residents should refer to Transport Canada’s website for additional infor- mation: Summary Of Recommendations For Restraining Children In Vehicles Child Size, Height, Weight Or Age Recommended Type Of Child Restraint Infants and Toddlers...
Page 79 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77 Child Size, Height, Weight Or Age Recommended Type Of Child Restraint Larger Children Children who have out-grown their Belt Positioning Booster Seat and the forward-facing child restraint, but are vehicle seat belt, seated in the rear seat too small to properly fit the vehicle’s of the vehicle seat belt...
Page 80 78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE remain in a forward-facing child seat with a harness for WARNING! as long as possible, up to the highest weight or height allowed by the child seat. • Never place a rear-facing child restraint in front of an air bag.
Page 81 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 79 WARNING! WARNING! (Continued) • When your child restraint is not in use, secure it in • Improper installation can lead to failure of an the vehicle with the seat belt or LATCH anchor- infant or child restraint.
Page 82 80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. Do the child’s knees bend comfortably over the front WARNING! of the vehicle seat – while they are still sitting all the way back? Never allow a child to put the shoulder belt under an arm or behind their back.
Page 83 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 81 Recommendations For Attaching Child Restraints Restraint Type Combined Use any attachment method shown with an “X” Below Weight of the LATCH – Seat Belt Only LATCH – Seat Belt + Top Child + Child Lower Anchors Lower Anchors Tether Anchor...
Page 84 82 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Lower Anchors And Tethers For Children (LATCH) has three vehicle anchor points for installing LATCH- Restraint System equipped child seats. There are two lower anchorages located at the back of the seat cushion where it meets the seatback and one top tether anchorage located behind the seating position.
Page 85 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 83 LATCH Positions For Installing Child Restraints In This Vehicle Lower Anchorage Symbol 2 anchorages per • seating position Top Tether Anchorage Symbol •...
Page 86 84 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE What is the weight limit (child’s 65 lbs (29.5 kg) Use the LATCH anchorage system weight + weight of the child re- until the combined weight of the straint) for using the LATCH an- child and the child restraint is chorage system to attach the child 65 lbs (29.5 kg).
Page 87 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 85 Can two child restraints be at- Never “share” a LATCH anchorage tached using a common lower with two or more child restraints. LATCH anchorage? If the center position does not have dedicated LATCH lower anchor- ages, use the seat belt to install a child seat in the center position next to a child seat using the...
Page 88 86 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Locating LATCH Anchorages The lower anchorages are round bars that are found at the rear of the seat cushion where it meets the seatback, below the anchorage sym- bols on the seatback. They are just visible when you lean into the rear seat to install the child restraint.
Page 89 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 87 Locating Tether Anchorages Center Seat LATCH WARNING! There are tether strap anchorages behind each rear seating position located on the back of the This vehicle does not have a center seating position. seat.
Page 90 88 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE To Install A LATCH-Compatible Child Restraint 3. Attach the lower hooks or connectors of the child restraint to the lower anchorages in the selected seat- If the selected seating position has a Switchable Auto- ing position.
Page 91 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 89 How To Stow An Unused ALR Seat Belt: WARNING! When using the LATCH attaching system to install a • Improper installation of a child restraint to the child restraint, stow all ALR seat belts that are not being LATCH anchorages can lead to failure of the re- used by other occupants or being used to secure child straint.
Page 92 90 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Installing Child Restraints Using The Vehicle Seat Lap/Shoulder Belt Systems For Installing Child Belt Restraints In This Vehicle The seat belts in the passenger seating positions are equipped with a Switchable Automatic Locking Retractor (ALR) that is designed to keep the lap portion of the seat belt tight around the child restraint so that it is not necessary to use a locking clip.
Page 93 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 91 What is the weight limit (child’s Weight limit of the Child Restraint Always use the tether anchor when weight + weight of the child re- using the seat belt to install a for- straint) for using the Tether Anchor ward facing child restraint, up to with the seat belt to attach a forward...
Page 94 92 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Installing A Child Restraint With A Switchable 5. To lock the seat belt, pull down on the shoulder part of Automatic Locking Retractor (ALR) the belt until you have pulled all the seat belt webbing out of the retractor.
Page 95 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 93 strap. See the section “Installing Child Restraints WARNING! (Continued) Using the Top Tether Anchorage” for directions to tether strap of a rear-facing car seat to the tether attach a tether anchor. anchorage that is approved for that seating position, 9.
Page 96 94 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE tether anchorage for that seating position, move the child restraint to another position in the vehicle if one is available. 2. Route the tether strap to provide the most direct path for the strap between the anchor and the child seat. If your vehicle is equipped with adjustable rear head restraints, raise the head restraint, and where possible, route the tether strap under the head restraint and...
Page 97: Transporting Pets
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 95 SAFETY TIPS WARNING! Transporting Passengers • An incorrectly anchored tether strap could lead to NEVER TRANSPORT PASSENGERS IN THE CARGO increased head motion and possible injury to the AREA. child. Use only the anchorage position directly behind the child seat to secure a child restraint top WARNING! tether strap.
Page 98: Safety Checks You Should Make Inside The Vehicle
96 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Air Bag Warning Light WARNING! (Continued) • Be sure everyone in your vehicle is in a seat and The light should come on and remain on for using a seat belt properly. four to eight seconds as a bulb check when the ignition switch is first turned ON.
Page 99 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 97 Floor Mat Safety Information WARNING! (Continued) Always use floor mats designed to fit the footwell of your • Never place or install floor mats or other floor vehicle. Use only floor mats that leave the pedal area coverings in the vehicle that cannot be properly unobstructed and that are firmly secured so that they secured to prevent them from moving and interfer-...
Page 100: Periodic Safety Checks You Should Make Outside The Vehicle
98 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Periodic Safety Checks You Should Make Outside WARNING! (Continued) The Vehicle • Always make sure that objects cannot fall into the Tires driver footwell while the vehicle is moving. Ob- jects can become trapped under the brake pedal Examine tires for excessive tread wear and uneven wear and accelerator pedal causing a loss of vehicle patterns.
Page 101 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CONTENTS MIRRORS ......102 ▫ The Hands-Free Kit ....107 ▫...
Page 102 100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE LIGHTS ......123 ▫ Front Windshield Wiper Operation ..128 ▫...
Page 103 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101 ▫ Rear Park Assist Audible Alerts ...137 ▫ Sun Shade — If Equipped ....144 ▫...
Page 104: Mirrors
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE MIRRORS Inside Day/Night Mirror The mirror can be adjusted up, down, left, and right for various drivers. The mirror should be adjusted to center on the view through the rear window. Headlight glare from vehicles behind you can be reduced by moving the small control under the mirror to the night position (toward the rear of the vehicle).
Page 105: Automatic Dimming Mirror - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103 Automatic Dimming Mirror — If Equipped This mirror automatically adjusts for headlight glare from vehicles behind you. You can turn the feature on or off by pushing the button at the base of the mirror. A light to the left of the button will illuminate to indicate when the dimming feature is activated.
Page 106: Power Mirrors
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE mirror, push the mirror select switch to either the L (left) Power Mirrors or R (right) to select the mirror you need to adjust. The power mirror controls are located on the driver’s door trim panel.
Page 107: Folding Mirrors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105 Spotter Mirror — If Equipped Folding Mirrors Some models are equipped with a driver’s side spotter The exterior mirrors are hinged to allow the mirror to mirror. The spotter mirror allows for a greater range of pivot forward or rearward to help avoid damage.
Page 108: Sun Visors
The sun visor can be If Equipped rotated downward or up against the door glass. Both sun Windows Mobile™-based FIAT BLUE&ME™ is a per- visors are equipped with courtesy mirrors. sonal telematic system enabling you to use communica- tion and entertainment applications expressly designed for use in the car.
Page 109: The Hands-Free Kit
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107 you are not required to train the voice recognition system The Hands-Free Kit to recognize your voice. This implies that the system is The basic characteristic of this hands-free kit is voice nearly equally performing with different persons, i.e.: the recognition with Bluetooth®...
Page 110 108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE steering wheel controls and the instrument panel multi- To get started with BLUE&ME™ hands-free kit with function display. Please refer to the Fiat Blue & Me Radio voice recognition, you have to simply pair your Supplement for further information.
Page 111 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109 • To interact with BLUE&ME™ you can use either the The hands-free kit enables the following operations: buttons on the steering wheel or voice commands. • Contact Calling By Voice — You can call a contact in With voice recognition, you can perform system func- your mobile phone phonebook using your voice.
Page 112 110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Conference Call — You can call another contact while wheel. When using the hands-free phone, the audio you are engaged in a phone conversation (with output of a phone conversation is heard through your car Bluetooth®...
Page 113 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111 NOTE: Not all mobile phones support the SMS text • To read the messages received and stored. Messages message reader function or automatic phonebook transfer can be read multiple times. via Bluetooth®. For further information on the list of •...
Page 114 112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE connecting it to the USB port located in the center console • Playback Options — While playing tracks you can of the car. A second USB port, used for charging only, is select the following options: Play, Stop, Next track, located in the glovebox.
Page 115 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113 WARNING! WARNING! (Continued) • Keep the Owner’s Manual in the car: when kept in • Driving while distracted can result in loss of ve- the car, the Owner’s Manual will be available for hicle control, accident and injury.
Page 116: Seats
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE SEATS Forward/Rearward Adjustment Seats are a part of the Occupant Restraint System of the The adjusting bar is located at the front of the seats, near vehicle. the floor. WARNING! • It is dangerous to ride in a cargo area, inside or outside of a vehicle.
Page 117: Recline Adjustment
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115 move forward and rearward on the seat to be sure that the seat adjusters have latched. WARNING! • Adjusting a seat while driving may be dangerous. Moving a seat while driving could result in loss of control which could cause a collision and serious injury or death.
Page 118: Seat Height Adjustment
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Seat Height Adjustment EZ Entry Feature The driver’s seat height can be raised or lowered by The driver and front passenger seats have an EZ entry using a lever, located on the outboard side of the seat. feature for rear seat passengers.
Page 119: Memory Feature
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117 Lift the seatback upright and push the seat rearward to fore/aft (memory) position on the tracks. This results in its locked position once the rear passengers are seated. the seat back memory being set only – The track will then be locked forward of its last set fore/aft memory posi- Memory Feature tion.
Page 120: Head Restraints
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Head Restraints WARNING! Head restraints are designed to reduce the risk of injury • Persons who are unable to feel pain to the skin by restricting head movement in the event of a rear- because of advanced age, chronic illness, diabetes, impact.
Page 121 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119 Reactive Head Restraints — Front Seats The front driver and passenger seats are equipped with Reactive Head Restraints. In the event of a rear impact the Reactive Head Restraints will automatically extend forward minimizing the gap between the back of the occupant’s head and the Reactive Head Restraint.
Page 122 120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: The head restraints should only be removed by push downward on the head restraint. Refer to “Occu- qualified technicians, for service purposes only. If either pant Restraints” in “Things To Know Before Starting of the head restraints require removal, see your autho- Your Vehicle”...
Page 123: To Open And Close The Hood
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121 2. Rotate the safety catch under the front edge of the TO OPEN AND CLOSE THE HOOD hood, near the center, and raise the hood. To open the hood, two latches must be released. 1.
Page 124 122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! To prevent possible damage, do not slam the hood to close it. Lower the hood until it is open approxi- mately 6 inches (15 cm), and then drop it. This should secure both latches. Never drive your vehicle unless the hood is fully closed, with both latches engaged.
Page 125: Lights
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123 LIGHTS Multifunction Lever The multifunction lever, located on the left side of the steering wheel, controls the operation of the headlights, headlight beam selection, passing light and turn signals. NOTE: The external lights can only be turned on with the ignition in the ON/RUN position.
Page 126: High Beams
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE High Beams Daytime Running Lights — If Equipped To activate the Daytime Running Lights (DRL), rotate the With the low beams activated, push the multi- end of the multifunction lever to the O symbol. function lever towards the instrument panel to NOTE: The low beams and side/taillights will not be on turn on the high beams.
Page 127: Lane Change Assist
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125 Lane Change Assist Tap the lever up or down once, without moving beyond the detent, and the turn signal (right or left) will flash three times then automatically turn off. Follow Me Home/Headlight Delay When this feature is selected the driver can choose to have the headlights remain on for a preset period of time.
Page 128: Interior Lights
126 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Deactivation on the right light and push the switch to the left to turn on the left light. Pull the multifunction lever toward the steering wheel and hold it for more than two seconds. CAUTION! Interior Lights Before getting out of the vehicle be sure that the...
Page 129: Front Fog Lights - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 127 • When the doors are unlocked with the Key Fob a 10 Front Fog Lights — If Equipped second timer is activated. The fog light switch is located on the center stack of the instrument panel, just below the radio.
Page 130: Windshield Wipers And Washers
128 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WINDSHIELD WIPERS AND WASHERS The windshield wiper/washer lever is located on the right side of the steering column. NOTE: The windshield wipers/washers will only oper- ate with the ignition in the ON/RUN position. Front Windshield Wiper Operation There are five different modes of operation for the front windshield wipers.
Page 131 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 129 NOTE: The Intermittent function only has one detent Front Windshield Washer Operation but wiper delay will vary with changes in vehicle speed. Pull the windshield wiper/washer lever toward the As vehicle speed increases the delay time will decrease. steering wheel to activate the washers.
Page 132: Rear Windshield Wiper
130 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! (Continued) • Always remove any buildup of snow that prevents the windshield wiper blades from returning to the off position. If the windshield wiper control is turned off and the blades cannot return to the off position, damage to the wiper motor may occur.
Page 133: Tilt Steering Column - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 131 Rear Windshield Washer Operation Push the windshield wiper/washer lever toward the instrument panel to activate the rear washer. Push and hold the lever for more than a half second and the wipers will activate automatically for three cycles after the lever is released.
Page 134: Electronic Speed Control
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WARNING! Do not adjust the steering column while driving. Adjusting the steering column while driving or driv- ing with the steering column unlocked, could cause the driver to lose control of the vehicle. Failure to follow this warning may result in serious injury or death.
Page 135: To Activate
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133 To Activate To Set A Desired Speed Push the ON/OFF button. The Cruise Indicator Light in Turn the Electronic Speed Control ON. When the vehicle the instrument cluster will illuminate. To turn the system has reached the desired speed, push the SET (-) button off, push the ON/OFF button a second time.
Page 136: To Resume Speed
134 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • If the button is continually pushed, the set speed will To Resume Speed continue to increase until the button is released, then To resume a previously set speed, push the RES (+) the new set speed will be established.
Page 137: To Accelerate For Passing
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 135 The speed decrement shown is dependant on the selected To Accelerate For Passing speed unit of U.S. (mph) or Metric (km/h): Push the accelerator as you would normally. When the pedal is released, the vehicle will return to the set speed. U.S.
Page 138: Rear Park Assist
136 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Rear Park Assist Sensors WARNING! (Continued) The four Rear Park Assist sensors, located in the rear could lose control and have an accident. Do not use fascia/bumper, monitor the area behind the vehicle that Electronic Speed Control in heavy traffic or on roads is within the sensors’...
Page 139: Rear Park Assist Warning Display
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 137 Rear Park Assist Warning Display Rear Park Assist Audible Alerts The Rear Park Assist Warning screen is located within the If an obstacle is behind the vehicle when the transmission Electronic Vehicle Information Center (EVIC). It provides is placed into REVERSE, an audible alert is activated.
Page 140 138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Audible And Visual Signals Supplied By The Rear Park Assist System SIGNAL MEANING INDICATION Obstacle Distance An obstacle is present within the Audible signal (dashboard loud- sensors’ field of view speaker) • Sound pulses emitted at a rate that increases as the distance decreases.
Page 141: Failure Indications
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 139 While audible signals are emitted, the audio system is not The sensors and wiring are tested continuously when the muted. ignition is in the ON/RUN position. Failures are indi- cated immediately if they occur when the system is ON. The audible signal is turned off immediately if the distance increases.
Page 142: Park Assist System Usage Precautions
140 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Objects such as bicycle carriers, etc., must not be Park Assist System Usage Precautions placed within 12 in (30 cm) from the rear fascia/ NOTE: bumper while driving the vehicle. Failure to do so can •...
Page 143 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 141 CAUTION! (Continued) WARNING! • The vehicle must be driven slowly when using • Drivers must be careful when backing up even Rear Park Assist in order to be able to stop in time when using the Rear Park Assist system.
Page 144: Power Sunroof - If Equipped
142 UNDERSTANDING THE FEATURES OF YOUR VEHICLE POWER SUNROOF — IF EQUIPPED WARNING! (Continued) The power sunroof roof switch is located in the overhead • Before using the Rear Park Assist System, it is console. strongly recommended that the ball mount and hitch ball assembly is disconnected from the ve- hicle when the vehicle is not used for towing.
Page 145: To Open
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 143 To Open WARNING! Push and hold the power sunroof switch rearward for • Never leave children alone in a vehicle, or with approximately one second and the sunroof will stop at access to an unlocked vehicle. Never leave the Key the vented position.
Page 146: Pinch Protect Feature
144 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Pinch Protect Feature Emergency Operation This feature will detect an obstruction in the opening of In case of electrical failure the sunroof can be operated the sunroof during Express Close operation. If an ob- with the hex wrench that is located in the glove box.
Page 147: Electrical Power Outlets
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 145 Manual Sun Shade Power Outlet Power is available when the ignition switch is in the ELECTRICAL POWER OUTLETS ON/RUN or START position. Insert the cigar lighter or There is a standard 12 Volt (13 Amp) power outlet, accessory plug into the outlet for use.
Page 148 146 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! • Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the 160 Watts (13 Amps) power rating is exceeded, the fuse protecting the system will need to be replaced. •...
Page 149 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 147 WARNING! CAUTION! To avoid serious injury or death: • Many accessories that can be plugged in draw • Only devices designed for use in this type of outlet power from the vehicle’s battery, even when not in should be inserted into any 12 Volt outlet.
Page 150: Cigar Lighter - If Equipped
148 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CIGAR LIGHTER — IF EQUIPPED CUPHOLDERS This is located on the center console, in front of the cup For the driver and front passenger, cupholders are lo- holders. To activate the cigar lighter, push and release the cated on the floor console between the front seats.
Page 151: Storage
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 149 For rear passengers, there are cupholders located on the STORAGE floor between the front driver and passenger seats. Glove Compartment The glove compartment is located on the right side of the instrument panel. Pull outward on the glove compart- ment latch to open the glove compartment.
Page 152: Cargo Area Features
150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CARGO AREA FEATURES The rear seatbacks have a fold down feature to allow increased cargo capacity. Push down the release button, located at the outboard top of the seatback and move the seatback to its folded- down position to provide a flat load floor cargo area.
Page 153: Rear Window Features
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151 REAR WINDOW FEATURES Rear Window Defroster The rear window defroster button is located in the center of the instrument panel, below the radio. Push this button to turn on the rear window defroster. An indicator in the instrument panel cluster will illuminate when the rear window defroster is on.
Page 154 152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CAUTION! Failure to follow these cautions can cause damage to the heating elements: • Use care when washing the inside of the rear window. Do not use abrasive window cleaners on the interior surface of the window. Use a soft cloth and a mild washing solution, wiping parallel to the heating elements.
Page 155: Understanding Your Instrument Panel
UNDERSTANDING YOUR INSTRUMENT PANEL CONTENTS INSTRUMENT PANEL FEATURES ..155 ▫ Introduction ......173 INSTRUMENT CLUSTER .
Page 156 154 UNDERSTANDING YOUR INSTRUMENT PANEL ▫ Troubleshooting..... . .198 CD/DVD DISC MAINTENANCE ...201 iPod®/USB/MEDIA PLAYER CONTROL —...
Page 157: Instrument Panel Features
UNDERSTANDING YOUR INSTRUMENT PANEL 155 INSTRUMENT PANEL FEATURES...
Page 158 156 UNDERSTANDING YOUR INSTRUMENT PANEL 1 — Side Vent 6 — Storage Compartment 11 — Power Window Controls 2 — Multifunction Lever – Light 7 — Passenger Air Bag 12 — Heated Seat Controls/Front Control Fog Light Control 3 — Instrument Cluster And Elec- 8 —...
Page 159: Instrument Cluster
UNDERSTANDING YOUR INSTRUMENT PANEL 157 INSTRUMENT CLUSTER...
Page 160: Instrument Cluster Descriptions
158 UNDERSTANDING YOUR INSTRUMENT PANEL 3. Brake Warning Light INSTRUMENT CLUSTER DESCRIPTIONS 1. Seat Belt Reminder Light This light monitors various brake functions, including brake fluid level and parking brake When the ignition switch is first turned to ON/ application. If the Brake Warning Light turns RUN, this light will turn on if the driver’s seat belt on it may indicate that the parking brake is is unbuckled, a chime will sound.
Page 161 UNDERSTANDING YOUR INSTRUMENT PANEL 159 Distribution (EBD). In the event of an EBD failure, the 4. Rear Defrost Button Brake Warning Light will turn on along with the ABS Push and release this button to turn on the rear Light. Immediate repair to the ABS system is required. window defroster.
Page 162 160 UNDERSTANDING YOUR INSTRUMENT PANEL 6. Vehicle Break-in/Indicator CAUTION! (Continued) This indicator will illuminate when the Vehicle • Do not use scrapers, sharp instruments, or abrasive Theft Alarm system has detected an attempt window cleaners on the interior surface of the was made to break into the vehicle.
Page 163 UNDERSTANDING YOUR INSTRUMENT PANEL 161 turned to the ON/RUN position. If the ESC Activation/ 11. Turn Signal Indicators Malfunction Indicator Light comes on continuously a The arrows will flash in unison with the exte- malfunction has been detected in the ESC system. If this rior turn signal, when using the turn signal light remains on, see your authorized dealer as soon as lever.
Page 164 162 UNDERSTANDING YOUR INSTRUMENT PANEL 14. Door Ajar Lights 18. Plugged In Indicator These lights will turn on to indicate when the drivers, This red indicator will illuminate if there is a passengers or both doors may be ajar. malfunction or interruption during the vehicle charging process.
Page 165 UNDERSTANDING YOUR INSTRUMENT PANEL 163 21. Electronic Speed Control ON Center (EVIC). Refer to ”Electronic Vehicle Information Center (EVIC) — If Equipped” for further information. This telltale will illuminate amber when the 23. Exterior Bulb Failure Indicator electronic speed control is ON. For further infor- mation, refer to “Electronic Speed Control”...
Page 166 164 UNDERSTANDING YOUR INSTRUMENT PANEL 26. Anti-Lock Brake (ABS) Light 27. Tire Pressure Monitoring Telltale Light This light monitors the Anti-Lock Brake System Each tire, including the spare (if provided), (ABS). The light will turn on when the ignition should be checked monthly when cold and switch is turned to the ON/RUN position and inflated to the inflation pressure recommended may stay on for as long as four seconds.
Page 167 UNDERSTANDING YOUR INSTRUMENT PANEL 165 reduces driving range and tire tread life, and may affect alternate tires or wheels on the vehicle that prevent the the vehicle’s handling and stopping ability. TPMS from functioning properly. Always check the TPMS malfunction telltale after replacing one or more Please note that the TPMS is not a substitute for proper tires or wheels on your vehicle, to ensure that the tire maintenance, and it is the driver’s responsibility to...
Page 168: Electronic Vehicle Information Center (Evic)
166 UNDERSTANDING YOUR INSTRUMENT PANEL ELECTRONIC VEHICLE INFORMATION CENTER CAUTION! (Continued) (EVIC) sensor to become inoperable. After using an after- The Electronic Vehicle Information Center (EVIC) fea- market tire sealant it is recommended that you take tures a driver-interactive display that is located in the your vehicle to an authorized dealership to have your instrument cluster.
Page 169: Evic Control Buttons
UNDERSTANDING YOUR INSTRUMENT PANEL 167 The EVIC consists of the following: • System Status • Vehicle Information Warning Message Displays • Outside Temperature Display • Trip Computer Functions • Tire Pressure Monitoring Display • Range EVIC Control Buttons The EVIC control buttons are located on the right side of EVIC Control Buttons the Instrument Cluster.
Page 170: Electronic Vehicle Information Center (Evic) Setup Menu
168 UNDERSTANDING YOUR INSTRUMENT PANEL Push and release the + button to scroll upward through The setup menu can be activated by pushing the MENU the displayed menu and the related options or to increase ESC button. Single pushes on the + or – buttons will the displayed value.
Page 171 UNDERSTANDING YOUR INSTRUMENT PANEL 169 • Hill Start Assist Selecting An Option Of The Main Menu With Sub- menu: • Stored Warnings 1. Briefly push and release the MENU ESC button to • Tutorial display the first submenu option. • Connectivity ID 2.
Page 172: Trip Computer
170 UNDERSTANDING YOUR INSTRUMENT PANEL 6. Push and hold the MENU ESC button to return to the Trip Button main menu (short hold) or the main screen (longer The TRIP button is located on the right steering column hold). stalk. Trip Computer The Trip Computer is located in the instrument cluster.
Page 173 UNDERSTANDING YOUR INSTRUMENT PANEL 171 The User-Selectable options are: Trip Functions Both trip functions are resettable (reset — start of new • Motor Power (Kilowatts) trip). • Trip A “Trip A” can be used to display the figures relating to: •...
Page 174 172 UNDERSTANDING YOUR INSTRUMENT PANEL Values Displayed Distance Traveled This value shows the distance covered since the last reset. Range This indicates the distance which may be travelled with Average Speed the remaining battery charge, assuming that driving This value shows the vehicle’s average speed as a func- conditions will not change.
Page 175: Sales Code (Rab) Radio
UNDERSTANDING YOUR INSTRUMENT PANEL 173 SALES CODE (RAB) RADIO Introduction The radio has been designed according to the specifica- tions of the passenger compartment, with a personalized design to match the style of the dashboard. If the radio has BLUE&ME™, refer to the appropriate “BLUE&ME™...
Page 176 174 UNDERSTANDING YOUR INSTRUMENT PANEL Reception Conditions Care And Maintenance Reception conditions change constantly while driving. Clean the cover with a soft antistatic cloth only. Cleaning Reception may be interfered with by the presence of and polishing products could damage the surface. mountains, buildings or bridges, or when you are far away from the broadcaster.
Page 177 UNDERSTANDING YOUR INSTRUMENT PANEL 175 • After listening to them place CDs back in their boxes to • Do not use commercially available protective sheets prevent them from being damaged. for CDs or discs, with stabilizers, etc. as they could get stuck in the internal mechanism and damage the disc.
Page 178: Technical Specifications
176 UNDERSTANDING YOUR INSTRUMENT PANEL With Alpine Premium Audio system (if equipped): Technical Specifications The complete system consists of: • Two 165 mm diameter midwoofer speakers. • Two 165 mm diameter midwoofer speakers, one • Two 11 mm tweeter speakers in the front pillars. speaker in each of the front doors.
Page 179: Quick Guide
UNDERSTANDING YOUR INSTRUMENT PANEL 177 Quick Guide Radio Controls BUTTON GENERAL FUNCTIONS MODE Short button push Short button push TUNER AM, FM, SAT (if equipped) source Short repeated button push selection A-B-C Cycles A, B, C presets for AM, FM, Short repeated button push SAT (if equipped) MEDIA...
Page 180 178 UNDERSTANDING YOUR INSTRUMENT PANEL BUTTON GENERAL FUNCTIONS MODE (Mute/Pause Button) Volume activation/deactivation Short button push (Mute/Pause) AUDIO Audio adjustments: low tones Menu activation: short button push (BASS), high tones (TREBLE), left/ Adjustment type selection: push right balance (BALANCE), front/ Adjustment of values: push rear balance (FADER) (Information Button)
Page 181 UNDERSTANDING YOUR INSTRUMENT PANEL 179 BUTTON RADIO FUNCTIONS MODE Radio Station Search: Automatic search: push buttons • Automatic Search (long push for fast for- • Manual Search ward) Manual search: push buttons (long push for fast forward) 1 2 3 4 5 Current radio station storing Long button push for memory pre- set 1 to 5 respectively...
Page 182: General Information
180 UNDERSTANDING YOUR INSTRUMENT PANEL CD Section General Information The radio offers the following functions: • Track selection (forward/backward) Radio Section • Fast forward/rewind through tracks • PLL tuning with FM/AM bands • CD Display function: display of track number and on mp3 discs (song title, artist) and time elapsed since •...
Page 183: Functions And Adjustments
UNDERSTANDING YOUR INSTRUMENT PANEL 181 • Track selection (forward/backward) Functions And Adjustments • Fast forward/rewind through tracks Turning The Car Radio On The car radio comes on when the (ON/OFF) button • MP3 Display function: display of folder name, ID3- is pushed briefly.
Page 184 182 UNDERSTANDING YOUR INSTRUMENT PANEL Selecting The CD Function When the volume level is changed using the dedicated controls, the Mute function is deactivated and the vol- By briefly pushing the MEDIA button, the CD audio ume is adjusted to the new level selected. source can be selected (only if a CD is loaded).
Page 185 UNDERSTANDING YOUR INSTRUMENT PANEL 183 The functions managed by the Audio Menu are: Tone Adjustment Proceed as follows: • BASS (Bass adjustment) 1. Push the AUDIO button. • MIDRANGE (Midrange adjustment) 2. Push the button to select “Bass,” “Mid- • TREBLE (Treble adjustment) range”...
Page 186 184 UNDERSTANDING YOUR INSTRUMENT PANEL 3. Push the button to increase the sound from the By pushing the buttons briefly, the levels will left speakers or the button to increase the sound change progressively. By pushing them down longer, from the right speakers. the levels will change quickly.
Page 187 UNDERSTANDING YOUR INSTRUMENT PANEL 185 Preset/User/Classic/Rock/Jazz Functions — If When one of the equalizer adjustments is activated the Equipped wording “EQ” lights up. The built-in equalizer can be activated/deactivated. User EQ Settings Function — If Equipped When the equalizer function is off, the audio settings can To set a personalized equalizer adjustment: only be changed by adjusting the “Bass”...
Page 188 186 UNDERSTANDING YOUR INSTRUMENT PANEL Menu • System Reset MENU Button Functions • Speed Volume Push the MENU button briefly to activate the Menu • On Volume Limit function. Push the MENU button again to exit the Menu function. Use the buttons to scroll through the menu Speed Volume Function —...
Page 189 UNDERSTANDING YOUR INSTRUMENT PANEL 187 On Volume Limit • “On volume limit: off” – The radio will come on at the same volume as before it was switched off. The This function makes it possible to activate/deactivate the volume level can be between 0 and 40. maximum volume limit when turning the radio on.
Page 190: Radio
188 UNDERSTANDING YOUR INSTRUMENT PANEL Radio Off Function • YES — The default parameters will be restored. Dur- ing such operation, the wording “Resetting” appears This function makes it possible to set the radio switching on the display. At the end of the operation, the source off mode by choosing between two methods.
Page 191 UNDERSTANDING YOUR INSTRUMENT PANEL 189 Frequency Band Selection To listen to a preset station, select the desired frequency band and then briefly push the corresponding preset With the Radio mode active, press the FM or AM tuner button (from 1 to 5). button briefly and repeatedly to select the desired recep- tion band.
Page 192: Siriusxm Satellite Radio - If Equipped
190 UNDERSTANDING YOUR INSTRUMENT PANEL Select the desired frequency band and then push briefly Jamie Foxx’s The Foxxhole and Blue Collar Comedy, plus and repeatedly the button to start the search in kids’ programming, world-class news, local traffic and the desired direction. If the button is pushed weather.
Page 193 UNDERSTANDING YOUR INSTRUMENT PANEL 191 SiriusXM Satellite Radio Program Types Re-Subscribe To SiriusXM Satellite Radio Program Types can be selected by pushing the New vehicle purchasers or lessees will receive a free buttons. The Program Type will change to the next limited time subscription to SiriusXM Satellite Radio category and the radio will then tune to first station in with their radio.
Page 194 SiriusXM Radio Inc. and its subsidiaries. SiriusXM Radio The following are instructions for retrieving the Elec- requires a subscription, sold separately after trial subscrip- tronic Serial Number (ESN) from FIAT 500 NAFTA model tion included with vehicle purchase. Prices and program- radios: ming are provided by SiriusXM and are subject to change.
Page 195: Cd Player
UNDERSTANDING YOUR INSTRUMENT PANEL 193 Satellite Radio Antenna — If Equipped CD Player Selection The antenna for the satellite radio is mounted on the roof To activate the CD player built into the equipment, of the vehicle. Do not place items on the roof around the proceed as follows: roof top antenna location.
Page 196 194 UNDERSTANDING YOUR INSTRUMENT PANEL CD Loading/Ejecting If the CD is not removed from the radio, it will automati- cally be reloaded about 20 seconds later but will not To load the CD, insert it gently into the slot to activate the resume playing until the MEDIA button is pushed to motorized loading system, which will position it cor- select the CD mode.
Page 197: Cd Mp3 Player
UNDERSTANDING YOUR INSTRUMENT PANEL 195 Display Information Track Fast Forward/Rewind When the CD player is operating, information will ap- Keep the button pushed down to fast forward the pear on the display with the following meaning: selected track and keep the button pushed down to fast rewind the track.
Page 198 196 UNDERSTANDING YOUR INSTRUMENT PANEL MP3 Mode • The sampling frequencies that can be reproduced are: 44.1 kHz, stereo (from 96 to 320 kbit/s) – 22.05 kHz, In addition to playing regular audio CDs, the radio is also mono or stereo (from 32 to 80 kbit/s). enabled to play CDROMs on which compressed audio files have been recorded in an MP3 format.
Page 199 UNDERSTANDING YOUR INSTRUMENT PANEL 197 NOTE: When the function is activated the radio may take Selection Of Next/Previous Folder a few seconds to start playing. While checking the disc Push the button to select a next folder or the the display will show “CD Reading.” If no MP3 files are button to select the previous folder.
Page 200: Troubleshooting
198 UNDERSTANDING YOUR INSTRUMENT PANEL • If the MP3 files on a CD-ROM are structured in CD Player sub-folders their structure is compressed to a single The CD Does Not Play: level structure, where the sub-folders are taken to the The CD is dirty.
Page 201: Ipod®/Usb/Media Player Control
UNDERSTANDING YOUR INSTRUMENT PANEL 199 Operating Instructions — Hands-Free Phone Refer to the appropriate “BLUE&ME™ User’s Manual” for further information. Personal/Portable Navigation Device (PND) A Personal/Portable Navigation Device (PND) is avail- able as optional equipment for this vehicle, refer to the Navigation User Guide for further information.
Page 202: Steering Wheel Audio Controls
200 UNDERSTANDING YOUR INSTRUMENT PANEL The right-hand control is a rocker-type switch with a STEERING WHEEL AUDIO CONTROLS pushbutton in the center and controls the volume and The remote sound system controls are located on the rear mode of the sound system. Pushing the top of the rocker surface of the steering wheel.
Page 203: Radio Operation
UNDERSTANDING YOUR INSTRUMENT PANEL 201 Radio Operation Operating Instructions — Hands-Free Phone (If Equipped) Pushing the top of the switch will “Seek” up for the next listenable station and pushing the bottom of the switch Refer to the appropriate Blue&Me™ User’s Manual for will “Seek”...
Page 204: Radio Operation And Mobile Phones
202 UNDERSTANDING YOUR INSTRUMENT PANEL 5. Store the disc in its case after playing. antenna, it is recommended that the radio volume be turned down or off during mobile phone operation. 6. Do not expose the disc to direct sunlight. CLIMATE CONTROLS 7.
Page 205 UNDERSTANDING YOUR INSTRUMENT PANEL 203 2. A/C Button Push and release to change the current Air Conditioning (A/C) setting. Performing this function will cause the ATC to switch into manual mode. 3. Temperature Control Up Button Provides temperature up control. Push the button for warmer temperature settings.
Page 206 204 UNDERSTANDING YOUR INSTRUMENT PANEL are selected. This allows the front occupants to control and side window demist outlets. When the defrost but- the volume of air circulated in the vehicle and cancel the ton is selected, the blower level will increase. Use Defrost AUTO mode.
Page 207 UNDERSTANDING YOUR INSTRUMENT PANEL 205 NOTE: The center instrument panel outlets can be aimed NOTE: If the temperature is lowered until Lo is dis- so that they are directed toward the rear seat passengers played, all high voltage Heating, Ventilation, and Air for maximum airflow to the rear.
Page 208 206 UNDERSTANDING YOUR INSTRUMENT PANEL Climate Control Functions Recirculation Control When outside air contains smoke, odors, or high humid- Air Conditioning (A/C) ity, or if rapid cooling is desired, you may wish to The Air Conditioning (A/C) button allows the operator recirculate interior air by pushing the RECIRCULATION to manually activate or deactivate the air conditioning control button.
Page 209 UNDERSTANDING YOUR INSTRUMENT PANEL 207 NOTE: In cold weather, use of Recirculation mode may 2. Next, adjust the temperature you would like the lead to excessive window fogging. The recirculation system to maintain by adjusting the temperature con- feature may be unavailable (indicator light shall blink) if trol buttons.
Page 210: Operating Tips
208 UNDERSTANDING YOUR INSTRUMENT PANEL feature. Refer to the “Electronic Vehicle Information Operating Tips Center (EVIC) — Customer-Programmable Features” NOTE: Refer to the chart at the end of this section for in this section of the manual. suggested control settings for various weather condi- Manual Operation tions.
Page 211 UNDERSTANDING YOUR INSTRUMENT PANEL 209 Regular cleaning of the inside of the windows with a a heavy load or high heat conditions, it may use Recir- non-filming cleaning solution (vinegar and water works culation A/C mode to provide additional comfort while very well) will help prevent contaminates (cigarette in automatic mode.
Page 212 210 UNDERSTANDING YOUR INSTRUMENT PANEL Operating Tips Chart...
Page 213 STARTING AND OPERATING CONTENTS STARTING PROCEDURES ....214 DRIVING THROUGH WATER ... . .223 ▫ Single-Speed Transmission ....214 ▫...
Page 214 212 STARTING AND OPERATING ▫ Electronic Stability Control (ESC) ..232 ▫ Radial Ply Tires ..... .251 ▫...
Page 215 STARTING AND OPERATING 213 ▫ Tire Pressure Monitoring Low Pressure EXTENDING YOUR DRIVING RANGE PER Warnings ......267 CHARGE.
Page 216: Starting Procedures
214 STARTING AND OPERATING STARTING PROCEDURES Single-Speed Transmission Before starting your vehicle, adjust your seat, adjust both The transmission must be in the PARK or NEUTRAL inside and outside mirrors, and fasten your seat belts. position before you can start the vehicle. Apply the brakes when selecting a transmission gear from Park.
Page 217 STARTING AND OPERATING 215 NOTE: • If the key is held in the START position for more than 10 seconds “READY” mode will not be achieved. Return the key to OFF position, and then back to the START position and hold for less than 10 seconds to achieve “READY”.
Page 218: Single-Speed Transmission
216 STARTING AND OPERATING SINGLE–SPEED TRANSMISSION Your 500e uses a Single-Speed Transmission to direct the output from the electric motor. The single-speed trans- mission is operated using push-buttons instead of a traditional shift lever. The push-buttons are located on the lower instrument panel.
Page 219 STARTING AND OPERATING 217 CAUTION! WARNING! Damage to the transmission may occur if the follow- • Only place the transmission into gear when your ing precautions are not observed: foot is firmly pressing the brake pedal. • Place the transmission into PARK only after the •...
Page 220: Key Ignition Park Interlock
218 STARTING AND OPERATING when the ignition is in the OFF position, and once WARNING! (Continued) removed, the transmission is locked in PARK. • Never leave children alone in a vehicle, or with Gear Ranges access to an unlocked vehicle. Allowing children to be in a vehicle unattended is dangerous for a Press the desired push button to shift into gear.
Page 221 STARTING AND OPERATING 219 When parking on a level surface, you may place the WARNING! transmission into PARK first, and then apply the parking brake. • Never use the PARK position as a substitute for the parking brake. Always apply the parking brake When parking on a hill, apply the parking brake before fully when parked to guard against vehicle move- placing the transmission into PARK.
Page 222 220 STARTING AND OPERATING WARNING! (Continued) WARNING! (Continued) • Unintended movement of a vehicle could injure • Never leave children alone in a vehicle, or with those in or near the vehicle. As with all vehicles, access to an unlocked vehicle. Allowing children to you should never exit a vehicle while the vehicle is be in a vehicle unattended is dangerous for a in “ready mode”.
Page 223: Auto Park
STARTING AND OPERATING 221 NEUTRAL (N) CAUTION! (Continued) The vehicle may be started in this gear. Apply the Towing” in “Starting And Operating” and “Towing A parking brake and place the transmission into PARK if Disabled Vehicle” in “What To Do In Emergencies” you must leave the vehicle.
Page 224: Driving On Slippery Surfaces
222 STARTING AND OPERATING NOTE: Mode Of Operation With Key OFF: Auto Park will be engaged when the transmission is in • Auto Park is enabled (only once) at the beginning of DRIVE, NEUTRAL or REVERSE and the vehicle speed is each key cycle and is re-enabled each time the vehicle less than 2 mph (3 km/h).
Page 225: Traction
STARTING AND OPERATING 223 2. Slow down if the road has standing water or puddles. WARNING! (Continued) 3. Replace the tires when tread wear indicators first front wheels. You could lose control of the vehicle become visible. and possibly have a collision. Accelerate slowly and carefully whenever there is likely to be poor traction 4.
Page 226: Flowing/Rising Water
224 STARTING AND OPERATING Flowing/Rising Water CAUTION! WARNING! • Always check the depth of the standing water before driving through it. Never drive through Do not drive on or across a road or path where water standing water that is deeper than the bottom of is flowing and/or rising (as in storm run-off).
Page 227: Power Steering
STARTING AND OPERATING 225 CAUTION! (Continued) CAUTION! (Continued) • Driving through standing water may cause damage • Driving through standing water limits your vehi- to your vehicle’s drivetrain components. Always cle’s braking capabilities, which increases stopping inspect your vehicle’s fluids (i.e., transmission, distances.
Page 228 226 STARTING AND OPERATING prevents it from providing assist, you will still have the a few moments until the icon and message turn off. Refer ability to steer the vehicle manually. to “Electronic Vehicle Information (EVIC)” in “Under- standing Your Instrument Panel” for further information. WARNING! If the Steering icon, and the SERVICE POWER STEER- ING - ASSIST OFF message is displayed on the EVIC...
Page 229: Parking Brake
STARTING AND OPERATING 227 PARKING BRAKE Before leaving the vehicle, make sure that the parking brake is fully applied. The parking brake lever is located in the center console. To apply the parking brake, pull the lever up as firmly as possible.
Page 230 228 STARTING AND OPERATING from the curb on an uphill grade. The parking brake WARNING! (Continued) should always be applied whenever the driver is not in • Be sure the parking brake is fully disengaged the vehicle. before driving; failure to do so can lead to brake failure and a collision.
Page 231: Brake System
STARTING AND OPERATING 229 All systems work together to enhance vehicle stability BRAKE SYSTEM and control in various driving conditions and are com- In the event regenerative braking or power assist is lost monly referred to as ESC. for any reason the brakes will still function. The effort required to brake the vehicle will be significantly more Four-Wheel Anti-Lock Brake System (ABS) than that required with the power system operating.
Page 232 230 STARTING AND OPERATING the ignition Off and On again may reset the ABS if the WARNING! (Continued) fault detected was only momentary. • The capabilities of an ABS-equipped vehicle must never be exploited in a reckless or dangerous WARNING! manner, which could jeopardize the user’s safety or •...
Page 233: Brake Assist System (Bas)
STARTING AND OPERATING 231 Brake Assist System (BAS) WARNING! The BAS is designed to optimize the vehicle’s braking • The Brake Assist System (BAS) cannot prevent the capability during emergency braking maneuvers. The natural laws of physics from acting on the vehicle, system detects an emergency braking situation by sens- nor can it increase the traction afforded by prevail- ing the rate and amount of brake application and then...
Page 234: Electronic Stability Control (Esc)
232 STARTING AND OPERATING stability. A feature of the TCS system, Brake Limited the vehicle to determine the vehicle path intended by the Differential (BLD), functions similar to a limited slip driver and compares it to the actual path of the vehicle. differential and controls the wheel spin across a driven When the actual path does not match the intended path, axle.
Page 235 STARTING AND OPERATING 233 Full On WARNING! (Continued) This is the normal operating mode for ESC. Whenever prevailing road conditions. ESC cannot prevent all the vehicle is started, the ESC system will be in On mode. accidents, including those resulting from excessive This mode should be used for most driving situations.
Page 236: Esc Activation/Malfunction Indicator Light And Esc Off Indicator Light
234 STARTING AND OPERATING NOTE: To improve the vehicle’s traction when driving ESC Activation/Malfunction Indicator Light And with snow chains, or starting off in deep snow, sand or ESC OFF Indicator Light gravel, it may be desirable to switch to the Partial Off mode by pushing the switch.
Page 237: Regenerative Braking System (Rbs)
STARTING AND OPERATING 235 flashes when TCS is active. If the ESC Activation/ Regenerative Braking System (RBS) Malfunction Indicator Light begins to flash during accel- eration, ease up on the accelerator and apply as little Your 500e has a Regenerative Braking System throttle as possible.
Page 238: Tire Safety Information
236 STARTING AND OPERATING NOTE: TIRE SAFETY INFORMATION • P (Passenger) — Metric tire sizing is based on U.S. Tire Markings design standards. P-Metric tires have the letter “P” molded into the sidewall preceding the size designa- tion. Example: P215/65R15 95H. •...
Page 239 STARTING AND OPERATING 237 • Temporary spare tires are designed for temporary • High flotation tire sizing is based on U.S. design emergency use only. Temporary high pressure com- standards and it begins with the tire diameter molded pact spare tires have the letter “T” or “S” molded into into the sidewall.
Page 240 238 STARTING AND OPERATING EXAMPLE: 65, 85, 80 = Aspect ratio in percent (%) – Ratio of section height to section width of tire, or 10.5 = Section width in inches (in) R = Construction code – R means radial construction, or –...
Page 241 STARTING AND OPERATING 239 EXAMPLE: H = Speed Symbol – A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index under certain operating conditions – The maximum speed corresponding to the speed symbol should only be achieved under specified operating conditions (i.e., tire pressure, vehicle loading, road conditions, and posted speed limits) Load Identification:...
Page 242: Tire Identification Number (Tin)
240 STARTING AND OPERATING Look for the TIN on the outboard side of black sidewall Tire Identification Number (TIN) tires as mounted on the vehicle. If the TIN is not found on The TIN may be found on one or both sides of the tire, the outboard side, then you will find it on the inboard however, the date code may only be on one side.
Page 243: Tire Terminology And Definitions
STARTING AND OPERATING 241 EXAMPLE: DOT MA L9 ABCD 0301 01 = Number representing the year in which the tire was manufactured (two digits) – 01 means the year 2001 – Prior to July 2000, tire manufacturers were only required to have one number to represent the year in which the tire was manufactured.
Page 244 242 STARTING AND OPERATING Term Definition Maximum Inflation Pressure The maximum inflation pressure is the maximum permissible cold tire inflation pressure for this tire. The maximum inflation pressure is molded into the sidewall. Recommended Cold Tire Inflation Vehicle manufacturer’s recommended cold tire inflation pressure Pressure as shown on the tire placard.
Page 245: Tire Loading And Tire Pressure
STARTING AND OPERATING 243 Tire Loading And Tire Pressure Tire And Loading Information Placard Location NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar or the rear edge of the driver’s side door. Example Tire Placard Location (Door)
Page 246 244 STARTING AND OPERATING Tire And Loading Information Placard Example Tire Placard Location (B-Pillar) Tire And Loading Information Placard This placard tells you important information about the: 1. Number of people that can be carried in the vehicle. 2. Total weight your vehicle can carry.
Page 247 STARTING AND OPERATING 245 3. Tire size designed for your vehicle. To determine the maximum loading conditions of your vehicle, locate the statement “The combined weight of 4. Cold tire inflation pressures for the front, rear, and occupants and cargo should never exceed XXX lbs or spare tires.
Page 248 246 STARTING AND OPERATING 4. The resulting figure equals the available amount of NOTE: cargo and luggage load capacity. For example, if • If your vehicle will be towing a trailer, load from your “XXX” amount equals 1,400 lbs (635 kg) and there will trailer will be transferred to your vehicle.
Page 249 STARTING AND OPERATING 247...
Page 250: Tires - General Information
248 STARTING AND OPERATING Safety WARNING! WARNING! Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and • Improperly inflated tires are dangerous and can increase your stopping distance. Use tires of the cause collisions. recommended load capacity for your vehicle.
Page 251 STARTING AND OPERATING 249 Fuel Economy WARNING! (Continued) Underinflated tires will increase tire rolling resistance • Unequal tire pressures from one side of the vehicle resulting in higher fuel consumption. to the other can cause the vehicle to drift to the right or left.
Page 252: Tire Inflation Pressures
250 STARTING AND OPERATING Inflation pressures specified on the placard are always Tire Inflation Pressures “cold tire inflation pressure”. Cold tire inflation pressure The proper cold tire inflation pressure is listed on the is defined as the tire pressure after the vehicle has not driver’s side B-Pillar or rear edge of the driver’s side door.
Page 253: Tire Pressures For High Speed Operation
STARTING AND OPERATING 251 inflation pressure should be increased by 3 psi (21 kPa), WARNING! which equals 1 psi (7 kPa) for every 12°F (7°C) for this outside temperature condition. High speed driving with your vehicle under maxi- mum load is dangerous. The added strain on your Tire pressure may increase from 2 to 6 psi (13 to 40 kPa) tires could cause them to fail.
Page 254: Tire Types
252 STARTING AND OPERATING Tire Repair Tire Types If your tire becomes damaged, it may be repaired if it All Season Tires — If Equipped meets the following criteria: All Season tires provide traction for all seasons (Spring, • The tire has not been driven on when flat. Summer, Fall and Winter).
Page 255 STARTING AND OPERATING 253 Summer tires do not contain the all season designation or Snow Tires mountain/snowflake symbol on the tire sidewall. Use Some areas of the country require the use of snow tires Summer tires only in sets of four; failure to do so may during the Winter.
Page 256: Run Flat Tires - If Equipped
254 STARTING AND OPERATING While studded tires improve performance on ice, skid See the tire pressure monitoring section for more infor- and traction capability on wet or dry surfaces may be mation. poorer than that of non-studded tires. Some states pro- Spare Tires —...
Page 257 STARTING AND OPERATING 255 equipment tire and wheel found on the front or rear axle Since this tire has limited tread life, the original equip- of your vehicle. This spare tire may be used in the tire ment tire should be repaired (or replaced) and reinstalled rotation for your vehicle.
Page 258 256 STARTING AND OPERATING Full Size Spare — If Equipped your original equipment tire, replace (or repair) the original equipment tire and reinstall on the vehicle at the The full size spare is for temporary emergency use only. first opportunity. This tire may look like the originally equipped tire on the front or rear axle of your vehicle, but it is not.
Page 259: Tire Spinning
STARTING AND OPERATING 257 Tire Spinning Tread Wear Indicators When stuck in mud, sand, snow, or ice conditions, do not Tread wear indicators are in the original equipment tires spin your vehicle’s wheels above 30 mph (48 km/h) or to help you in determining when your tires should be for longer than 30 seconds continuously without stop- replaced.
Page 260: Life Of Tire
258 STARTING AND OPERATING These indicators are molded into the bottom of the tread • Performance tires, tires with a speed rating of V or grooves. They will appear as bands when the tread depth higher, and Summer tires typically have a reduced becomes a 1/16 of an inch (2 mm).
Page 261: Replacement Tires
STARTING AND OPERATING 259 It is recommended to replace the two front tires or two Replacement Tires rear tires as a pair. Replacing just one tire can seriously The tires on your new vehicle provide a balance of many affect your vehicle’s handling. If you ever replace a characteristics.
Page 262 260 STARTING AND OPERATING WARNING! WARNING! (Continued) • Failure to equip your vehicle with tires having • Do not use a tire, wheel size or rating other than adequate speed capability can result in sudden tire that specified for your vehicle. Some combinations failure and loss of vehicle control.
Page 263: Tire Chains (Traction Devices)
STARTING AND OPERATING 261 TIRE CHAINS (TRACTION DEVICES) CAUTION! Use of traction devices require sufficient tire-to-body To avoid damage to your vehicle or tires, observe the clearance. Follow these recommendations to guard following precautions: against damage. • Because of restricted chain clearance between tires •...
Page 264: Tire Rotation Recommendations
262 STARTING AND OPERATING These effects can be reduced by timely rotation of tires. CAUTION! (Continued) The benefits of rotation are especially worthwhile with • Do not drive for prolonged period on dry pave- aggressive tread designs such as those on all season type ment.
Page 265: Premium Tire Pressure Monitor System
STARTING AND OPERATING 263 The tire pressure will vary with temperature by about 1psi (7 kPa) for every 12°F (6.5°C). This means that when the outside temperature decreases, the tire pressure will decrease. Tire pressure should always be set based on cold inflation tire pressure.
Page 266 264 STARTING AND OPERATING The TPMS will continue to warn the driver of low tire For example, your vehicle may have a recommended pressure as long as the condition exists, and will not turn cold (parked for more than three hours) placard pressure off until the tire pressure is at or above the recommended of 33 psi (227 kPa).
Page 267 STARTING AND OPERATING 265 NOTE: CAUTION! • The TPMS is not intended to replace normal tire care • The TPMS has been optimized for the original and maintenance, or to provide warning of a tire equipment tires and wheels. TPMS pressures and failure or condition.
Page 268: Premium Tpm System
266 STARTING AND OPERATING • The TPMS is not a substitute for proper tire mainte- Premium TPM System nance, and it is the driver’s responsibility to maintain The Tire Pressure Monitor System (TPMS) uses wireless correct tire pressure using an accurate tire pressure technology with wheel rim mounted electronic sensors to gauge, even if under-inflation has not reached the level monitor tire pressure levels.
Page 269: Tire Pressure Monitoring Low Pressure Warnings
STARTING AND OPERATING 267 Tire Pressure Monitoring Low Pressure Warnings The “Tire Pressure Monitoring Telltale Light” will illuminate in the instrument cluster and a chime will sound when tire pressure is low in one or more of the four active road tires. In addition, the Electronic Vehicle Information Center (EVIC) will display a graphic showing the pressure values of each tire with the low tire pressure tire highlighted in a different...
Page 270: Tpms Warning
268 STARTING AND OPERATING to be driven for up to 20 minutes above 15 mph (24 km/h) in order for the TPMS to receive this informa- tion. TPMS Warning When a system fault is detected, the “Tire Pressure Monitoring Telltale Light” will flash on and off for 75 seconds and then remain on solid.
Page 271 STARTING AND OPERATING 269 A system fault can occur due to any of the following: shown. This indicates that the pressure values are still being received from the TPM sensors but they may not be 1. Signal interference due to electronic devices or driving located in the correct vehicle position.
Page 272: General Information
270 STARTING AND OPERATING Telltale Light” will flash on and off for 75 seconds and driven for up to 20 minutes above 15 mph (24 km/h) in then remain on solid. In addition, the EVIC will order for the TPMS to receive this information. display a “Service Tire Pressure Monitoring System”...
Page 273: Recreational Towing
STARTING AND OPERATING 271 RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) Towing This Vehicle Behind Another Vehicle Towing Condition Wheels OFF the Ground Single-Speed Transmission Flat Tow NONE NOT ALLOWED Dolly Tow Front Rear NOT ALLOWED On Trailer NOTE: This vehicle must be towed on a dolly or vehicle trailer with the front wheels OFF the ground.
Page 274: Extending Your Driving Range Per Charge
FIAT Access smartphone app while still plugged into a charging source. This will allow 500e to use external power to establish a comfortable cabin...
Page 275: Driver Behavior Gauge
STARTING AND OPERATING 273 • Charge Driver Behavior Gauge To help the driver extend the driving range of the high The needle will move into the Charge range when battery voltage battery your vehicle is equipped with a Driver regeneration is active (either coasting or braking). Behavior Gauge.
Page 276: Range Projection
274 STARTING AND OPERATING Range Projection This area of the cluster is used to display the projected range considering current battery charge and previous energy use. The two arrows to the left of the mileage are used to forecast the effect of recent driving. •...
Page 277: What To Do In Emergencies
WHAT TO DO IN EMERGENCIES CONTENTS HAZARD WARNING FLASHERS ...276 JUMP-STARTING PROCEDURE (12 VOLT BATTERY ONLY) ..... . .288 WHEEL AND TIRE TORQUE SPECIFICATIONS .
Page 278: Hazard Warning Flashers
276 WHAT TO DO IN EMERGENCIES HAZARD WARNING FLASHERS WHEEL AND TIRE TORQUE SPECIFICATIONS Proper lug nut/bolt torque is very important to ensure The Hazard Warning flasher switch is located on the that the wheel is properly mounted to the vehicle. Any instrument panel below the radio.
Page 279 WHAT TO DO IN EMERGENCIES 277 Inspect the wheel mounting surface prior to mounting the tire and remove any corrosion or loose particles. Torque Patterns After 25 miles (40 km) check the lug nut/bolt torque to be sure that all the lug nuts/bolts are properly seated Wheel Mounting Surface against the wheel.
Page 280: Tire Service Kit - If Equipped
278 WHAT TO DO IN EMERGENCIES Tire Service Kit Storage WARNING! The Tire Service Kit is located in the rear cargo area. To avoid the risk of forcing the vehicle off the jack, do not tighten the lug nuts fully until the vehicle has been lowered.
Page 281: Tire Service Kit Components And Operation
WHAT TO DO IN EMERGENCIES 279 Using The Mode Select Knob And Hoses Tire Service Kit Components And Operation Your Tire Service Kit is equipped with the following symbols to indicate the air or sealant mode. Selecting Air Mode Push in the Mode Select Knob (5) and turn to this position for air pump operation only.
Page 282: Tire Service Kit Usage Precautions
280 WHAT TO DO IN EMERGENCIES Using The Power Button Push and release the Power Button (4) once to turn On the Tire Service Kit. Push and release the Power Button (4) again to turn Off the Tire Service Kit. Using The Deflation Button Push the Deflation Button (2) to reduce the air pressure in the tire if it becomes over-inflated.
Page 283 WHAT TO DO IN EMERGENCIES 281 from the vehicle or tire and wheel components. Once WARNING! the sealant dries, it can easily be peeled off and properly discarded. • Do not attempt to seal a tire on the side of the vehicle closest to traffic.
Page 284: Sealing A Tire With Tire Service Kit
282 WHAT TO DO IN EMERGENCIES WARNING! (Continued) WARNING! (Continued) • Keep Tire Service Kit away from open flames or • Tire Service Kit Sealant solution contains latex. In heat source. case of an allergic reaction or rash, consult a phy- •...
Page 285 WHAT TO DO IN EMERGENCIES 283 on the ground. This will provide the best positioning 4. Remove the cap from the valve stem and then screw of the kit when injecting the sealant into the deflated the fitting at the end of the Sealant Hose (6) onto the tire and running the air pump.
Page 286 284 WHAT TO DO IN EMERGENCIES NOTE: Sealant may leak out through the puncture in the NOTE: If the Mode Select Knob (5) is on Air Mode and tire. the pump is operating, air will dispense from the Air Pump Hose (7) only, not the Sealant Hose (6). If the sealant (white fluid) does not flow within 0 –...
Page 287 WHAT TO DO IN EMERGENCIES 285 If the tire does not inflate to at least 26 psi (1.8 Bar) hose, and place the Tire Service Kit in the vehicle storage pressure within 15 minutes: location. Quickly proceed to (D) “Drive Vehicle.” •...
Page 288 286 WHAT TO DO IN EMERGENCIES 3. Uncoil the Air Pump Hose (7) (black in color) and WARNING! screw the fitting at the end of hose (7) onto the valve stem. Tire Service Kit is not a permanent flat tire repair. Have the tire inspected and repaired or replaced after 4.
Page 289 WHAT TO DO IN EMERGENCIES 287 2. Disconnect the Tire Service Kit from the valve stem, (F) Sealant Bottle And Hose Replacement: reinstall the cap on the valve stem and unplug from 12 1. Uncoil the Sealant Hose (6) (clear in color). Volt outlet.
Page 290: Jump-Starting Procedure
288 WHAT TO DO IN EMERGENCIES 6. Verify that the cap is installed on the fitting at the end WARNING! of the Sealant Hose (6) and return the hose to its storage area (located on the bottom of the air pump). Do not attempt jump-starting if the battery is frozen.
Page 291 WHAT TO DO IN EMERGENCIES 289 WARNING! • Take care to avoid the radiator cooling fan when- ever the hood is raised. It can start anytime the ignition switch is ON. You can be injured by moving fan blades. • Remove any metal jewelry such as rings, watch bands and bracelets that could make an inadvertent electrical contact.
Page 292: Jump-Starting Procedure
290 WHAT TO DO IN EMERGENCIES 3. Remove the protective cover over the positive (+) CAUTION! battery post. Failure to follow these procedures could result in 4. If using another vehicle to jump-start the battery, park damage to the charging system of the booster vehicle the vehicle within the jumper cables reach, set the or the discharged vehicle.
Page 293 WHAT TO DO IN EMERGENCIES 291 6. Once the vehicle is started, remove the jumper cables WARNING! in the reverse sequence: Do not connect the jumper cable to the negative (-) Disconnecting The Jumper Cables post of the discharged battery. The resulting electri- 1.
Page 294: Freeing A Stuck Vehicle
292 WHAT TO DO IN EMERGENCIES FREEING A STUCK VEHICLE CAUTION! If your vehicle becomes stuck in mud, sand or snow, it • When “rocking” a stuck vehicle by shifting be- can often be moved using a rocking motion. Turn the tween DRIVE and REVERSE, do not spin the steering wheel right and left to clear the area around the wheels faster than 15 mph (24 km/h), or drivetrain...
Page 295: Manual Park Release
WHAT TO DO IN EMERGENCIES 293 In order to move the vehicle in cases where the transmis- WARNING! (Continued) sion will not shift out of PARK (such as a dead battery), longer than 30 seconds continuously without stop- a Manual Park Release is available. If a dead 12 volt ping when you are stuck and do not let anyone near battery is the cause of the condition refer to “Jump Start a spinning wheel, no matter what the speed.
Page 296 294 WHAT TO DO IN EMERGENCIES • Using a T25 driver bit, rotate the Manual Park Release • Reinstall the rubber plug. shaft (located just behind the rubber plug) clockwise, • Release the parking brake only when a driver is in the at least 20 turns, to release the Park mechanism.
Page 297: Towing A Disabled Vehicle
WHAT TO DO IN EMERGENCIES 295 TOWING A DISABLED VEHICLE This section describes procedures for towing a disabled vehicle using a commercial towing service. Towing Condition Wheels OFF The Ground SINGLE-SPEED TRANSMISSION Flat Tow NONE NOT ALLOWED Wheel Lift Rear NOT ALLOWED Front Flatbed...
Page 298 296 WHAT TO DO IN EMERGENCIES This vehicle must be towed with the front wheels OFF the CAUTION! ground. • Do not use sling-type equipment when towing. If you must use the accessories (wipers, defrosters, etc.) Vehicle damage may occur. while being towed, the ignition must be in the ON/RUN •...
Page 299 MAINTAINING YOUR VEHICLE CONTENTS UNDERHOOD COMPARTMENT ...299 ▫ Selection Of Coolant ....305 REPLACEMENT PARTS .
Page 300 298 MAINTAINING YOUR VEHICLE ▫ Wiper Blades ......312 BULB REPLACEMENT ....332 ▫...
Page 301: Underhood Compartment
MAINTAINING YOUR VEHICLE 299 UNDERHOOD COMPARTMENT 1 — Battery Thermal Coolant Reservoir 4 — Fuses 2 — Power Electronics Coolant Reservoir 5 — 12V Battery 3 — Brake Fluid Reservoir...
Page 302: Replacement Parts
300 MAINTAINING YOUR VEHICLE NOTE: Intentional tampering with emissions control REPLACEMENT PARTS systems may void your warranty and could result in civil Use of genuine parts for normal/scheduled maintenance penalties being assessed against you. and repairs is highly recommended to ensure the de- signed performance.
Page 303: Maintenance Procedures
MAINTAINING YOUR VEHICLE 301 The pages that follow contain the required maintenance MAINTENANCE PROCEDURES services determined by the engineers who designed your WARNING! vehicle. Besides those maintenance items specified in the fixed Your vehicle has both a high voltage DC and AC maintenance schedule, there are other components which system as well as a 12 Volt system.
Page 304: Power Electronics And Battery Thermal Management Systems
302 MAINTAINING YOUR VEHICLE Power Electronics And Battery Thermal CAUTION! (Continued) Management Systems • Your vehicle has been built with improved fluids The Power Electronics and Battery Thermal Management that protect the performance and durability of your Systems are completely separate and designed to regu- vehicle and also allow extended maintenance inter- late temperature for the high voltage battery and the vals.
Page 305 MAINTAINING YOUR VEHICLE 303 Check the Power Electronics and Battery Thermal Man- agement Systems coolant (antifreeze) protection every 12 months (before the onset of freezing weather, where applicable). Maintain coolant (antifreeze) concentration at a mini- mum of 50% MOPAR® Antifreeze/Coolant 10 Year/ 150,000 Mile Formula OAT (Organic Additive Technol- ogy) and distilled/deionized water for proper corrosion protection.
Page 306: Power Electronics And Battery Thermal Management Systems - Cooling Pressure Caps
304 MAINTAINING YOUR VEHICLE NOTE: DO NOT REMOVE THE COOLANT PRESSURE WARNING! CAP WHEN THE COOLING SYSTEM IS HOT. You or others can be badly burned by hot coolant (antifreeze) or steam from your radiator. If you see or hear steam coming from under the hood, do not open the hood until the radiator has had time to cool.
Page 307: Selection Of Coolant
MAINTAINING YOUR VEHICLE 305 NOTE: Selection Of Coolant Refer to “Fluids, Lubricants, And Genuine Parts” in • The pressure caps on the reservoirs are unique and “Maintaining Your Vehicle” for further information. rated at 5 PSI caps. • Use only Mopar® replacement parts. CAUTION! WARNING! •...
Page 308: Adding Coolant
306 MAINTAINING YOUR VEHICLE this extended maintenance period, it is important that CAUTION! (Continued) you use the same coolant (antifreeze) throughout the life • Do not use water alone or alcohol-based coolant of your vehicle. (antifreeze) products. Do not use additional rust Please review these recommendations for using Organic inhibitors or antirust products, as they may not be Additive Technology (OAT) coolant (antifreeze).
Page 309: Power Electronics And Battery Thermal Management Systems - Drain, Flush And Refill
MAINTAINING YOUR VEHICLE 307 • Use only high purity water such as distilled or deion- Power Electronics and Battery Thermal ized water when mixing the water and coolant (anti- Management Systems — Drain, Flush And Refill freeze) solution. The use of lower quality water will Refer to “Maintenance Schedules”...
Page 310: Disposal Of Used Power Electronics And Battery Thermal Management Systems Coolant
308 MAINTAINING YOUR VEHICLE • If frequent coolant (antifreeze) additions are required, Disposal Of Used Power Electronics and Battery or if the level in the coolant recovery bottles does not Thermal Management Systems Coolant drop when the engine cools, the cooling system should Used antifreeze is a regulated substance requiring proper be pressure tested for leaks.
Page 311: Maintenance-Free Battery 12 Volt
MAINTAINING YOUR VEHICLE 309 Maintenance-Free Battery 12 Volt WARNING! (Continued) Your vehicle is equipped with a maintenance-free 12 Volt • Battery gas is flammable and explosive. Keep battery. You will never have to add water, nor is periodic flame or sparks away from the battery. Do not use maintenance required.
Page 312: Air Conditioner Maintenance
310 MAINTAINING YOUR VEHICLE Air Conditioner Maintenance CAUTION! For best possible performance, your air conditioner • It is essential when replacing the cables on the should be checked and serviced by an authorized dealer battery that the positive cable is attached to the at the start of each warm season.
Page 313: Body Lubrication
MAINTAINING YOUR VEHICLE 311 Body Lubrication WARNING! Locks and all body pivot points, including such items as • Use only refrigerants and compressor lubricants seat tracks, door hinge pivot points and rollers, liftgate, approved by the manufacturer for your air condi- tailgate, decklid, sliding doors and hood hinges, should tioning system.
Page 314: Maintaining Your Vehicle Wiper Blades
312 MAINTAINING YOUR VEHICLE NOTE: Life expectancy of wiper blades varies depend- Wiper Blades ing on geographical area and frequency of use. Poor Clean the rubber edges of the wiper blades and the performance of blades may be present with chattering, windshield and rear window periodically with a sponge marks, water lines or wet spots.
Page 315 MAINTAINING YOUR VEHICLE 313 3. Grab the bottom of the wiper blade and rotate it forward to unsnap the blade pivot pin from the wiper blade holder. 1 — Wiper Arm 2 — Pivot Cap NOTE: The rear wiper arm cannot be raised fully up- 1 —...
Page 316: Adding Washer Fluid
314 MAINTAINING YOUR VEHICLE 4. Install the wiper blade pivot pin into the wiper blade WARNING! (Continued) holder at the end of the wiper arm, and firmly press must be exercised when filling or working around the wiper blade until it snaps into place. the washer solution.
Page 317 MAINTAINING YOUR VEHICLE 315 Brake Master Cylinder WARNING! The fluid level in the master cylinder should be checked • Use only manufacturer’s recommended brake when performing under hood services, or immediately if fluid. Refer to “Fluids, Lubricants, And Genuine the “Brake Warning Light” is on and the parking brake is Parts”...
Page 318 316 MAINTAINING YOUR VEHICLE WARNING! (Continued) WARNING! (Continued) • To avoid contamination from foreign matter or • Do not allow petroleum-based fluid to contaminate moisture, use only new brake fluid or fluid that has the brake fluid. Brake seal components could be been in a tightly closed container.
Page 319: Appearance Care And Protection From Corrosion
MAINTAINING YOUR VEHICLE 317 What Causes Corrosion? Appearance Care And Protection From Corrosion Corrosion is the result of deterioration or removal of Protection Of Body And Paint From Corrosion paint and protective coatings from your vehicle. Vehicle body care requirements vary according to geo- graphic locations and usage.
Page 320 318 MAINTAINING YOUR VEHICLE • If insects, tar, or other similar deposits have accumu- Special Care lated on your vehicle, use MOPAR® Super Kleen Bug • If you drive on salted or dusty roads or if you drive and Tar Remover to remove. near the ocean, hose off the undercarriage at least once a month.
Page 321 MAINTAINING YOUR VEHICLE 319 • If you carry special cargo such as chemicals, fertilizers, NOTE: If your vehicle is equipped with Dark Vapor or de-icer salt, etc., be sure that such materials are well Black Satin Chrome wheels DO NOT USE wheel cleaners, packaged and sealed.
Page 322 320 MAINTAINING YOUR VEHICLE Stain Repel Fabric Cleaning Procedure — If Interior Care Equipped Use MOPAR® Total Clean to clean fabric upholstery and Stain Repel seats may be cleaned in the following man- carpeting. ner: Use MOPAR® Total Clean to clean vinyl upholstery. •...
Page 323 MAINTAINING YOUR VEHICLE 321 WARNING! CAUTION! Do not use volatile solvents for cleaning purposes. Do not use Alcohol and Alcohol-based and/or Keton Many are potentially flammable, and if used in based cleaning products to clean leather seats, as closed areas they may cause respiratory harm. damage to the seat may result.
Page 324 322 MAINTAINING YOUR VEHICLE Glass Surfaces Instrument Panel Bezels All glass surfaces should be cleaned on a regular basis CAUTION! with MOPAR® Glass Cleaner, or any commercial household-type glass cleaner. Never use an abrasive type When installing hanging air fresheners in your ve- cleaner.
Page 325: Fuses
MAINTAINING YOUR VEHICLE 323 Seat Belt Maintenance WARNING! (Continued) Do not bleach, dye or clean the belts with chemical assemblies must be replaced after a collision if they solvents or abrasive cleaners. This will weaken the fabric. have been damaged (i.e., bent retractor, torn web- Sun damage can also weaken the fabric.
Page 326: Interior Fuses
324 MAINTAINING YOUR VEHICLE Interior Fuses WARNING! (Continued) The interior fuse panel is part of the Body Control • Before replacing a fuse, make sure that the ignition Module (BCM) and is located on the driver’s side under is off and that all the other services are switched off the instrument panel.
Page 327 MAINTAINING YOUR VEHICLE 325 Vehicle Fuse Cavity Mini Fuse Description Number 7.5 Amp Brown Right Low Beam 5 Amp Tan Front and Rear Ceiling Lights Trunk and Door Courtesy Lights 5 Amp Tan Instrument Panel Node 20 Amp Yellow Central Door Locking 10 Amp Red Diagnostic Socket, Car Radio, Climate Control System, Tire Pressure Monitor,...
Page 328 326 MAINTAINING YOUR VEHICLE Vehicle Fuse Cavity Mini Fuse Description Number 5 Amp Tan Stop Light Switch, Instrument Panel Node 5 Amp Tan Exterior Mirror, GPS, Electric Mirror, Park- ing Sensor, Sunroof Switch 5 Amp Tan Ignition, Climate Control, RDU and EVCU 20 Amp Yellow Driver Power Window The fuse for the heated mirrors is located behind an...
Page 329: Power Distribution Center #1
MAINTAINING YOUR VEHICLE 327 Power Distribution Center #1 The Power Distribution Center #1 is located on the right side of the underhood compartment. To access the fuses, remove locking screw and slide cover off. F90 Fuse Location 1 — Heated Mirror Fuse 2 —...
Page 330 328 MAINTAINING YOUR VEHICLE Cavity Maxi Fuse Mini Fuse Description 60 Amp Blue – Body Control Module (BCM) 20 Amp Yellow – HiFi Amplifier 20 Amp Yellow – Ignition Switch 40 Amp Orange – Brake System Module Pump 70 Amp Tan –...
Page 331 MAINTAINING YOUR VEHICLE 329 Cavity Maxi Fuse Mini Fuse Description – 10 Amp Red Humidity Sensor VPAM AC Compressor – 5 Amp Tan Electronic Vehicle Control Unit (EVCU) – 10 Amp Red HVAC – 15 Amp Blue Heated Seats – If Equipped –...
Page 332: Power Distribution Center (Pdc) #2
330 MAINTAINING YOUR VEHICLE Power Distribution Center (PDC) #2 Cavity Maxi Mini Description Fuse Fuse The Power Distribution Center #2 is located next to the battery in the underhood compartment. To access the FPT9 – 15 Amp Battery Pack Con- fuses, pull the release tabs and remove the cover.
Page 333: Vehicle Storage
MAINTAINING YOUR VEHICLE 331 REPLACEMENT BULBS Cavity Cartridge Fuse Description FPT3 25 Amp White Battery Coolant Interior Bulbs Pump Bulb Number FPT5 20 Amp Lt. Blue Inverter Coolant Overhead Lamp Pump Courtesy Lamp VEHICLE STORAGE The preferred way of storing your vehicle for a long Exterior Bulbs period of time is to leave it attached to a Level 1 or Level Bulb Number...
Page 334: Bulb Replacement
332 MAINTAINING YOUR VEHICLE BULB REPLACEMENT Bulb Number Side Direction Lamps WY5W NOTE: Lens fogging can occur under certain atmo- spheric conditions. This will usually clear as atmospheric Rear Turn Signal Lamps PY21W conditions change to allow the condensation to change Rear Side Marker Lamps back into a vapor.
Page 335: Front Turn Signal, Parking And Daytime Running Lamps
MAINTAINING YOUR VEHICLE 333 3. Remove the plastic cap from the back of the lamp Front Turn Signal, Parking And Daytime Running housing. Lamps 1. Turn the steering wheel completely to the left or right. 4. Rotate bulb/socket counter-clockwise. 2. Open the wheel housing access door. 5.
Page 336: Rear Tail, Stop, Backup And Turn Signal Lamps
334 MAINTAINING YOUR VEHICLE 3. Pull the bulb from the socket and insert the replace- ment bulb. 4. Install the bulb and socket assembly into the housing, and rotate the socket clockwise to lock it in place. 5. Reinstall the wheel liner. Rear Tail, Stop, Backup And Turn Signal Lamps 1.
Page 337: Center High Mounted Stop Lamp (Chmsl)
MAINTAINING YOUR VEHICLE 335 6. Replace lamps as required and reinstall lamp. 3. Disconnect the electric connector. 4. Remove the two screws. Center High Mounted Stop Lamp (CHMSL) 1. Remove the two guard caps and the two fastening 5. Replace the CHMSL assembly. screws.
Page 338: Fluids, Lubes, And Genuine Parts
336 MAINTAINING YOUR VEHICLE FLUIDS, LUBES, AND GENUINE PARTS Component Fluid, Lubricant, or Genuine Part Coolant MOPAR® Antifreeze/Coolant 10 Year/150,000 Mile Formula OAT (Organic Additive Technology) or equivalent meeting the requirements of Chrysler Ma- terial Standard MS.90032. Brake Master Cylinder MOPAR®...
Page 339 MAINTAINING YOUR VEHICLE 337 CAUTION! CAUTION! (Continued) • This vehicle has not been designed for use with • Mixing of coolant (antifreeze) other than specified propylene glycol-based coolant (antifreeze). Use of Organic Additive Technology (OAT) coolant (anti- propylene glycol-based coolant (antifreeze) is not freeze), may result in cooling system damage and recommended.
Page 341: Maintenance Schedules
MAINTENANCE SCHEDULES CONTENTS MAINTENANCE SCHEDULE ... . .340 ▫ Maintenance Chart ....341...
Page 342 340 MAINTENANCE SCHEDULES Required Maintenance Intervals MAINTENANCE SCHEDULE Once A Month Or Before A Trip: Refer to the maintenance schedules on the following page for the required maintenance intervals. • Check windshield washer fluid level At Every Service Interval: • Check the tire inflation pressures and look for unusual wear or damage •...
Page 343 MAINTENANCE SCHEDULES 341 Maintenance Chart Refer to the Maintenance Schedules on the following pages for the required maintenance intervals. Mileage or time passed (whichever comes first) Or Years: Or Kilometers: Additional Inspections Inspect the CV joints. Inspect front suspension, tie rod ends and boot seals, and re- place if necessary.
Page 344 342 MAINTENANCE SCHEDULES Mileage or time passed (whichever comes first) Or Years: Or Kilometers: Inspect parking brake function. Adjust as necessary. Additional Maintenance Replace cabin air filter. Clean and lube sun roof tracks. Flush and replace the Power Electronics and Battery Thermal Loop Systems at 10 years or 150,000 miles (240,000 km) whichever comes first.
Page 345 MAINTENANCE SCHEDULES 343 WARNING! • You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment. If you have any doubt about your ability to perform a service job, take your vehicle to a competent me- chanic.
Page 347 DEPARTMENT OF TRANSPORTATION UNIFORM ▫ FIAT Customer Center ....347 TIRE QUALITY GRADES ....351 ▫...
Page 348: Suggestions For Obtaining Service For Your Vehicle
346 IF YOU NEED CONSUMER ASSISTANCE SUGGESTIONS FOR OBTAINING SERVICE FOR Be Reasonable With Requests YOUR VEHICLE If you list a number of items and you must have your vehicle by the end of the day, discuss the situation with Prepare For The Appointment the service advisor and list the items in order of priority.
Page 349: Fiat Customer Center
• If for some reason you are still not satisfied, talk to the general manager or owner of the authorized dealer. FIAT Canada Customer Center They want to know if you need assistance. P.O. Box 1621 Windsor, Ontario N9A 4H6 Phone: 1-800- •...
Page 350: Service Contract
348 IF YOU NEED CONSUMER ASSISTANCE has access to a TDD or a conventional teletypewriter manufacturer’s Service Contract National Customer (TTY) in the United States, can communicate with the Hotline at 1-800-521-9922 (Canadian residents, call (800) manufacturer by dialing 1-800-380-CHRY. 465-2001 English / (800) 387-9983 French).
Page 351: Warranty Information
IF YOU NEED CONSUMER ASSISTANCE 349 REPORTING SAFETY DEFECTS WARNING! In The 50 United States And Washington, D.C. Engine exhaust (internal combustion engines only), If you believe that your vehicle has a defect that could some of its constituents, and certain vehicle compo- cause a crash or cause injury or death, you should nents contain, or emit, chemicals known to the State immediately inform the National Highway Traffic Safety...
Page 352: In Canada
350 IF YOU NEED CONSUMER ASSISTANCE You can also obtain other information about motor NOTE: A street address is required when ordering vehicle safety from http://www.safercar.gov. manuals (no P.O. Boxes). Service Manuals In Canada If you believe that your vehicle has a safety defect, you These comprehensive Service Manuals provide the infor- should contact the Customer Service Department imme- mation that students and professional technicians need in...
Page 353: Department Of Transportation Uniform Tire Quality Grades
IF YOU NEED CONSUMER ASSISTANCE 351 problems the first time, using step-by-step troubleshoot- DEPARTMENT OF TRANSPORTATION UNIFORM ing and drivability procedures, proven diagnostic tests TIRE QUALITY GRADES and a complete list of all tools and equipment. The following tire grading categories were established by the National Highway Traffic Safety Administration.
Page 354: Treadwear
352 IF YOU NEED CONSUMER ASSISTANCE Treadwear WARNING! The Treadwear grade is a comparative rating, based on The traction grade assigned to this tire is based on the wear rate of the tire when tested under controlled straight-ahead braking traction tests, and does not conditions on a specified government test course.
Page 355 IF YOU NEED CONSUMER ASSISTANCE 353 Vehicle Safety Standard No. 109. Grades B and A repre- sent higher levels of performance on the laboratory test wheel, than the minimum required by law. WARNING! The temperature grade for this tire is established for a tire that is properly inflated and not overloaded.
Page 357 INDEX...
Page 358 356 INDEX Adding Washer Fluid ..... .314 Anti-Lock Brake System (ABS) ....229 Air Bag .
Page 359 INDEX 357 Anti-Lock (ABS) ......229 Child Seat Installation .....92 Master Cylinder .
Page 360 358 INDEX Contract, Service ......348 Electric Remote Mirrors .....104 Cooling System Electronic Brake Control System Coolant Capacity .
Page 361 INDEX 359 Fog Lights ......127 Holder, Cup ......148 Freeing A Stuck Vehicle .
Page 362 360 INDEX Key, Sentry (Immobilizer) ....34 High Beam Indicator .....158 Park .
Page 363 INDEX 361 Maintenance, General ..... .301 Passing Light ......124 Maintenance Procedures .
Page 364 362 INDEX Rear Window Features .....151 Safety Information, Tire .....236 Recorder, Event Data .
Page 365 INDEX 363 Operating Instructions ....52 Steering Pregnant Women ......55 Power .
Page 366 364 INDEX General Information .....248 Disabled Vehicle ......295 High Speed .
Page 367 INDEX 365 Universal Consumer Interface (UCI) Connector ..199 Water Untwisting Procedure, Seat Belt ....54 Driving Through ......223 Wheel And Wheel Trim .
Page 368 INSTALLATION OF RADIO TRANSMITTING EQUIPMENT Special design considerations are incorporated into this The antenna cable should be as short as practical and vehicle’s electronic system to provide immunity to radio routed away from the vehicle wiring when possible. Use frequency signals. Mobile two-way radios and telephone only fully shielded coaxial cable.
Page 369 FCA US LLC 15BEV24-126-AD Fourth Edition Printed in U.S.A.

Fiat 2015 500e Owner's Manual

Introduction

Things to Know before Starting Your Vehicle

Understanding the Features of Your Vehicle

Understanding Your Instrument Panel

Starting and Operating

What to Do in Emergencies

Maintaining Your Vehicle

If You Need Consumer Assistance

Quick Links

Chapters

Related Manuals for Fiat 2015 500e

Summary of Contents for Fiat 2015 500e
